Howard-McCray R-SF22 Single-Section Remote Reach-In Freezer, 22 Cu. Ft.

SKU: R-SF22
$4,008.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Frozen Food Storage & Dispensers Howard-McCray New Arrivals Reach-in Freezers Reach-In Refrigerators & Freezers Reach-In Refrigerators & Freezers Refrigeration, Freezing & Ice Restaurant Equipment

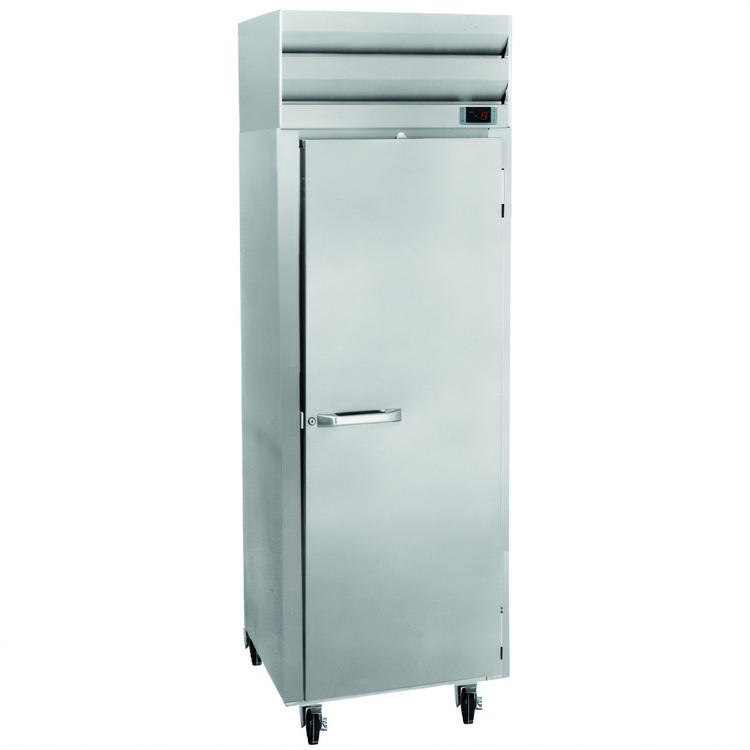

Howard-McCray R-SF22 Single-Section Remote Reach-In Freezer, 22 Cu. Ft.

One Solid Hinged Door, 115V, Stainless Steel Front

A compact remote freezer built for dependable frozen storage, with digital temperature control, adjustable shelving, and durable stainless-and-aluminum construction.

  • Remote refrigeration keeps heat-producing components out of the cabinet; condensing unit and other hook-ups are not included.
  • Single-section, one-door design with a solid hinged stainless steel door.
  • 22-cubic-foot capacity with adjustable epoxy-coated shelves for flexible storage.
  • XR40 Dixell control, dial thermometer, and R448A expansion valve help maintain product temperature.
  • Stainless steel front, aluminum interior/end panels, and 5-inch casters support durability and mobility.
  • Designed for frozen storage in a -5°F to 5°F operating range and requires a drain connection.

Overall Dimensions:

26.5"W x 36.84"D x 83.0"H

Product Weight:

328.0 lb

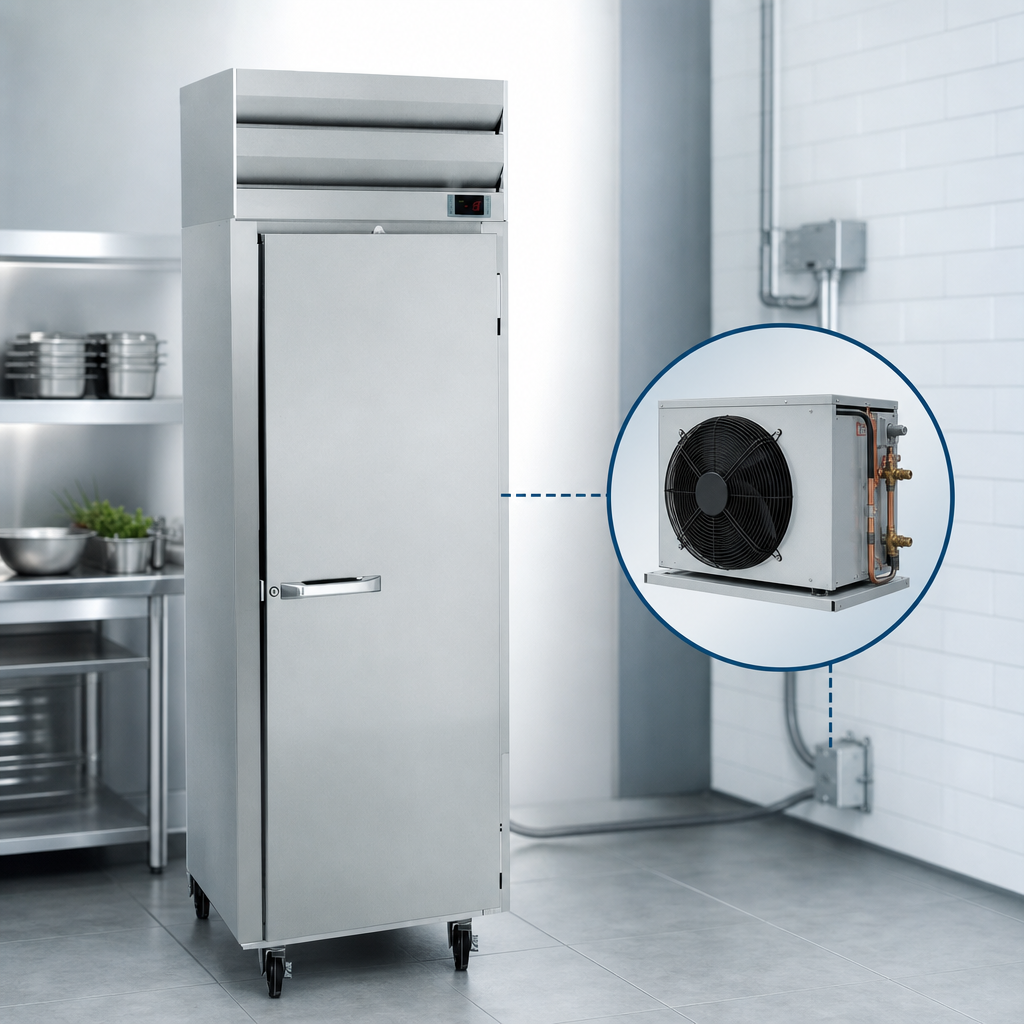

Remote Refrigeration

Remote configuration keeps the condensing equipment separate from the cabinet; condensing unit and other hook-ups are not included.

Remote Refrigeration

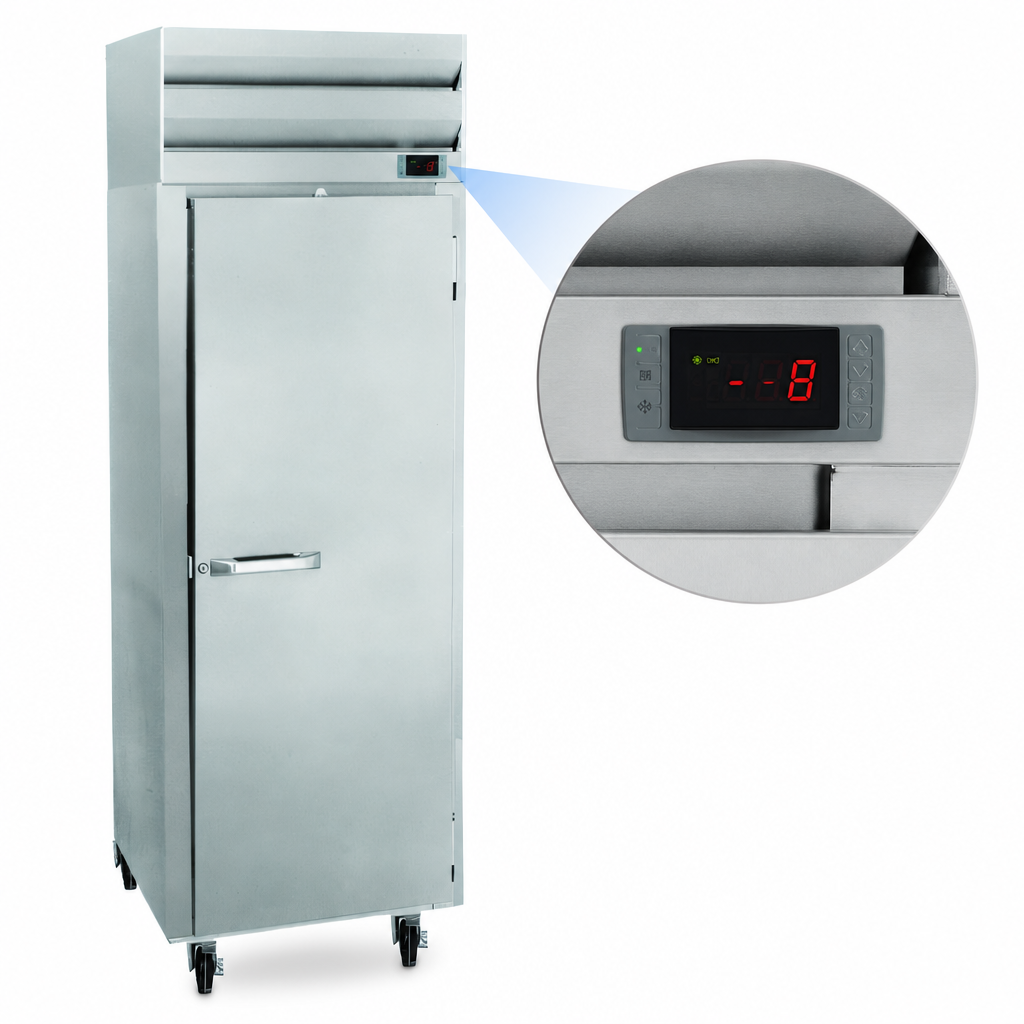

XR40 Dixell Control

Electronically controlled with an externally mounted digital display and audio alarm for easy temperature monitoring.

XR40 Dixell Control

R448A Expansion Valve

Provided for the remote refrigeration setup.

Solid Hinged Door

One solid stainless steel door with heavy-duty edge-mount hinges and self-closing action.

Adjustable Shelving

Three epoxy-coated shelves per door provide flexible frozen storage.

Durable Cabinet Construction

Stainless steel front with aluminum interior and aluminum end panels for commercial durability.

Mobility Features

5-inch heavy-duty casters make the unit easier to move for cleaning and service.

Operating Support Features

Includes a dial thermometer, automatic air defrost, and a drain requirement for installation.

Type Reach-In Freezer
Style Single Section
Installation Type Floor Model
Refrigeration Type Remote
Capacity 22 Cubic Feet
Controls Digital
Temperature Range -5°F to 5°F
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 9.6 Amps
BTU 1,900 BTU
Material Stainless Steel
Interior Finish Aluminum
Finish Stainless Steel Front, Aluminum End Panels
Drain Connection Required
Shipping Width 27 Inches
Shipping Depth 37 Inches
Shipping Height 83 Inches
Shipping Weight 328 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This is a remote refrigeration model, and the condensing unit and other hook-ups are not included.
It operates on 115 Volts, 60 Hz, single-phase power and draws 9.6 amps.
The cabinet has a 22-cubic-foot capacity.
It is designed to operate in a -5°F to 5°F range.
It has one solid hinged stainless steel door.
Yes. The unit is equipped with drains, and local code requirements should be checked for connection details.
