Howard-McCray

Howard-McCray OS35E Series 63-Inch Low-Profile Remote Open-Air Merchandiser, Straight Sides, Stainless Steel, 44-Inch High

SKU: R-OS35E-5-S
$7,083.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Howard-McCray Merchandising & Display Refrigeration New Arrivals Open-Air Coolers Refrigeration, Freezing & Ice Restaurant Equipment

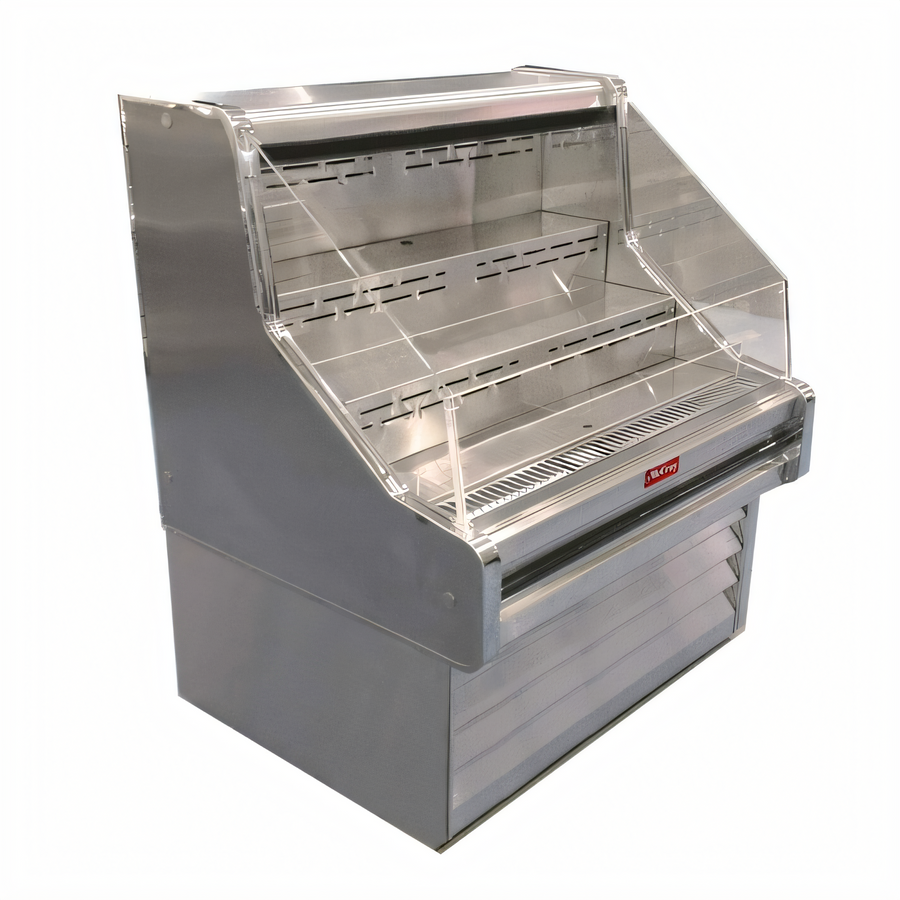

Howard-McCray OS35E Series 63-Inch Low-Profile Remote Open-Air Merchandiser, Straight Sides, Stainless Steel, 44-Inch High

Endless Design, Removable Step Shelf, Remote Refrigeration

Built for remote refrigeration, this low-profile stainless steel merchandiser delivers continuous lineup flexibility and high-visibility grab-and-go display.

  • Remote open merchandiser designed for use with a separate condensing unit.
  • 63-inch wide, 44-inch high low-profile case with straight sides.
  • Stainless steel exterior and interior for durability and easy cleaning.
  • Endless design supports continuous lineups across multiple cases.
  • Removable step shelf creates a two-tier merchandising display.
  • Drain required; 115V, 60 Hz, single-phase operation with 1.4 amps.

Overall Dimensions:

63.0"W x 34.5"D x 44.0"H

Product Weight:

468.0 lb

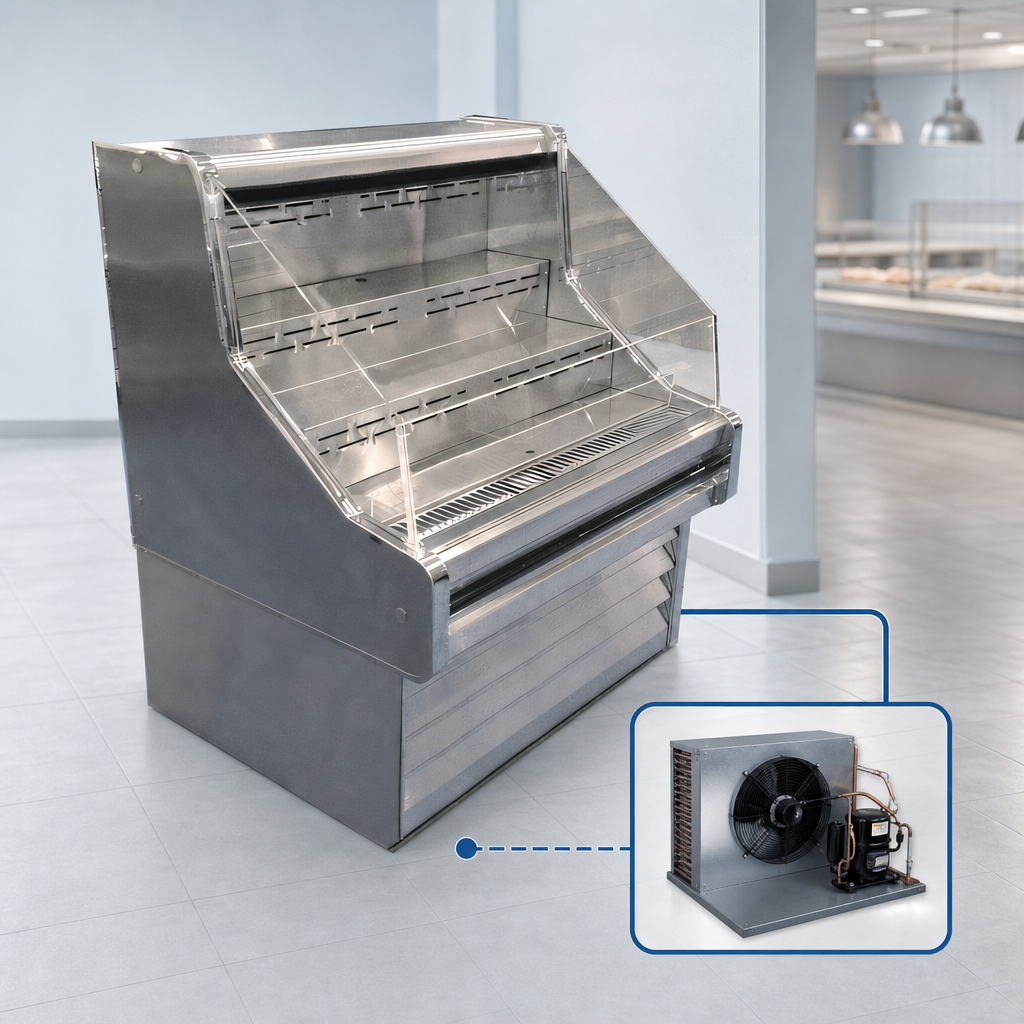

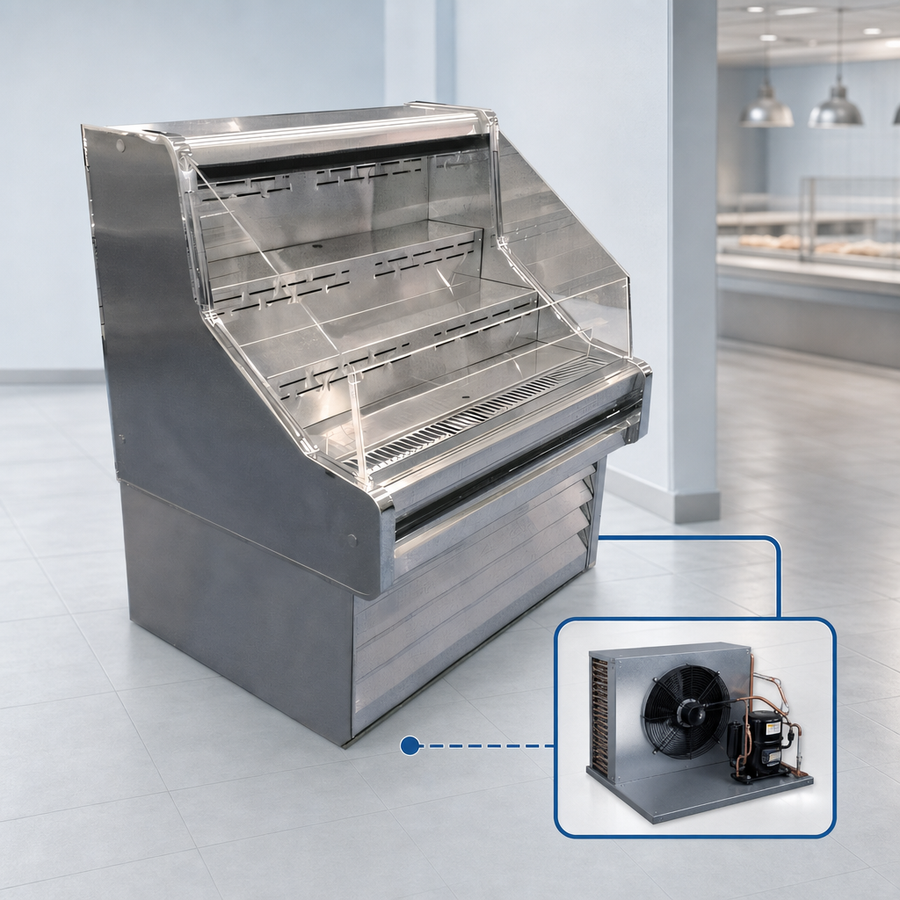

Remote Refrigeration Design

Designed for a remote condensing unit; remote condensing units and other hook-ups are not included.

Remote Refrigeration Design

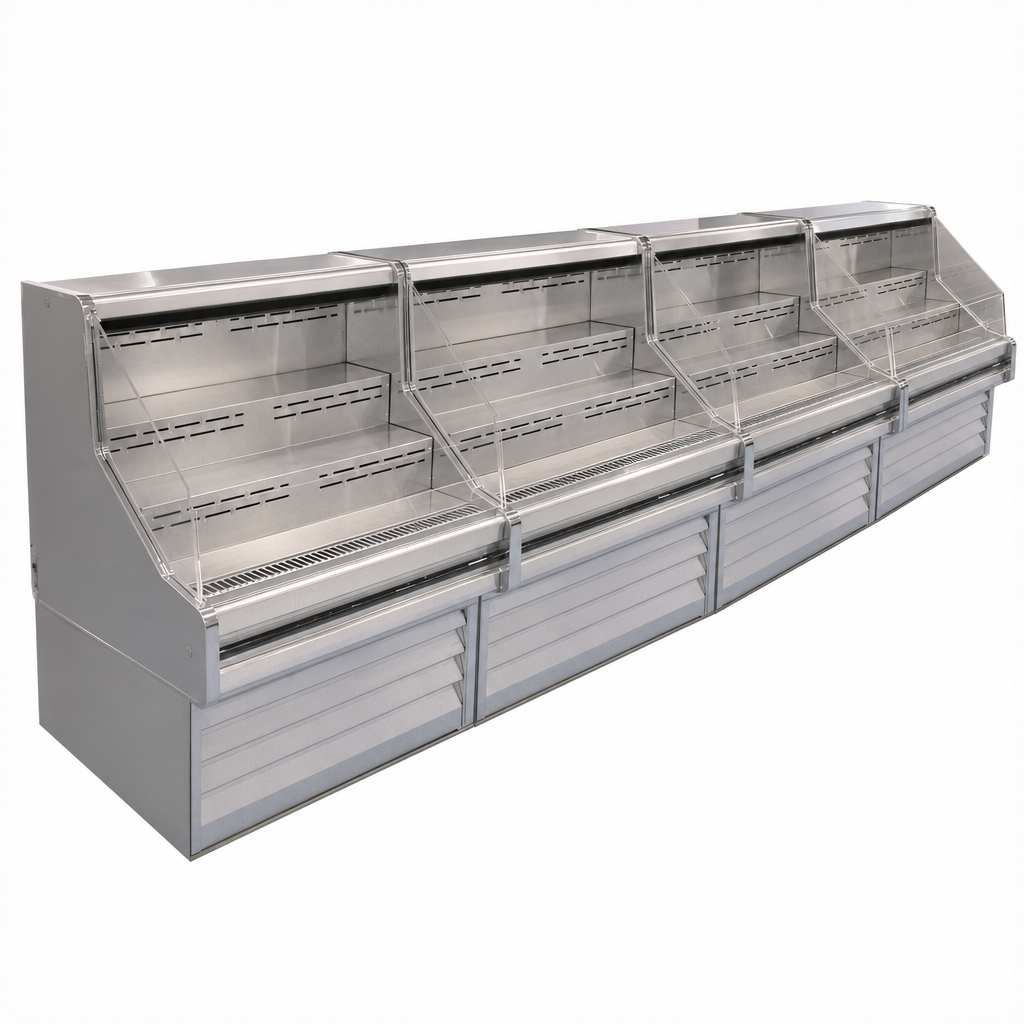

Endless Lineup Design

The endless design allows multiple cases to be placed side by side for a continuous merchandising run.

Endless Lineup Design

Stainless Steel Construction

Stainless steel exterior and interior provide a durable, cleanable finish for commercial use.

Removable Step Shelf

Includes a removable step shelf to create a two-tier display and improve product visibility.

Low-Profile Cabinet

The 44-inch height keeps sightlines open while maximizing display presentation.

R448A Expansion Valve Included

Supplied with an R448A expansion valve for the remote refrigeration setup.

Drain Required

The case is equipped with drains and must be connected per local code requirements.

Operating Conditions

Designed to operate at 75°F and 55% relative humidity, with an operating temperature of 36°F to 40°F.

Type Open Merchandiser
Style Horizontal Case
Installation Type Floor Model
Refrigeration Type Remote
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Voltage 115 Volts
Amps 1.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type No Cord/Plug
BTU 6,096 BTU
Temperature Range 36°F to 40°F
Shipping Width 63 Inches
Shipping Depth 35 Inches
Shipping Height 44 Inches
Shipping Weight 468 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It is designed for remote refrigeration, and remote condensing units and other hook-ups are not included.
The unit operates on 115 Volts, 60 Hz, single-phase power and draws 1.4 amps.
Yes. It includes a removable step shelf for a two-tier display.
Yes. The case is equipped with drains, and a drain connection is required per local code requirements.
The case is designed to operate at 36°F to 40°F in an environment of 75°F and 55% relative humidity.
