Howard-McCray

Howard-McCray 34N Series Remote Double Duty Red Meat Service Case, 48-Inch, LED Lighting, White

SKU: R-CMS34N-4-LED
$6,383.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

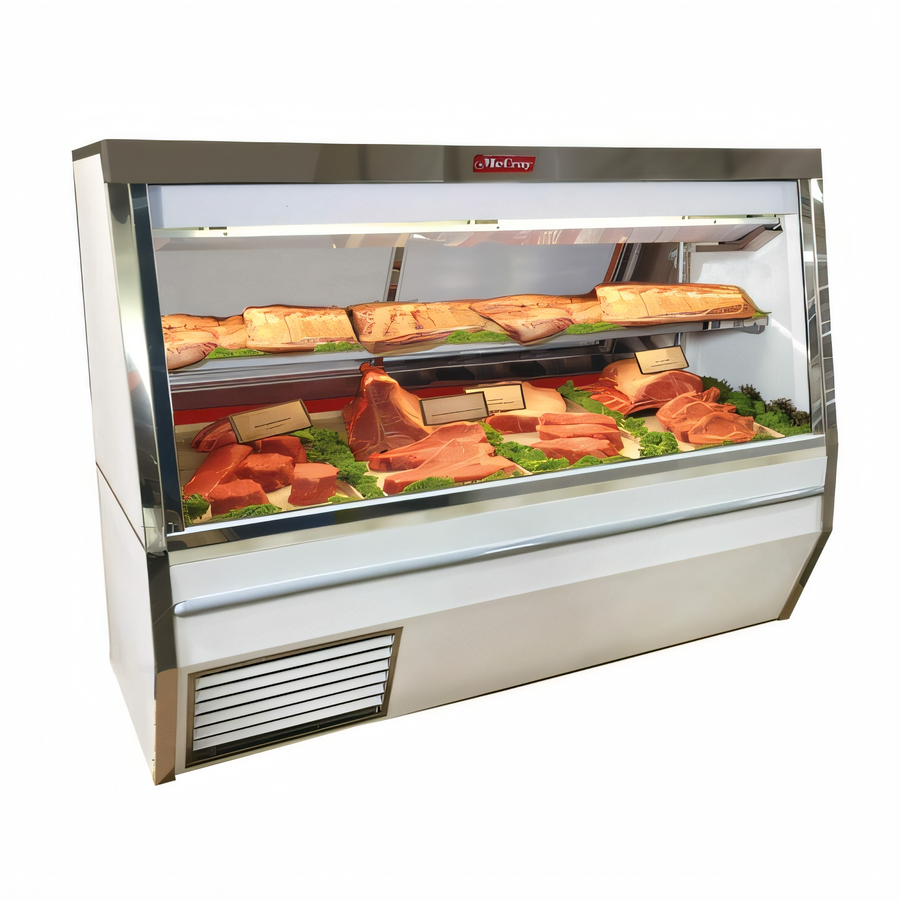

Howard-McCray 34N Series Remote Double Duty Red Meat Service Case, 48-Inch, LED Lighting, White

Straight Glass Front, Full-Service, White Interior/Exterior

Built for premium meat presentation, this 48-inch remote red meat case combines LED lighting, full-length gravity coils, and a clean white finish.

  • Remote refrigeration design with an R448A expansion valve included; condensing unit and hook-ups are not included.
  • Double-duty red meat case with upper and lower compartments and a stand-alone, freestanding design.
  • Full-length gravity coil system and humidity coil help maintain consistent temperatures and reduce moisture issues.
  • LED lighting with two rows at the top improves product visibility on the sales floor.
  • White exterior and white interior with a stainless steel top for a clean, professional display.
  • Drain included; designed to operate in 75°F and 55% relative humidity environments.
  • Main deck only is standard; mezzanine shelf, pilaster, and shelf lighting are optional add-ons.

Overall Dimensions:

48.0"W x 34.25"D x 55.0"H

Product Weight:

497.0 lb

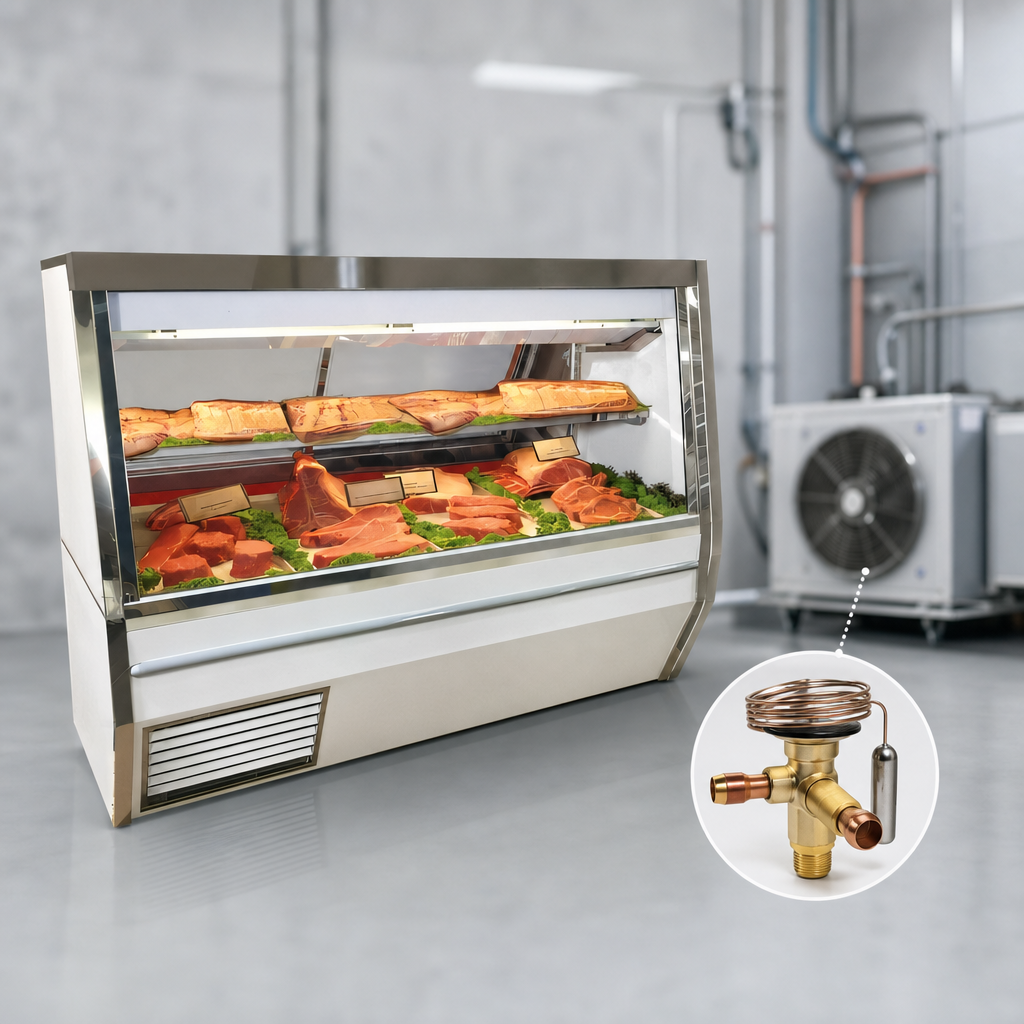

Remote Refrigeration Ready

Designed for remote refrigeration, with the remote condensing unit and other hook-ups sold separately; an R448A expansion valve is included.

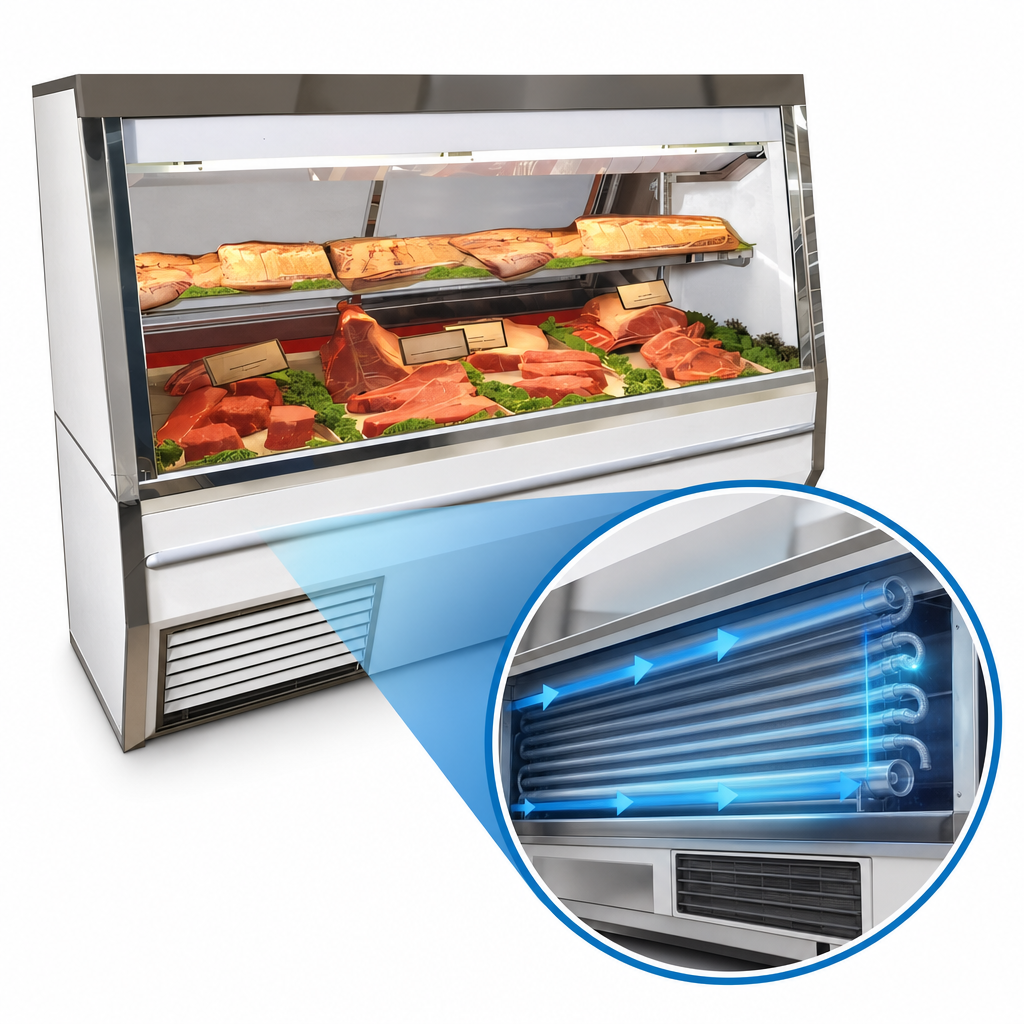

Full-Length Gravity Coil System

Gravity coil refrigeration runs the length of the case to help maintain even temperatures across the display and storage areas.

LED Display Lighting

Two rows of top-mounted LED lighting help showcase product and improve visibility.

Double-Duty Red Meat Configuration

Upper and lower compartments provide flexible merchandising and storage space in one case.

White Finish Package

Features a white exterior and white interior with a stainless steel top for a bright, clean presentation.

Thermal Insulated Front Glass

Insulated front glass supports temperature retention while keeping the display area visible.

Drain Included

The case is equipped with a drain and is intended to be connected per local code requirements.

Optional Display Add-Ons

Main deck only is standard; mezzanine shelf, pilaster, and shelf lighting must be added as options.

Type Red Meat Service Case
Style Full Service
Installation Type Freestanding
Refrigeration Type Remote
Refrigerant Type R448A
Capacity 25.3 Cubic Feet
Color White
Interior Finish White
Controls Electronic
Temperature Range 34°F to 36°F
Voltage 115 Volts
Amps 0.8 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 1400 BTU
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 61 Inches
Shipping Depth 44 Inches
Shipping Height 63 Inches
Shipping Weight 497 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Frequently Asked Questions

No. It is designed for remote refrigeration, and the remote condensing unit and other hook-ups are not included.
The case includes LED lighting, a stainless steel top, white exterior and interior finishes, and an R448A expansion valve.
Yes. The unit is equipped with a drain, and a drain connection is required per local building codes.
This model operates on 115 volts, 60 Hz, single phase, and 0.8 amps.
Yes. The main deck is standard, and the mezzanine shelf, pilaster, and shelf lighting must be added as options.
It is designed to operate at 75°F and 55% relative humidity.
