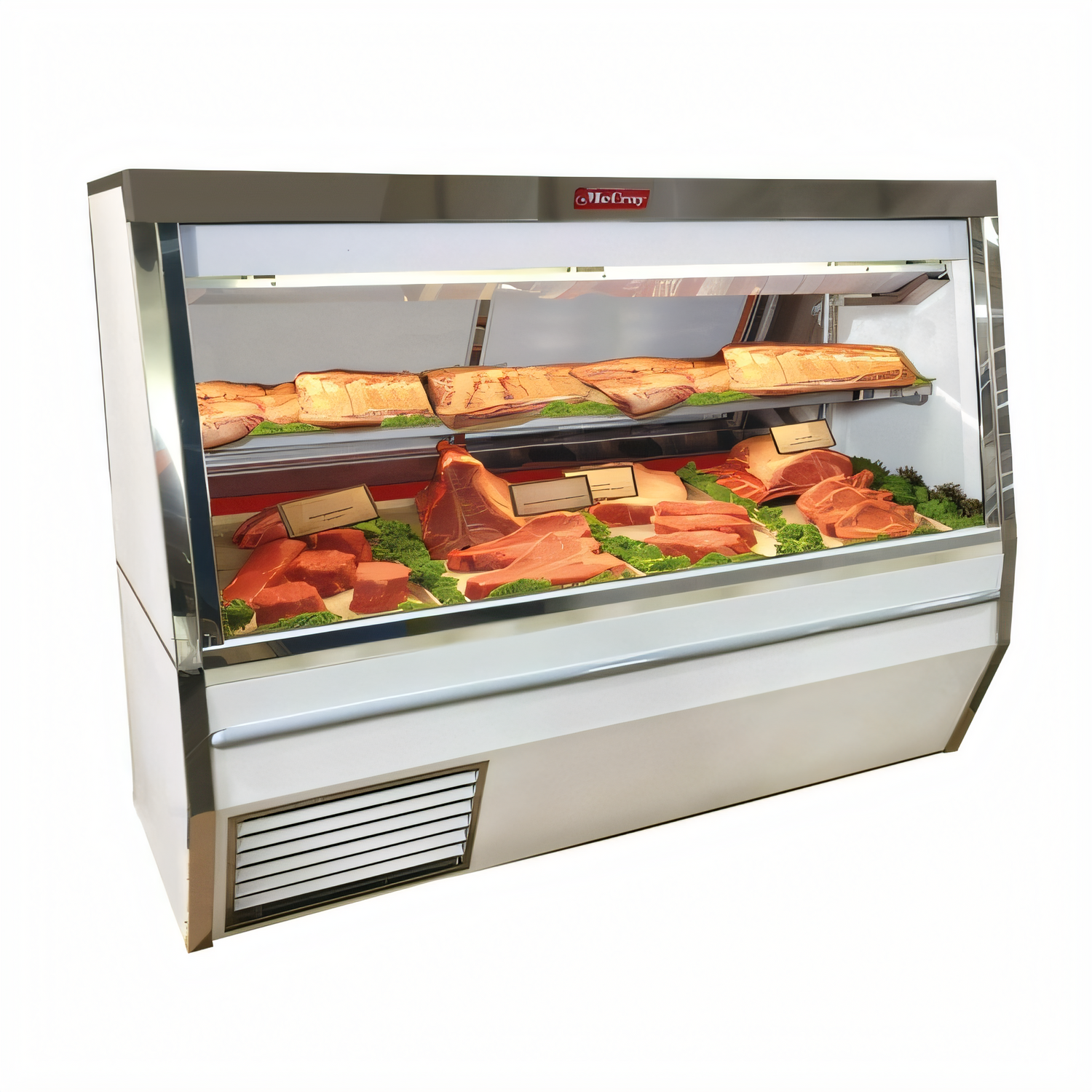

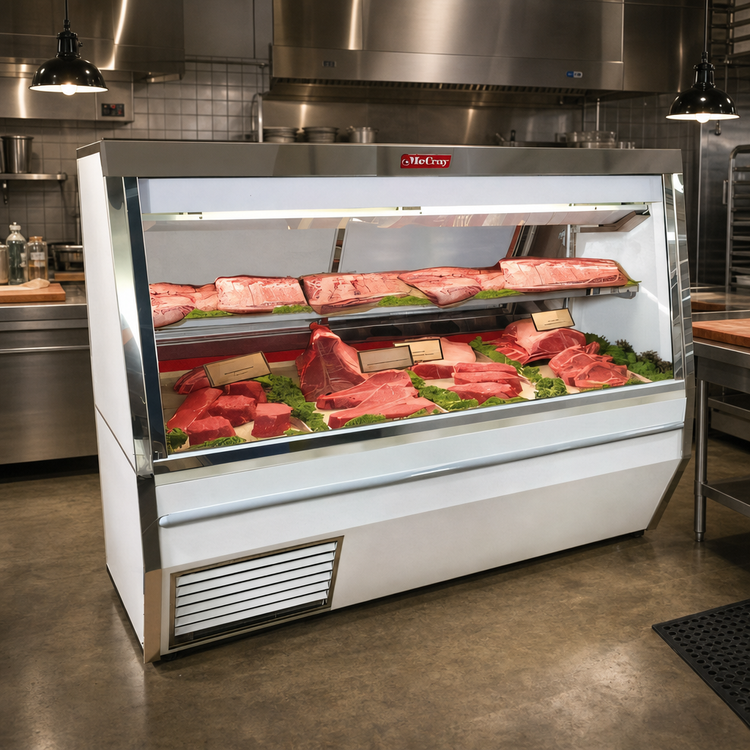

Howard-McCray 34N Series Double Duty Red Meat Remote Service Case, 144 Inch, White, LED

SKU: R-CMS34N-12-LED
$10,999.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Deep Fryers New Arrivals Restaurant Equipment

Howard-McCray 34N Series Double Duty Red Meat Remote Service Case, 144 Inch, White, LED

Stand-Alone Design, Straight Glass Front, Remote Refrigeration

Built for remote refrigeration, this 12-foot red meat service case combines double-duty display capacity, LED illumination, and a durable stainless steel top for high-impact merchandising.

  • Designed for remote refrigeration; condensing units and other hook-ups are not included.
  • 144-inch stand-alone red meat service case with upper and lower compartments for flexible merchandising.
  • LED top lighting and a straight glass front improve product visibility.
  • White exterior and white interior create a clean, professional presentation.
  • Stainless steel top adds durability in busy service environments.
  • Drain is included for cleaning and the case is designed for operation at 75°F and 55% relative humidity.

Overall Dimensions:

144.0"W x 34.25"D x 55.0"H

Product Weight:

1359.0 lb

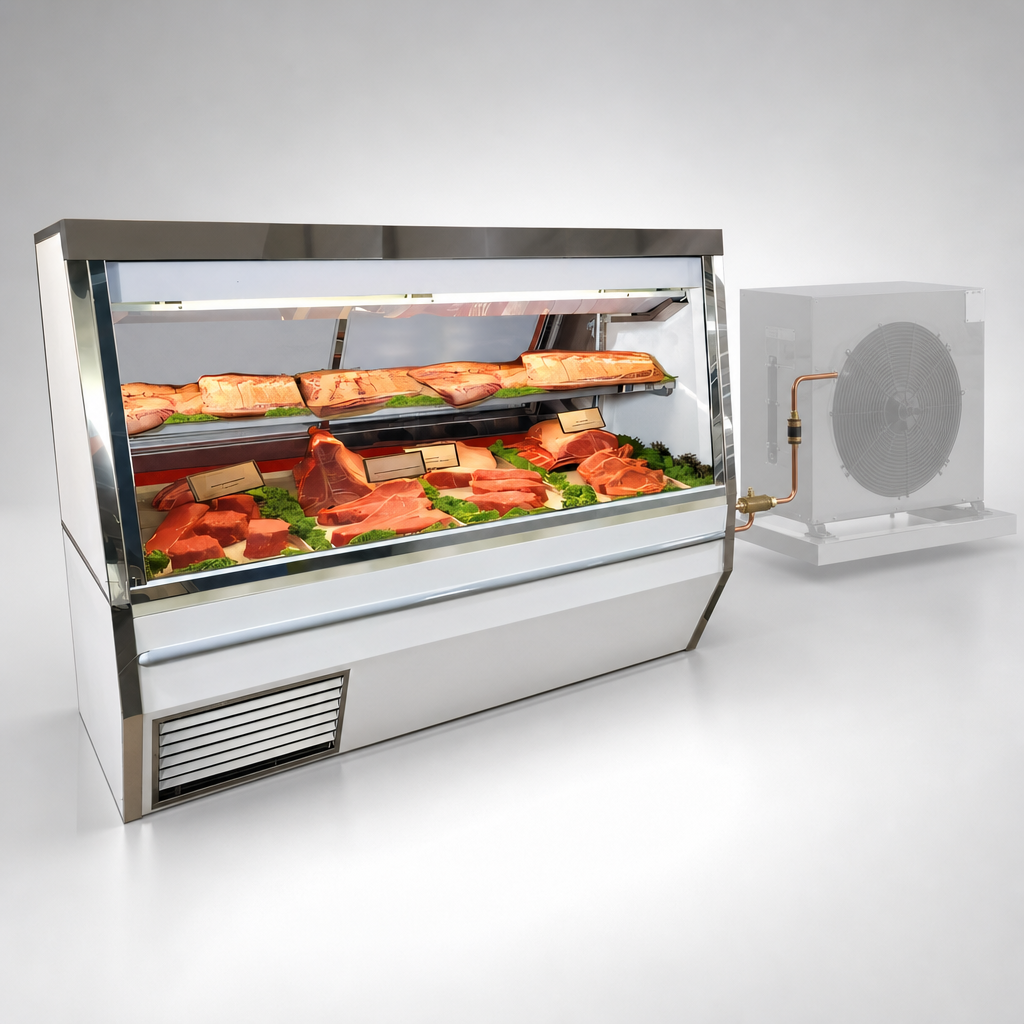

Remote Refrigeration Design

Built for remote refrigeration applications, with an expansion valve included for R448A and no condensing unit or hook-ups included.

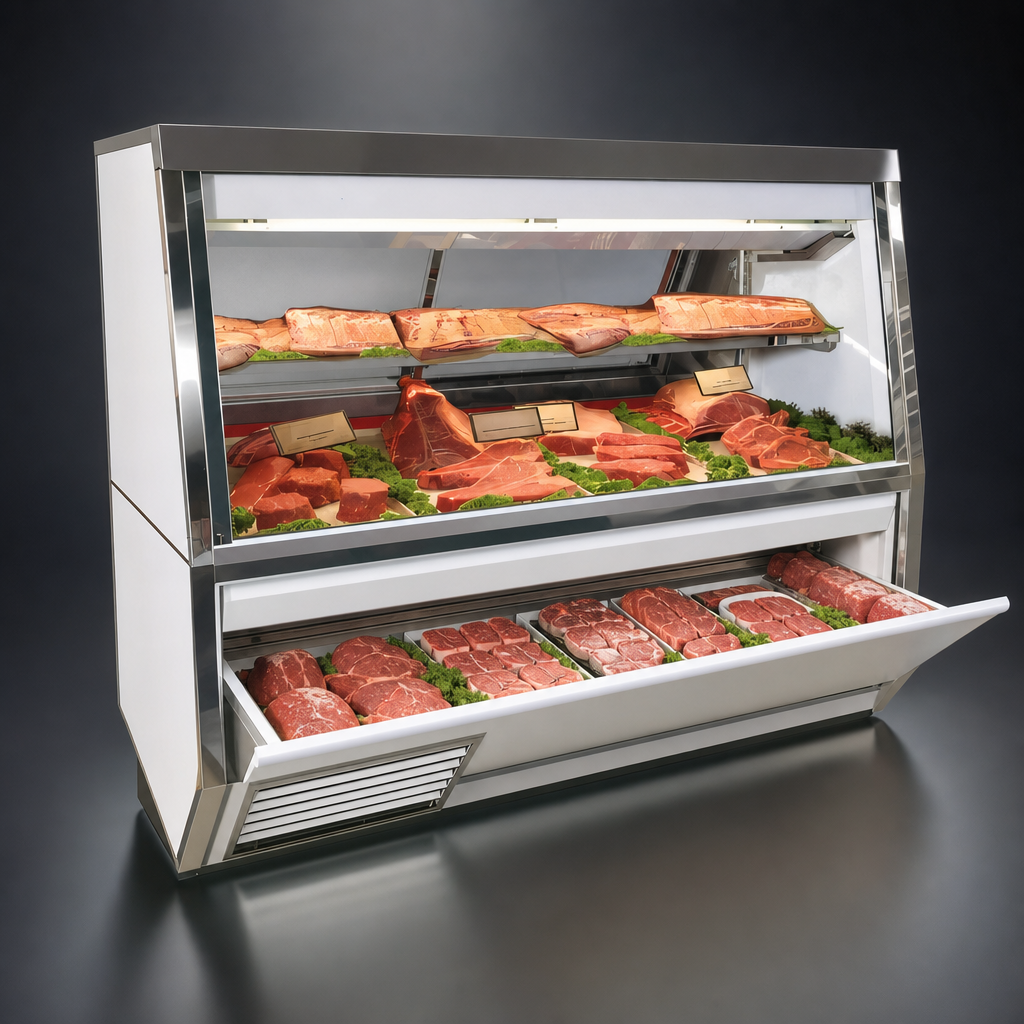

Double Duty Display Layout

Upper and lower compartments provide display and storage flexibility for red meat merchandising.

Full-Length Gravity Coil System

Gravity coil refrigeration runs the full length of the case to help deliver even cooling across the display.

LED Lighting

Top-mounted LED lighting helps brighten the product display and improve visibility.

Stainless Steel Top

A stainless steel top adds durability and provides a clean work surface.

White Exterior and Interior

All-white exterior and white interior create a bright, neutral presentation for the merchandised product.

Straight Glass Front

Straight front glass provides a clear view of the display area.

Drain Included

The unit includes a drain for cleaning and must be connected per local code requirements.

Type Red Meat Service Case
Style Double Duty
Installation Type Freestanding
Refrigeration Type Remote
Compartments 2
Controls Electronic
Temperature Range 34°F to 36°F
Capacity 87.8 Cubic Feet
BTU 4200 BTU
Voltage 115 Volts
Amps 2.4 Amps
Hertz 60 Hz
Phase 1-Phase
Finish White
Interior Finish White
Material Steel
Drain Connection Required
Shipping Width 144 Inches
Shipping Depth 35 Inches
Shipping Height 55 Inches
Shipping Weight 1359 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This model is designed for remote refrigeration, and the condensing unit and other hook-ups are not included.
No. Red meat cases come with the main deck only; mezzanine shelf, pilaster, and shelf lighting must be added as options.
It operates on 115 Volts, 60 Hz, 1-Phase power and draws 2.4 amps.
Yes. The unit includes LED lighting at the top of the case.
Yes. The case includes a drain, and it must be connected according to local building codes.
The case is designed to operate at 75°F and 55% relative humidity.
