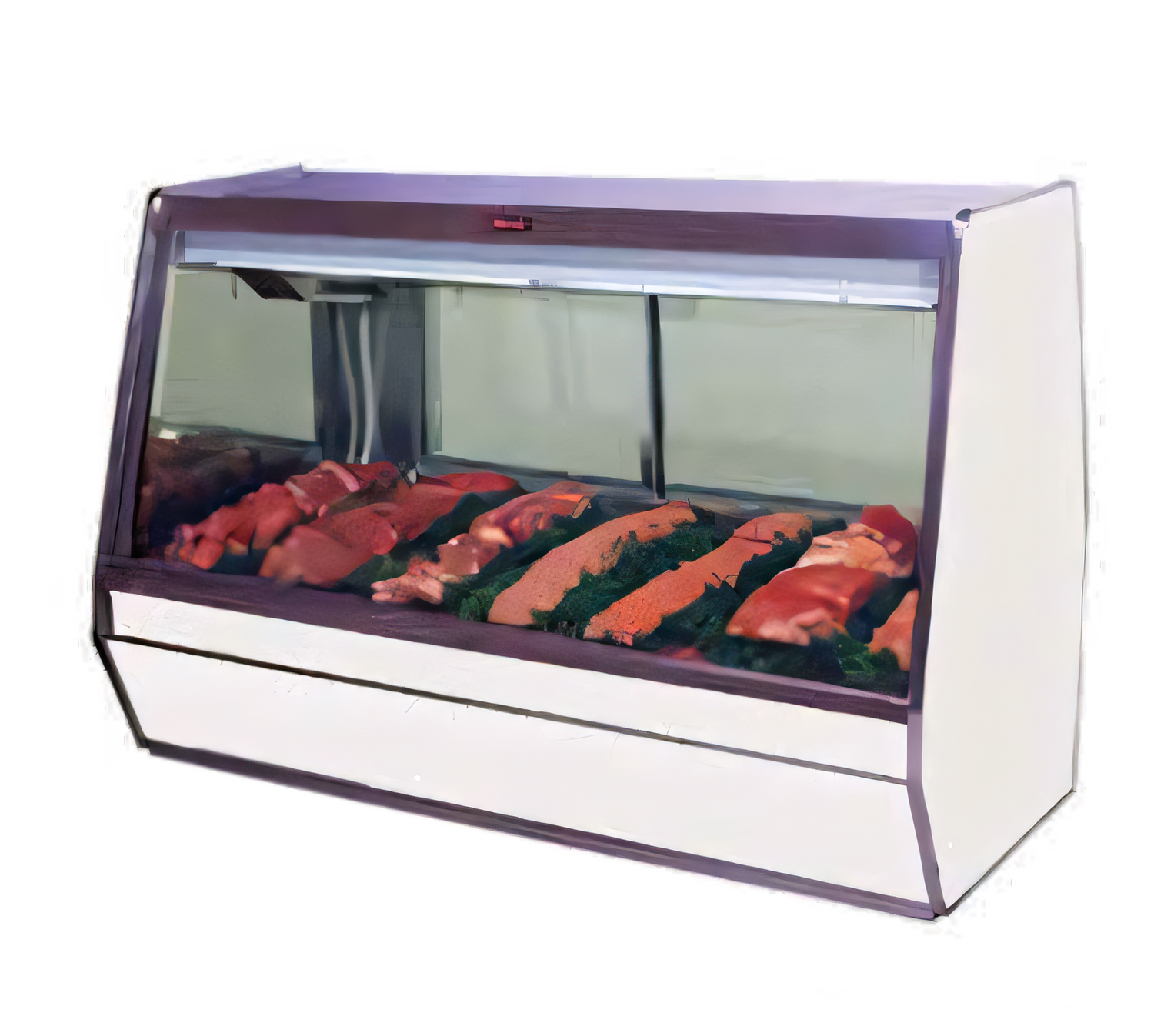

Howard-McCray 32E Series 74-Inch Remote Single-Duty Endless Design Red Meat Service Case with LED Lighting

SKU: R-CMS32E-6-BE-LED
$6,731.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Deep Fryers New Arrivals Restaurant Equipment

Howard-McCray 32E Series 74-Inch Remote Single-Duty Endless Design Red Meat Service Case with LED Lighting

Straight Glass Front, Remote Refrigeration, 115V

This 74-inch remote red meat case combines endless design, gravity-coil cooling, humidity control, and LED lighting to deliver reliable temperature performance and strong product presentation.

  • Built for remote refrigeration with the R448A expansion valve included; condensing units and other hook-ups are not included.
  • Endless design supports continuous multi-case lineups for a clean merchandising run.
  • Full-length gravity coil system with an extra full-length humidity coil at the main deck helps maintain product appearance.
  • Two rows of LED lighting improve visibility across the display area.
  • Main deck only configuration; mezzanine shelf, pilaster, and shelf lighting are optional add-ons.
  • Drain is included, and the case is designed to operate at 75°F and 55% relative humidity.

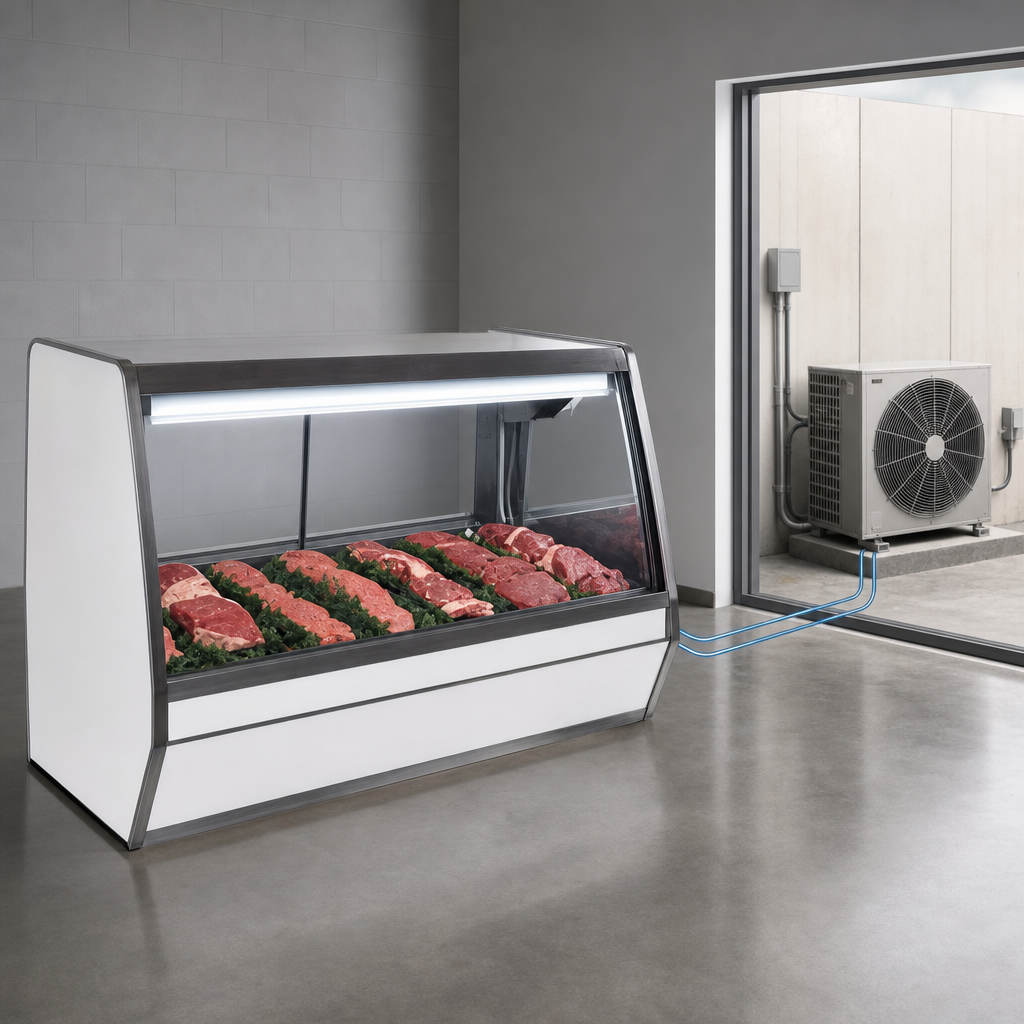

Remote Refrigeration Design

Designed for use with remote refrigeration systems; condensing units and other hook-ups are not included.

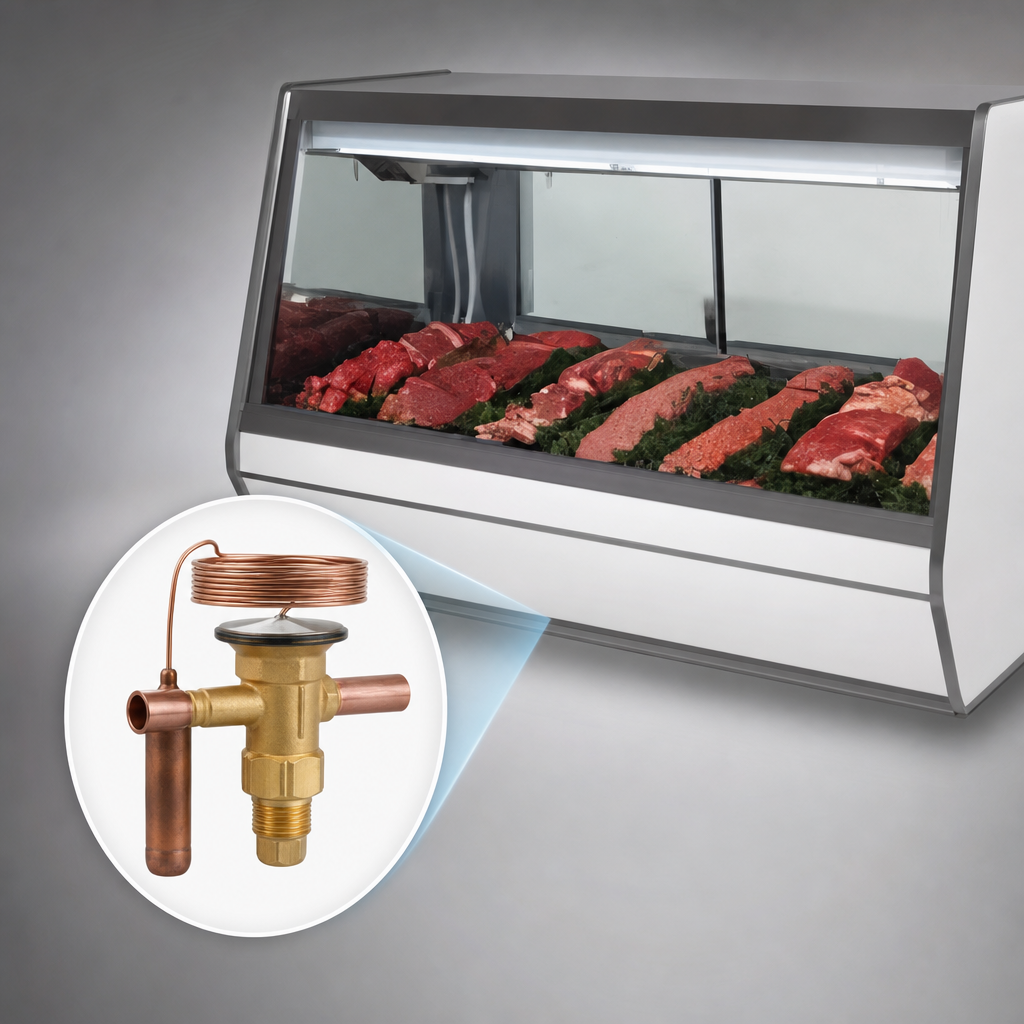

R448A Expansion Valve Included

Factory-included expansion valve supports remote refrigeration setup.

Endless Design

Allows cases to be lined up continuously for larger display runs.

Full-Length Gravity Coil System

Provides consistent cooling across the length of the case.

Main Deck Humidity Coil

Extra full-length humidity coil at the main deck adds moisture to help support red meat display quality.

LED Lighting

Two rows of top-mounted LED lighting brighten product presentation.

Thermally Insulated Front Glass

Helps maintain temperature while providing a clear merchandising view.

Drain Included

The case is equipped with a drain for cleaning; local code requirements should be checked for connection needs.

Main Deck Only

Mezzanine shelf, pilaster, and shelf lighting must be added as options if needed.

Type Red Meat Service Case
Style Single Duty
Installation Type Floor Model
Refrigeration Type Remote
Voltage 115 Volts
Amps 1.6 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 2100 BTU
Capacity 34.5 Cubic Feet
Temperature Range 34°F to 36°F
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 87 Inches
Shipping Depth 44 Inches
Shipping Height 55 Inches
Shipping Weight 630 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is designed for remote refrigeration. The condensing unit and other hook-ups are not included.
An R448A expansion valve is included.
No. This unit includes the main deck only; mezzanine shelf, pilaster, and shelf lighting are optional.
The case is designed to operate at 75°F and 55% relative humidity.
Yes. The case is equipped with a drain, and local building code requirements should be checked for the connection.
