Howard-McCray 40E Series Endless Design 12-Foot Remote Fish and Poultry Service Case, Straight Glass, Stainless Steel, LED

SKU: R-CFS40E-12-S-LED
$16,401.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Displays & Merchandisers Howard-McCray Merchandising & Display Refrigeration New Arrivals Refrigerated Display Cases Refrigeration, Freezing & Ice Restaurant Equipment

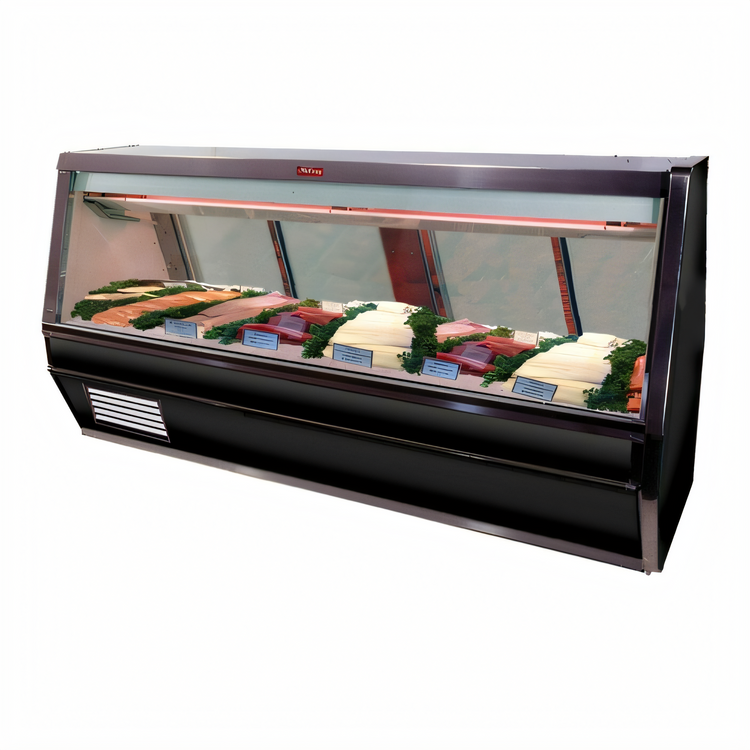

Howard-McCray 40E Series Endless Design 12-Foot Remote Fish and Poultry Service Case, Straight Glass, Stainless Steel, LED

Single Duty, 148.5 Inches, Remote Refrigeration Ready

Built for continuous merchandising, this 12-foot remote case combines straight-glass visibility, stainless steel durability, and LED lighting for an attractive refrigerated display.

  • 12-foot remote fish and poultry service case with straight glass and endless design for continuous merchandising.
  • Stainless steel top, interior, and exterior for durability and easy cleaning.
  • Full-length gravity coil refrigeration and LED lighting help maintain product presentation.
  • Includes stainless steel ice pans with drains plus a drain for cleaning.
  • Designed for remote refrigeration; R448A expansion valve is included, but condensing units and hook ups are not.
  • Rated to operate at 38°F to 40°F in a 75°F, 55% RH environment.

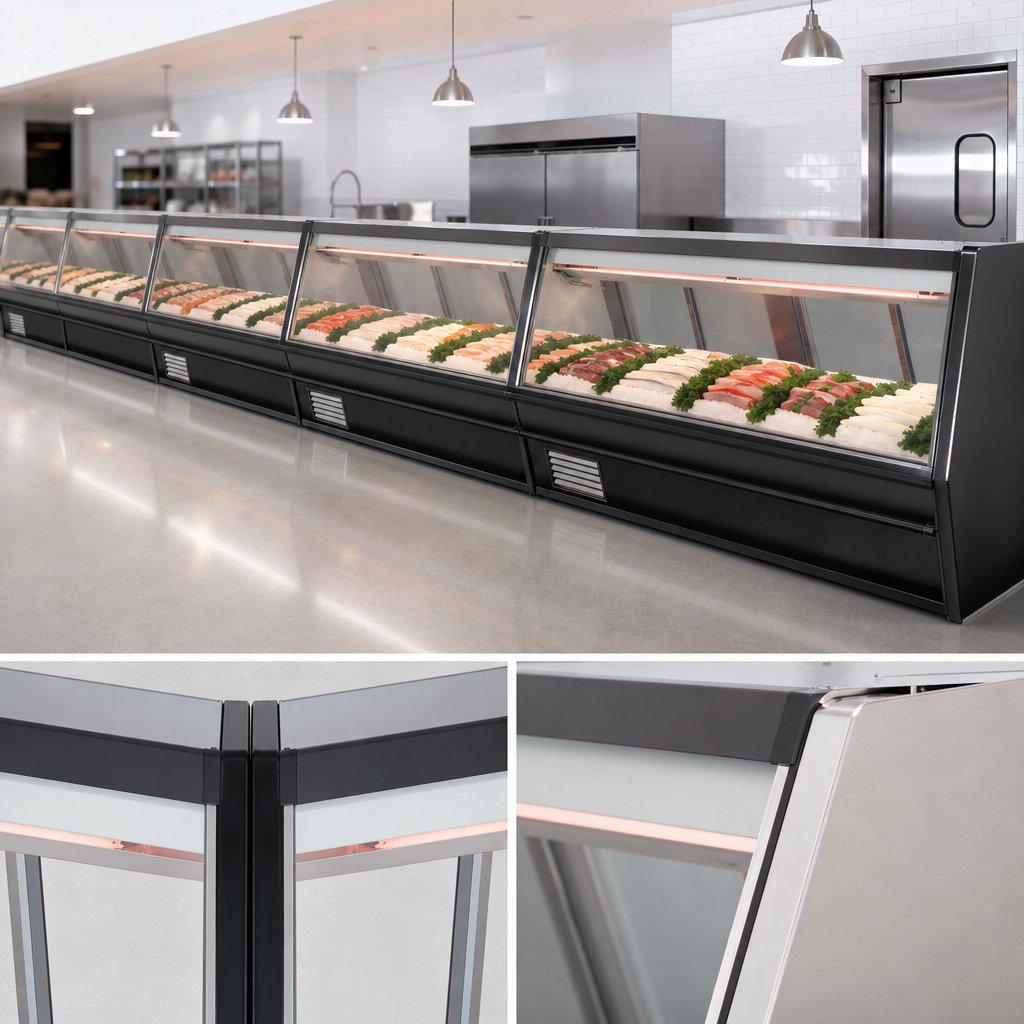

Endless Design

Built for continuous lineups in multi-case refrigerated merchandising runs.

Endless Design

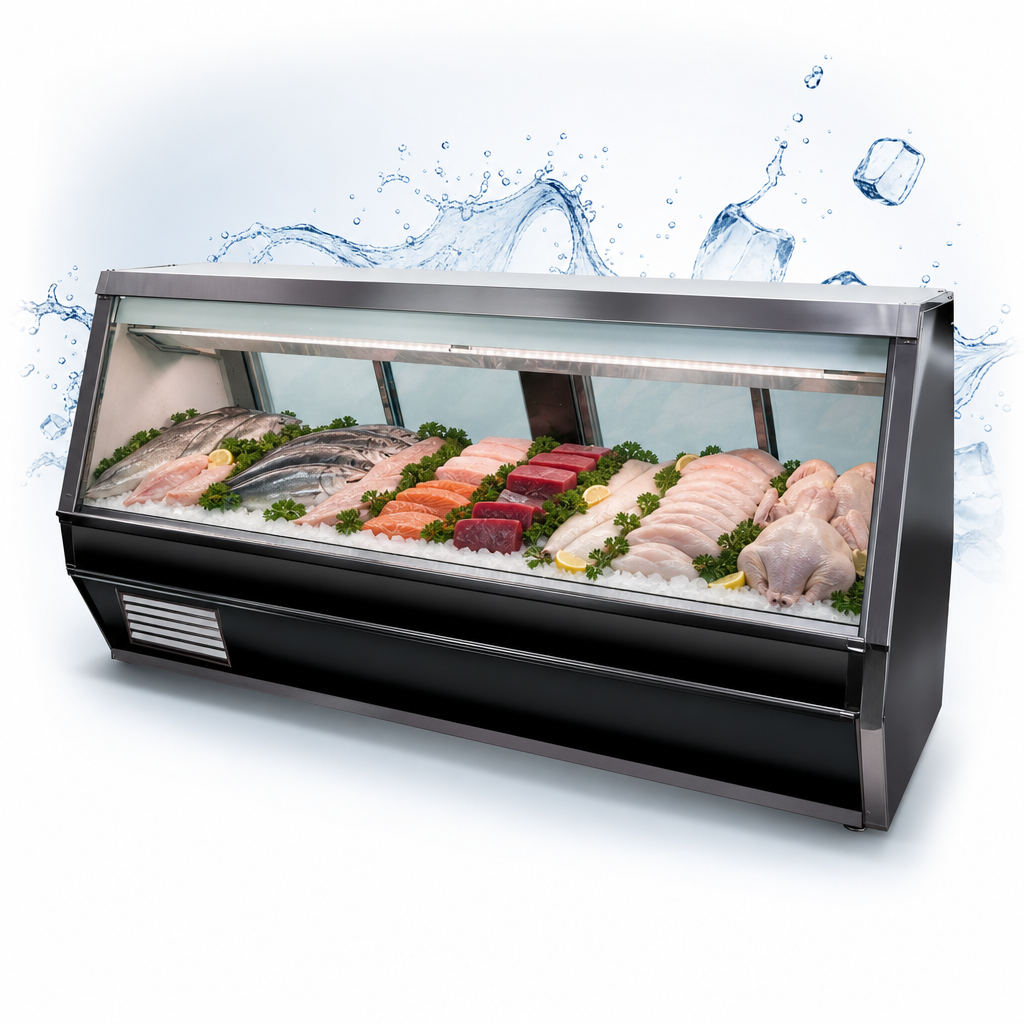

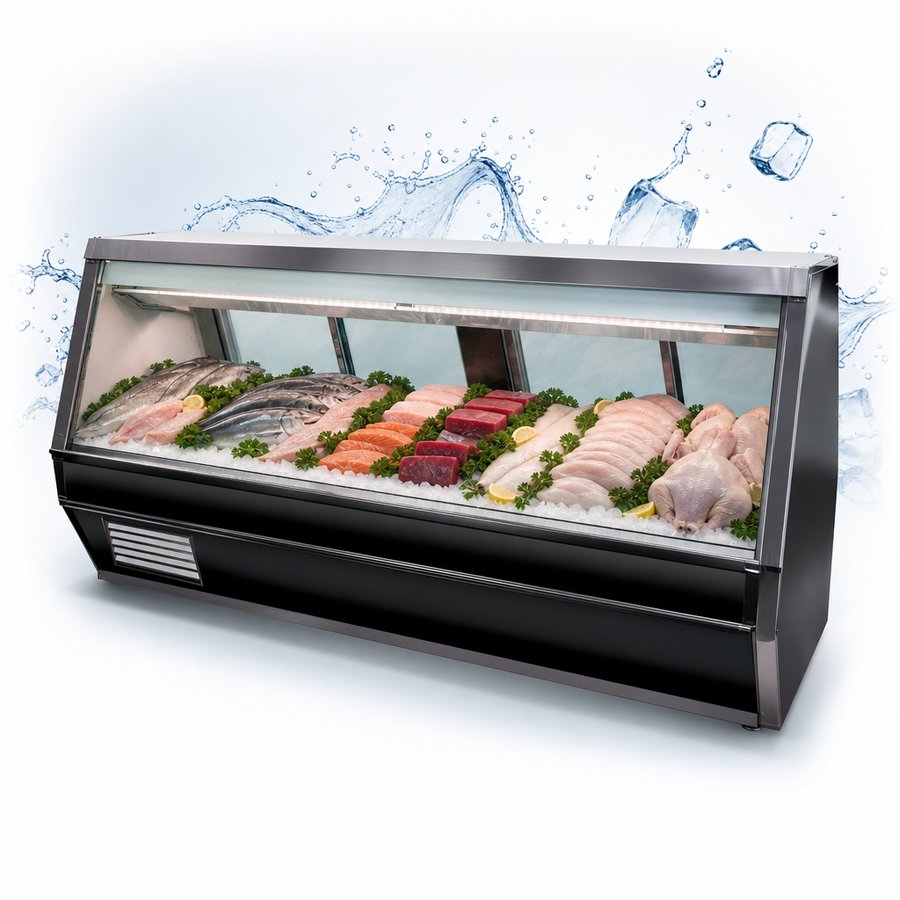

Single Duty Display

Configured for fish and poultry merchandising in a dedicated single duty display format.

Single Duty Display

Straight Glass Front

Thermal insulated straight front glass provides clear visibility to the display area.

Stainless Steel Construction

Stainless steel top, exterior, and interior surfaces support durability and easy cleaning.

Full-Length Gravity Coil

Gravity coil refrigeration is located at the inside top of the unit for even cooling.

LED Lighting

Two rows of LED lighting illuminate product presentation at the top of the case.

Remote Refrigeration Ready

Designed for remote refrigeration; condensing unit and other hook ups are not included.

R448A Expansion Valve Included

Includes the expansion valve needed for a remote R448A refrigeration setup.

Drain and Ice Pans

Stainless steel ice pans with drains are included, and the case includes a drain for cleaning.

Rear Service Access

Double-pane rear removable doors and removable grilles help simplify loading and servicing.

Type Fish and Poultry Service Case
Style Straight Glass
Installation Type Floor Model
Refrigeration Type Remote
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Capacity 74 Cubic Feet
Pan Capacity 5
Temperature Range 38°F to 40°F
Voltage 115 Volts
Amps 2.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
BTU 2,460 BTU
Shipping Width 157 Inches
Shipping Depth 47 Inches
Shipping Height 63 Inches
Shipping Weight 1,359 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It is designed for remote refrigeration, and the condensing unit and other hook ups are not included.
It has straight thermal insulated front glass.
Yes. The case includes drains for cleaning, and local building codes may require specific drain connections.
The case includes two rows of LED lighting at the top.
Yes. The documentation indicates that 10-foot and 12-foot remote units must be hard wired and list no cord or plug.
