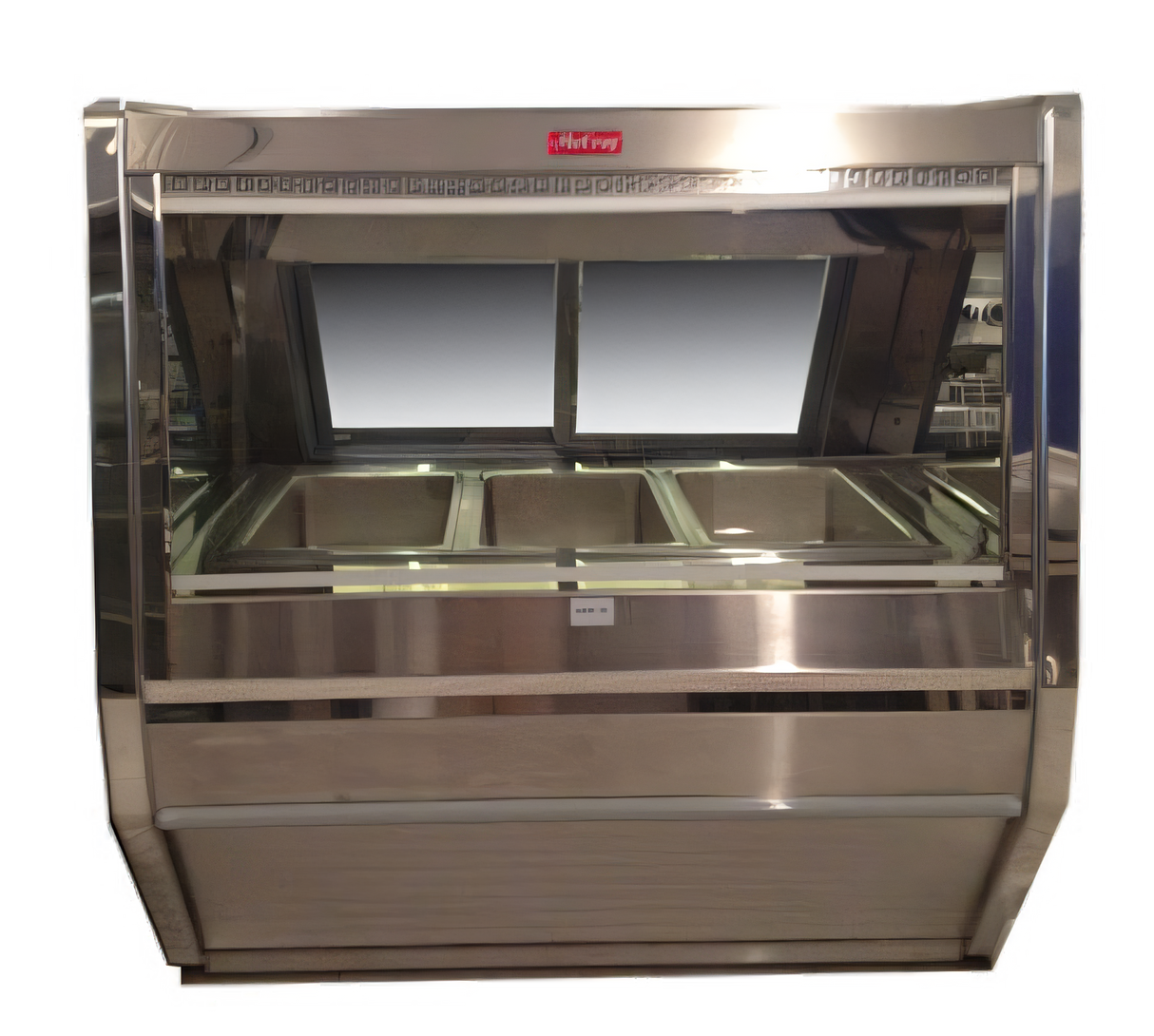

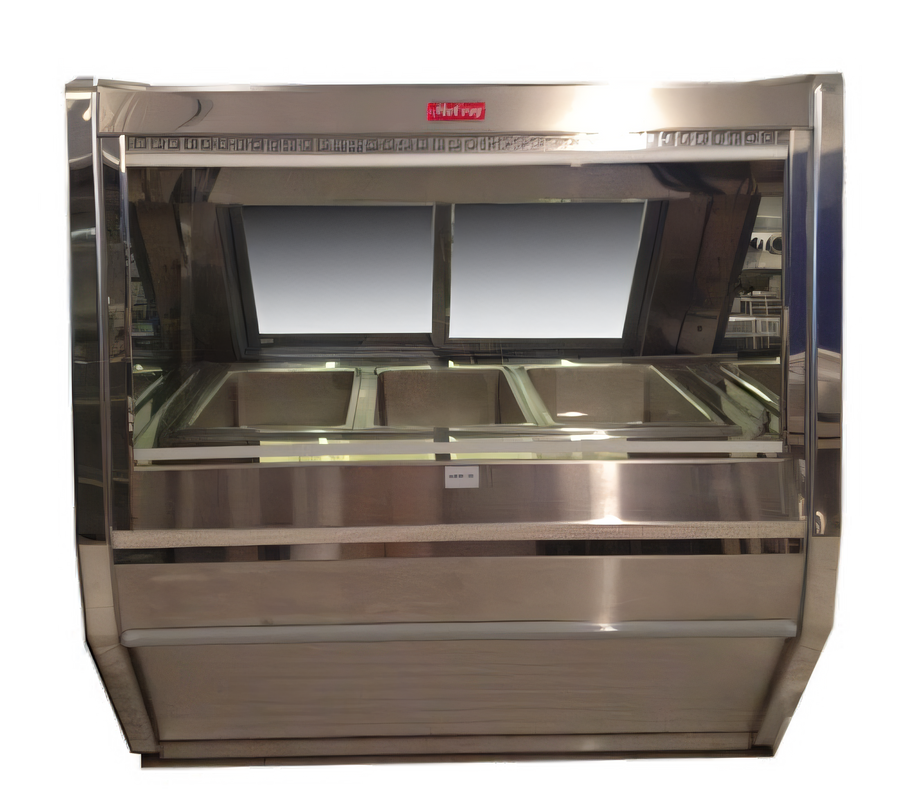

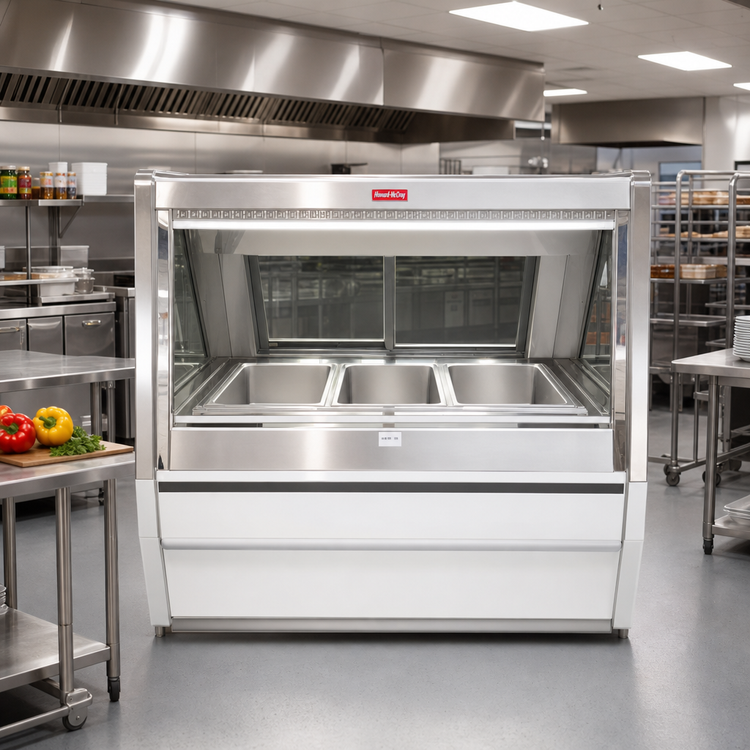

Howard-McCray 40E Series CHS40E-6 Full-Service Hot Food Case, 4 Wells, 76.5 Inch, White Exterior

SKU: CHS40E-6
$11,396.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Food Warming Food Displays & Merchandisers Hot Food Displays Hot Food Displays New Arrivals Restaurant Equipment

Howard-McCray 40E Series CHS40E-6 Full-Service Hot Food Case, 4 Wells, 76.5 Inch, White Exterior

Straight Glass Front, Rear Sliding Double-Pane Doors, Wet or Dry Operation

This full-service hot food case keeps entrées hot and visible with four individually controlled wells, wet/dry flexibility, and a clean stainless-and-white presentation.

  • Four individually thermostatically controlled hot wells for flexible menu service.
  • Designed for wet or dry operation to match different holding applications.
  • Straight tempered glass front improves product visibility and front-of-house presentation.
  • Rear sliding removable double-pane doors make serving and cleanup easier.
  • Stainless steel top, deck, and interior surfaces support durability and easy cleaning.
  • Separate drains for each well; drain connection is required.

Overall Dimensions:

76.5"W x 39.0"D x 53.0"H

Product Weight:

595.0 lb

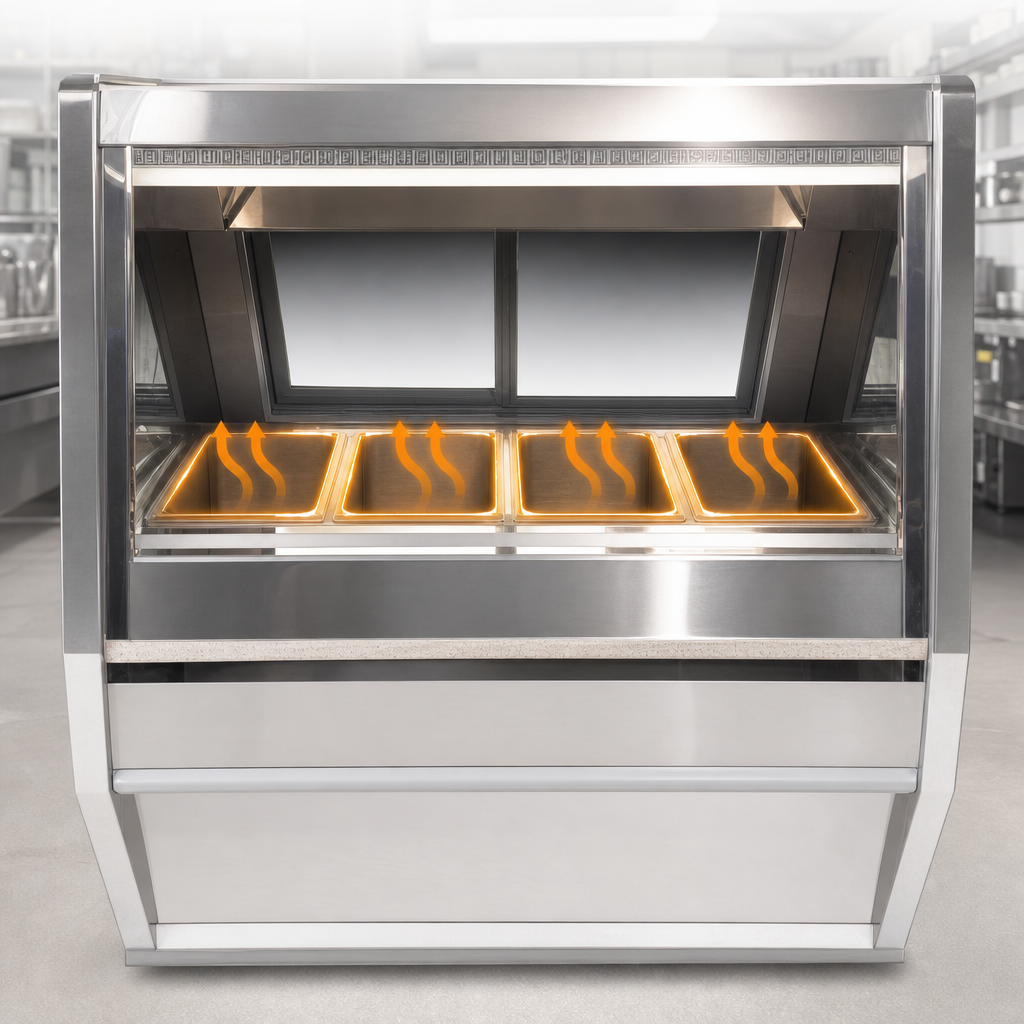

Four Individual Heated Wells

Provides 4 individually thermostatically controlled 12 x 20 heated wells for holding multiple menu items.

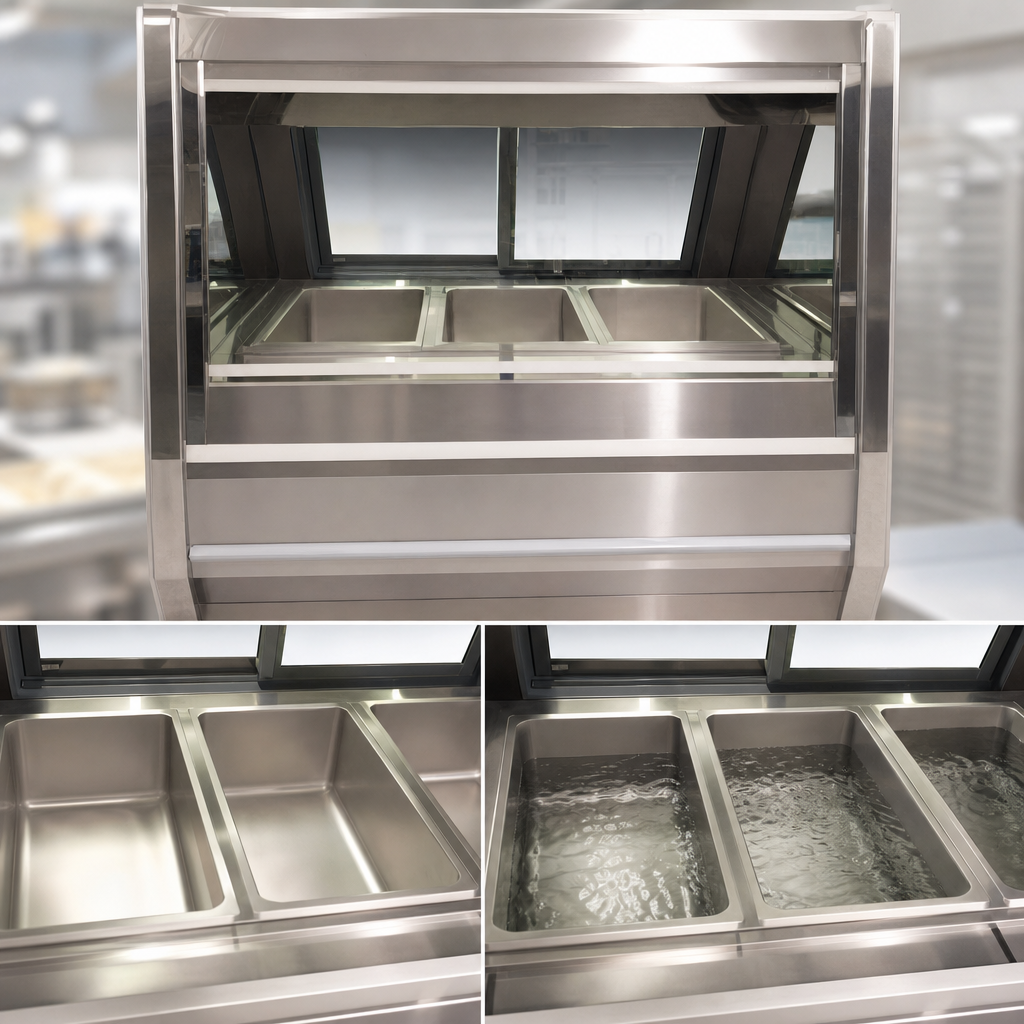

Wet Or Dry Operation

Allows the case to be used for either wet or dry holding applications.

Straight Tempered Glass Front

Single-pane tempered safety glass front creates a clean display and helps merchandise hot foods.

Rear Sliding Double-Pane Doors

Removable rear sliding doors support fast service access and easier cleaning.

Stainless Steel Food Zone

Stainless steel top, deck area, ends, and interior surfaces help with durability and sanitation.

Separate Drains For Each Well

Each well has its own drain, and a drain connection is required.

Heat Lamp Over Each Well

Coated heat lamps help maintain food temperature and presentation over each well.

Standalone 40E Series Design

Built to match the 40E Series service cases and cannot be connected to other 40E Series units.

Type Hot Food Case
Style Full Service
Installation Type Floor Model
Capacity 4 Wells
Pan Size 12 x 20 Inches
Controls Thermostatic
Drain Connection Required
Material Stainless Steel
Interior Finish Stainless Steel
Color White
Voltage 120/240 Volts
Phase 3-Phase
Amps 5.8/17.6 Amps
Shipping Width 87 Inches
Shipping Depth 47 Inches
Shipping Height 63 Inches
Shipping Weight 596 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has 4 individual hot food wells.
Yes. It is designed for wet or dry operation.
Yes. The case is equipped with drains and a drain connection is required.
It features a single-pane tempered glass front and rear sliding removable double-pane doors.
No. For safety, the end panels cannot be removed and the unit cannot be connected to another 40E Series unit.
The spec sheet lists 120/240V 3-phase as standard, with additional 120/208V and 1-phase options shown for the series.
