Howard-McCray

Howard-McCray 52-1/2-Inch Full-Service Hot Food Case with 3 Wells, White Exterior

SKU: CHS40E-4
$9,608.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

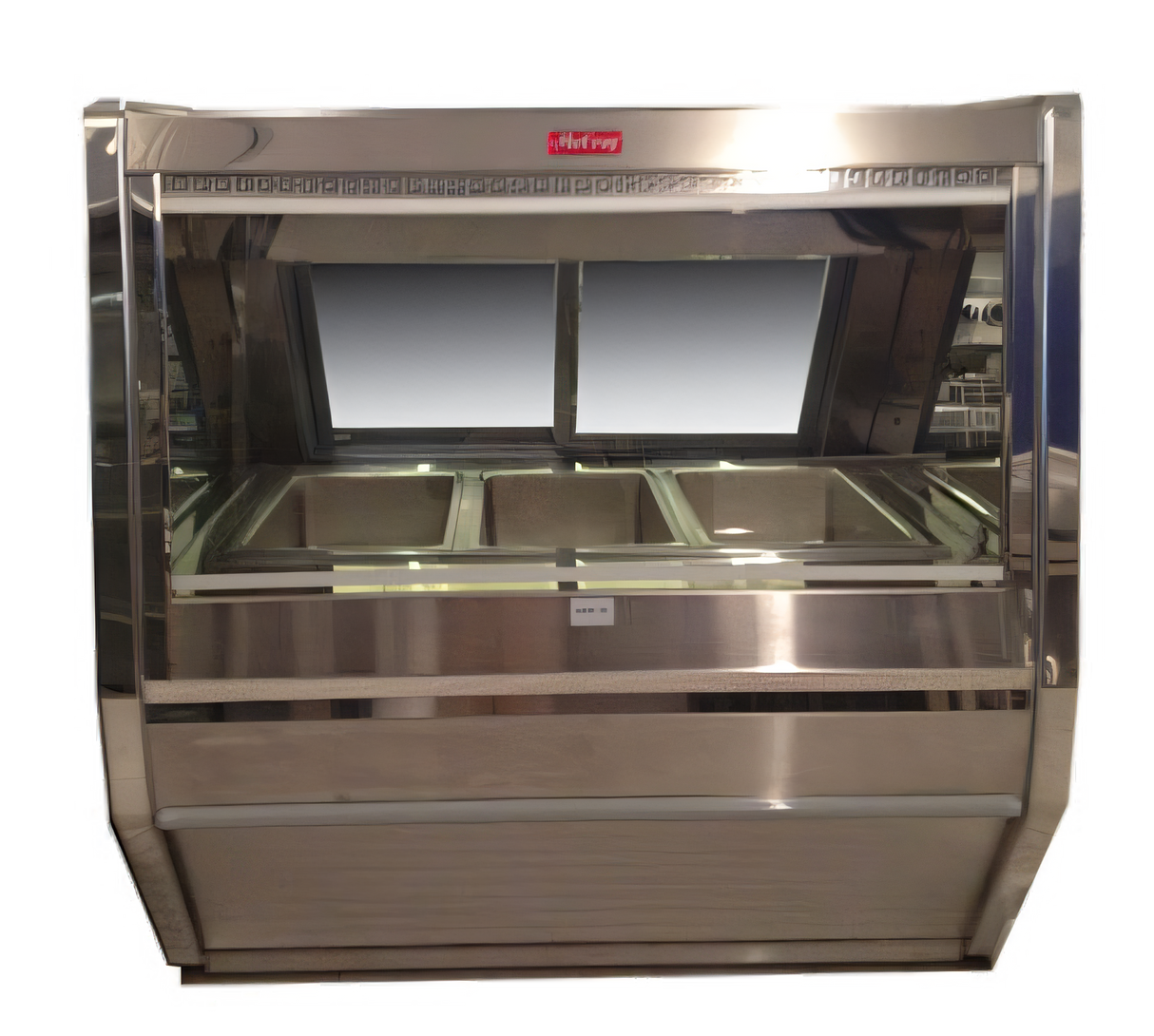

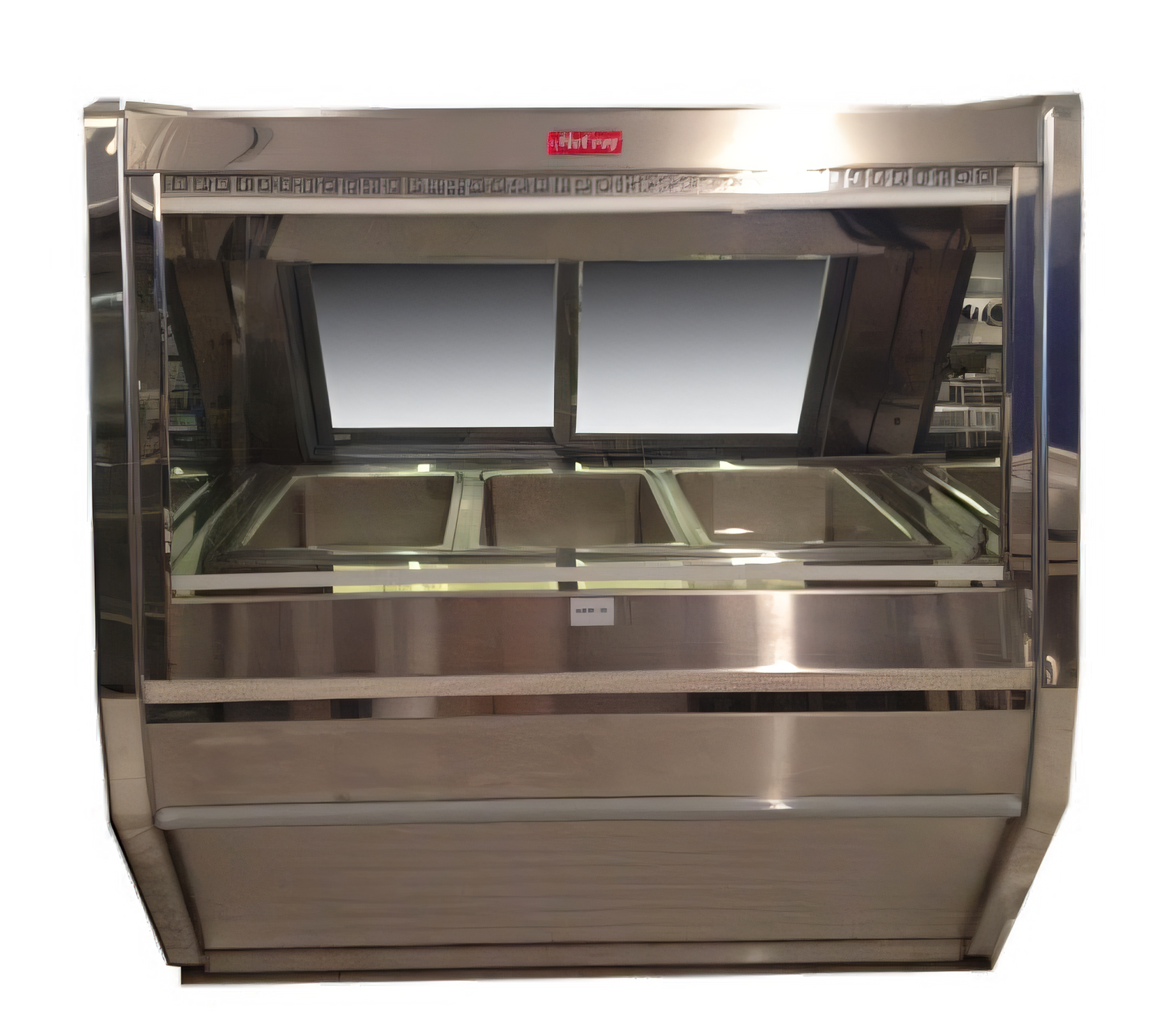

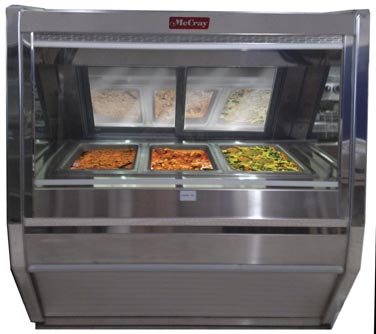

Howard-McCray 52-1/2-Inch Full-Service Hot Food Case with 3 Wells, White Exterior

Wet or Dry Operation, Rear Sliding Double-Pane Doors, Stainless Steel Interior

Designed to keep food hot and visible on the serving line, this case combines three individually controlled wells with flexible wet or dry operation and easy rear access.

  • Three individually thermostatic wells keep multiple menu items at serving temperature.
  • Wet or dry operation supports flexible holding applications.
  • Single-pane tempered glass front provides a clear display of food items.
  • Rear sliding, removable double-pane doors make stocking and service easier.
  • Stainless steel top and interior with a white exterior create a clean, durable finish.
  • Separate drains for each well require a site drain connection.
  • End panels are fixed, so the unit cannot be connected to other 40E Series cases.

Overall Dimensions:

52.5"W x 39.0"D x 53.0"H

Product Weight:

450.0 lb

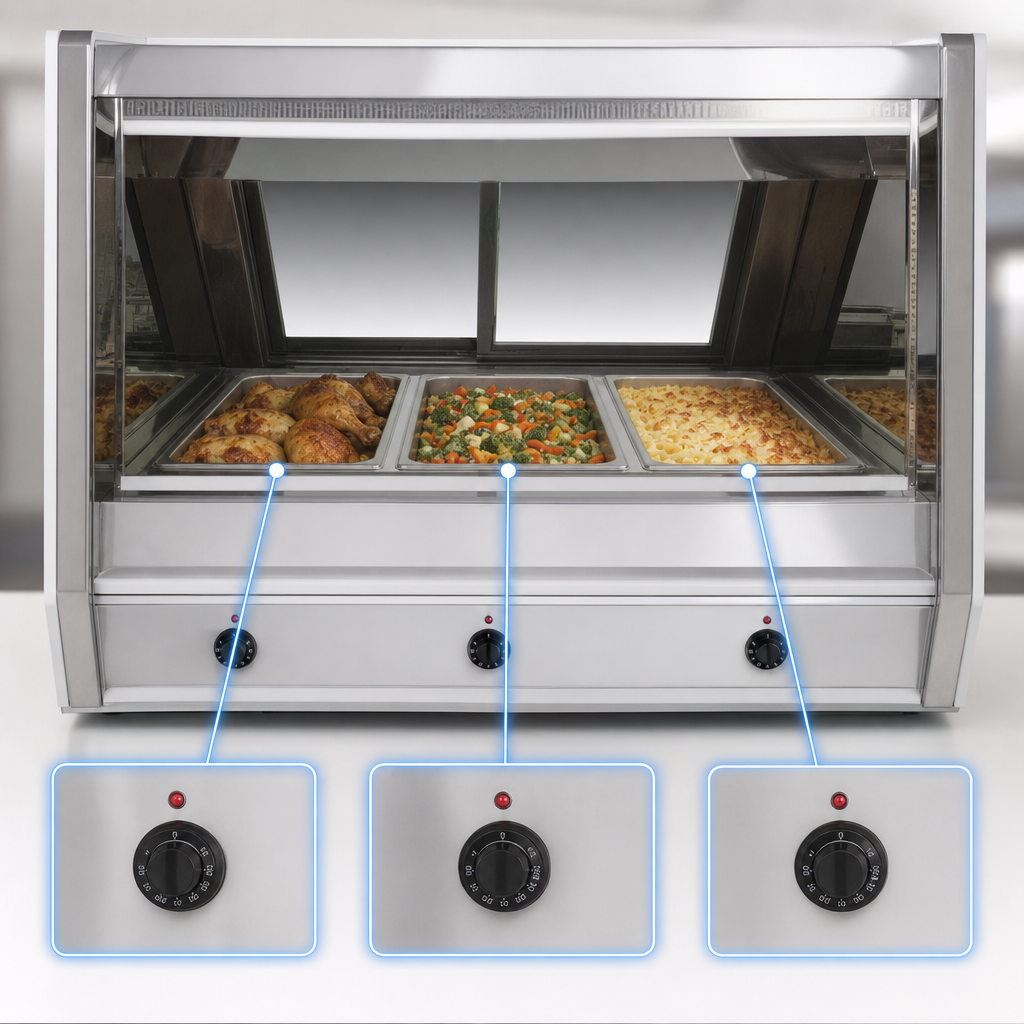

Three Individually Controlled Wells

Three heated wells are individually thermostatically controlled for holding different foods at the proper temperature.

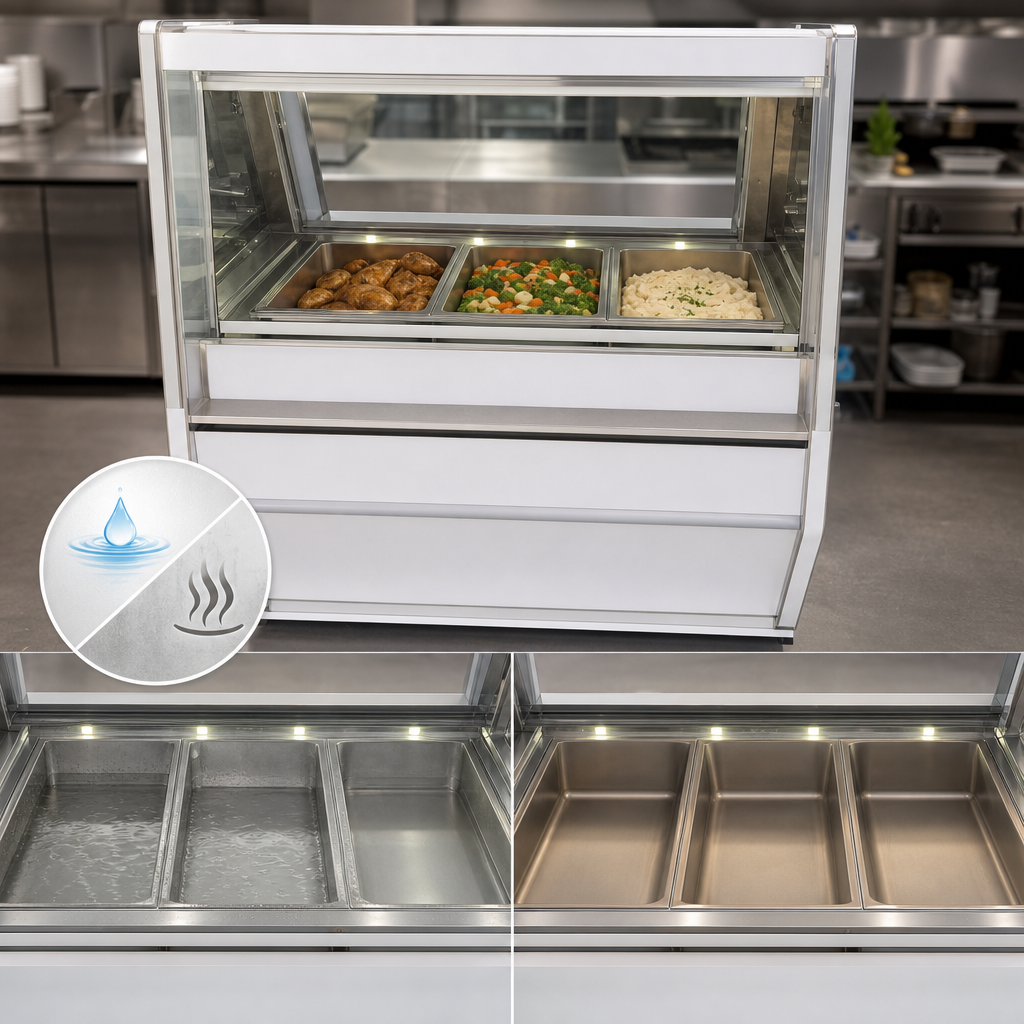

Wet Or Dry Operation

Supports either wet or dry use, giving operators flexibility for different menu items and holding methods.

Tempered Glass Front

Single-pane tempered safety glass provides product visibility while maintaining a professional presentation.

Rear Sliding Double-Pane Doors

Removable rear sliding doors simplify stocking, serving, and cleaning.

Stainless Steel Food Zone

The stainless steel top and interior deck help with durability and cleanup, while the white exterior presents a clean look.

Separate Well Drains

Each well has its own drain, and a drain connection is required.

Coated Heat Lamps

Heat lamps over each well help maintain serving temperature.

Fixed End Panels

For safety, the end panels cannot be removed and the case cannot be connected to other 40E Series units.

No Power Cord Included

The unit is supplied without a power cord and requires site electrical connection.

Type Hot Food Case
Style Full Service
Installation Type Freestanding
Capacity 3 Wells
Pan Size 12 x 20 Inches
Controls Individual Thermostatic
Material Steel
Interior Finish Stainless Steel
Color White
Finish White
Voltage 120/240 Volts
Amps 4.4/11.6 Amps
Phase 3-Phase
Drain Connection Required
Shipping Weight 450 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

This model has 3 individually controlled hot food wells.
Yes. The case is designed for either wet or dry operation.
Yes. The unit is equipped with drains and a drain connection is required.
The standard setup is 120/240 Volts, 3-Phase, 4.4/11.6 Amps, and the documentation also lists optional 120/208 or 120/240 volt configurations in 1- or 3-phase.
No. The end panels cannot be removed, so it cannot be connected to another 40E Series unit.
The case is designed to operate at 75°F and 55% relative humidity.
