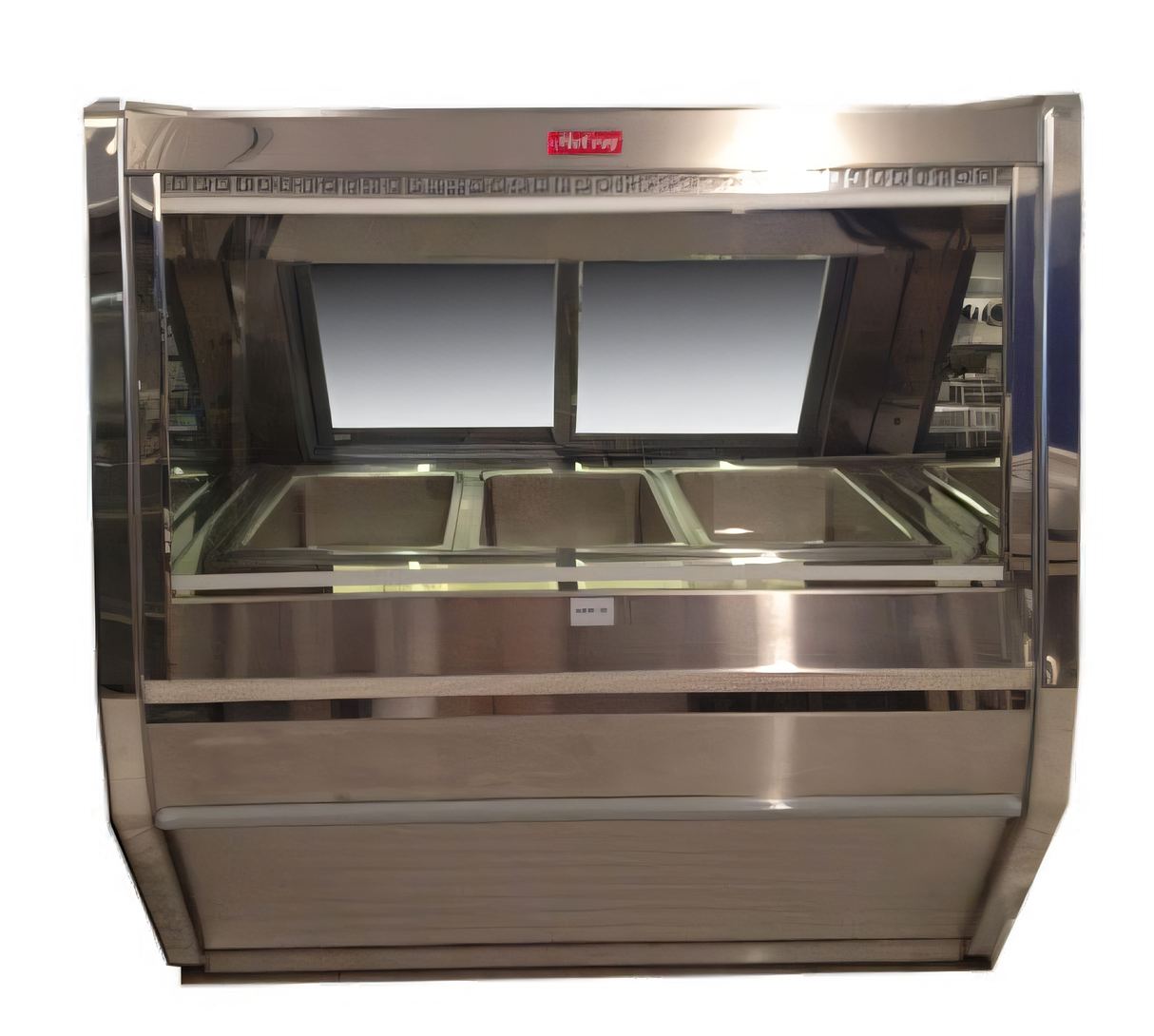

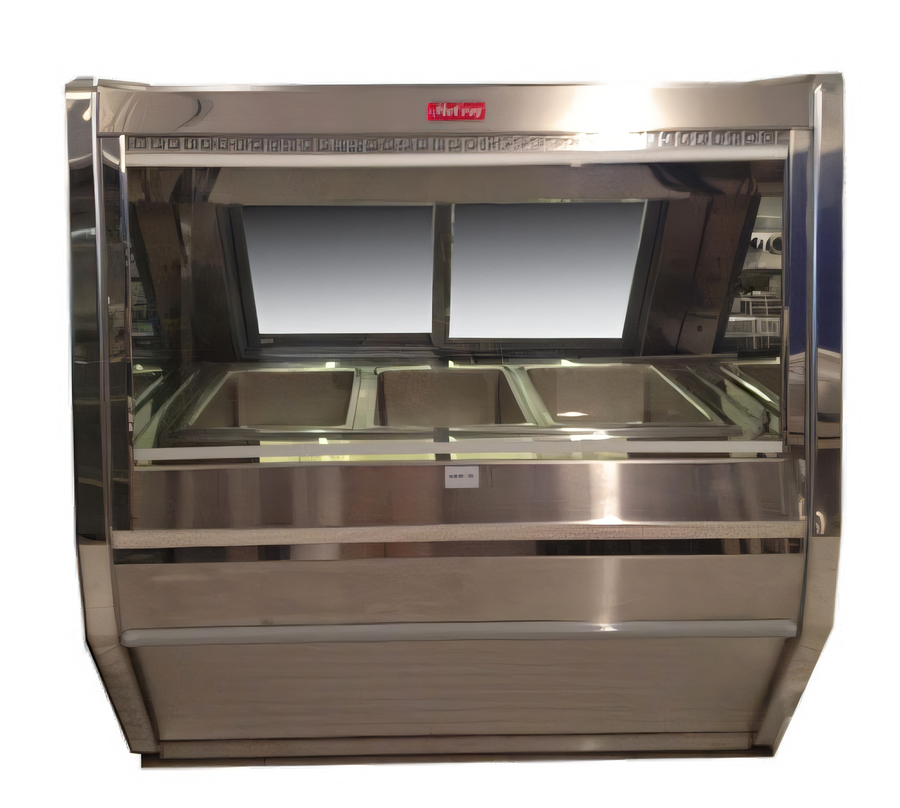

Howard-McCray 40E Series 52-1/2-Inch Full-Service Hot Food Case, 3 Wells, Black Exterior

Wet or dry operation with stainless steel interior and sliding rear doors

Built for full-service hot holding, this 3-well case combines wet/dry flexibility, independent thermostatic control, and a clean black-and-stainless presentation.

  • 3 individual heated wells support flexible hot food holding for service lines and displays.
  • Wet or dry operation lets you hold different menu items the way you need.
  • Independent thermostatic controls help maintain consistent temperatures in each well.
  • Single-pane tempered glass front and rear sliding double-pane doors improve visibility and access.
  • Stainless steel top and interior surfaces simplify cleanup and add durability.
  • Each well has its own drain, and a drain connection is required.

Overall Dimensions:

52.5"W x 39.0"D x 53.0"H

Product Weight:

450.0 lb

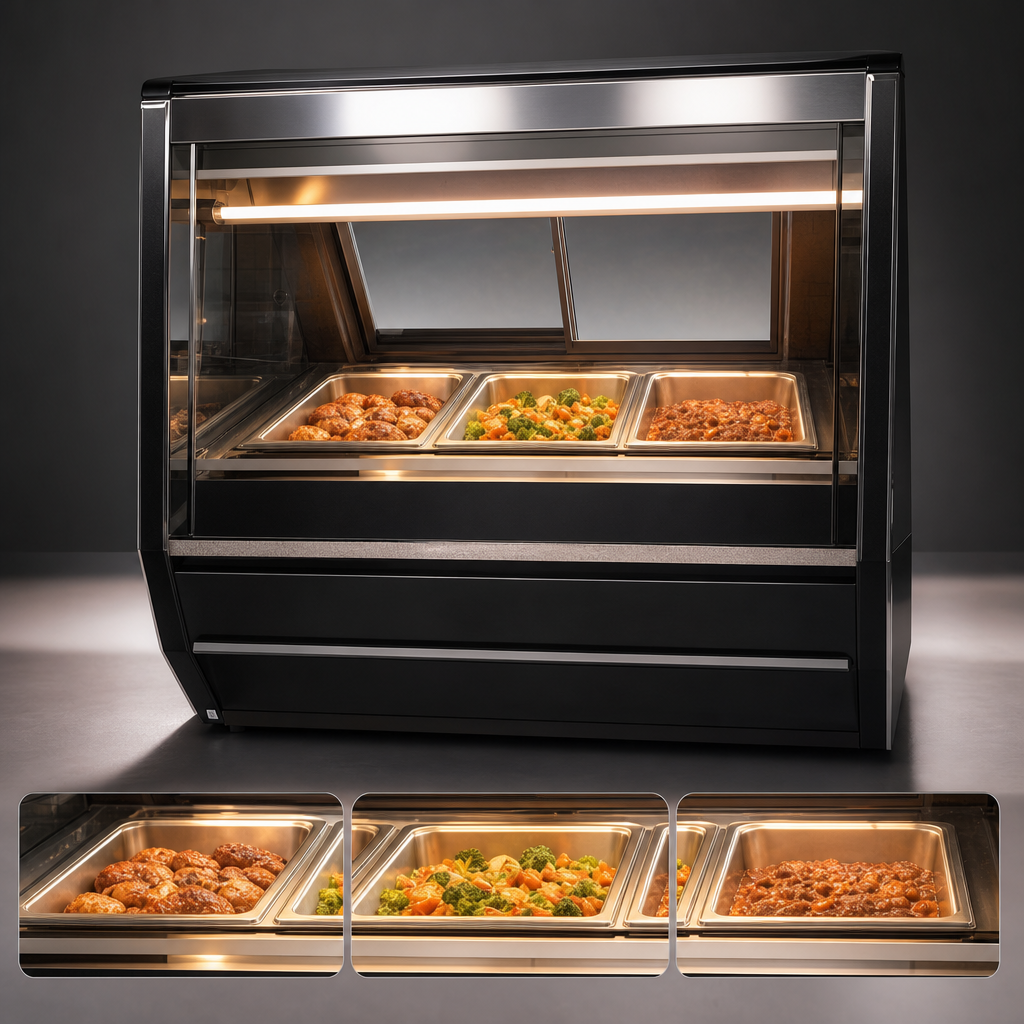

Three Individual Heated Wells

Provides 3 separate 12 x 20 heated wells for hot food holding and display.

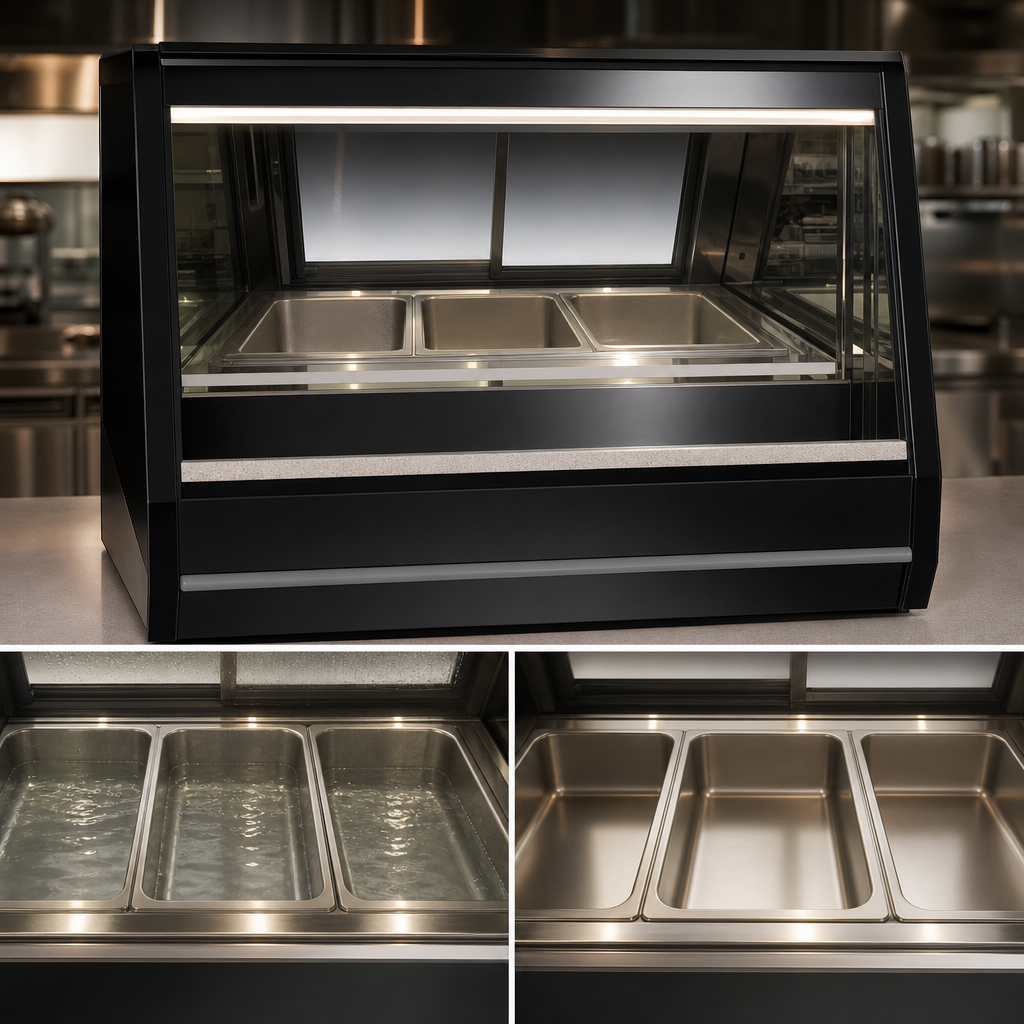

Wet or Dry Operation

Wells are designed to operate with either wet or dry heat for menu flexibility.

Independent Thermostatic Controls

Each well is individually thermostatically controlled for better temperature management.

Tempered Glass Front

Single-pane tempered front safety glass offers a clear view of the product and a durable front surface.

Sliding Rear Access Doors

Rear removable double-pane sliding doors make loading and service easier.

Stainless Steel Food Zone

Stainless steel top, deck area, and interior help with cleaning and everyday durability.

Black Exterior Finish

Black exterior panels create a clean presentation while the interior remains stainless steel.

Separate Drains and Vented Front

Each well has its own drain, and the vented front helps minimize moisture buildup on the glass.

40E Series Match

Designed to match the 40E Series service cases; end panels cannot be removed and the unit cannot be connected to another 40E Series unit.

Type Hot Food Case
Style Full Service
Installation Type Freestanding
Capacity 3 Wells
Pan Size 12 x 20 Inches
Controls Individual Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Color Black
Finish Black Exterior
Voltage 120/240 Volts
Amps 4.4/11.6 Amps
Phase 3-Phase
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 61 Inches
Shipping Depth 47 Inches
Shipping Height 63 Inches
Shipping Weight 450 lb.

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has 3 individual heated wells.
Yes. The wells are designed for either wet or dry operation.
Yes. Each well has a separate drain, and a drain connection is required.
It has a single-pane tempered glass front and rear sliding removable double-pane doors.
No. The end panels cannot be removed, and the unit cannot be connected to another 40E Series unit.
The spec sheet lists 120/240 Volts, 3-Phase as standard, with optional 120/208 Volts or 120/240 Volts in single-phase and 3-phase configurations.
