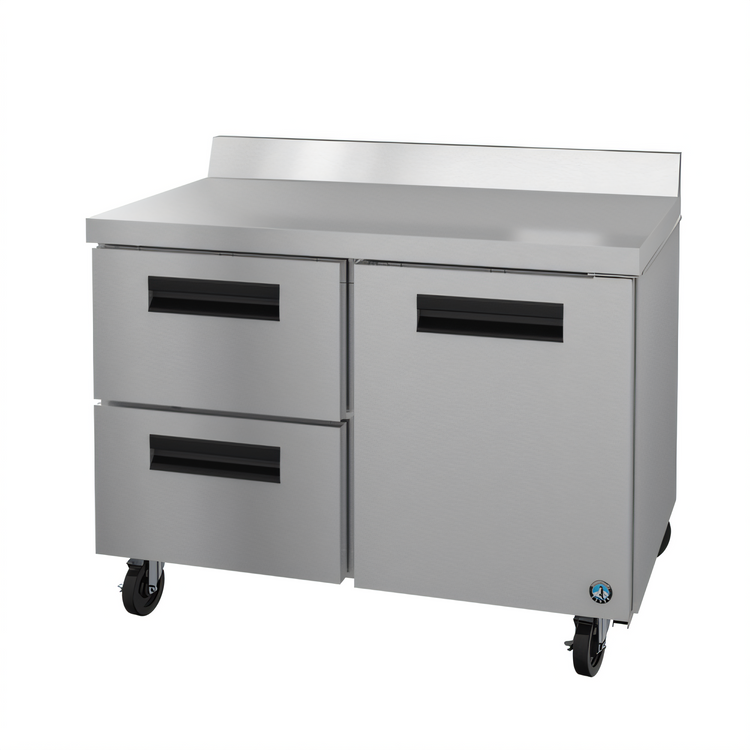

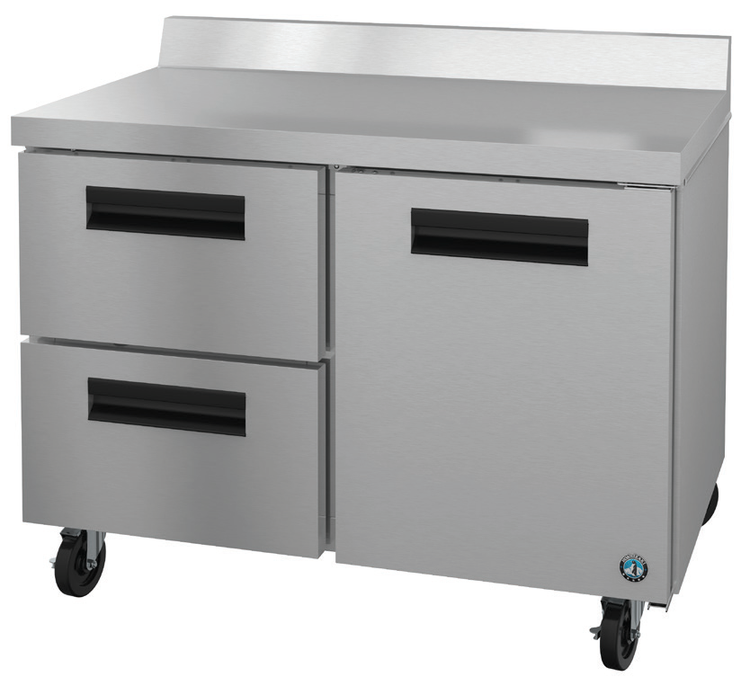

Hoshizaki Steelheart 48-Inch Two-Section Worktop Refrigerator with One Door and Two Drawers

Self-Contained Rear-Mounted Refrigeration, Stainless Steel, R290

This 48-inch Steelheart worktop refrigerator combines refrigerated storage and prep space in a durable stainless steel cabinet with one door, two drawers, and rear-mounted self-contained cooling.

  • Two-section, 48-inch worktop refrigerator with one door, two drawers, and one standard shelf
  • Self-contained, rear-mounted refrigeration with front-breathing airflow for flexible installation
  • Stainless steel exterior and stainless steel interior for lasting durability and easy cleaning
  • R290 hydrocarbon refrigerant with hot gas condensate removal for efficient operation
  • Drawers accommodate multiple 6-inch deep pan configurations for versatile food storage
  • Includes standard 6-inch stem casters with two brakes and a 10-foot cord and plug

Overall Dimensions:

48.0"W x 31.0"D x 40.0"H

Product Weight:

295.0 lb

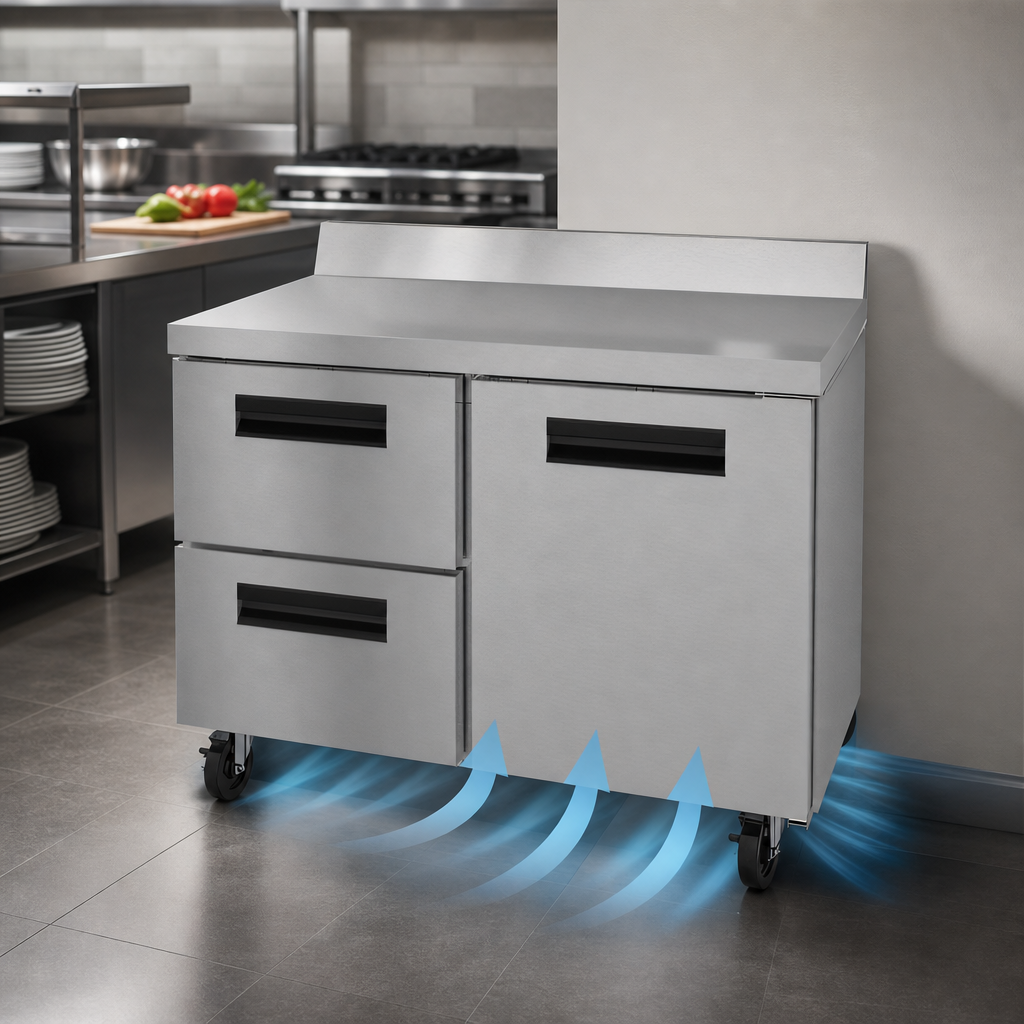

Front-Breathing Refrigeration

Self-contained refrigeration system is rear mounted and uses a front-breathing air flow design.

Front-Breathing Refrigeration

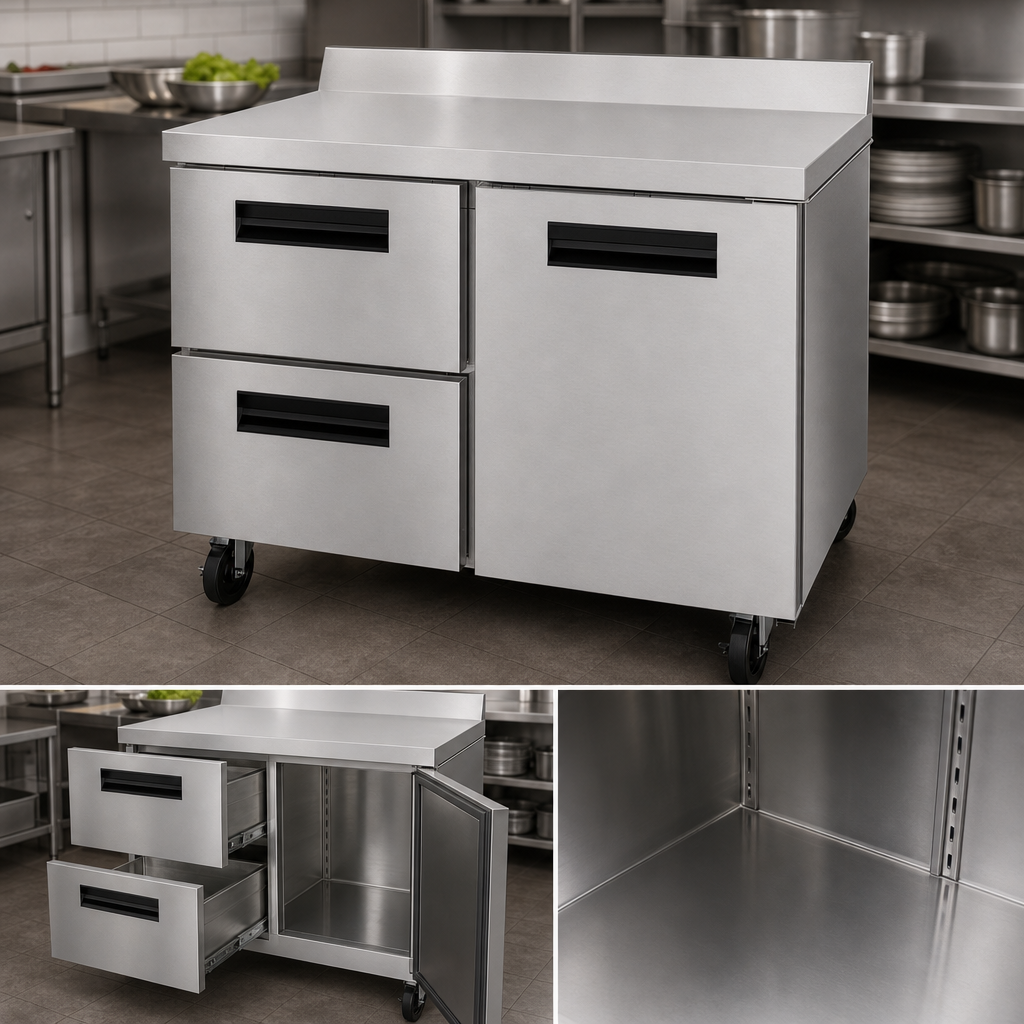

Stainless Steel Construction

Stainless steel exterior front, sides, and top with stainless steel interior sides, back, and floor.

Stainless Steel Construction

2-Inch Insulation

Cabinet, doors, and drawers are insulated with 2-inch CFC-free, foamed-in-place polyurethane.

One Door and Two Drawers

Combines refrigerated cabinet storage with convenient drawer access in a 48-inch worktop footprint.

Adjustable Shelf Included

One epoxy-coated shelf is standard, with anodized aluminum supports adjustable in 1/2-inch increments.

Pan-Compatible Drawers

Top and bottom drawers accept 6-inch deep pans, with multiple pan-size layouts available in the top drawer.

Self-Closing Reversible Door

Spring-assisted door closes automatically, stays open past 90 degrees, and is field reversible.

Hot Gas Condensate Removal

Non-electric condensate evaporation helps simplify operation and reduce maintenance.

R290 Refrigerant

Uses environmentally friendly R290 hydrocarbon refrigerant with a 2.1 oz charge.

6-Inch Casters and 10-Foot Cord

Standard 6-inch stem casters include two brakes, and the unit ships with a 10-foot cord and plug.

Type Refrigerator
Style Worktop
Installation Type Floor Model (With Casters)
Sections 2
Doors 1
Drawers 2
Shelves 1
Capacity 13.66 Cubic Feet
Refrigeration Type Self-Contained, Rear Mounted
Refrigerant Type R290
BTU 798 BTU/Hr
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Voltage 115 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Temperature Range 32°F to 52°F
Ambient Temperature Range 45°F to 100°F
Energy Consumption 1.05 kWh/Day
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Depth 52.5 Inches
Shipping Height 40.5 Inches
Shipping Weight 295 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Seven years on labor, parts, and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Hoshizaki steelheart warranty PDF Download PDF Hoshizaki steelheart warranty PDF Download PDF Installation & operation PDF Download PDF Flyer PDF Download PDF Pan configuration flyer PDF Download PDF Training booklet PDF Download PDF Service manual PDF Download PDF Parts manual PDF Download PDF Refrigeration brochure PDF Download PDF Video PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is a two-section unit with one door, two drawers, and one standard shelf.
It uses a self-contained, rear-mounted refrigeration system with R290 hydrocarbon refrigerant and hot gas condensate removal.
The unit operates on 115V / 60Hz / 1-phase power, draws 15 amps, and includes a NEMA 5-15P plug with a 10-foot cord.
Yes. The door is field reversible and features a spring-assisted self-closing design with a stay-open feature.
The top and bottom drawers accept 6-inch deep pans. The top drawer can also be arranged for several smaller pan sizes, including 1/2, 1/3, 1/4, 1/6, and alternate full-size layouts.
Hoshizaki’s Steelheart warranty covers labor, parts, and compressor for seven years after original installation, subject to the warranty terms and registration requirements.
