Hoshizaki

Hoshizaki Steelheart 93-Inch Three-Section Stainless Steel Worktop Refrigerator with 1 Door and 4 Drawers

SKU: WLR93B-D4
$11,869.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Hoshizaki New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Undercounter, Worktop & Countertop Refrigeration Worktop Refrigerators

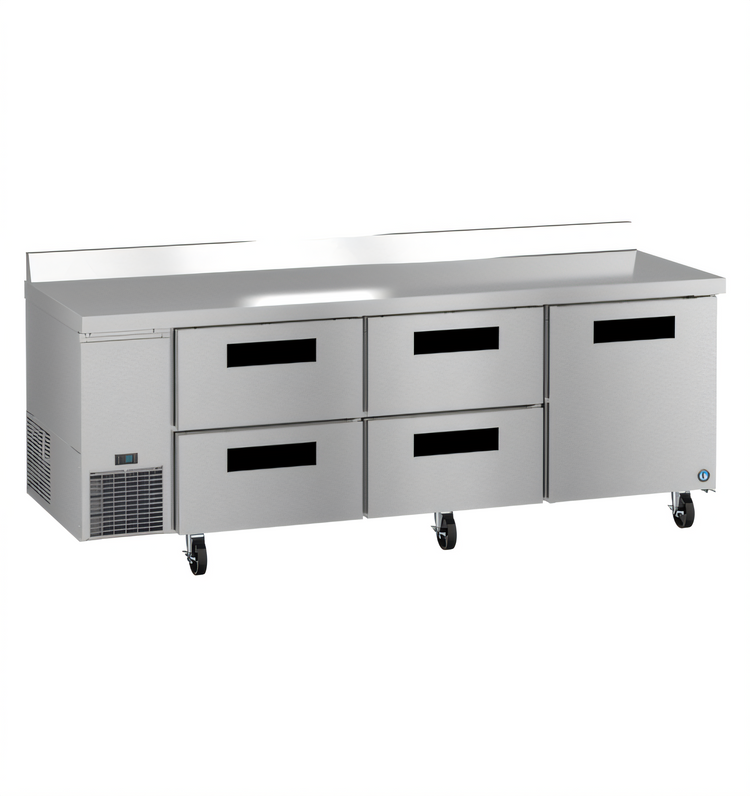

Hoshizaki Steelheart 93-Inch Three-Section Stainless Steel Worktop Refrigerator with 1 Door and 4 Drawers

Side-Mounted Self-Contained Refrigeration, 30.17 Cu. Ft., R290, 115V

Built for high-volume prep lines, this 93-inch worktop refrigerator combines refrigerated storage, drawer access, and durable stainless steel construction in one space-saving cabinet.

  • 93-inch, three-section worktop refrigerator with one solid door and four drawers.
  • Side-mounted, self-contained refrigeration with front-breathing airflow helps reduce rear clearance requirements.
  • 30.17 cubic feet of refrigerated storage in a stainless steel cabinet built for commercial kitchens.
  • Each drawer holds two 12" x 20" x 6" pans, giving prep staff fast access to ingredients.
  • R290 refrigerant, off-cycle defrost, and an E-coated evaporator support efficient, reliable cooling.
  • Digital temperature display, removable air filter, and hot gas condensate removal simplify daily maintenance.

Overall Dimensions:

93.0"W x 33.25"D x 40.25"H

Product Weight:

568.0 lb

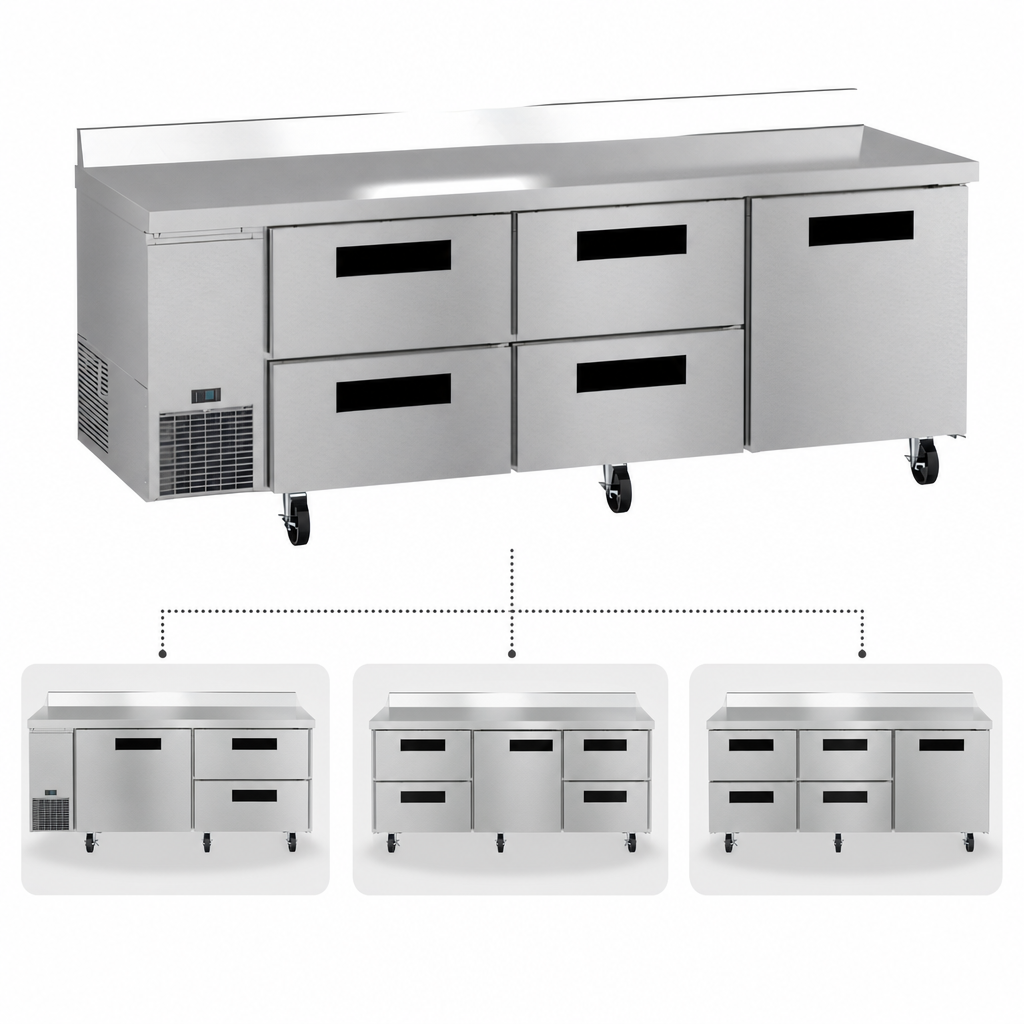

One Door / Four Drawers Layout

Three-section cabinet configured with one solid hinged door and four drawers; door or drawer placement can be located in any section when ordering.

One Door / Four Drawers Layout

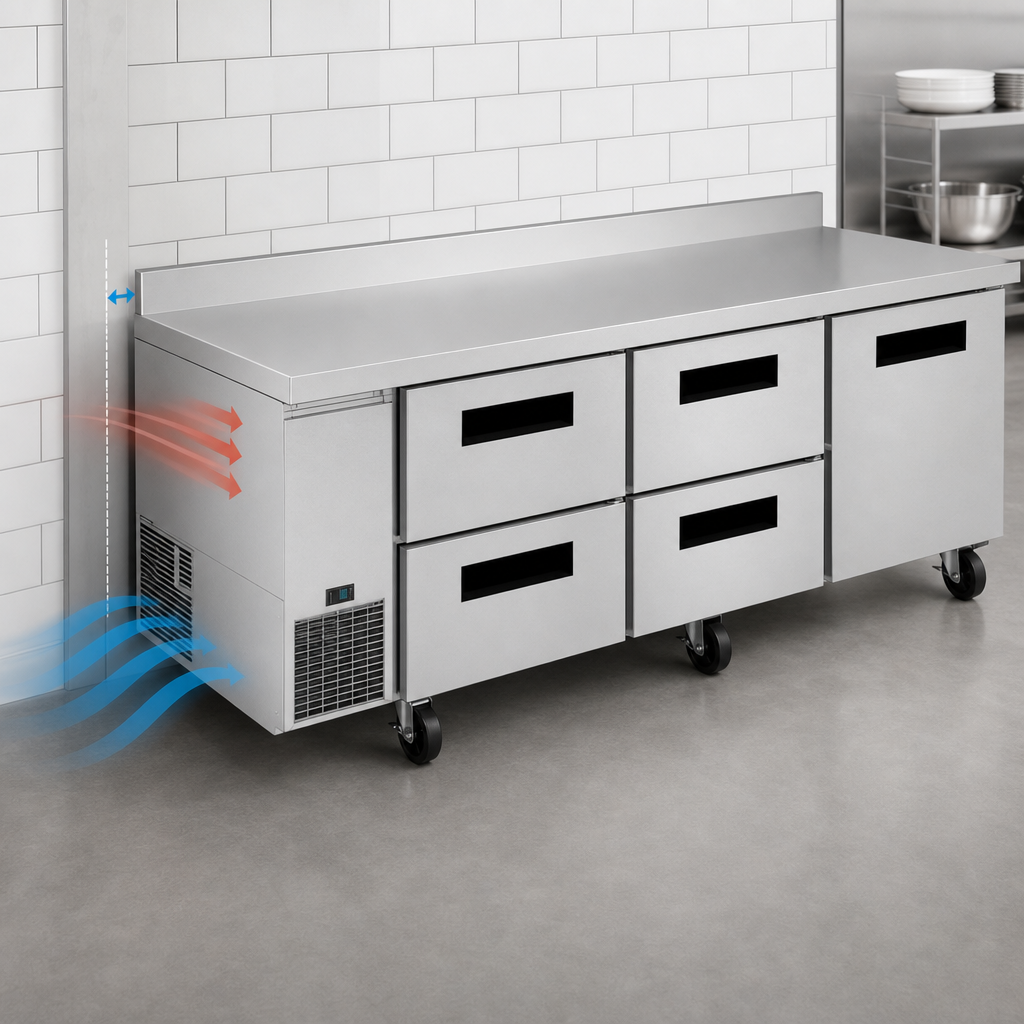

Front-Breathing Side-Mounted Refrigeration

Self-contained refrigeration uses a front-breathing design and side-mounted system, allowing just 1 inch of rear wall clearance.

Front-Breathing Side-Mounted Refrigeration

R290 Refrigeration System

Environmentally friendly R290 hydrocarbon refrigerant works with an E-coated evaporator and off-cycle defrost for dependable cooling performance.

Heavy-Duty Drawer Assembly

Drawer frames and slides are built from 14-gauge stainless steel with acetal rollers and a dynamic load capacity of 250 lbs.

Pan-Ready Drawer Storage

Each drawer accommodates two 12" x 20" x 6" deep pans (pans by others) for efficient prep-line organization.

Adjustable Shelving

Includes two adjustable shelves with anodized aluminum supports that move in 1/2-inch increments.

Stainless Steel Cabinet Build

Stainless steel exterior front, sides, and top pair with a stainless steel interior for long-lasting durability and easier cleaning.

Easy-Clean Service Features

Digital temperature display, removable air filter, magnetic snap-in gaskets, hot gas condensate removal, mullion heaters, and a 10-foot cord and plug support everyday operation.

Type Worktop Refrigerator
Style Worktop
Installation Type Floor Model
Access Type Doors & Drawers
Sections 3
Capacity 30.17 Cubic Feet
Pan Capacity 2 Pans Per Drawer
Pan Size 12 x 20 x 6 Inches
Refrigeration Type Self-Contained, Side Mounted
Controls Digital
Temperature Range 28°F to 45°F
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Horsepower 1/3 HP
Voltage 115 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Refrigerant Type R290 Hydrocarbon
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 93 Inches
Shipping Depth 34 Inches
Shipping Height 41 Inches
Shipping Weight 568 lb.

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5 years labor, 6 years parts, 7 years compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Hoshizaki steelheart warranty PDF Download

Frequently Asked Questions

It is a three-section worktop refrigerator configured with one solid hinged door and four drawers.
The unit offers 30.17 cubic feet of refrigerated storage capacity.
Each drawer accommodates two 12" x 20" x 6" deep pans (pans by others).
It uses a self-contained, side-mounted refrigeration system with R290 hydrocarbon refrigerant and an E-coated evaporator.
The front-breathing airflow design allows for 1 inch of rear wall clearance.
The unit operates on 115V, 60Hz, single-phase power and uses a NEMA 5-15P plug with a 10-foot cord.
