Hoshizaki WLF46B Steelheart Undercounter & Worktop Refrigeration
Description

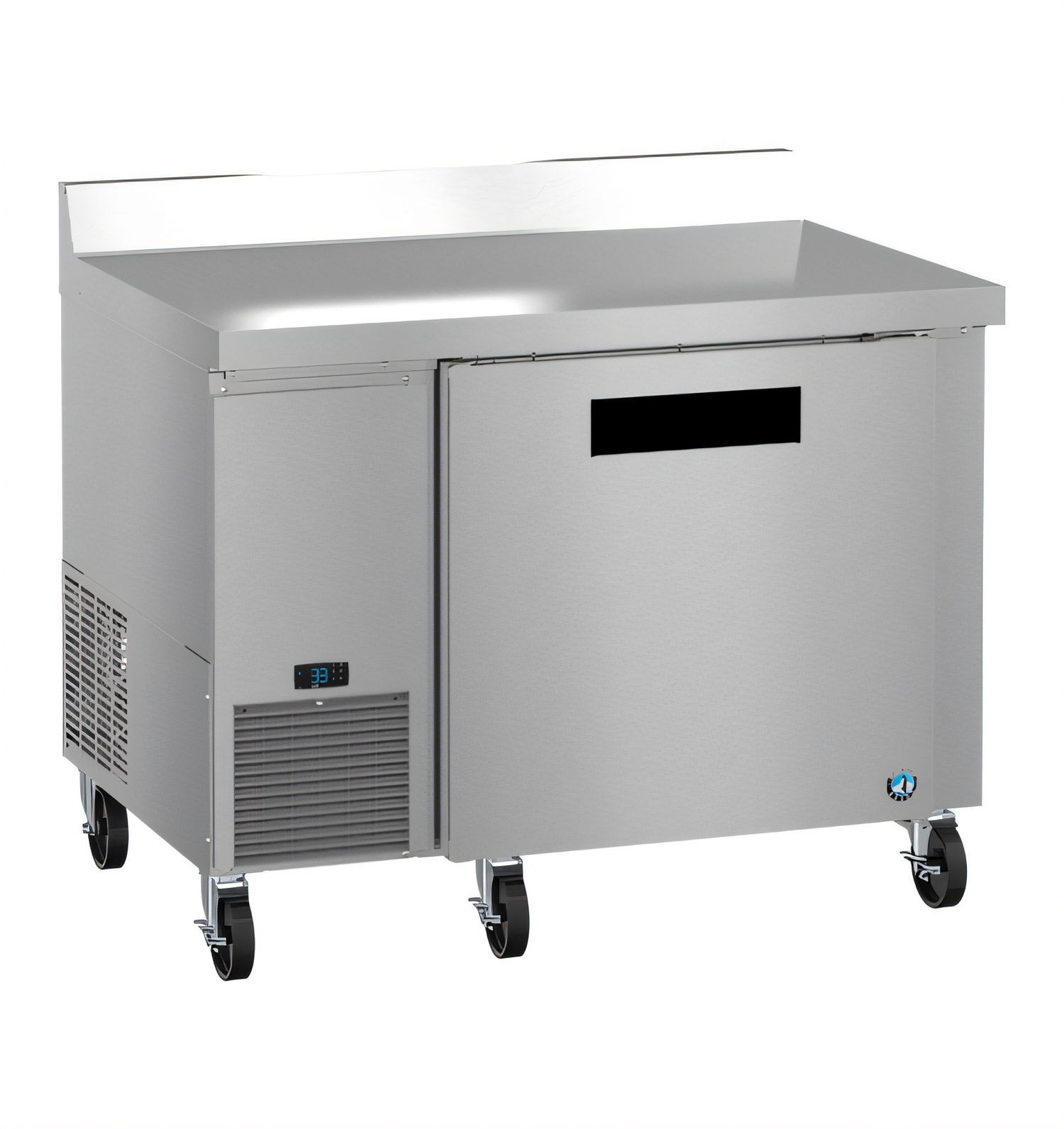

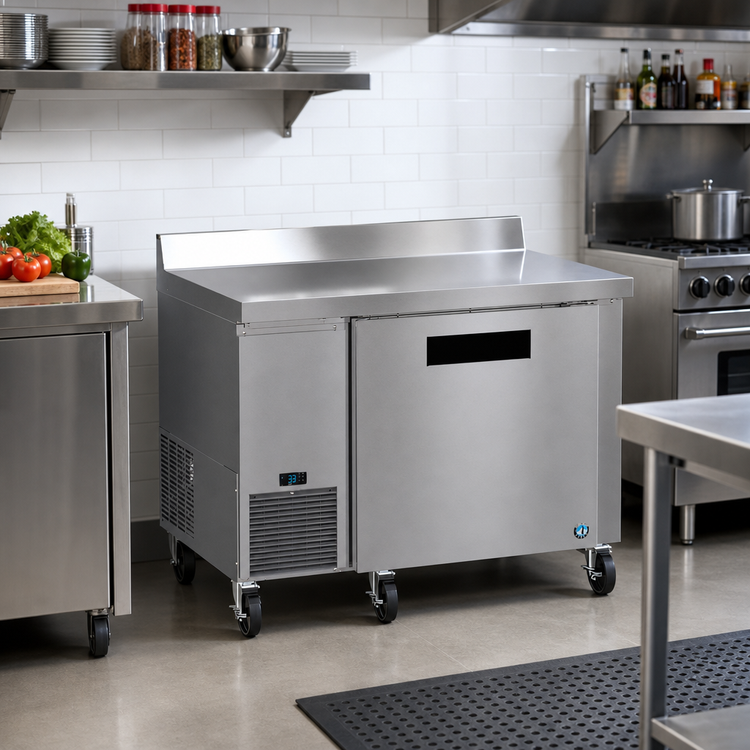

Hoshizaki Steelheart WLF46B Worktop Freezer – 46″, 1-Section, 11.78 cu. ft.
Side-mount refrigeration • ENERGY STAR® certified • Front-breathing designBuilt for demanding commercial environments, the Steelheart WLF46B keeps product safely frozen from -10°F to 10°F even in sweltering 100°F kitchens—all inside a durable, easy-to-clean 46″ stainless-steel cabinet that slides flush against the line with only 1″ rear clearance.
Key advantages

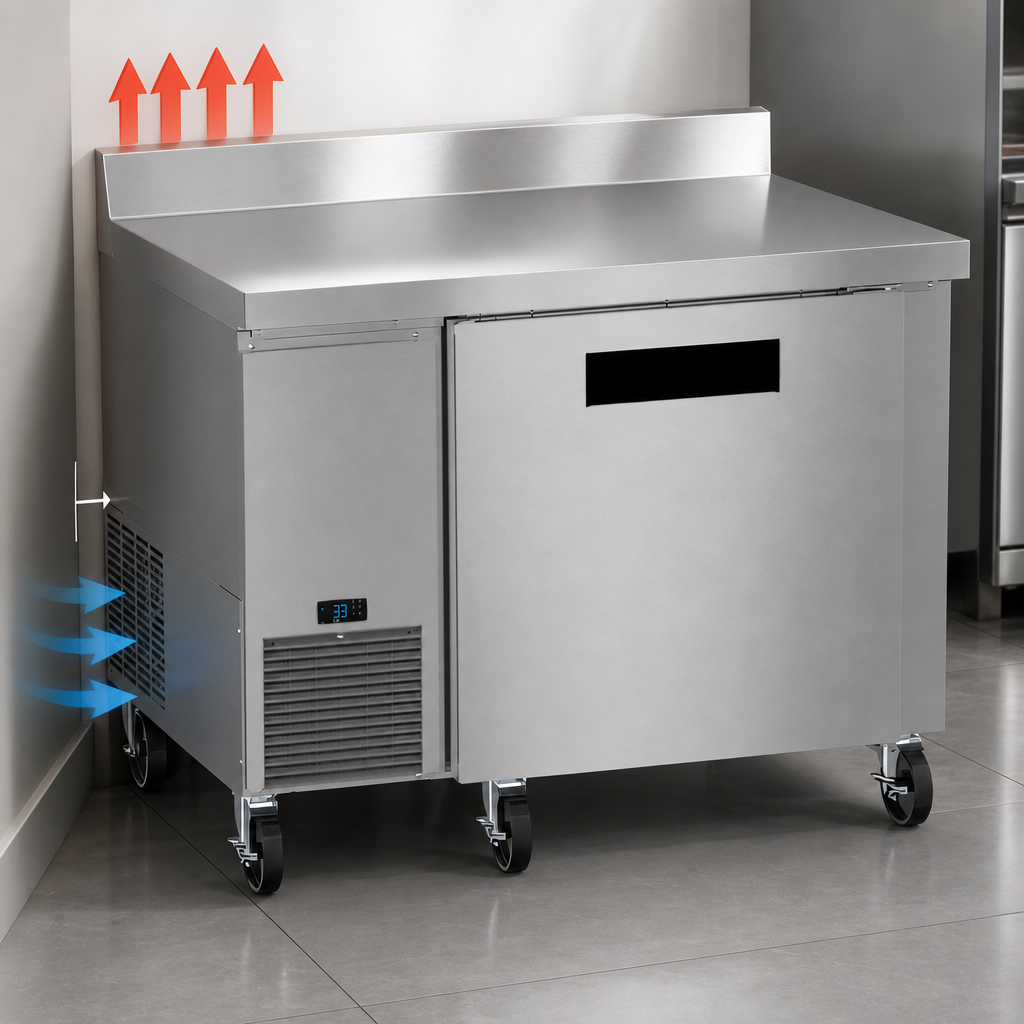

- Front-breathing side-mount refrigeration requires just 1″ rear space—perfect for tight cook lines.

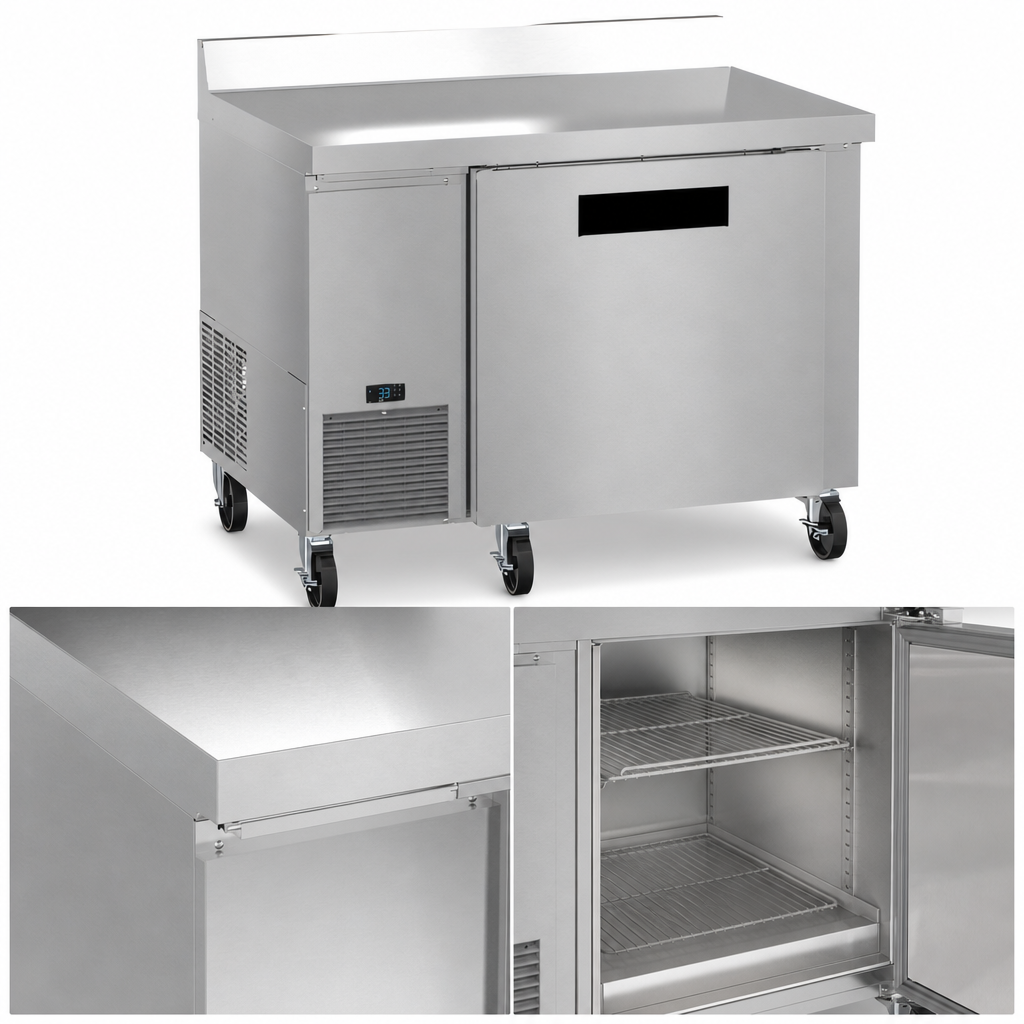

- All-stainless top, front & sides plus stainless interior for maximum durability and fast sanitation.
- 11.78 cu. ft. interior holds two full-size sheet pans on the included heavy-duty epoxy shelves (120 lb each).
- Spring-assisted self-closing door stays open past 90° and features Hoshizaki’s “stepped” edge to shield the gasket.
- Energy-efficient R290 hydrocarbon refrigerant—only 3.36 kWh/day; meets ENERGY STAR® 5.0.
- Easy-read digital controller with -10°F to 10°F set-point range; factory recommended at 2°F.
- 6″ stem casters (three locking) ship installed for effortless mobility and floor clean-up.
Engineered for uptime
- 2″ CFC-free foamed-in-place insulation locks in cold, quiet operation.
- E-coated evaporator coil & removable condenser air filter extend service intervals.
- Hot-gas condensate removal eliminates electric heaters for lower energy draw.
- Field-reversible door, flush-mount aluminum handle, and snap-in gaskets speed maintenance.
Technical data
| Model | WLF46B (Steelheart Series) |
|---|---|
| Capacity | 11.78 cu. ft. (AHAM) |
| Exterior Dimensions | 46″ W × 33.25″ D × 40.25″ H (includes 6″ casters & 1″ bumper) |
| Work Height | 36″ |
| Door / Sections | (1) solid, hinged, field-reversible |
| Shelves | (2) epoxy-coated, 28.75″ W × 25.5″ D, adjustable in ½″ steps |
| Temperature Range | -10°F to 10°F (factory set 2°F) |
| Compressor | 1/3+ HP side-mount (2431 BTU/hr) |
| Refrigerant | R290 (2.6 oz) |
| Electrical | 115 V / 60 Hz / 1φ, 4 A, NEMA 5-15P, 10′ cord |
| Energy Use | 3.36 kWh/day (ASHRAE) |
| Heat Rejection | 645 BTU/hr |
| Clearances | 1″ rear; zero side clearance required |
| Shipping Weight | 278 lb (crated) |
| Certifications | cETLus, ETL-Sanitation (NSF-7), ENERGY STAR®, Georgia Made |
Popular accessories (sold separately)
- Single or double overshelves (HS-5229 / HS-5228)
- 2″ or 4″ low-profile caster kits (HS-5037 / HS-5035)
- Hands-free foot pedal door openers (HS-5555 left, HS-5556 right)
- Pan slide racks & additional epoxy or stainless shelves
Industry-leading warranty
Steelheart refrigeration is backed by Hoshizaki’s 5-year labor, 6-year parts and 7-year compressor coverage, giving you long-term peace of mind.
Rated for ambient temperatures up to 100°F. If a GFCI is required, a GFCI breaker must be used in place of a GFCI receptacle.
