Hoshizaki WF60B-01 Steelheart Undercounter & Worktop Refrigeration
Description

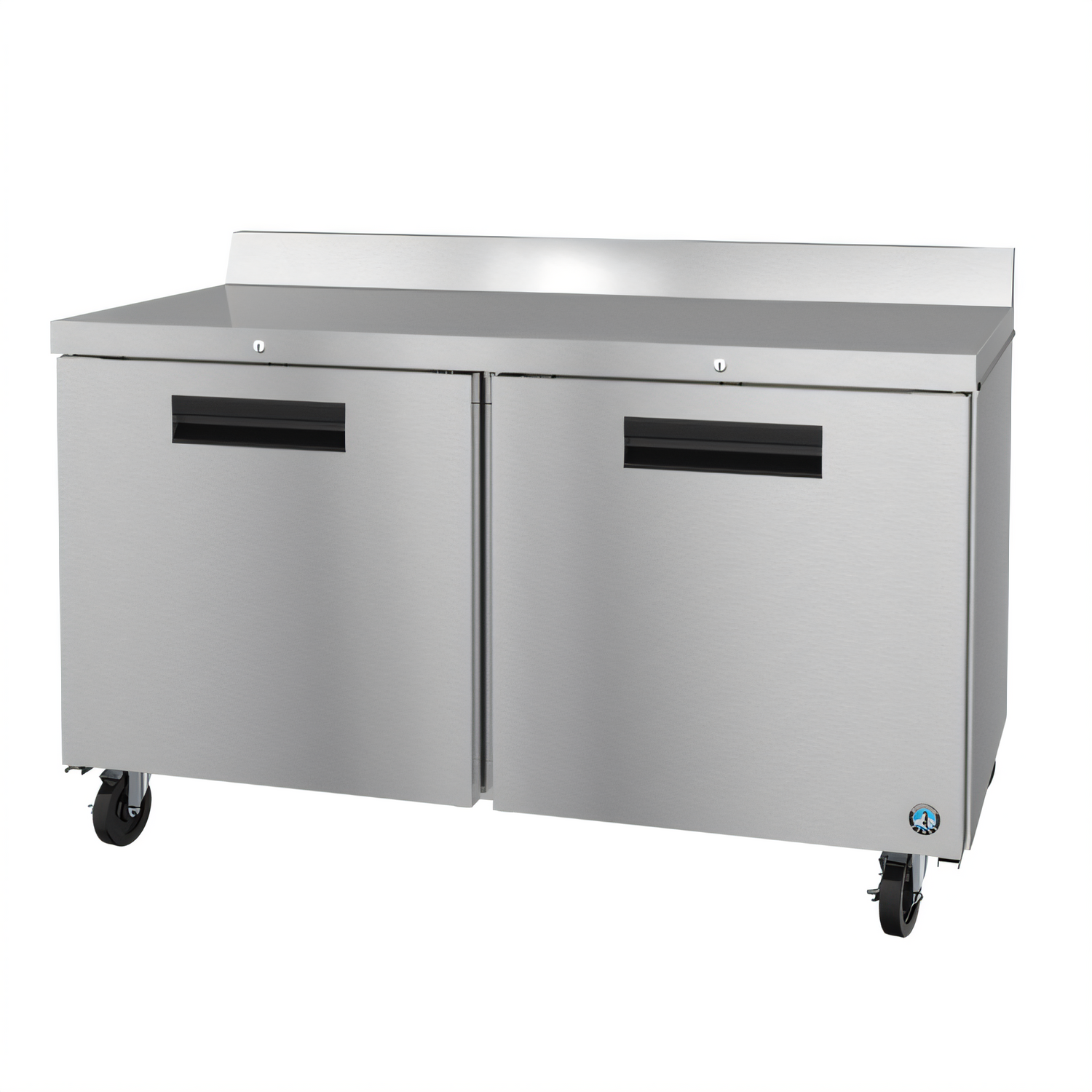

Hoshizaki Steelheart® WF60B 60" Worktop Freezer
Two-section | 15.1 cu ft | Rear-mount, self-contained refrigerationBuilt for punishing commercial kitchens, the Steelheart WF60B combines a heavy-duty stainless work surface with rock-solid, NSF-7 freezer performance in ambient temperatures up to 100 °F. Roll it in, plug it in, and keep product safely below zero right where you need it.
Key performance & durability features
- Maintains NSF-7 temps in 100 °F ambient (Energy Star® qualified)

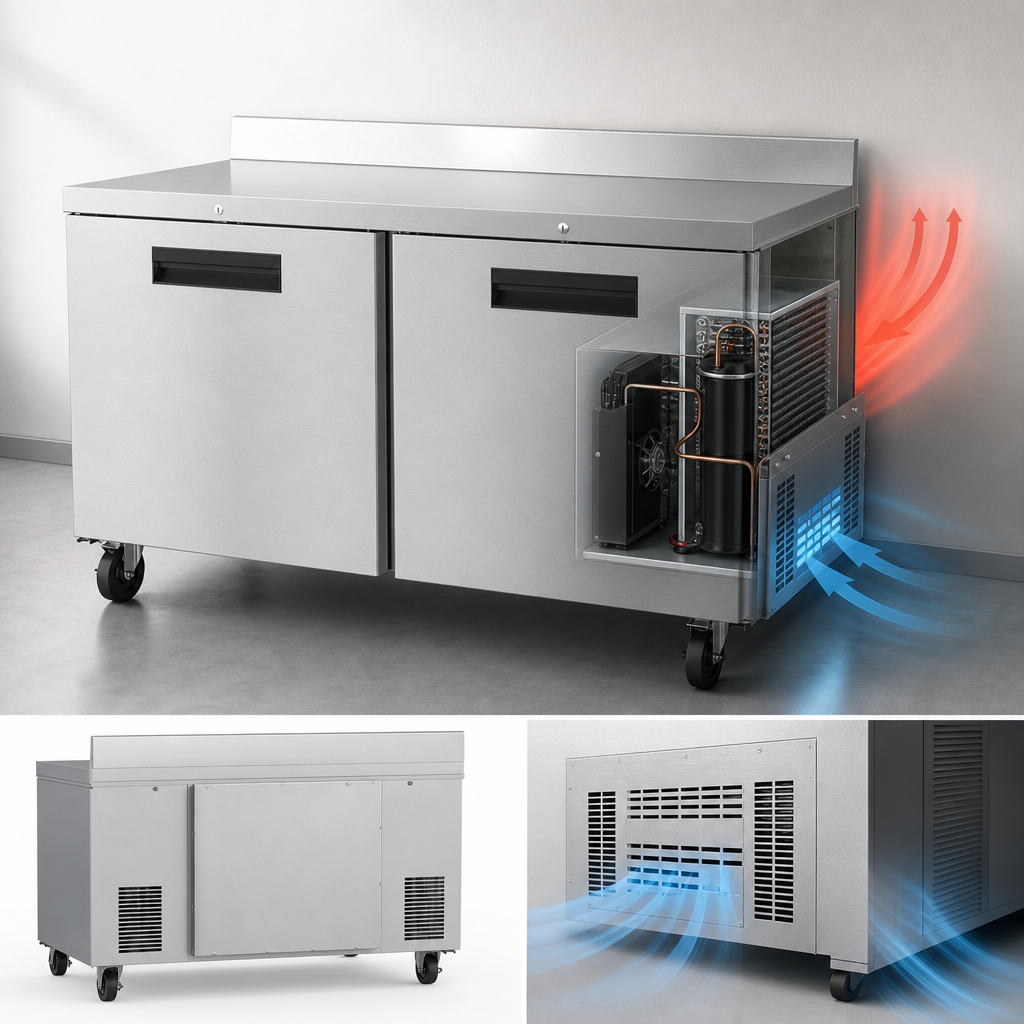

- Self-contained, rear-mount 1/3 HP system with front-breathing airflow—zero side/rear clearance needed
- Natural R290 hydrocarbon refrigerant + 2" foamed-in-place insulation for low energy draw (3.95 kWh/day)
- Hot-gas condensate removal—no condensate pan or drain line
- E-coated evaporator resists corrosion for longer life
- Electronic controls with –10 °F to 10 °F set-point range and automatic defrost
Operator-friendly design
- Two solid, spring-assisted doors self-close & stay open past 90°
- Exclusive stepped door edge protects magnetic gaskets
- Field-reversible hinges and flush, extruded aluminum handles
- Factory-installed cylinder locks (one per door) safeguard contents
- Two epoxy-coated shelves adjust on ½" increments
- (4) 6" stem casters—front two locking—roll through standard doorways
- 10 ft cord with NEMA 5-15P plug for simple installation
Quick specs
| Model | WF60B (Steelheart® Series) |
|---|---|
| Capacity | 15.1 cu ft / 428 L |
| Exterior dimensions | 60" W × 30" D × 40" H (incl. 6" casters) |
| Sections / doors | 2 / 2 solid hinged, field-reversible |
| Shelves (W × D) | 2 adjustable, 27.25" × 16" epoxy-coated wire |
| Temperature range | –10 °F to 10 °F (–23 °C to –12 °C) |
| Compressor | 1/3 HP (≈ 1360 BTU/h) |
| Refrigerant / charge | R290, 2.6 oz |
| Electrical | 115 V / 60 Hz / 1-ph, 4 A, NEMA 5-15P |
| Energy use | 3.95 kWh/day (ASHRAE) |
| Certifications | cETLus, ETL-Sanitation, Energy Star® |
| Shipping weight | 324 lb / 147 kg (crated) |
What’s in the box
- (2) Factory-installed cylinder door locks & keys
- (4) 6" stem casters (2 locking)
- 10 ft plug-and-play power cord
Popular accessories (sold separately)
- Alternative caster heights: 2.25" or 4"
- Additional epoxy or stainless-steel shelves
- Foot pedals for hands-free door operation
Special-order item: Lead times may vary. Contact us for current availability and freight quote.
Worry-Free Warranty — 5 years labor, 6 years parts, 7 years compressor (USA/Canada). If GFCI protection is required, a GFCI breaker must be used instead of a receptacle.
