Hoshizaki WF48B Steelheart Undercounter & Worktop Refrigeration
Description

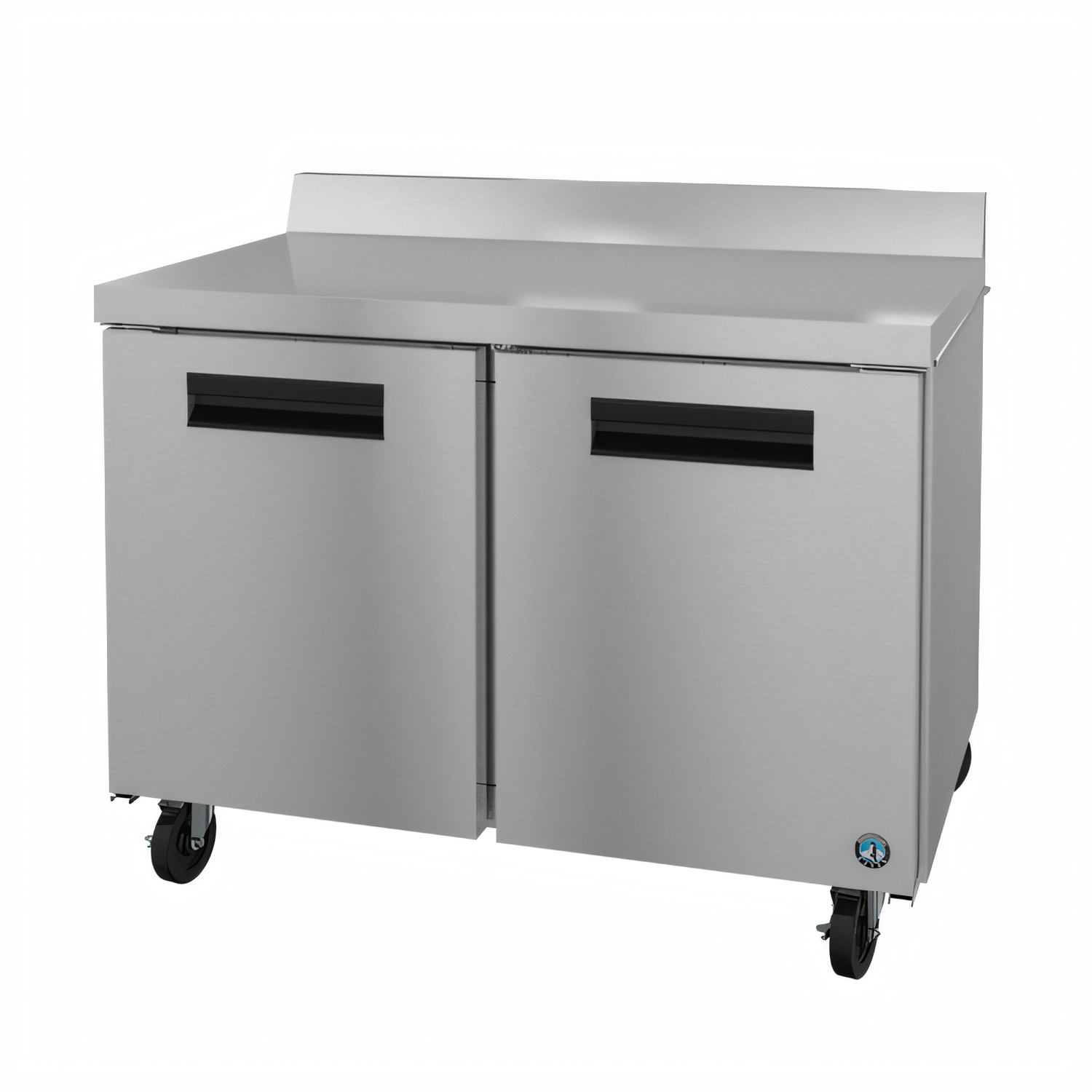

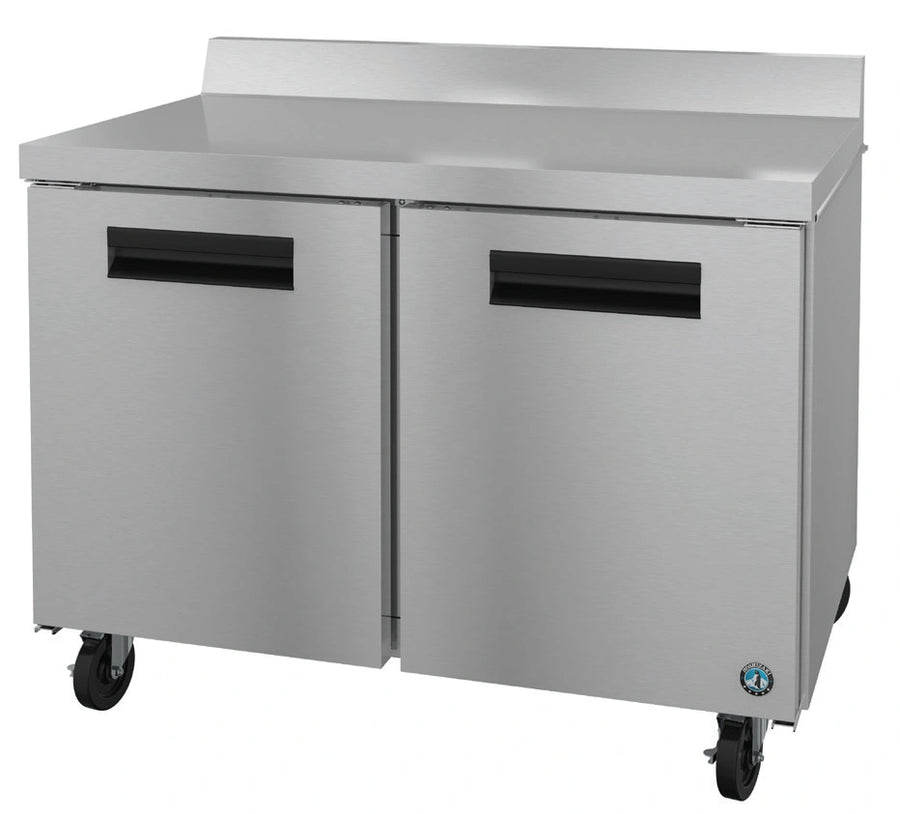

Hoshizaki Steelheart® WF48B Worktop Freezer – 48"

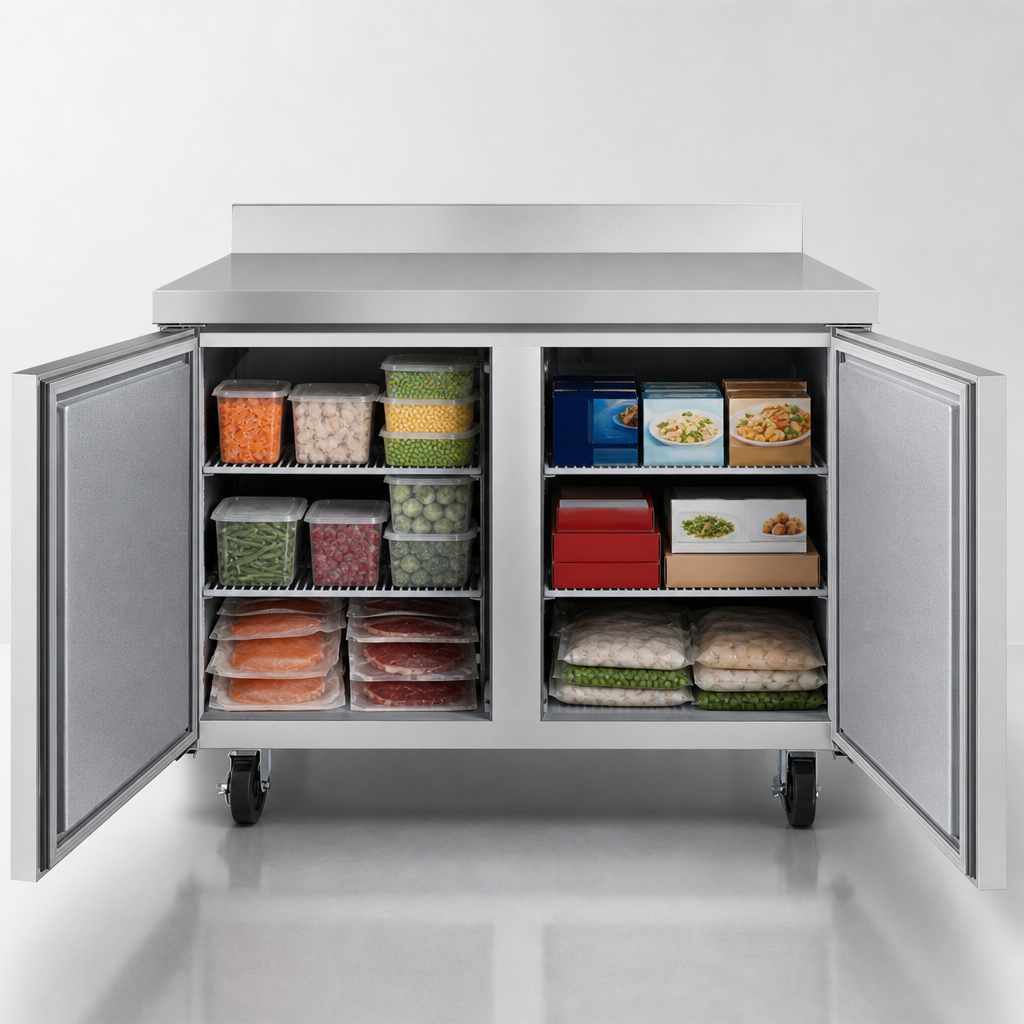

Two-section • 13.66 cu. ft. • Rear-mount self-contained refrigerationBuilt to outperform in the busiest commercial kitchens, the WF48B combines a heavy-duty stainless-steel work surface with dependable -10 °F freeze holding. Front-breathing ventilation means you can slide it tight against walls or other equipment while the energy-saving R290 hydrocarbon system keeps food safe— even in 100 °F ambient conditions.
Top reasons chefs choose the WF48B
- Engineered to maintain NSF-7 temperatures in up to 100 °F ambient kitchens.
- All-stainless exterior (front, sides & worktop) plus stainless interior walls, floor & ceiling for superior durability and sanitation.
- Exclusive “stepped” door design protects gaskets; spring-assisted doors self-close and stay open past 90°.
- Field-reversible hinges—no kit required.
- Eco-friendly R290 refrigerant, E-coated evaporator coil and hot-gas condensate removal for long, trouble-free life.
- Two heavy-duty, epoxy-coated shelves on adjustable anodized pilasters (½" increments).
- Worktop arrives on 6" poly stem casters (front two braked) for easy cleaning and mobility.
- Ships with a 10 ft. cord and NEMA 5-15P plug—no hard-wiring needed.
Technical specifications
| Model | WF48B (Item # 13610) |
|---|---|
| Capacity | 13.66 cu. ft. (12 cu. ft. AHAM) |
| Exterior dimensions | 48" W × 30" D × 40" H (with 6" casters) |
| Depth w/ 1" bumper | 31" (52.5" with doors at 90°) |
| Door opening (each) | 19.5" W × 23" H • (2) solid hinged doors |
| Shelving | (2) adjustable epoxy shelves 21.38" × 16" |
| Temperature range | -10 °F – 10 °F (factory preset -5 °F) |

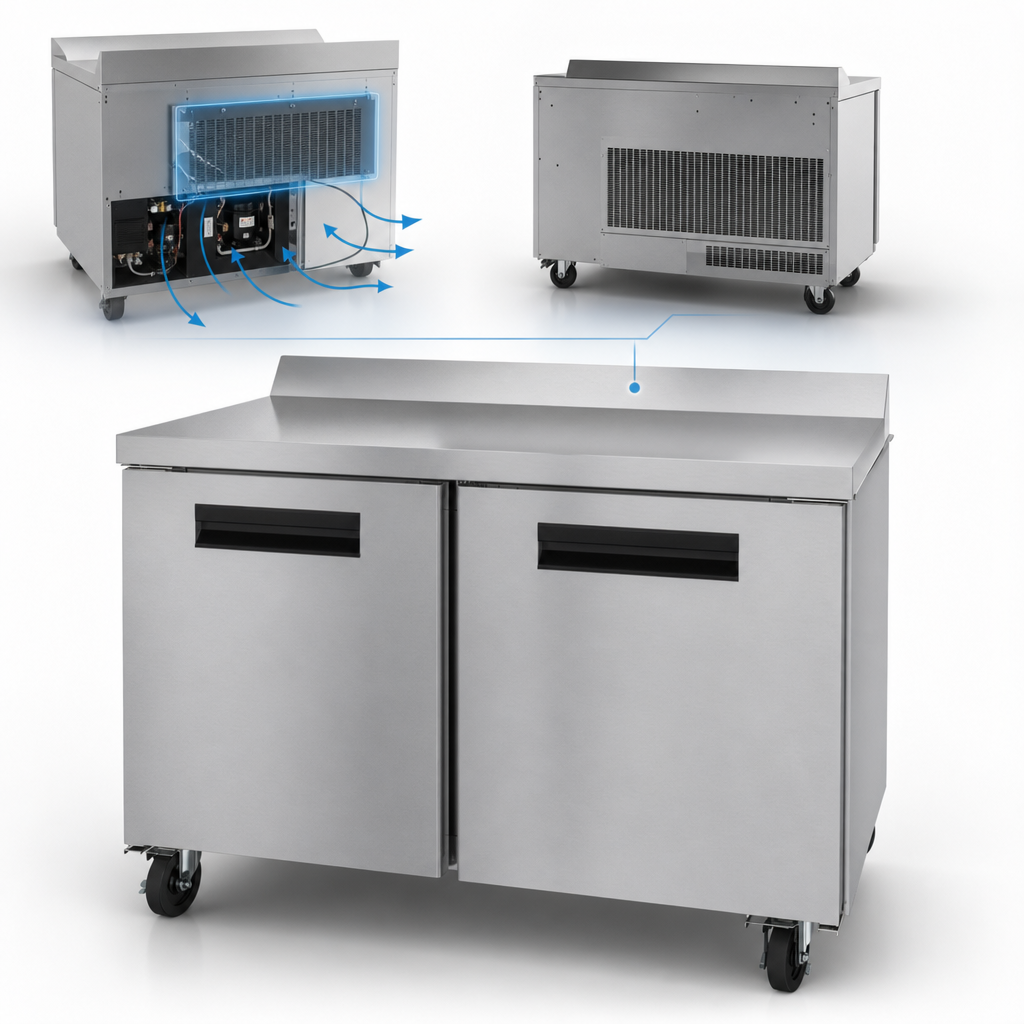

| Refrigeration system | Rear-mounted, 1/3 HP, capillary tube, hot-gas defrost |
| Refrigerant / charge | R290, 2.6 oz |
| Electrical | 115 V / 60 Hz / 1 ph • 3.6 A • NEMA 5-15P |
| Energy use | 3.6 kWh per day (ASHRAE) |
| Heat rejection | 756 BTU/hr (NSF) |
| Casters | (4) 6" polyolefin stem casters – (2) locking |
| Net / crated weight | Approx. 273 lb (crated) |
| Warranty | 7-year compressor, 6-year parts, 5-year labor |
Popular factory & field options
- 2.25" or 4" casters
- Cylinder door locks
- Additional epoxy or stainless-steel shelves
- Left- or right-hand hinge conversion
- Single & double overshelves
Hoshizaki reserves the right to modify specifications without notice. Always consult the data plate and installation manual before installing equipment.
