Hoshizaki WF48B-D4 Steelheart Undercounter & Worktop Refrigeration
$6,687.00
Unit price
/
Unavailable
Description

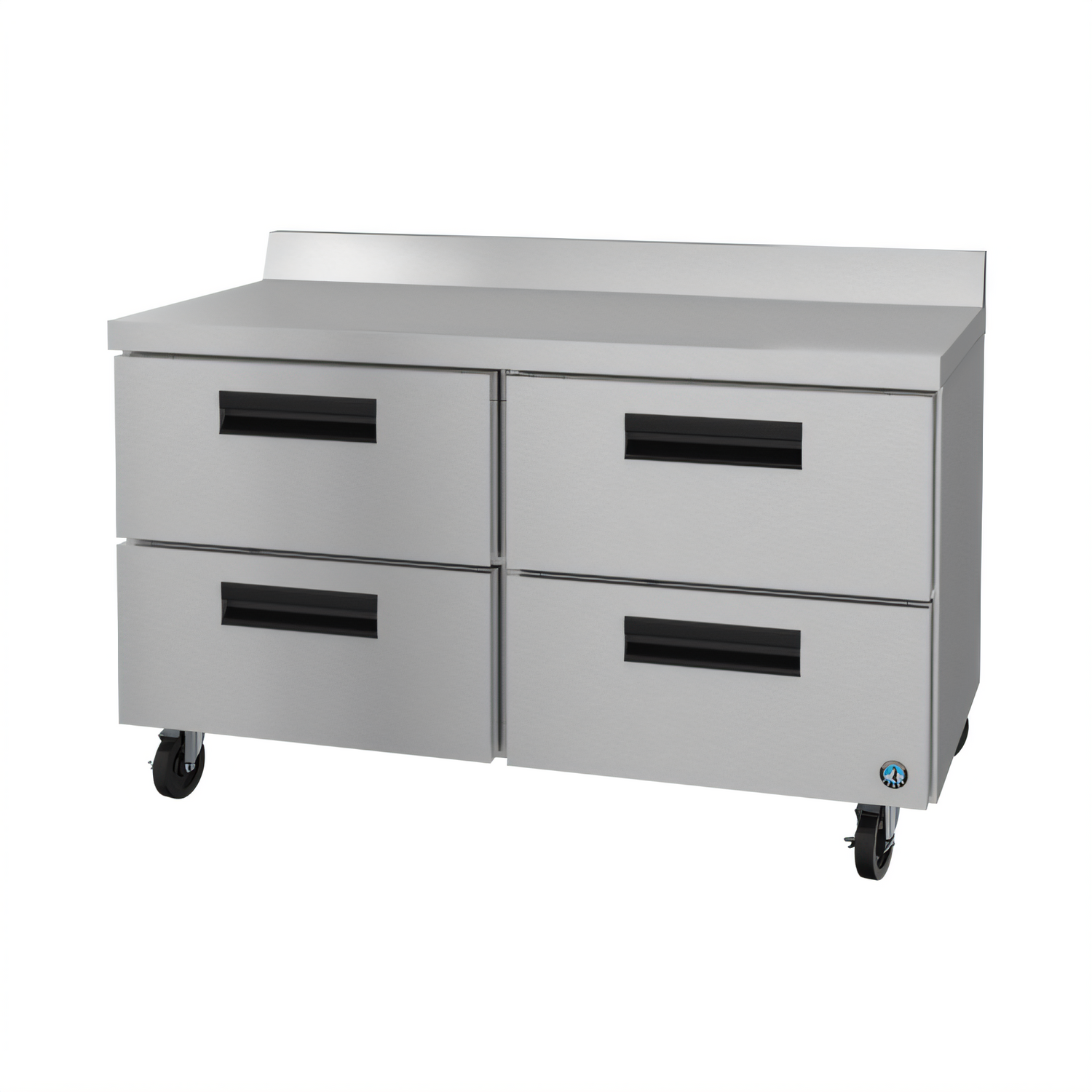

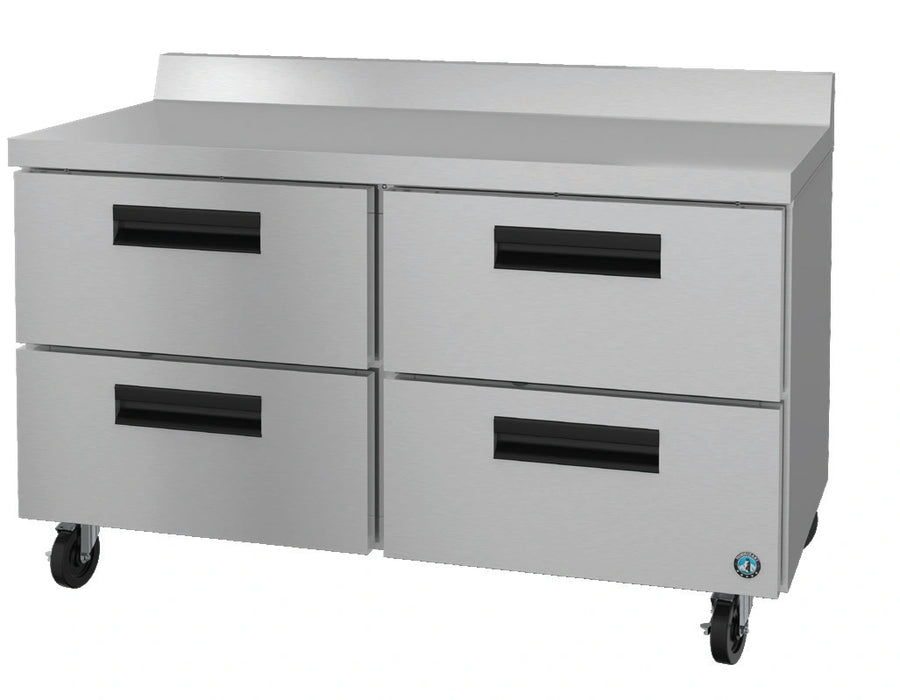

Steelheart WF48B-D4 48" Worktop Freezer with Drawers
13.66 cu. ft. • -10 to 10 °F set-point • NSF-7 performance in 100 °F kitchensHoshizaki’s Steelheart worktop line delivers spec-level performance at a mid-level price. The WF48B-D4 combines a heavy-duty stainless steel work surface and 4 high-capacity drawers with an energy-efficient, front-breathing freezer system that keeps ingredients safely frozen even when the kitchen is pushing 100 °F.
Why It Belongs on Your Line
- All-stainless exterior front, sides & top plus stainless interior for maximum durability and sanitation.

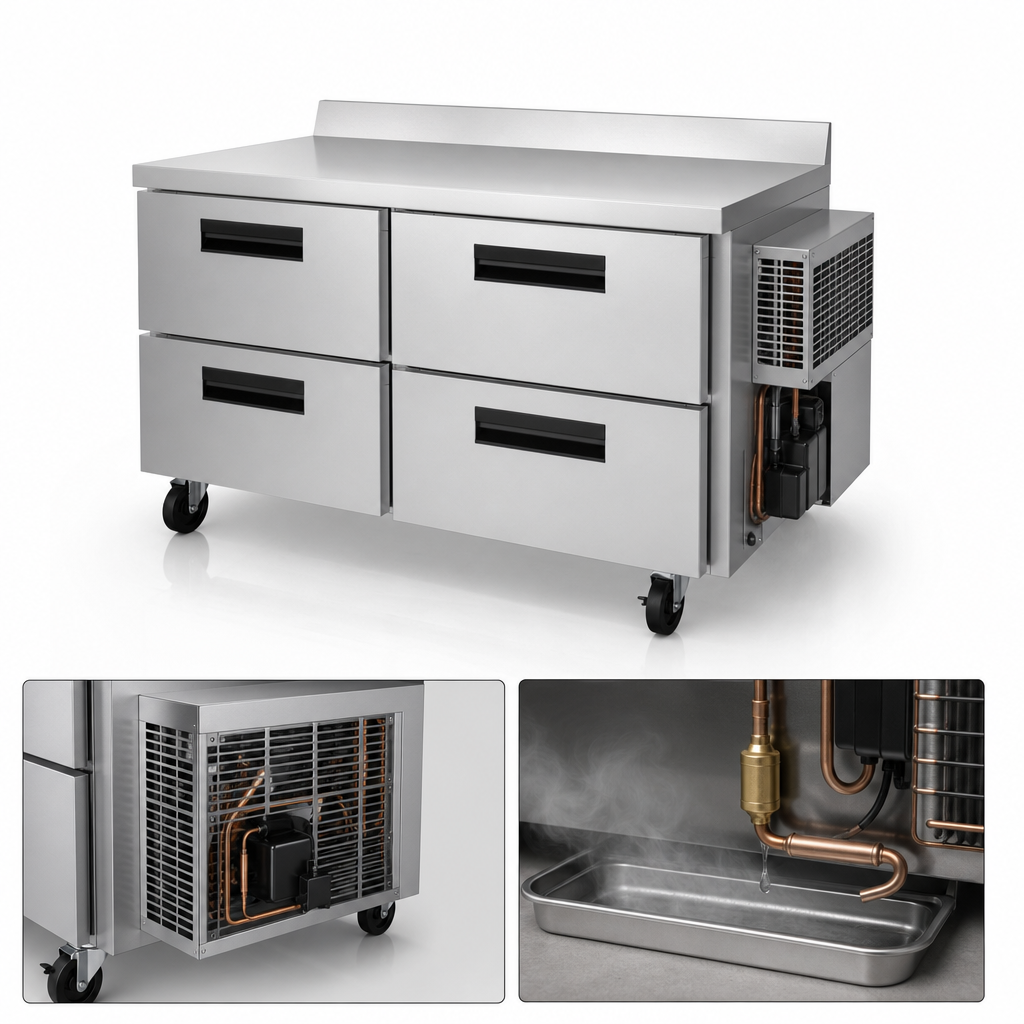

- 13.66 cu. ft. two-section cabinet maintained by a self-contained rear-mount refrigeration system.
- R290 eco-friendly refrigerant, hot-gas condensate removal and E-coated evaporator for longer life & lower energy use (3.60 kWh/day).

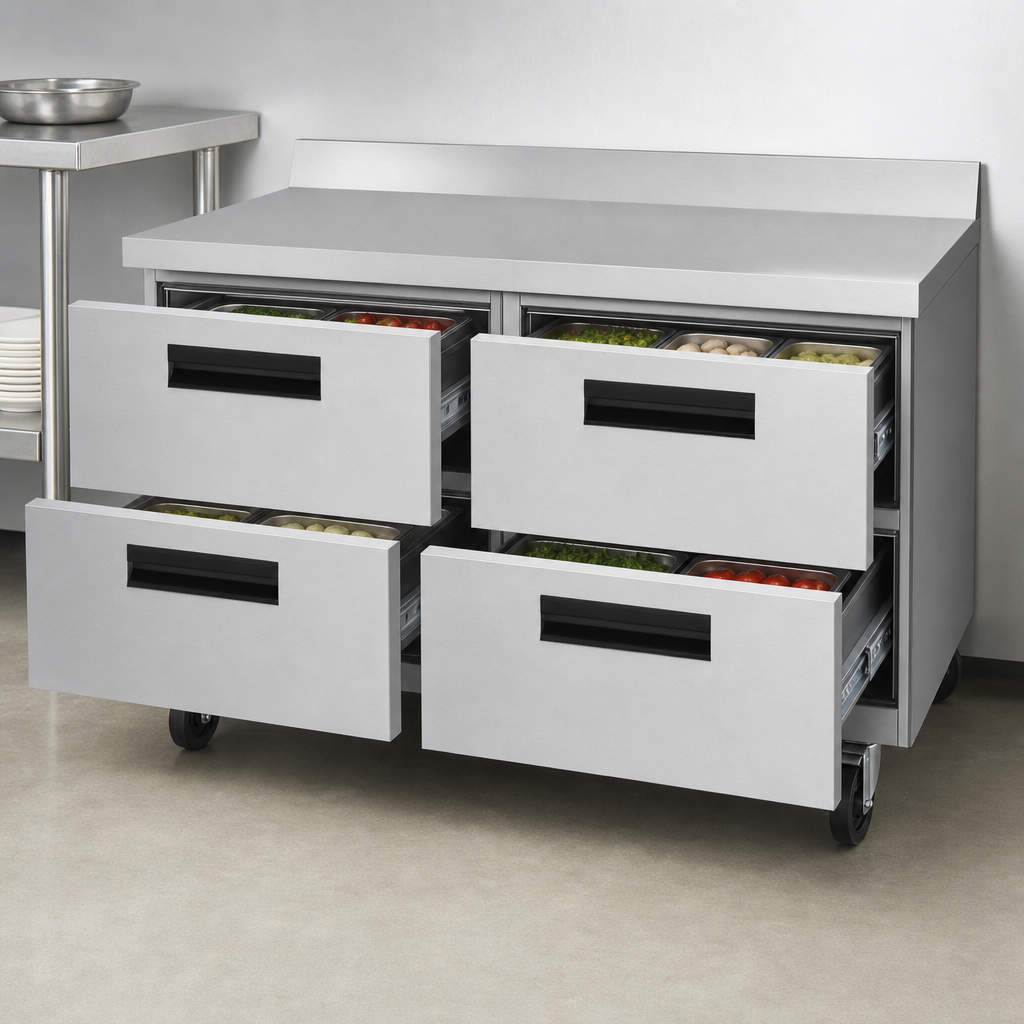

- Four 6" deep drawers hold up to:
- (1) ½ size + (1) 1/3 size pan in each drawer
- Top drawers also accept (1) ¼ size + (1) 1/6 size pan or (1) full-size pan (longways) + (3) 1/9 size pans
- 16 ga. stainless drawer slides with acetal rollers – life-tested 300,000+ cycles, 175 lb dynamic load.
- 2" CFC-free foamed-in-place insulation keeps cold in and energy bills down.
- Flush-mount aluminum handles & snap-in magnetic gaskets for fast cleaning and gasket swaps.
- Ships on four 6" stem casters (front set locking) – rolls through standard doorways for easy install.
- 10 ft. cord and NEMA 5-15P included – just plug in and go.
At-a-Glance Specs
| Model | WF48B-D4 |
|---|---|
| Capacity | 13.66 cu ft (12 cu ft AHAM) |
| Exterior Dimensions | 48" W × 30" D × 40" H (with 6" casters) |
| Work Surface / Backsplash | Stainless, 4" high backsplash |
| Drawer Count | 4 stainless steel, 6" pan depth |
| Temperature Range | -10 °F to 10 °F (factory set) |
| Refrigerant / Charge | R290 HC / 2.6 oz |
| Compressor | 1/3 HP (1,426 BTU/h) |
| Electrical | 115 V / 60 Hz / 1 Ø • 4 A • NEMA 5-15P |
| Energy Usage | 3.60 kWh per day (ASHRAE) |
| Shipping Weight | 346 lb |
Popular Factory Options
- 2.25" or 4" casters
- Stainless steel back for island placement
- Divider bars for custom pan layouts
- Single- or double-tier overshelves
Hoshizaki Worry-Free Warranty
- 5 years parts & labor on the entire unit
- 7 years parts on the compressor
Electrical Note: If local code requires GFCI protection, use a GFCI breaker in place of a receptacle.
Pan capacities shown use industry-standard pan sizes (pans not included).
Pan capacities shown use industry-standard pan sizes (pans not included).
Features & Specs
Features & Specs
Manufacturer
Hoshizaki
Brand_name
Steelheart
Certifications
cETLus, ETL-Sanitation
Height
40.0in
Width
48.0in
Depth
31.0in
Shipping Weight
346.0lbs
Interior Finish
all stainless steel interior
Width (side - side)
48" - 51" wide
Style
drawers
Refrigeration
self-contained, rear mounted
Size
2 section
Exterior Finish
all stainless steel exterior
Compressor HP
1/3 HP
Specifications
Steelheart Series Worktop Freezer, reach-in, two-section, 48"W, 13.66 cu. ft., 4"H backsplash, self-contained rear mounted refrigeration system, (4) stainless steel drawers, stainless steel interior, stainless steel exterior front, sides & top, (4) 6" casters, hot gas condensate removal, R290 hydrocarbon refrigerant, 1/3 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation
