Hoshizaki  |  Steelheart  |  SKU: WF48B-01

Hoshizaki WF48B-01 Steelheart Undercounter & Worktop Refrigeration

$4,594.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Hoshizaki steelheart warranty Warranty Installation & operation Training booklet Refrigeration brochure
Related Searches
Hoshizaki Undercounter & Worktop Refrigeration

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

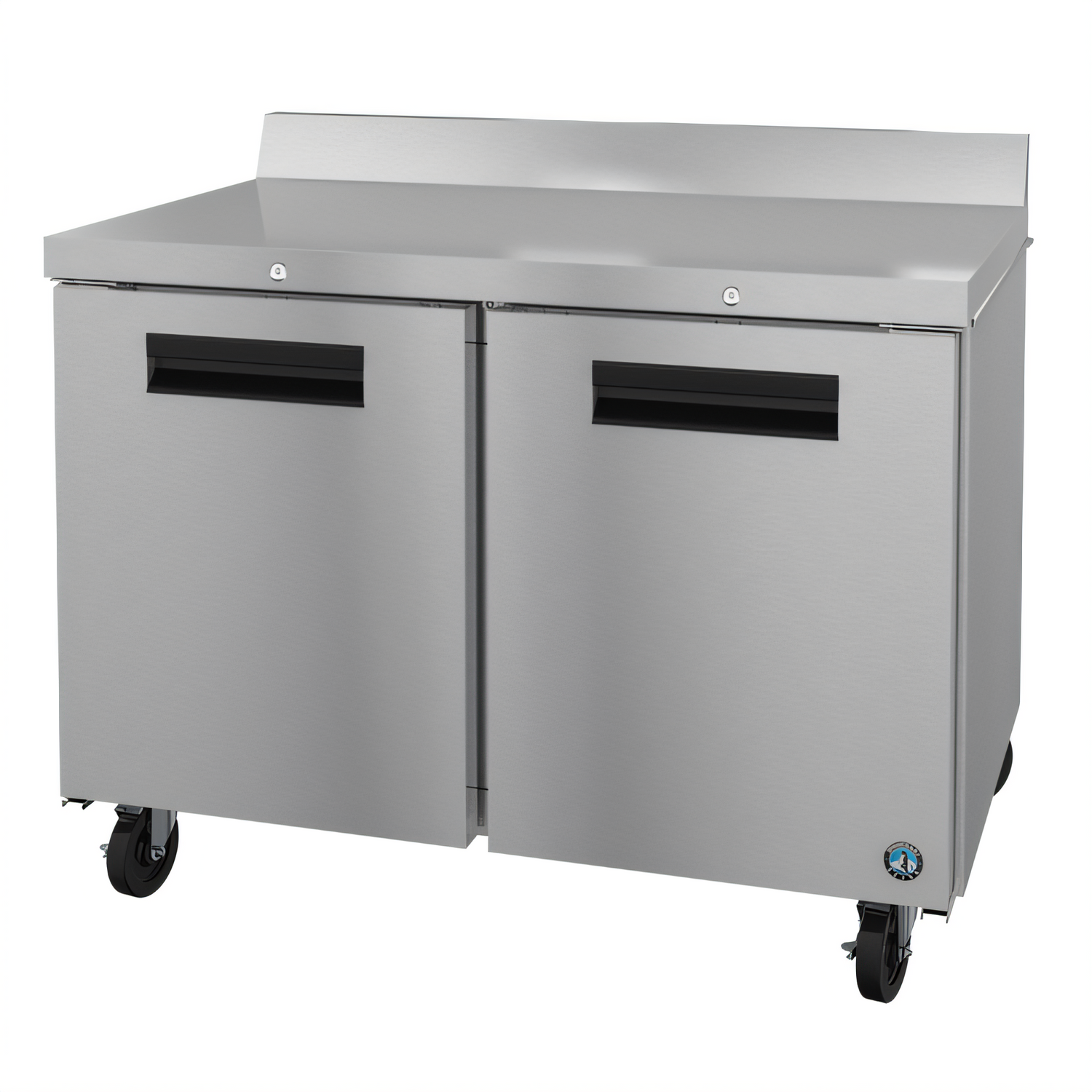

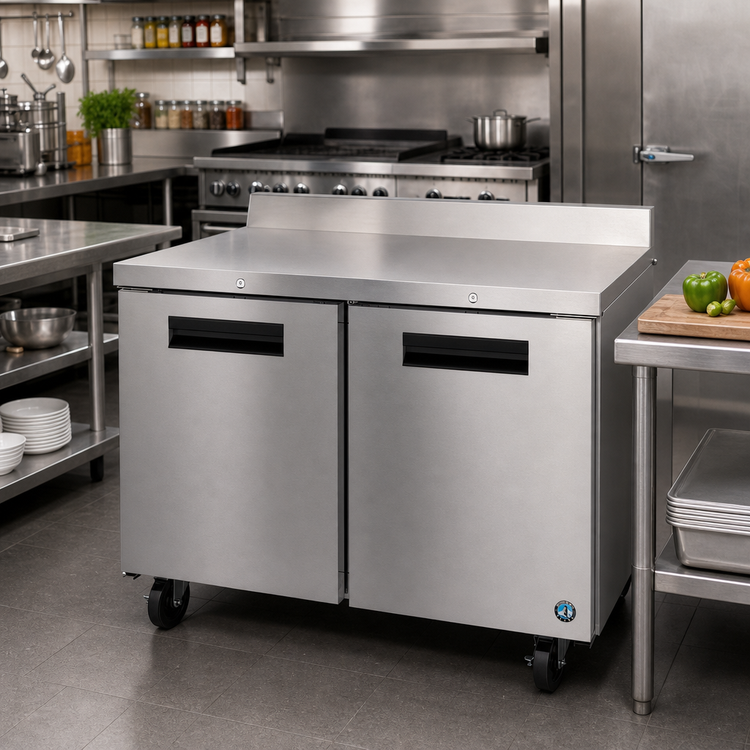

Hoshizaki Steelheart WF48B 48" Worktop Freezer

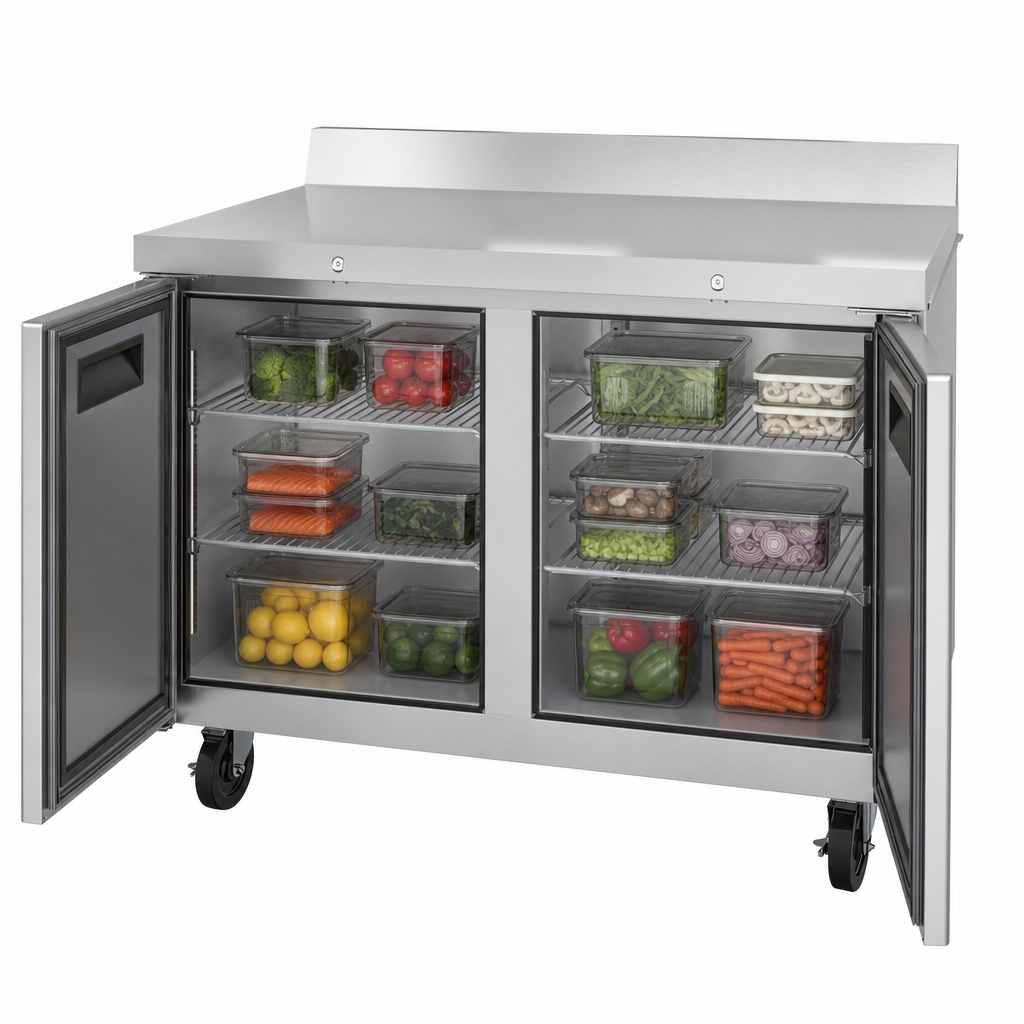

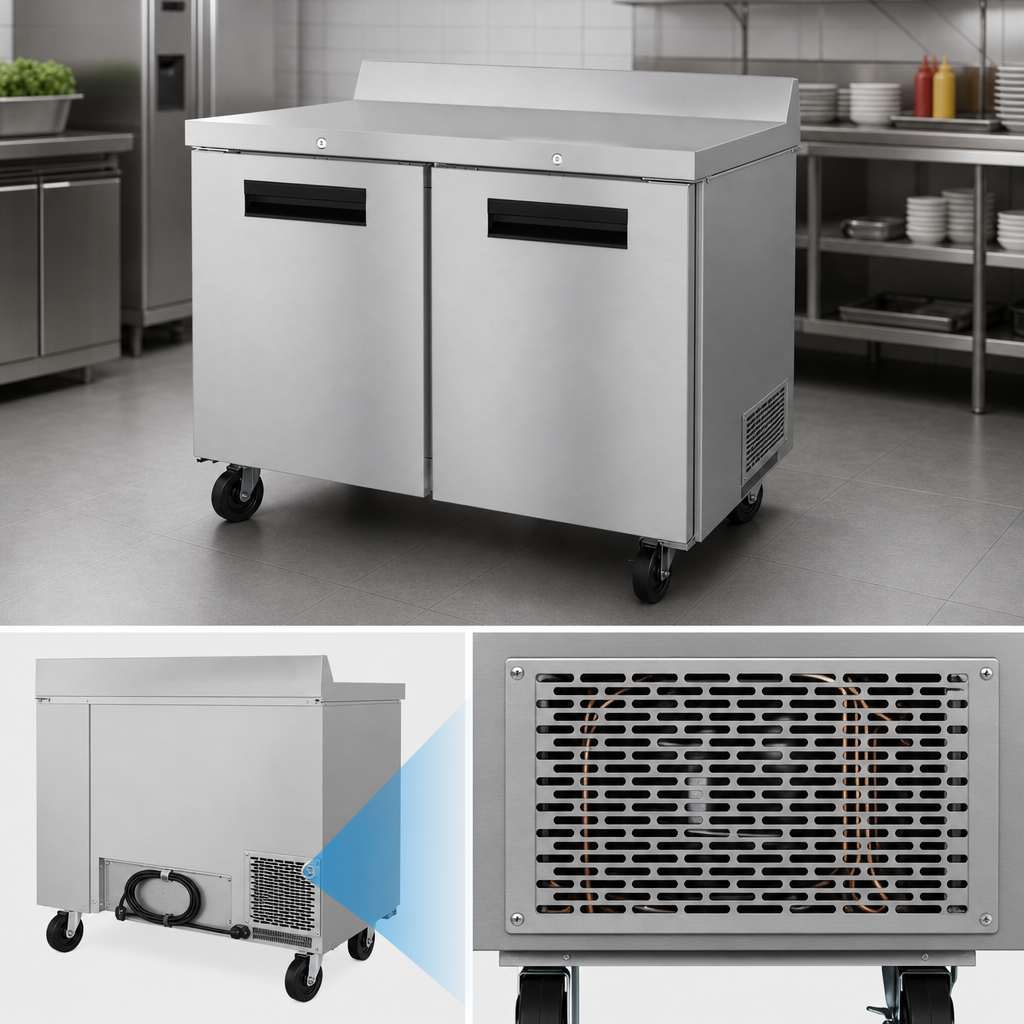

Two-section • 13.66 cu. ft. • Rear-mounted, self-contained refrigeration

Engineered for 100 °F kitchens, the Steelheart WF48B delivers rock-solid -10 °F to 10 °F storage under a heavy-duty stainless work surface—combining prep space and freezer capacity in one, space-saving footprint.

Key Features

  • 13.66 cu. ft. NSF-7 certified freezer capacity in a compact 48" wide cabinet.
  • All-stainless exterior (front, sides & top) and stainless interior walls, floor & ceiling for superior durability.
  • Front-breathing 1/3 HP refrigeration system charged with eco-friendly R290 hydrocarbon.
  • Spring-assisted, self-closing doors with stay-open feature past 90° and field-reversible hinging.
  • Exclusive “stepped” door design protects the magnetic, snap-in gasket from abuse.
  • Hot-gas condensate removal & E-coated evaporator coil for reduced maintenance.
  • (2) epoxy-coated, height-adjustable shelves on ½" increments.
  • (4) 6" stem casters standard—two locking for secure positioning.
  • 10 ft. cord with NEMA 5-15P plug; draws only 3.6 A at 115 V.
  • cETLus & ETL-Sanitation listed; built to run in 45 °F-100 °F ambient.

Specifications

Model WF48B (Steelheart Series)
Exterior Dimensions 48" W × 30" D × 40" H (incl. 6" casters)
Interior Capacity 13.66 cu. ft. (12 cu. ft. AHAM)
Sections / Doors 2 / 2 solid hinged
Shelves Supplied (2) 21.38" W × 16" D epoxy shelves
Temperature Range -10 °F – 10 °F
Ambient Rating 45 °F – 100 °F
Refrigerant / Charge R290 / 2.6 oz
Compressor 1/3 HP (2,431 BTU/hr)
Electrical 115 V / 60 Hz / 1-ph, 3.6 A, NEMA 5-15P (15 A breaker)
Energy Use 3.6 kWh per day (ASHRAE)
Heat Rejection 756 BTU/hr (NSF)
Shipping Weight 273 lb (crated)
Casters (4) 6" stem casters – 2 with brakes

Included & Optional Accessories

  • Factory-installed cylinder door locks (special order).
  • 2.25" or 4" low-profile casters for reduced height.
  • Additional epoxy or stainless-steel shelves.
  • Foot-pedal door opener kit.
  • Left- or right-hand hinge door configuration.

Industry-Leading Warranty

5 years labor • 6 years parts • 7 years compressor
Limited lifetime coverage on solid doors & hinges.

Special Order Lead Time: Please allow approximately 4–6 weeks for delivery.
When GFCI protection is required, a GFCI breaker must be used in place of a GFCI receptacle.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation

Height

40.0in

Width

48.0in

Depth

30.0in

Shipping Weight

273.0lbs

Style

doors

Refrigeration

self-contained, rear mounted

Interior Finish

all stainless steel interior

Size

2 section

Exterior Finish

all stainless steel exterior

Width (side - side)

48" - 51" wide

Compressor HP

1/3 HP

Specifications

Steelheart Series Worktop Freezer, reach-in, two-section, 48"W, 13.66 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, cylinder door lock, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, (4) 6" stem casters (2 with brakes), hot gas condensate removal, R290 Hydrocarbon refrigerant, 1/3 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation (Special order)
