Hoshizaki WF48A Steelheart Undercounter & Worktop Refrigeration
Description

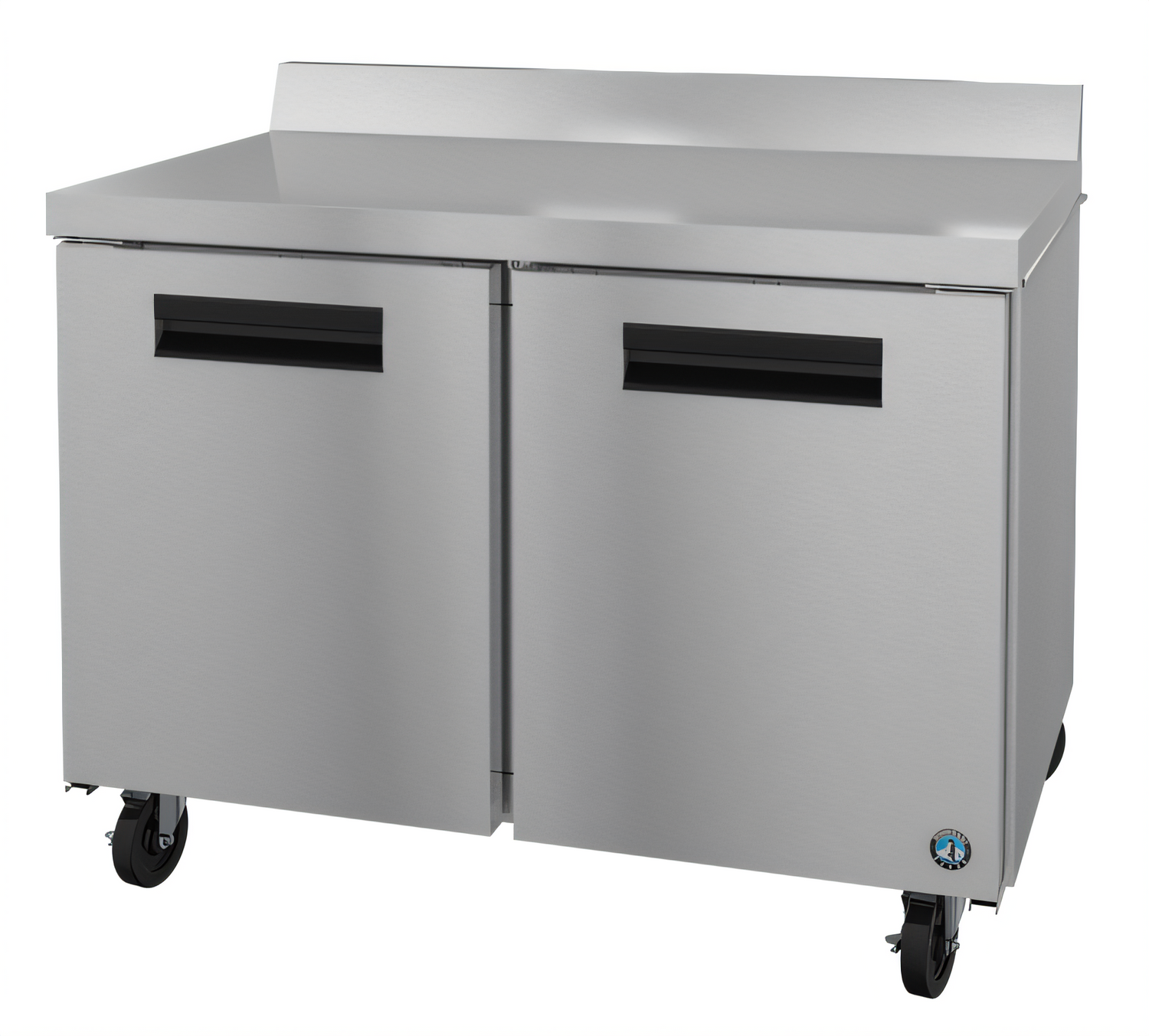

Hoshizaki Steelheart WF48A 48" Worktop Freezer
Two-section • 13.66 cu ft • Front-breathing R290 systemBoost frozen storage and add a heavy-duty stainless work surface—without giving up floor space. The Steelheart WF48A keeps product safely between -10°F and 10°F even in sweltering 100°F kitchens, thanks to Hoshizaki’s high-efficiency, self-contained refrigeration system.
Key advantages
- Maintains NSF-7 temperatures in ambient conditions up to 100°F.
- Front-breathing, rear-mounted 1/3 HP compressor—ideal for tight installs.
- Eco-friendly R290 refrigerant with E-coated evaporator for extended coil life.
- All-stainless worktop, front, and sides with matching stainless interior surfaces.
- Two solid, field-reversible doors with stepped design that shields door gaskets.
- Spring-assisted self-closing doors stay open past 90° for painless loading.
- (2) heavy-duty epoxy shelves adjust on ½" increments for flexible layout.
- (4) 6" polyolefin stem casters—two lock for rock-solid stability.
- 10-ft power cord with NEMA 5-15P plug—no hardwiring required.
At-a-glance specifications
| Model | WF48A (Steelheart Series) |
|---|---|
| Total Capacity | 13.66 cu ft (AHAM 12 cu ft) |
| Sections / Doors | 2 sections / 2 solid hinged, reversible doors |
| Exterior Dimensions | 48" W × 30" D × 40" H (with 6" casters) |
| Shelf Count & Size | 2 shelves – 21.38" W × 16" D |
| Temperature Range | -10°F to 10°F adjustable |
| Compressor | 1/3 HP (1,360 BTU/h) |
| Refrigerant | R290 Hydrocarbon (3.2 oz) |
| Electrical | 115 V / 60 Hz / 1 Ph • 5.9 A • NEMA 5-15P |
| Energy Usage | 3.64 kWh per 24 hr (ASHRAE) |
| Ship Weight | 285 lb |
Ideal applications
- Restaurants, cafés, and bakeries needing extra frozen storage plus prep space.
- Food trucks or kiosks—front-breathing design eliminates side-clearance worries.
- C-stores and concessions seeking organized, upright shelf storage over chest freezers.
Industry-leading warranty
7-year parts & labor coverage on the entire unit, plus a limited lifetime warranty on solid doors and hinges—proof that Steelheart is built to last.
Warranty applies to units produced January 2025 and later and requires registration within 30 days of installation. See full Hoshizaki warranty statement for terms and conditions.
