Hoshizaki WF27B-D2 Steelheart Undercounter & Worktop Refrigeration
Description

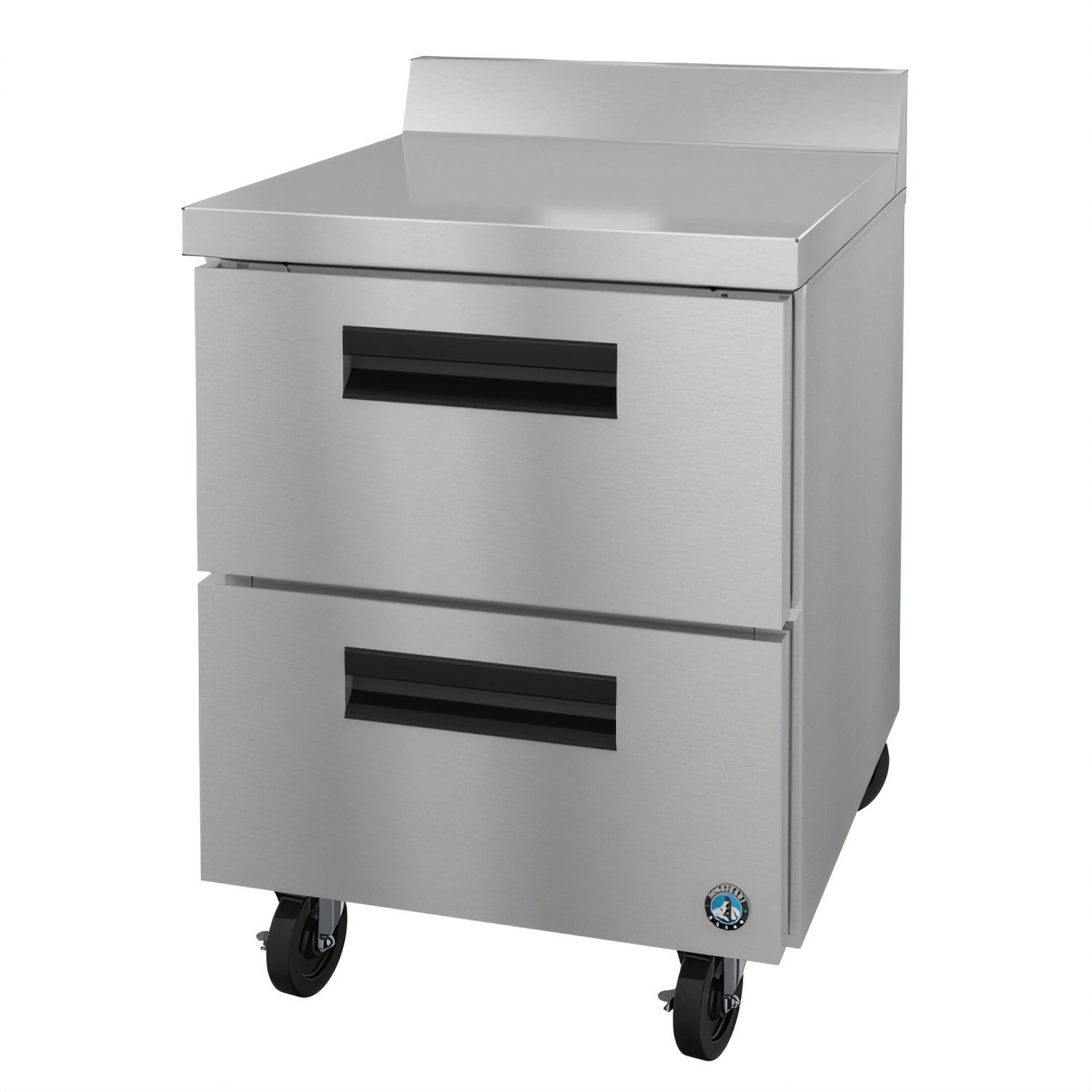

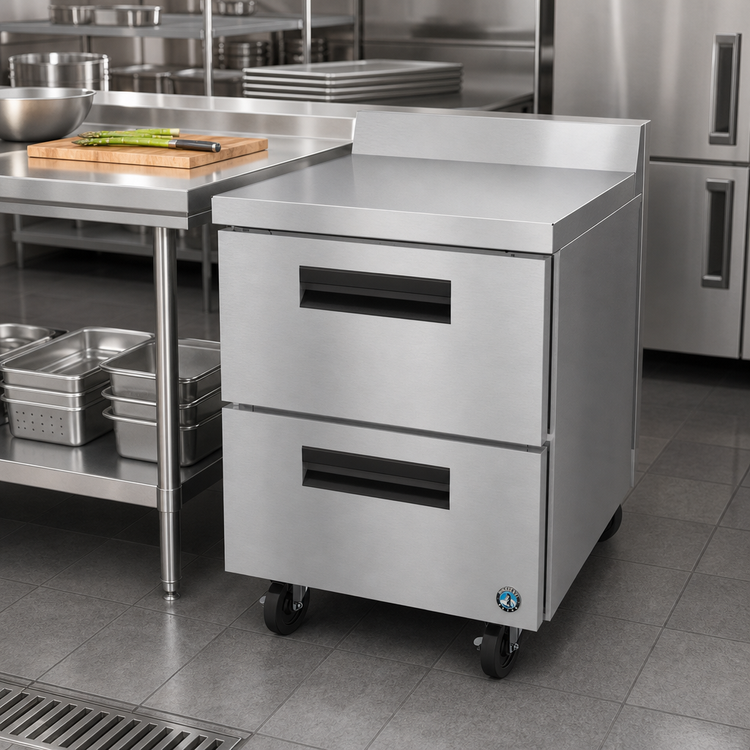

Hoshizaki Steelheart WF27B-D2 Worktop Freezer – 27" One-Section, 2-Drawer
7.21 cu. ft. of frozen storage in an all-stainless, work-surface designBuilt beyond strong for the toughest commercial kitchens, the Steelheart WF27B-D2 combines a durable food-prep workspace with energy-efficient, -10 to 10°F freezing. Two heavy-duty drawers keep product right where you need it, while the front-breathing rear-mount refrigeration system saves valuable floor space and rolls easily through standard doorways.
Key benefits
- Engineered to maintain NSF-7 temperatures in up to 100 °F ambient kitchens.

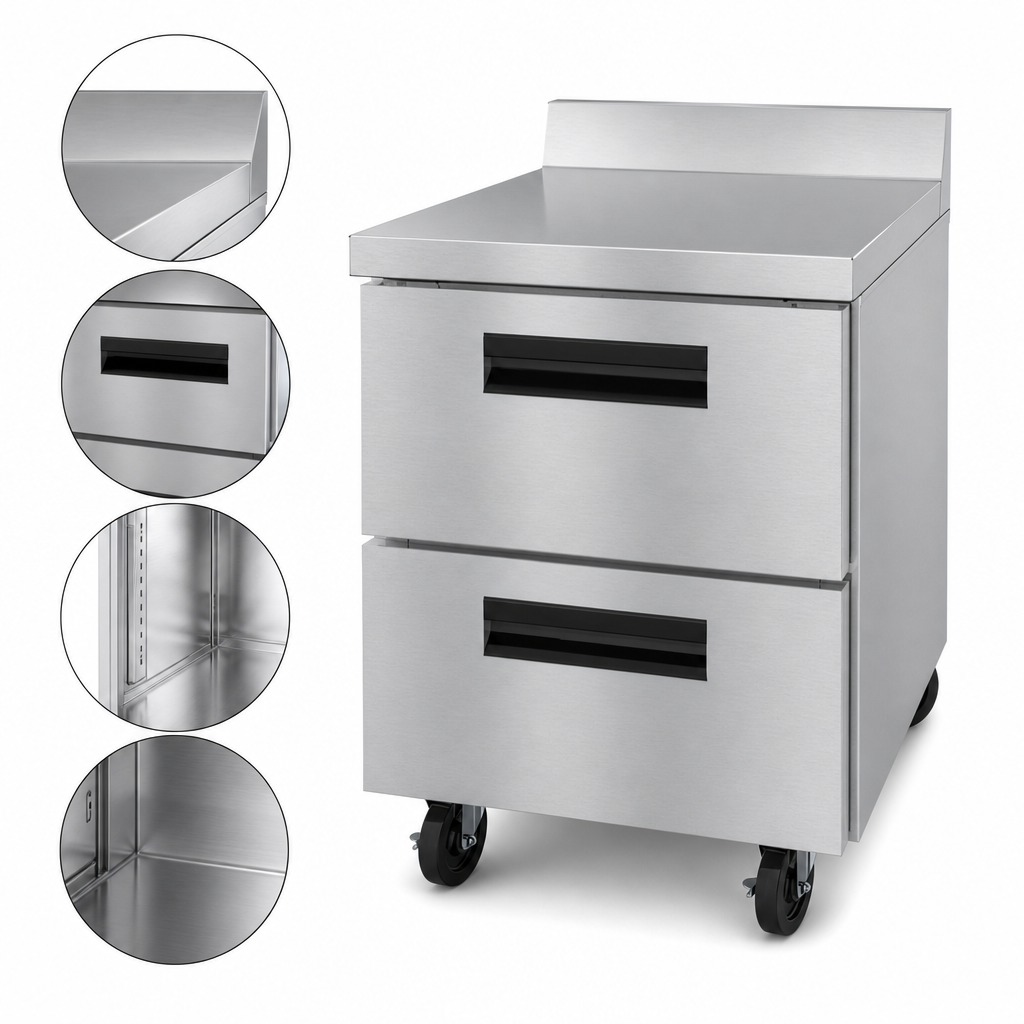

- All-stainless steel front, sides, top, interior walls & floor for maximum sanitation and longevity.
- Space-saving rear-mounted, self-contained refrigeration with front air intake/exhaust.
- Eco-friendly R290 hydrocarbon refrigerant plus thick 2" CFC-free polyurethane insulation.
- (4) 6" polyolefin stem casters – two locking – ship pre-installed for instant mobility.
- Hoshizaki Worry-Free Warranty – 5 yr labor, 6 yr parts, 7 yr compressor.

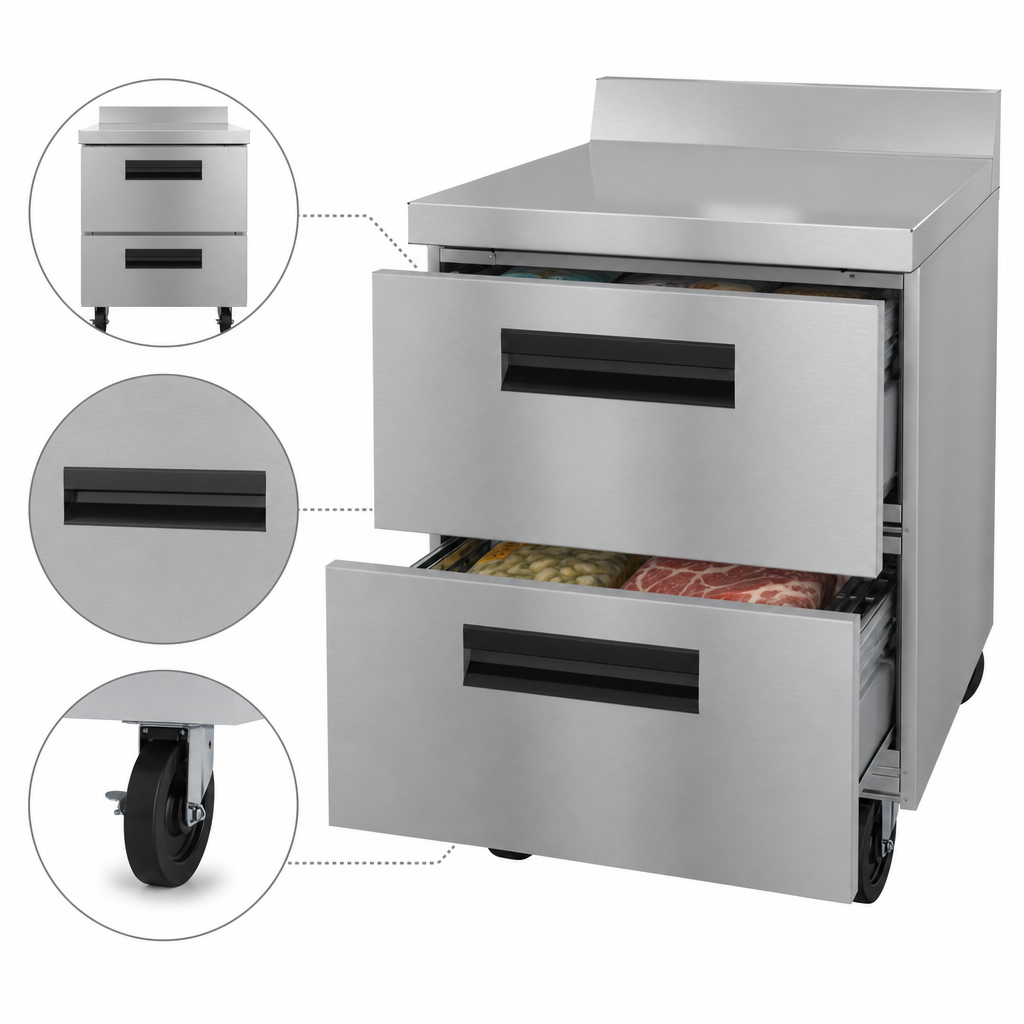

Drawer capacity & construction
- Top drawer: (1) 12" x 20" full-size pan and (2) ¼-size pans or (1) 6"-deep full pan (front-to-back or left-to-right).
- Bottom drawer: (1) 6"-deep full-size pan.
- 16-ga. stainless drawer frames on 16-ga. slides with acetal rollers – life-tested 300,000 cycles at 175 lb.
- Flush-mount extruded aluminum handles & snap-in magnetic gaskets for fast cleaning.
Refrigeration performance
- 1/5 HP compressor, capillary tube metering & heated time-initiated defrost.
- E-coated evaporator coil resists corrosion; hot-gas condensate removal eliminates drip pans.
- Factory-programmed set-point range: -10 to 10 °F (-23 to -12 °C).
- Energy use: only 2.4 kWh per day (ASHRAE); 489 BTU/hr heat rejection.
Specifications
| Model | WF27B-D2 |
|---|---|
| Storage capacity | 7.21 cu. ft. (AHAM 6.21 cu. ft.) |
| Exterior dimensions (W × D × H) | 27" × 30" × 40" (incl. 6" casters) |
| Depth w/ drawers open | 51" (incl. 1" bumper) |
| Compressor / BTU | 1/5 HP | 1,354 BTU/hr |
| Electrical | 115 V / 60 Hz / 1 ph | 3 A | NEMA 5-15P, 10 ft cord |
| Refrigerant / charge | R290 HC, 1.9 oz |
| Energy certification | cETLus, ETL-Sanitation (NSF 7) |
| Shipping weight | 218 lb (crated) |
Options & accessories
- 2.25", 4" casters or 6" adjustable legs.
- Overshelves or stainless steel back panel.
- Drawer divider & rail adapter bars for additional pan layouts.
Hoshizaki reserves the right to modify specifications without notice. Warranty valid in the U.S., Canada, Puerto Rico & U.S. territories.
