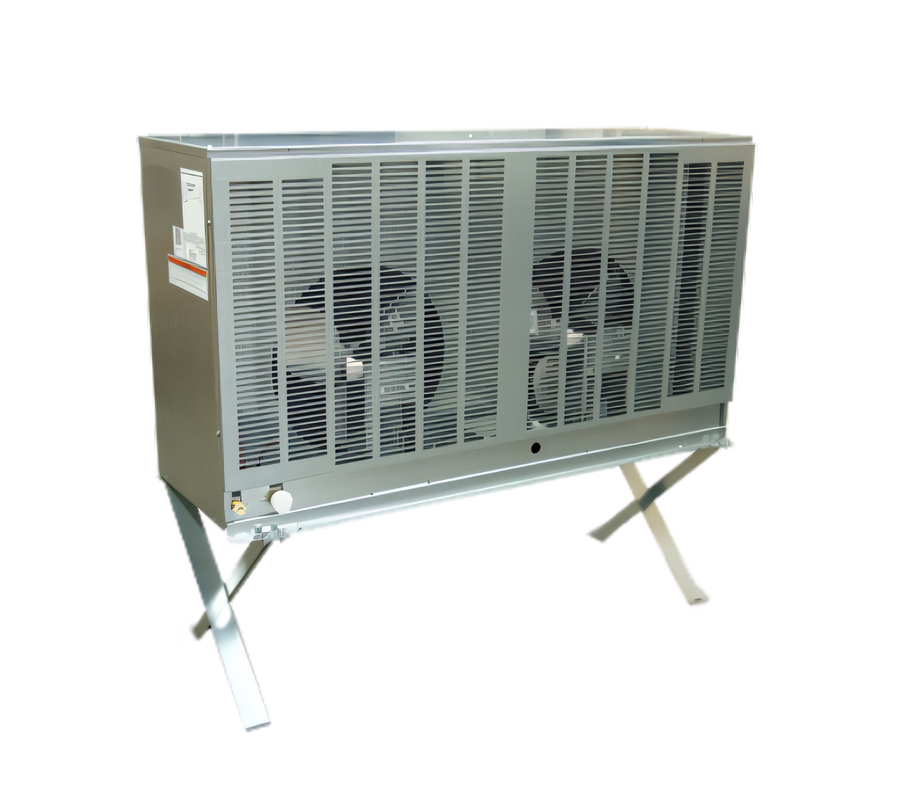

Hoshizaki URC-22FZ Air-Cooled Ice Machine Remote Condenser, 115V, R-404A
For Z-Model Ice Machines; Outdoor Installation Up to 55 Feet
This weather-resistant remote condenser delivers quieter, more efficient cooling for compatible Z-model ice machines and can be installed outdoors up to 55 feet away.
- Air-cooled remote condenser for compatible KM Series cubers and F Series flakers/cubelets.
- 115V/60/1 electrical connection with a 104-127V operating range.
- Weather-resistant cabinet supports outdoor installations and longer service life.
- Quiet operation and improved efficiency help reduce noise and energy use.
- Uses R-404A refrigerant and matching non-precharged line sets sold separately.
Overall Dimensions:
46.38"W x 14.06"D x 40.5"HZ-Model Pairing
Designed to pair with matching Z-model ice machines for proper system compatibility.
Weather-Resistant Cabinet
Built for outdoor exposure to help protect the unit and extend service life.
Quiet Operation
Helps reduce noise in the installation area.
Energy Efficiency
Improved efficiency supports lower energy use.
Outdoor Installation Flexibility
May be installed outdoors up to 55 feet from the icemaker when used with a pre-charged tubing kit.
Operating Limits
Rated for ambient temperatures from -20°F to 122°F with a 104-127V voltage range.
cULus Listed
Listed for commercial ice machine applications.
Separate Line Sets
Non-precharged line sets are sold separately and require brazing.
Warranty & Protection
3-year parts and labor on the entire unit when paired with compatible KM Series cubers or F Series flakers; 5-year parts on the air-cooled condenser coil.
