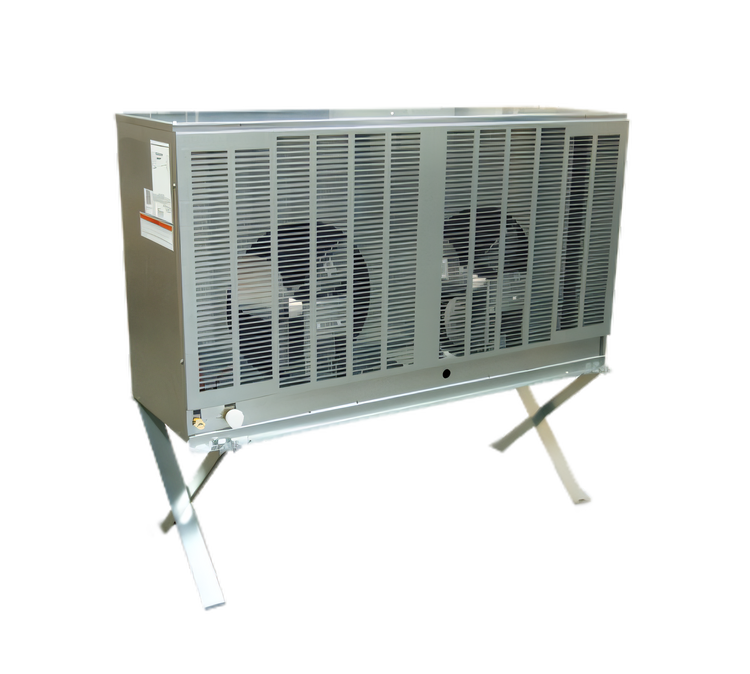

Hoshizaki URC-14FZ Remote Condenser for Z-Model Ice Machines

SKU: URC-14FZ
$1,550.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Disposable Tableware Disposable Tableware Disposables & Consumables Disposables & Packaging Hoshizaki New Arrivals

Hoshizaki URC-14FZ Remote Condenser for Z-Model Ice Machines

115V, R-404A, Weather-Resistant Cabinet

Keep heat and noise away from the kitchen with a weather-resistant remote condenser built for matching Z-model Hoshizaki ice machines.

  • Remote condenser for KM Series Cubers and F Series Flakers/Cubelets.
  • 115V/60/1 connection to the icemaker for straightforward electrical integration.
  • Uses R-404A refrigerant and supports quiet, efficient operation.
  • Weather-resistant cabinet is built for longer outdoor service life.
  • May be installed outdoors up to 55 feet from the icemaker with a pre-charged tubing kit.
  • Always pair Z-model ice machines with a Z-model remote condenser.

Overall Dimensions:

35.68"W x 14.06"D x 36.5"H

Z-Model Pairing

Designed to be matched with Z-model ice machines for proper system compatibility.

Quiet Operation

Helps reduce operational noise compared with an all-in-one installation.

Improved Efficiency

Remote condenser design supports better energy performance and savings.

Weather-Resistant Cabinet

Built for outdoor use and longer service life in demanding environments.

Outdoor Installation Range

May be installed outdoors up to 55 feet from the icemaker when used with a pre-charged tubing kit.

R-404A Refrigerant

Configured for systems that use R-404A refrigerant.

Type Remote Condenser
Style Z Model
Refrigerant Type R-404A
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Voltage Range 104 - 127 Volts
Ambient Temperature Range -20° F to 122° F
Maximum Distance From Icemaker 55 Feet
Shipping Width 36 Inches
Shipping Depth 15 Inches
Shipping Height 37 Inches
Shipping Weight 117 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

3 years parts and labor on the entire unit, with 5 years parts on the air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The document lists KM-901MRJZ(3), KM-1100MRJZ, KM-1301SRJZ(3), KM-1340MRJZ(3), and F-1501MRJZ(-C).
Yes. It may be installed outdoors up to 55 feet from the icemaker when used with a pre-charged tubing kit. For installations beyond 55 feet, contact the factory service department.
It uses a 115V/60/1 connection to the icemaker, with an operating voltage range of 104-127V.
Yes. The document notes non-precharged line sets that require brazing, and lists compatible line set part numbers for this model.
Use a GFCI breaker in lieu of a GFCI receptacle.
Warranty coverage varies by paired ice machine, but the document lists 3 years parts and labor on the entire unit and 5 years parts on the air-cooled condenser coil. Coverage is valid in the U.S., Canada, Puerto Rico, and U.S. Territories.
