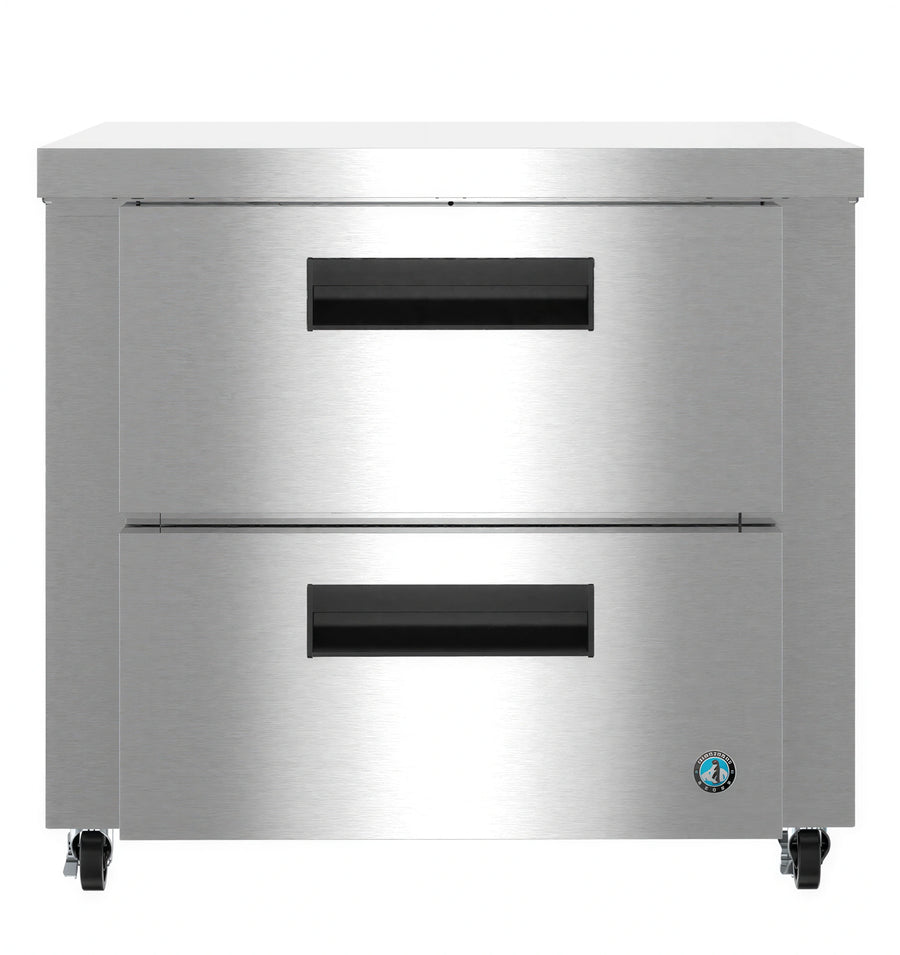

Hoshizaki UR36B-D2 Undercounter Reach-In Refrigerator, 1 Section, 2 Drawers, 36"W, Stainless Steel, Self-Contained Rear-Mounted Refrigeration

SKU: UR36B-D2
$5,302.00
Free Shipping

Want to speak to an expert?

The Hoshizaki UR36B-D2 is a one-section undercounter reach-in refrigerator with two drawers and 8.64 cu. ft. of interior storage capacity.

It features a stainless steel exterior front, sides, and top; stainless steel interior sides, back, and floor; and a self-contained rear-mounted refrigeration system using R290 hydrocarbon refrigerant.

  • Four 4-inch casters are standard, including two with brakes.
  • The drawers have a 150 lb. dynamic load rating.
  • The cabinet and drawers use 2-inch CFC-free, foamed-in-place polyurethane insulation.

Overall Dimensions:

36.0"W x 31.0"D x 33.75"H

Product Weight:

232.0 lb

Two-drawer access

The one-section cabinet uses two drawers with a 150 lb. dynamic load rating.

Stainless steel construction

The exterior front, sides, and top are stainless steel; the interior sides, back, and floor are also stainless steel.

Rear-mounted refrigeration

The self-contained refrigeration system is mounted at the rear.

R290 refrigerant

The refrigeration system uses R290 hydrocarbon refrigerant.

Front-breathing airflow

The unit uses a front-breathing air flow design.

Caster mobility

Four 4-inch casters are standard, with two casters equipped with brakes.

Insulated cabinet and drawers

The cabinet and drawers are insulated with 2-inch CFC-free, foamed-in-place polyurethane.

Removable magnetic drawer gasket

The magnetic drawer gasket is removable for cleaning.

Series Steelheart®
Type Undercounter reach-in refrigerator
Sections 1
Access type 2 drawers
Storage capacity 8.64 cu. ft.
Exterior finish Stainless steel front, sides, and top
Interior construction Stainless steel sides, back, and floor
Refrigeration Self-contained, rear mounted
Refrigerant R290 hydrocarbon
Refrigerant charge 2.3 oz.
Compressor 1/6 HP
Electrical 115 V, 60 Hz, 1 phase
Electrical connection NEMA 5-15P
Casters 4-inch casters; 2 with brakes
Drawer load rating 150 lb. dynamic
Insulation 2-inch CFC-free, foamed-in-place polyurethane
Ambient temperature range 45°F to 100°F
Control setpoint range 32°F to 52°F
Energy consumption 0.69 kWh/day at ASHRAE

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Seven-year warranty on labor, parts, and compressor.

Frequently Asked Questions

The UR36B-D2 has two drawers.
The interior storage capacity is 8.64 cu. ft.
It uses R290 hydrocarbon refrigerant.
The unit uses a NEMA 5-15P connection and is specified for 115 V, 60 Hz, single-phase power.
Yes. It includes four 4-inch casters, with two equipped with brakes.
The product is 36 inches wide, 31 inches deep, and 33.75 inches high.
