Hoshizaki

Hoshizaki Steelheart 93-Inch Three-Section Undercounter Refrigerator with Six Drawers

SKU: ULR93B-D6
$12,984.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Hoshizaki New Arrivals Reach-in Refrigerators Reach-In Refrigerators & Freezers Refrigeration, Freezing & Ice Restaurant Equipment

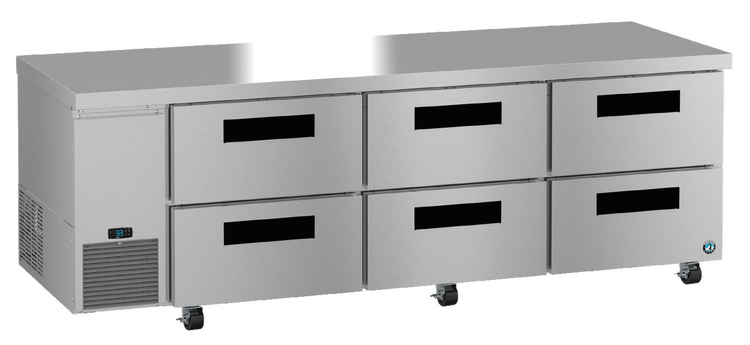

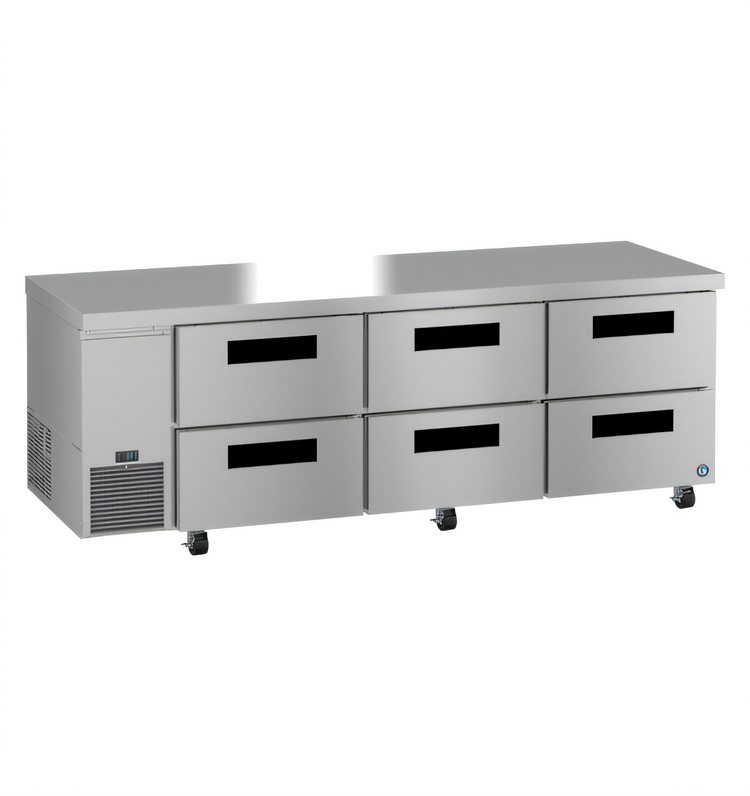

Hoshizaki Steelheart 93-Inch Three-Section Undercounter Refrigerator with Six Drawers

Self-Contained Side-Mount Cooling, 30.17 Cu. Ft., Stainless Steel

Built for busy prep lines, this six-drawer undercounter refrigerator combines 30.17 cu. ft. of cold storage with stainless steel construction and space-saving front-breathing refrigeration.

  • 93-inch, three-section undercounter refrigerator with six drawers
  • 30.17 cu. ft. of interior refrigerated storage
  • Each drawer accommodates two 12" x 20" x 6" pans, pans by others
  • Front-breathing, side-mounted self-contained refrigeration with R290 refrigerant
  • Stainless steel exterior and interior food-contact surfaces for durability
  • Standard 4" stem casters with brakes on three wheels for easy positioning

Overall Dimensions:

93.0"W x 33.25"D x 33.88"H

Product Weight:

589.0 lb

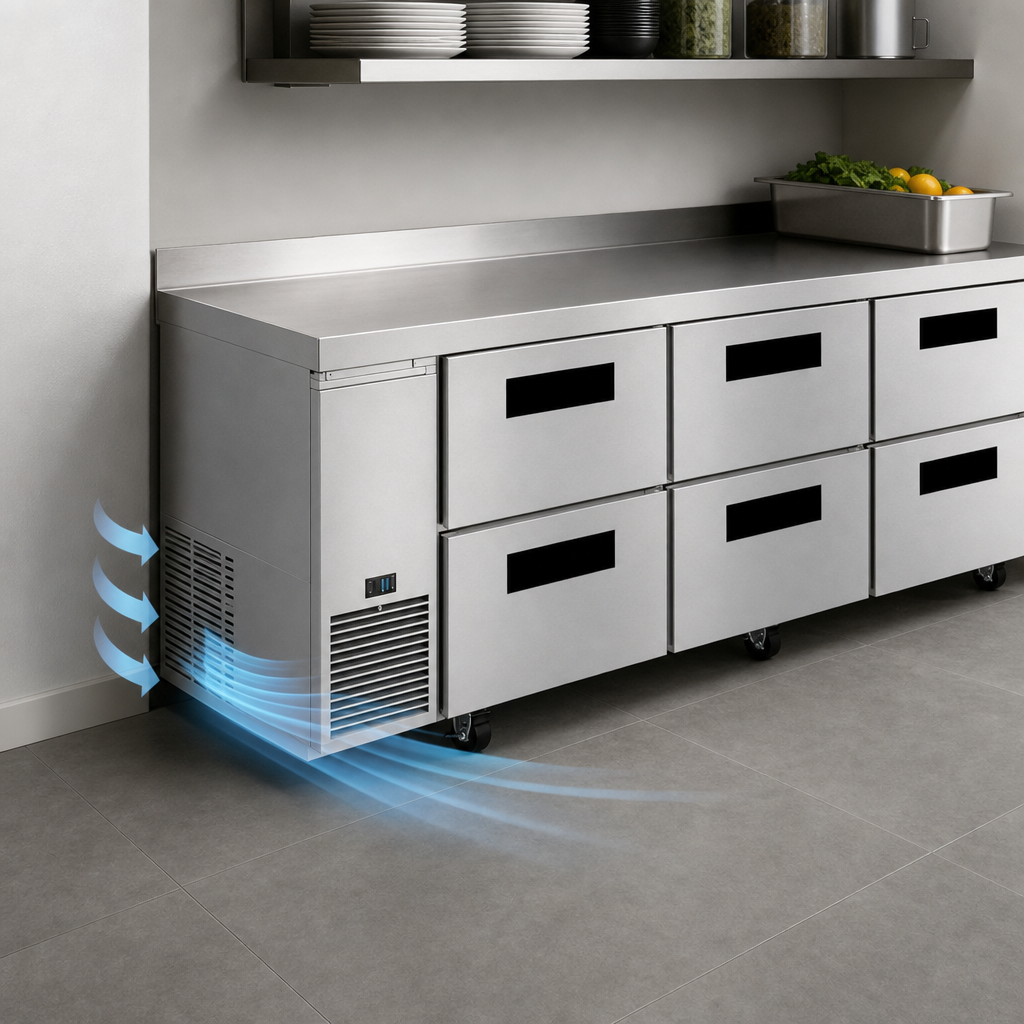

Front-Breathing Design

Airflow is designed to allow just 1" of rear wall clearance, which helps simplify installation in tight spaces.

Front-Breathing Design

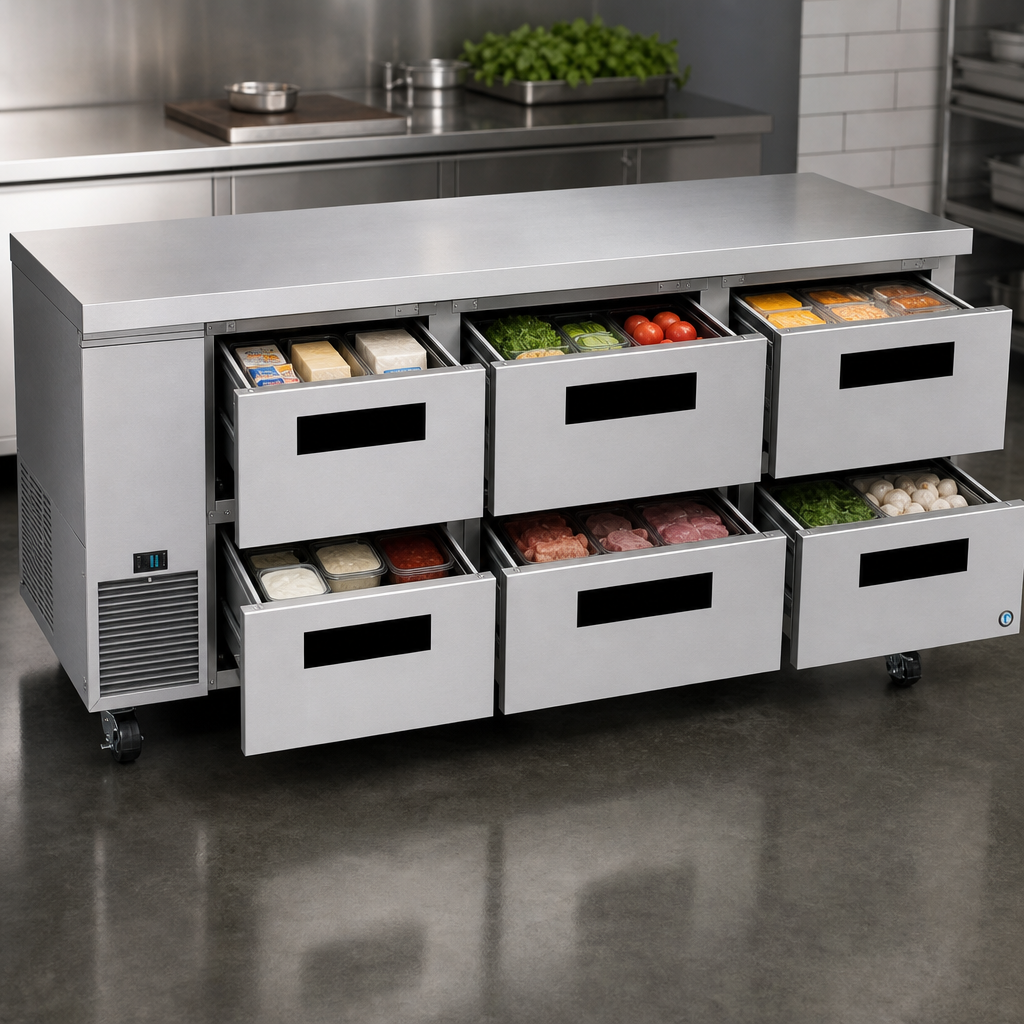

Six-Drawer Storage

The three-section cabinet uses six drawers to organize refrigerated ingredients and prep items in a compact footprint.

Six-Drawer Storage

Pan Capacity

Each drawer accommodates (2) 12" x 20" x 6" deep pans, with pans supplied by others.

Heavy-Duty Drawer Slides

Drawer slides are built from 14-gauge stainless steel with acetal rollers and a 250 lb. dynamic load capacity.

Stainless Steel Construction

The exterior front, sides, and top, plus the interior sides, back, and floor, are stainless steel for long-term durability.

Efficient Insulation and Cooling

Cabinet and drawers are insulated with 2" CFC-free foamed-in-place polyurethane and use environmentally friendly R290 refrigerant.

Service-Friendly Refrigeration System

Features include a removable air filter, hot gas condensate removal, mullion heaters, and an E-coated evaporator coil.

Installation Ready

Standard 4" stem casters, three with brakes, and a 10 ft. cord with NEMA 5-15P plug come included.

Type Undercounter Refrigerator
Style Three Section
Installation Type Undercounter
Access Type Drawers
Number Of Drawers 6
Capacity 30.17 Cubic Feet
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained, Side Mounted
Refrigerant Type R290
Compressor Horsepower 1/3 HP
BTU 2,431 BTU/HR
Temperature Range 28°F to 45°F
Voltage 115 Volts
Amps 5 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 15 Amps
Plug Type NEMA 5-15P
Cord Length 10 Feet
Shipping Width 93 Inches
Shipping Depth 34 Inches
Shipping Height 34 Inches
Shipping Weight 589 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

7-year labor, parts, and compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Hoshizaki steelheart warranty PDF Download

Frequently Asked Questions

It provides 30.17 cu. ft. of interior storage capacity.
Each drawer accommodates two 12" x 20" x 6" deep pans, with pans by others.
The unit operates on 115V, 60Hz, single-phase power and includes a NEMA 5-15P cord and plug.
Yes. The front-breathing design allows for 1" of rear wall clearance.
This model uses environmentally friendly R290 hydrocarbon refrigerant.
It comes standard with 4" stem casters, and three of the casters have brakes.
