Hoshizaki ULF60B Steelheart Undercounter & Worktop Refrigeration
Description

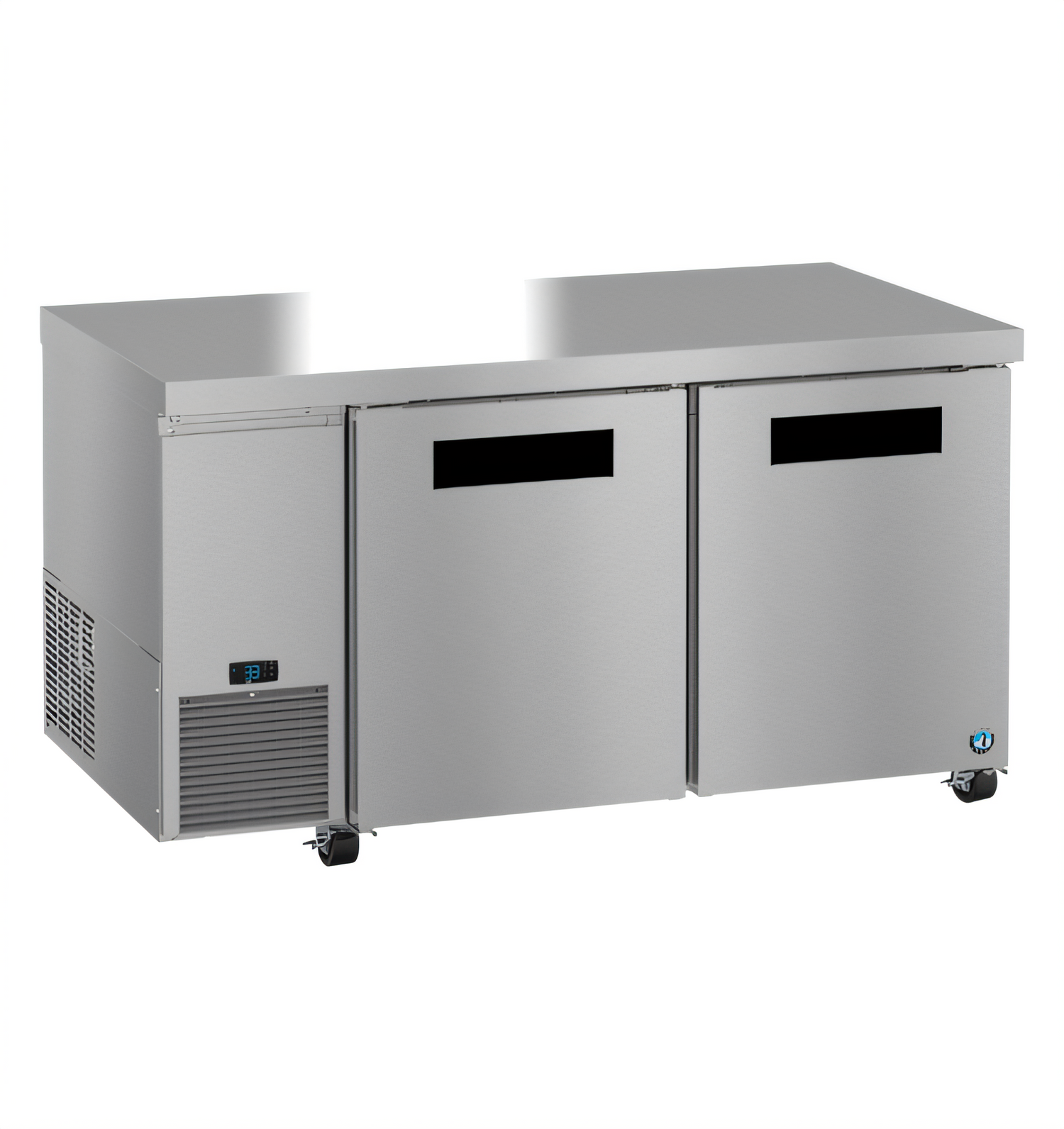

Hoshizaki Steelheart ULF60B Undercounter Freezer
60" two-section • 17.22 cu. ft. • Side-mounted ½ HP refrigerationBuilt for busy commercial kitchens that can’t spare an inch of space or a minute of downtime, the Steelheart ULF60B slides neatly under standard 34" counters while delivering rock-solid −10 °F to 10 °F holding temperatures—even in sweltering 100 °F ambient conditions. Its front-breathing, side-mount refrigeration system lets you push the cabinet flush to equipment on both sides and within 1" of the back wall, maximizing every square foot of your line.
Why chefs choose Steelheart
- NSF-7 performance in 100 °F kitchens—critical food safety without baby-sitting temps.

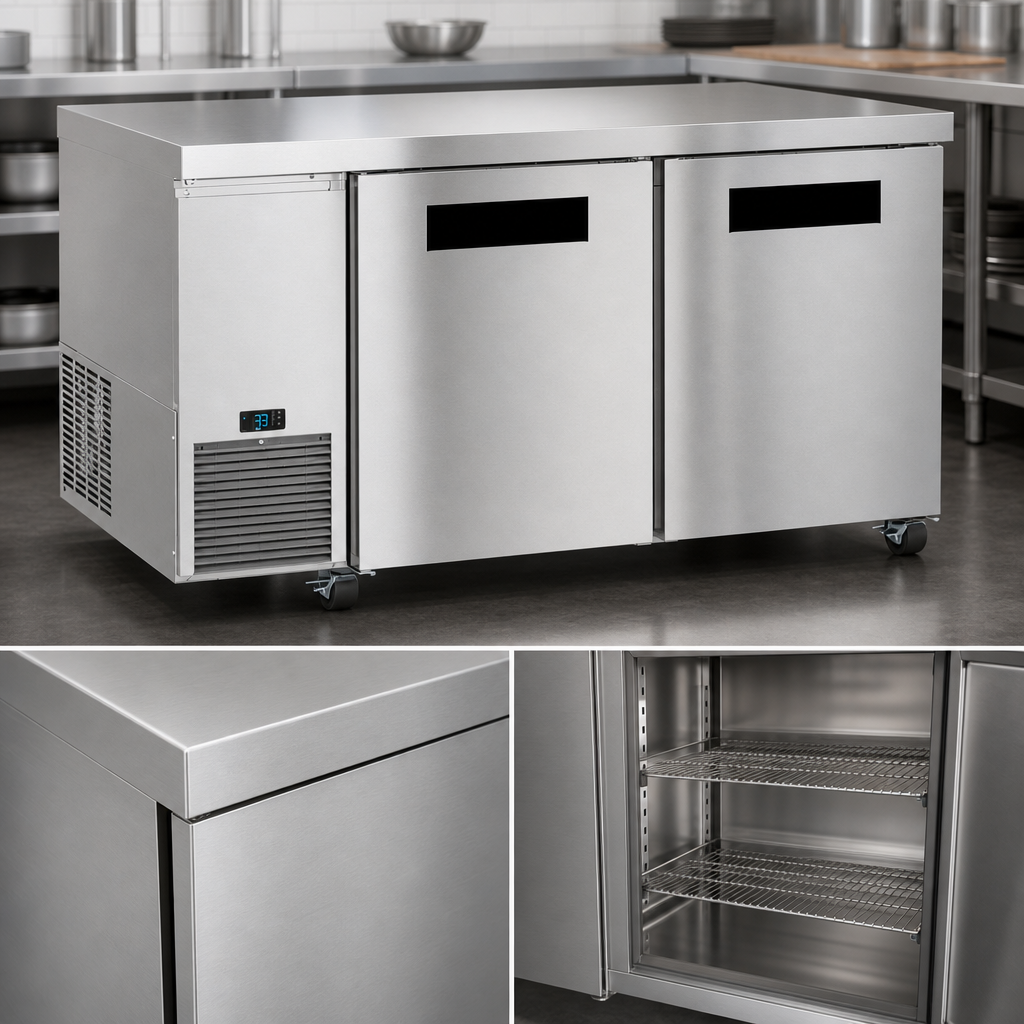

- All stainless inside & out (front, sides, top, back, floor and walls) for fast clean-ups and long life.
- Eco-friendly R290 refrigerant paired with a ½ HP compressor and E-coated evaporator for efficient, reliable cooling.
- Exclusive “stepped” door design protects gaskets from pan strikes; field-reversible hinges adapt to any layout.
- Spring-assisted self-closing doors stay open past 90° for easy loading, then seal tight on their own.
- Four epoxy-coated shelves hold full-size sheet pans and up to 120 lb each; adjust on ½" centers.

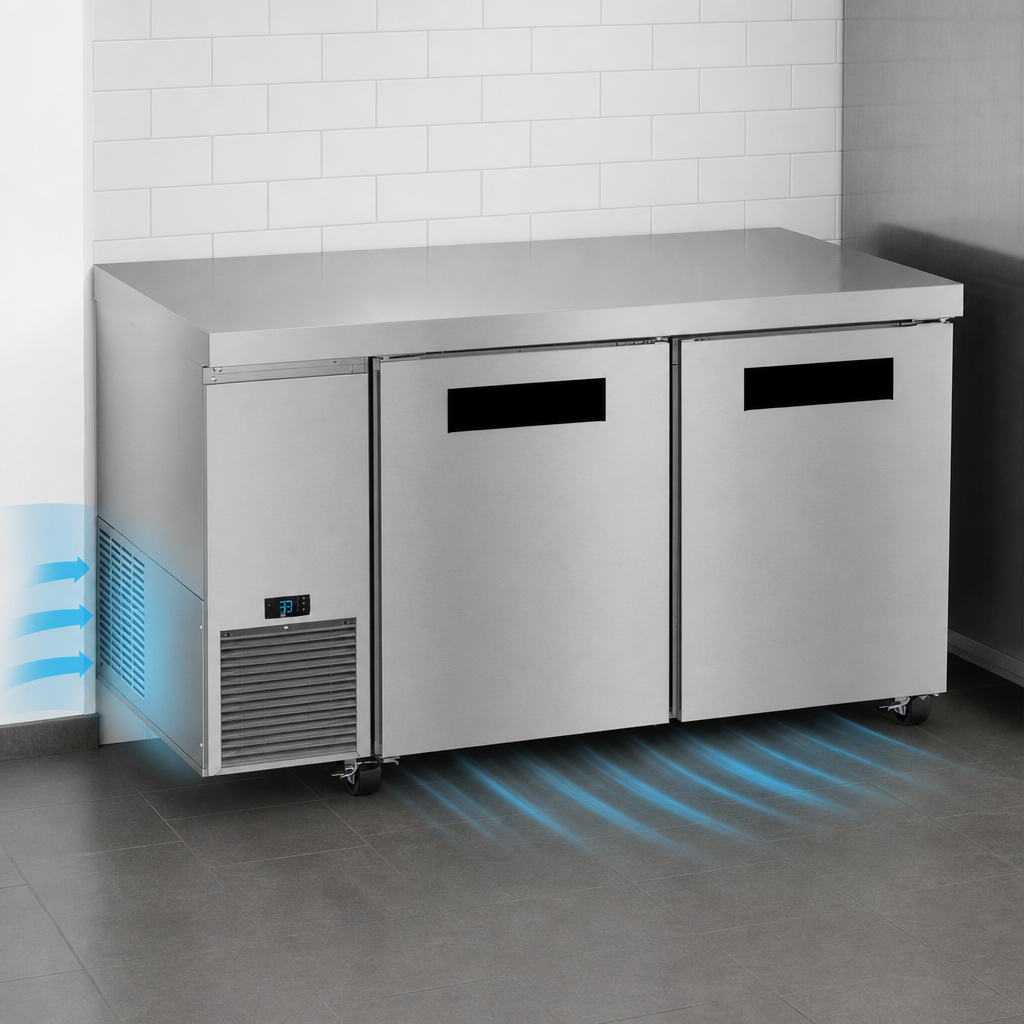

- Front-breathing airflow and removable air filter simplify preventative maintenance.
- Hot-gas condensate removal & mullion heaters reduce exterior sweating—no floor drains required.
- 10 ft. cord with NEMA 5-15P plug ships ready to run; 4" casters (two locking) come standard.
At-a-glance specs
| Model | ULF60B |
|---|---|
| Configuration | Two-section undercounter reach-in freezer |
| Interior capacity (AHAM) | 17.22 cu. ft. |
| Exterior dimensions (W × D × H) | 60" × 33.25" × 33.875" (with 4" casters) |
| Door type | (2) solid, spring-assisted, field-reversible |
| Shelves | (4) epoxy coated, 21.5" × 25.5" adjustable |
| Temperature range | −10 °F to 10 °F (factory set 2 °F) |
| Ambient rating | 45 °F – 100 °F |
| Refrigeration | Self-contained side mount, ½ HP, R290 (2.8 oz.) |
| Electrical | 115 V / 60 Hz / 1 ph, 5 A, NEMA 5-15P |
| Energy use | 4.50 kWh per day (ASHRAE) |
| Heat rejection | 786 BTU/hr (NSF) |
| Clearance needed | 1" rear, zero side |
| Casters | (4) 4" stem, (2) with brakes |
| Shipping weight | 322 lb (crated) |
| Certifications | cETLus, ETL-Sanitation (NSF-7) |
Popular accessories (sold separately)
- 2" or 6" caster kits
- Single or double overshelves
- Foot-pedal door opener (left or right hinge)
- Additional epoxy-coated or stainless-steel shelves
- Pan-slide racks for easy sheet-pan organization
Specifications subject to change without notice. Simple routine cleaning of the condenser and air filter is required to maintain warranty coverage.
