Hoshizaki UF60B Steelheart Undercounter & Worktop Refrigeration
Description

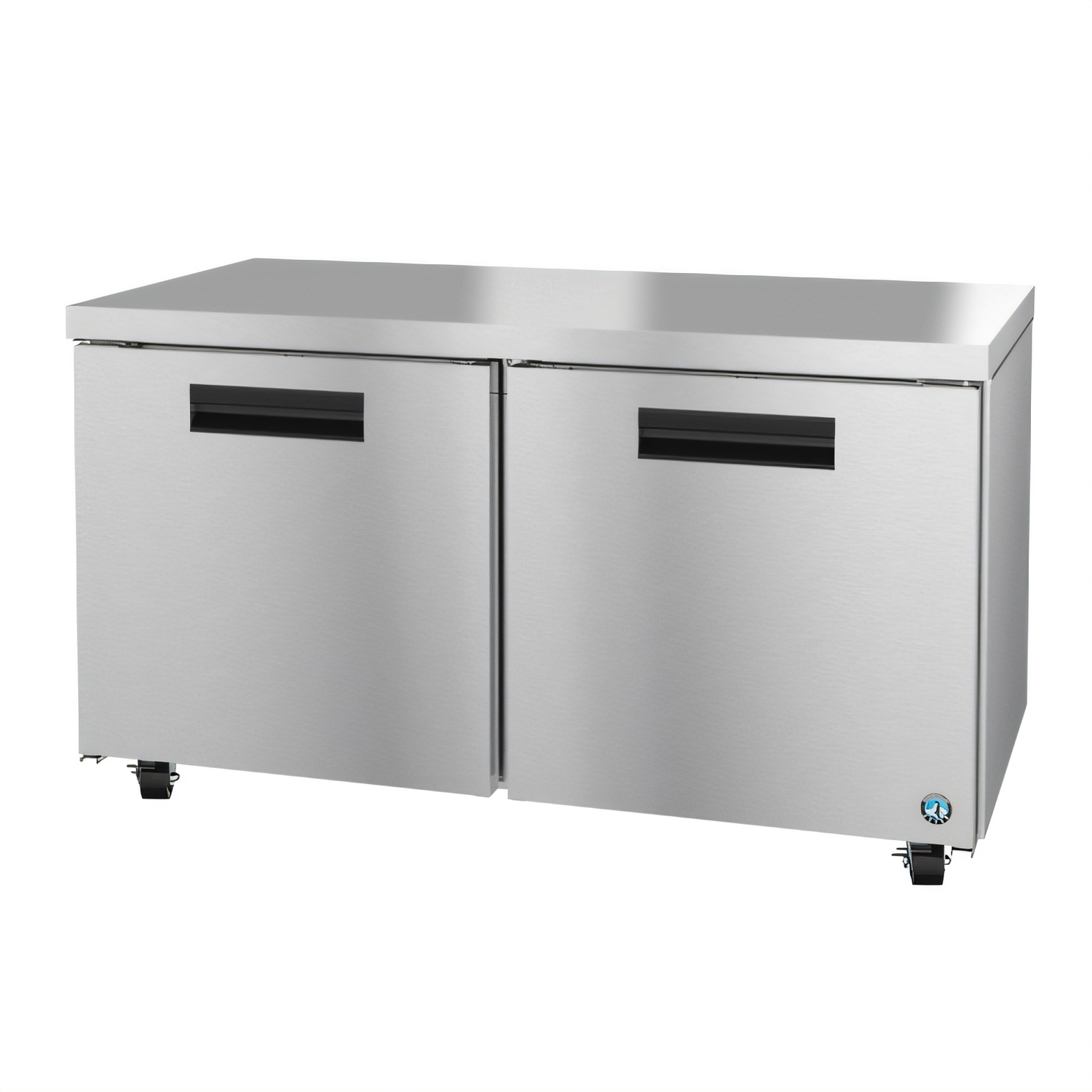

Hoshizaki Steelheart® 60" Undercounter Freezer – Model UF60B
15 cu. ft. • Two-Section • Rear-Mounted RefrigerationBuilt to perform in the hottest kitchens, the Steelheart UF60B keeps product safely frozen while fitting neatly beneath a 34" counter. All-stainless-steel construction, front-breathing ventilation and an energy-saving R290 system make this workhorse the last undercounter freezer you’ll ever need.
Why You’ll Love It
- Engineered to hold NSF-7 temperatures in 100 °F ambient.
- Durable stainless-steel exterior & interior — easy to clean and corrosion-resistant.

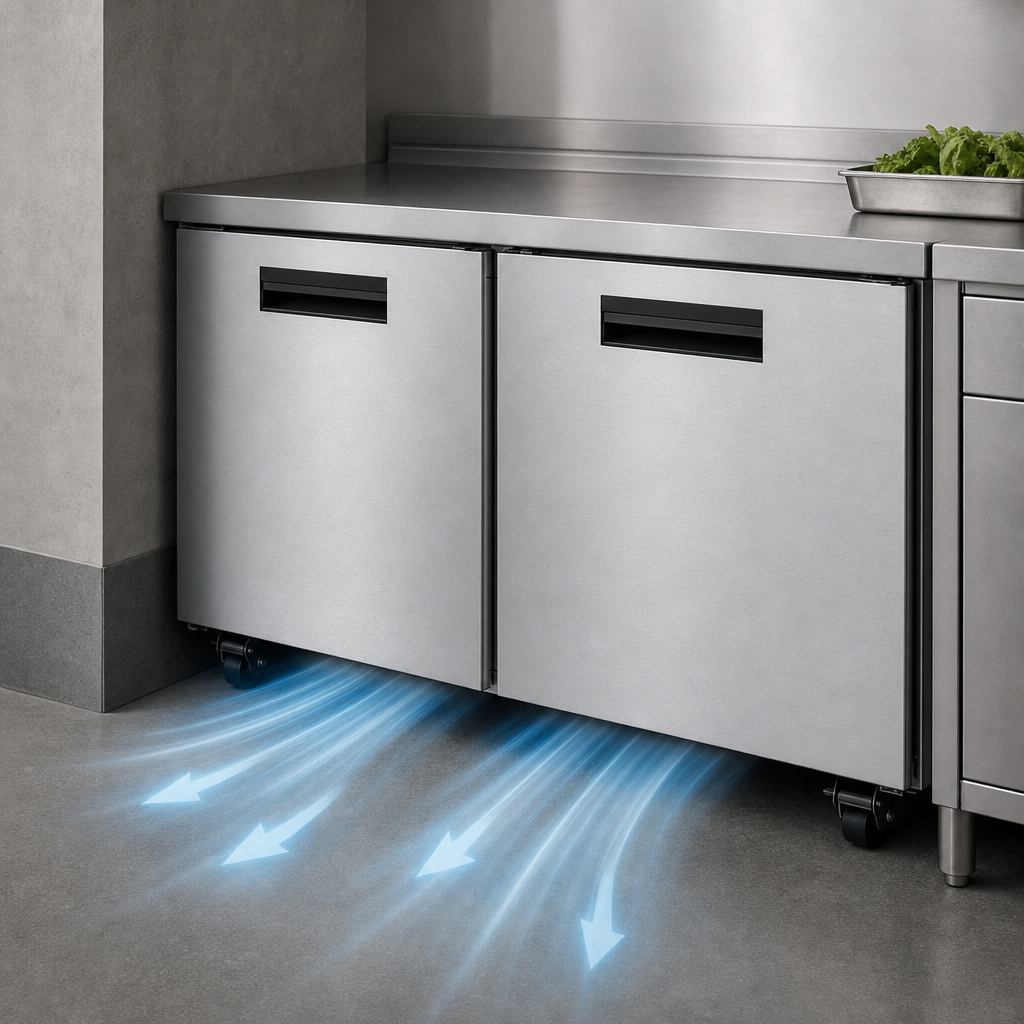

- Front-breathing design allows zero side or rear clearance.
- Eco-friendly R290 hydrocarbon refrigerant • ENERGY STAR® qualified.
- (2) spring-assisted, self-closing doors with stay-open feature at 90° and field-reversible hinges.
- Exclusive stepped door design protects the gasket for a longer service life.
- (2) epoxy-coated, height-adjustable shelves on anodized aluminum pilasters.
- Hot-gas condensate removal — no electric heaters or floor drains required.
- E-coated evaporator coil resists corrosion in high-humidity environments.
- Ships on (4) 4" stem casters, two with brakes, for effortless mobility.
At-a-Glance Specs
| Capacity | 15.1 cu. ft. (AHAM) |
|---|---|
| Exterior Dimensions (W × D × H)* | 60" × 30" × 33.75" |
| Doors / Shelves | (2) solid hinged doors | (2) adjustable shelves |
| Temperature Range | -10 °F to 10 °F |
| Refrigeration System | Self-contained, rear-mounted | 1/3 HP compressor |
| Refrigerant / Charge | R290, 2.6 oz |
| Energy Use | 3.95 kWh per day (ASHRAE) |
| Electrical | 115 V / 60 Hz / 1 Ø • 4 A • NEMA 5-15P • 10 ft cord |
| Heat Rejection | 727 BTU/hr (NSF) |
| Door Opening (W × H) | 25.5" × 23" |
| Depth w/ Door 90° | 58.5" |
| Insulation | 2" CFC-free foamed-in-place polyurethane |
| Shipping Weight | 310 lbs. |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
*Height includes standard 4" casters.
Best-in-Class Warranty
- 5 Years Labor
- 6 Years Parts (including evaporator & condenser)
- 7 Years Compressor coverage
Warranty valid in the U.S., Canada, Puerto Rico and U.S. territories. See full warranty statement for details.
