Hoshizaki  |  Steelheart  |  SKU: UF60B-01

Hoshizaki UF60B-01 Steelheart Undercounter & Worktop Refrigeration

$5,310.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Training booklet Hoshizaki steelheart warranty Installation & operation Refrigeration brochure Warranty
Related Searches
Hoshizaki Undercounter & Worktop Refrigeration

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

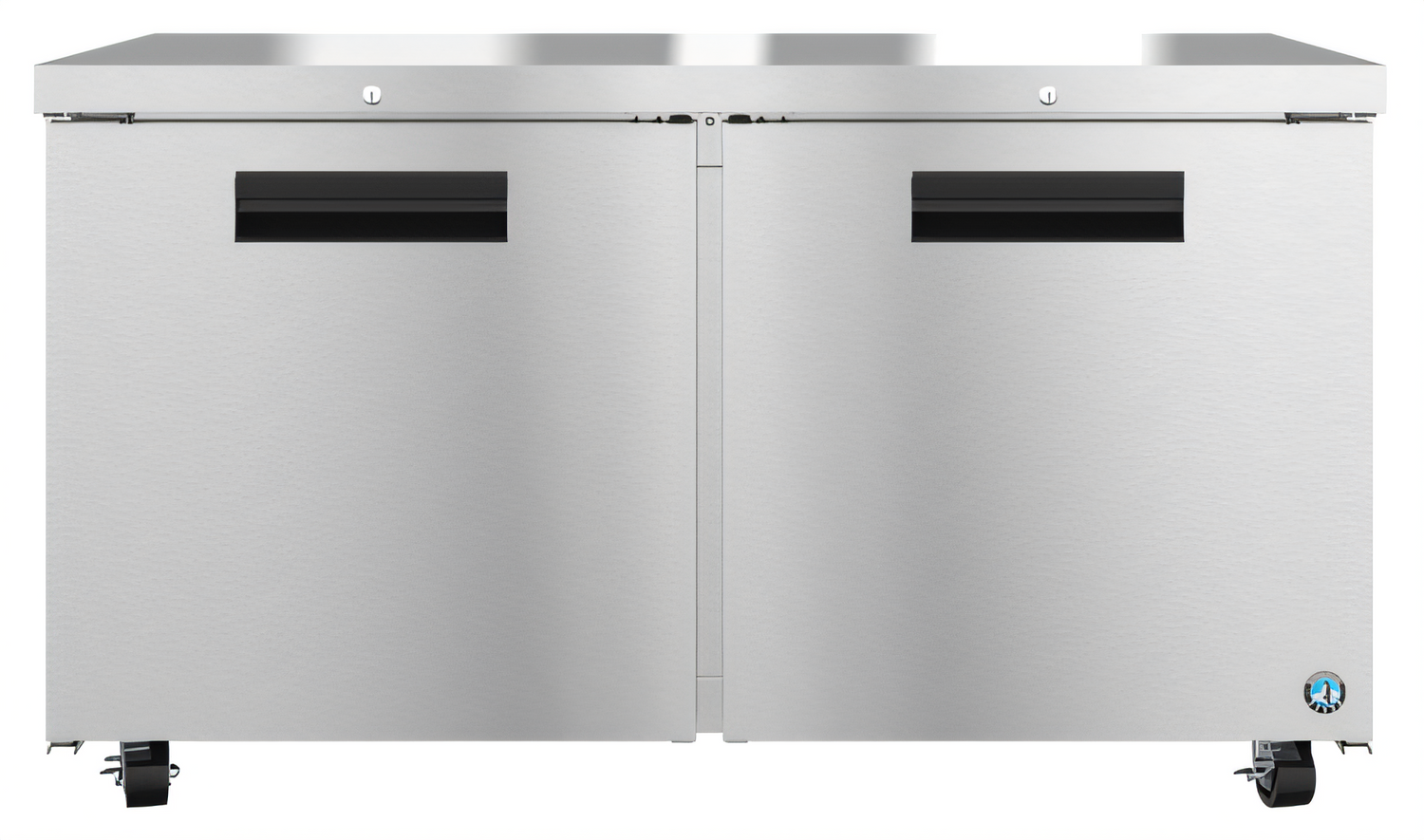

Hoshizaki Steelheart® UF60B Undercounter Freezer – 60" Wide, Two-Section

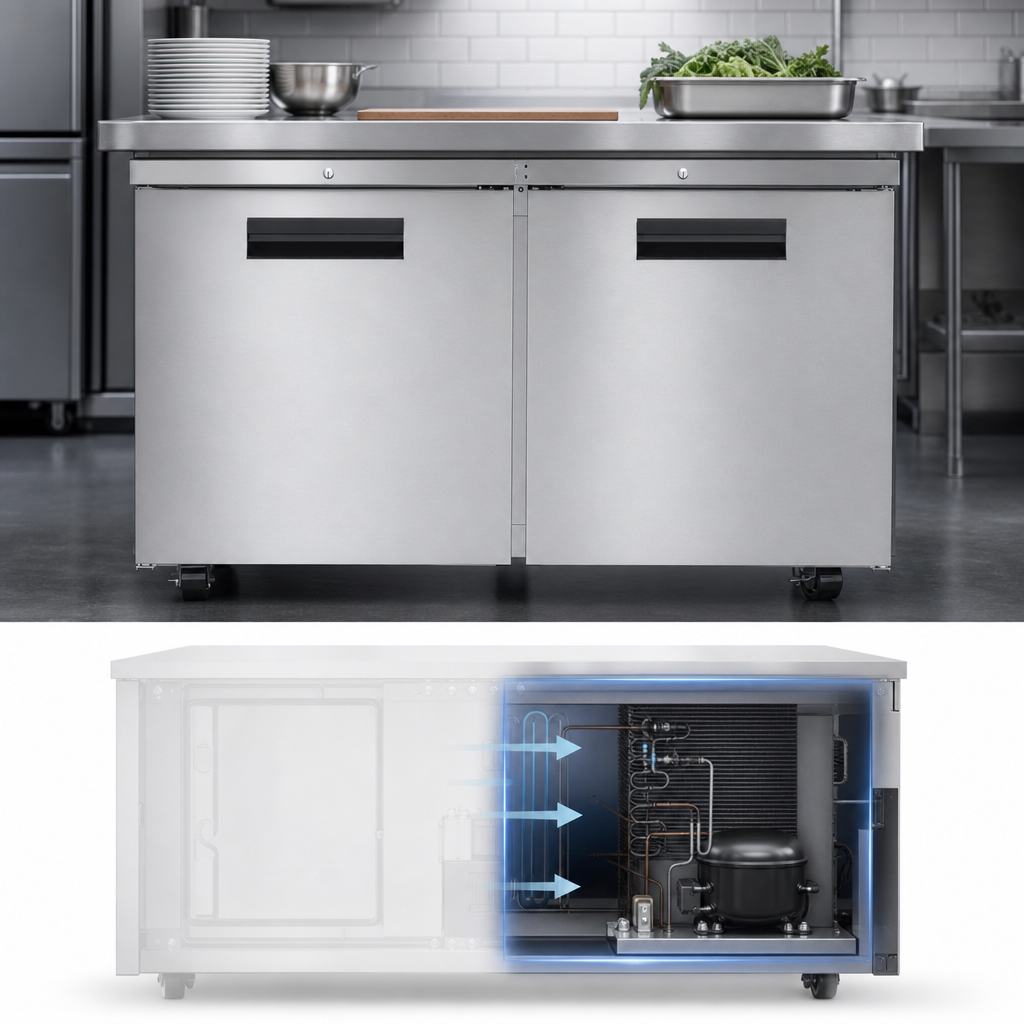

15.1 cu. ft. | –10° to 10°F holding range | Rear-mounted, self-contained refrigeration

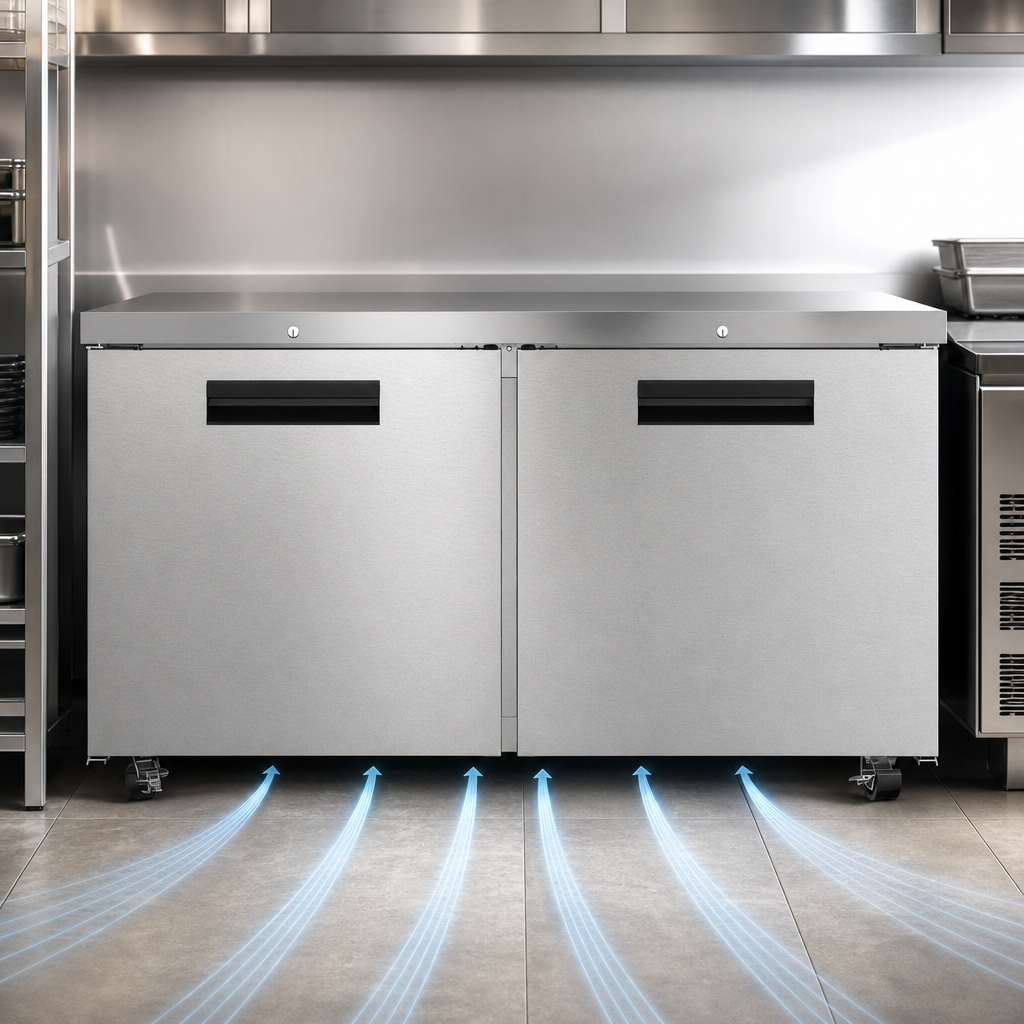

Built tough for the heat of a 100°F kitchen, the Steelheart UF60B delivers rock-solid freezing performance in a compact, all-stainless package that fits neatly beneath your workspace. Field-reversible, self-closing doors and front-breathing ventilation make this the perfect undercounter solution for restaurants, cafés, catering kitchens and more.

Why you’ll love it

  • NSF-7 compliant in 100°F ambient — keeps product safely below 0°F even in the hottest kitchens.
  • All stainless-steel interior & exterior front, sides and top for exceptional durability and easy cleaning.
  • Eco-friendly R290 hydrocarbon refrigerant paired with an E-coated evaporator for long life and low energy draw.
  • Exclusive “stepped” door design protects the gasket from damage during loading.
  • Spring-assisted doors self-close, yet stay open past 90° for hassle-free restocking.
  • Field-reversible hinges and cylinder door lock included for flexible, secure installation.
  • Hot-gas condensate removal means no drain line and no messy pans to empty.
  • Two heavy-duty, epoxy-coated shelves adjust on anodized aluminum pilasters in ½" increments.
  • 4" stem casters (front two locking) and a 10 ft. cord with NEMA 5-15P plug get you up and running fast.
  • Backed by Hoshizaki’s industry-leading 7-year compressor, 6-year parts, 5-year labor warranty.

Technical specifications

Model UF60B (Steelheart Series)
Capacity 15.1 cu. ft. (429 L)
Exterior Dimensions (W × D × H) 60" × 30" × 33.75" (with 4" casters)
Interior Door Opening (each) 25.5" W × 23" H
Shelves 2 × 27.25" × 16" adjustable, epoxy-coated wire
Temperature Range –10° to 10°F (–23° to –12°C)
Refrigerant R290, 2.6 oz charge
Compressor 1/3 HP (1426 BTU/hr nominal)
Electrical 115 V / 60 Hz / 1 φ, 4 A, NEMA 5-15P, 10 ft. cord
Energy Use 3.95 kWh / day (ASHRAE)
Clearance Zero side & rear clearance required (front breathing)
Casters 4" polyolefin (2 with brakes)
Certifications cETLus, ETL-Sanitation, ENERGY STAR® qualified
Warranty 5-yr labor, 6-yr parts, 7-yr compressor
Shipping Weight 310 lb (141 kg) crated

Ideal for

  • Line-side frozen storage for prep or cook stations
  • Compact kitchens where every inch counts
  • Café, bar and concession operations needing zero rear clearance
  • Food trucks and ghost kitchens seeking ENERGY STAR® efficiency
Special Order: This model is built to order with a factory-installed cylinder door lock. Lead times may vary—please contact us for current availability.

Performance data is based on 100°F ambient / 90°F condensing conditions. Specifications are subject to change without notice.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation

Height

33.75in

Width

60.0in

Depth

31.0in

Shipping Weight

310.0lbs

Refrigeration

self-contained, rear mounted

Exterior Finish

all stainless steel exterior

Width

60" - 71"

Compressor HP

1/3 HP

Size

2 section

Access Type

doors

Doors

solid door(s)

Specifications

Steelheart Series Undercounter Freezer, reach-in, two-section, 60"W, 15.27 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, cylinder door lock, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, hot gas condensate removal, sides & top, (4) 4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/3 HP, NEMA 5-15P, cETLus, ETL-Sanitation (Special Order)
