Hoshizaki UF60A Steelheart Undercounter & Worktop Refrigeration

SKU: UF60A
$2,856.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Hoshizaki New Arrivals

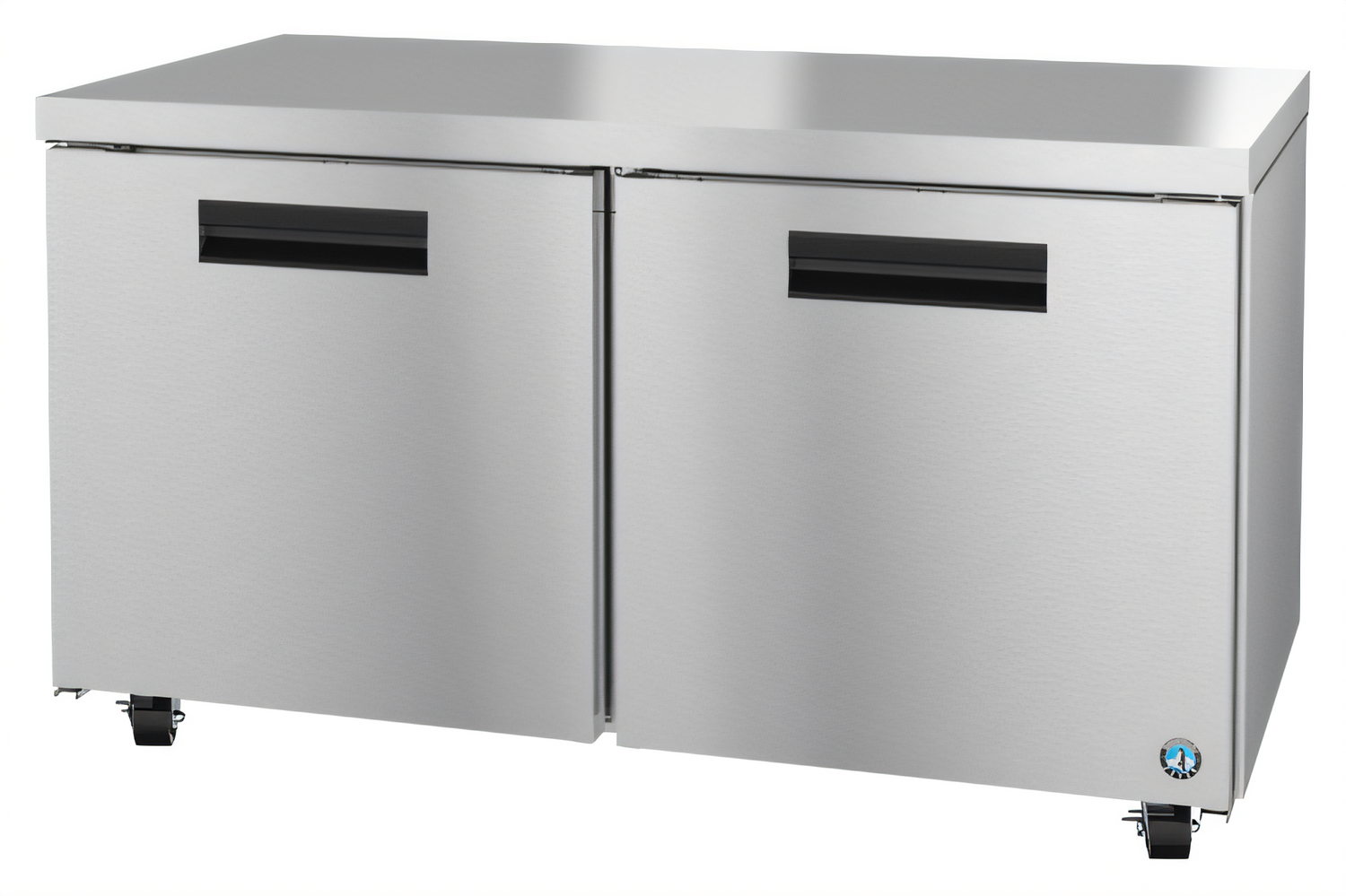

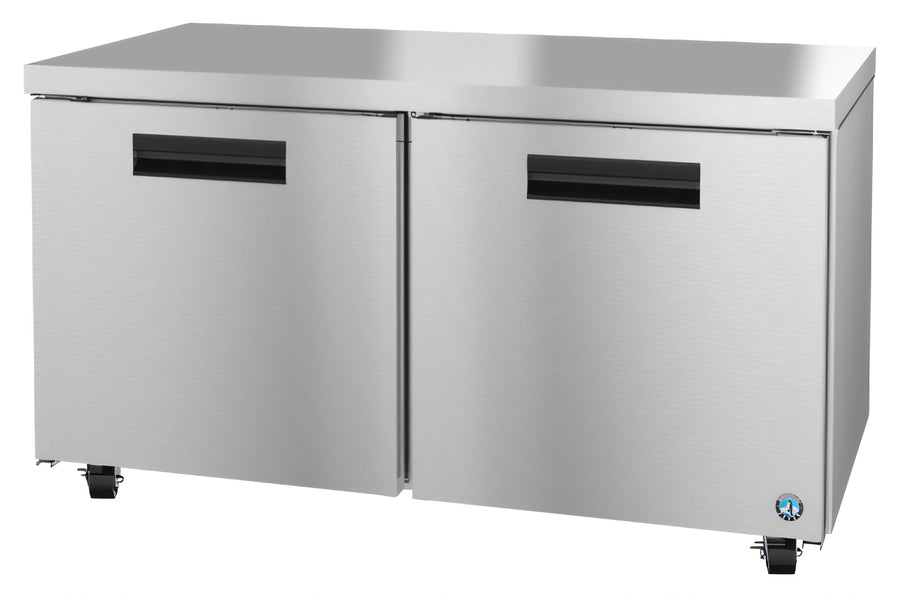

Hoshizaki Steelheart UF60A Undercounter Freezer – 60" Two-Section

17.55 cu. ft. | -10 °F to 10 °F set-point | Model # UF60A

Maximize cold-storage capacity without giving up prep-line real estate. The Steelheart UF60A tucks neatly beneath counters yet delivers full-size, NSF-7 performance—even in 100 °F kitchens. With rugged all-stainless construction, eco-friendly R290 refrigeration and Hoshizaki’s legendary reliability, it’s the perfect way to keep frozen ingredients right where the action is.

Why you’ll love it

  • Engineered to maintain NSF-7 food-safe temps in up to 100 °F ambient conditions.
  • Front-breathing, self-contained system—zero side or rear clearance required.
  • Natural R290 hydrocarbon refrigerant paired with an E-coated evaporator for long-term efficiency.
  • Durable stainless-steel exterior front, sides & top plus stainless interior walls, top, back & floor.
  • (2) solid, field-reversible doors with spring-assisted self-close & stay-open past 90°.
  • Exclusive “stepped” door design shields the magnetic gasket from wear.
  • (2) full-width epoxy-coated shelves adjust on ½" increments for flexible loading.
  • Rolls easily on four 4" stem casters—front brakes lock it firmly in place.
  • 10 ft. cord with NEMA 5-15P plug for quick 115 V installation.
  • cETLus & ETL-Sanitation listed for electrical safety and sanitation.

Specifications

Interior capacity 17.55 cu. ft. (AHAM 15.38 cu. ft.)
Exterior dimensions (W × D × H) 60" × 30" × 33.63" (with 4" casters)
Door configuration (2) solid, reversible, flush-mount handles
Shelf count / size (2) 27.25" × 16" adjustable wire shelves
Temperature range -10 °F to 10 °F (factory preset -4 °F)
Refrigerant / charge R290, 3.9 oz
Compressor 1/3 HP, 1,360 BTU/hr
Electrical 115 V / 60 Hz / 1-phase, 5.6 A, NEMA 5-15P
Energy use 4.22 kWh per day (ASHRAE)
Shipping weight 315 lb.

Popular options & accessories

  • 2.25", 6" or all-stainless casters
  • Additional epoxy-coated or stainless-steel shelves
  • Overshelf kits & stacking kit (HS-5112)
  • Cylinder door locks (factory installed)
  • Hands-free foot pedals (left or right mount)

Industry-leading warranty

  • 3 years parts & labor on the entire unit
  • 5 years parts on the compressor
  • Limited lifetime parts warranty on solid doors & hinges (excluding gaskets)

Warranty valid in the U.S., Canada, Puerto Rico & U.S. territories. See full terms for details.

Important: This freezer uses R290 hydrocarbon refrigerant. Install and service only in well-ventilated areas and in accordance with local codes.

Overall Dimensions:

60.0"W x 31.0"D x 33.63"H

Product Weight:

315.0 lb
Manufacturer Hoshizaki
Brand name Steelheart
Certifications ["cETLus", "ETL-Sanitation"]
Height 33.63in
Width 60.0in
Depth 31.0in
Shipping Weight 315.0lbs
Refrigeration self-contained, rear mounted
Access Type doors
Size 2 section
Doors solid door(s)
Width 60" - 71"
Exterior Finish all stainless steel exterior
Compressor HP 1/3 HP
Specifications Steelheart Series Undercounter Freezer, reach-in, two-section, 60"W, 17.55 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/3 HP, NEMA 5-15P, cETLus, ETL-Sanitation

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Hoshizaki steelheart warranty PDF Download PDF Service manual PDF Download PDF Flyer PDF Download PDF Video PDF Download
