Hoshizaki UF48B-01 Steelheart Undercounter & Worktop Refrigeration

$4,368.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Service manual Training booklet Warranty Parts manual Refrigeration brochure Flyer Video Hoshizaki steelheart warranty
Related Searches
Commercial Freezers Commercial Refrigeration Hoshizaki Restaurant Equipment Undercounter & Worktop Refrigeration Undercounter Freezers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

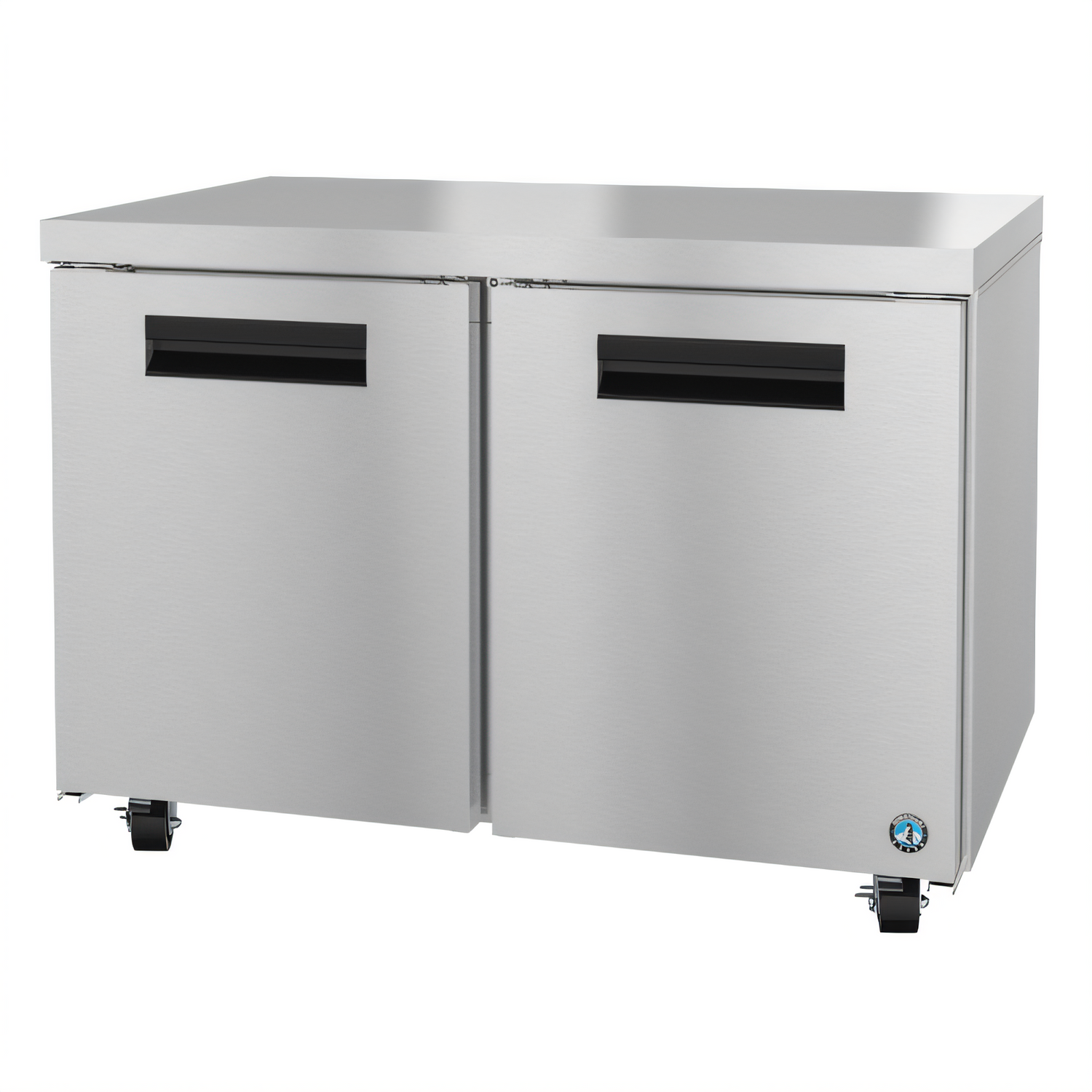

Hoshizaki Steelheart UF48B Undercounter Freezer – 48"

Two-section • 13.66 cu. ft. • NSF-7 freezer performance in 100 °F ambient

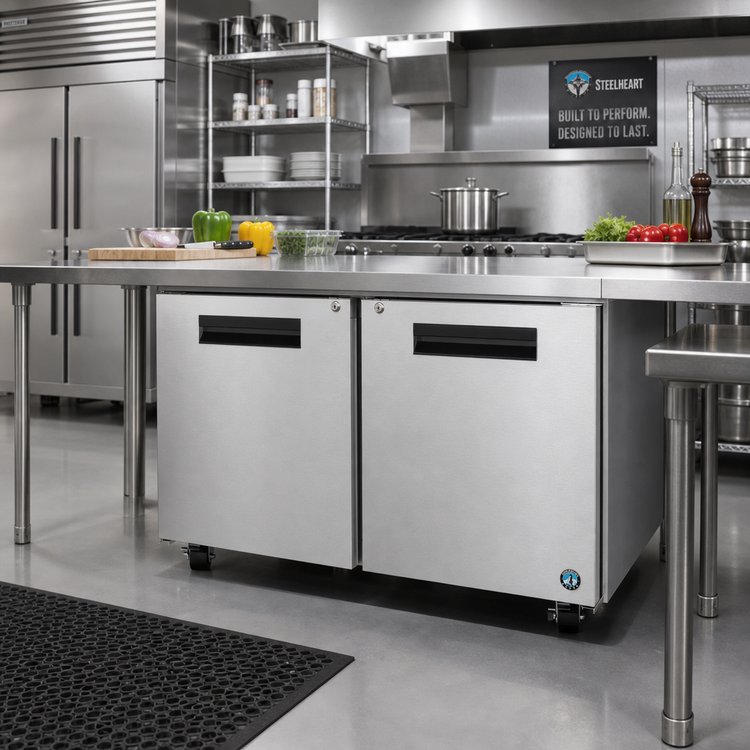

Put rock-solid frozen storage right where you work. The Steelheart UF48B slides effortlessly beneath a standard 34" counter height yet delivers the durability, efficiency and food-safety performance Hoshizaki is famous for.

Why chefs choose the UF48B

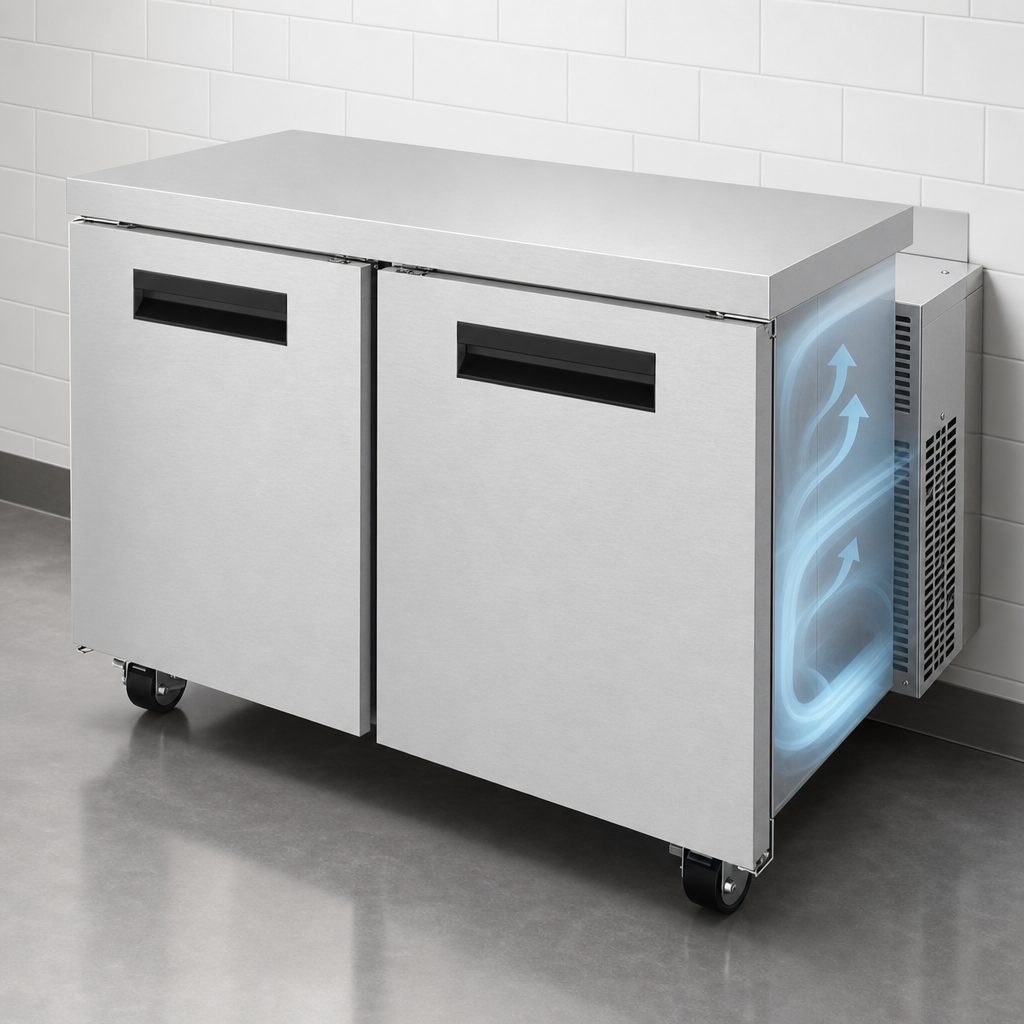

  • Front-breathing, self-contained rear-mounted refrigeration—no side or rear clearance required.
  • All-stainless interior & exterior for unmatched sanitation and corrosion resistance.
  • Engineered to maintain NSF-7 temperatures even in sweltering 100 °F kitchens.

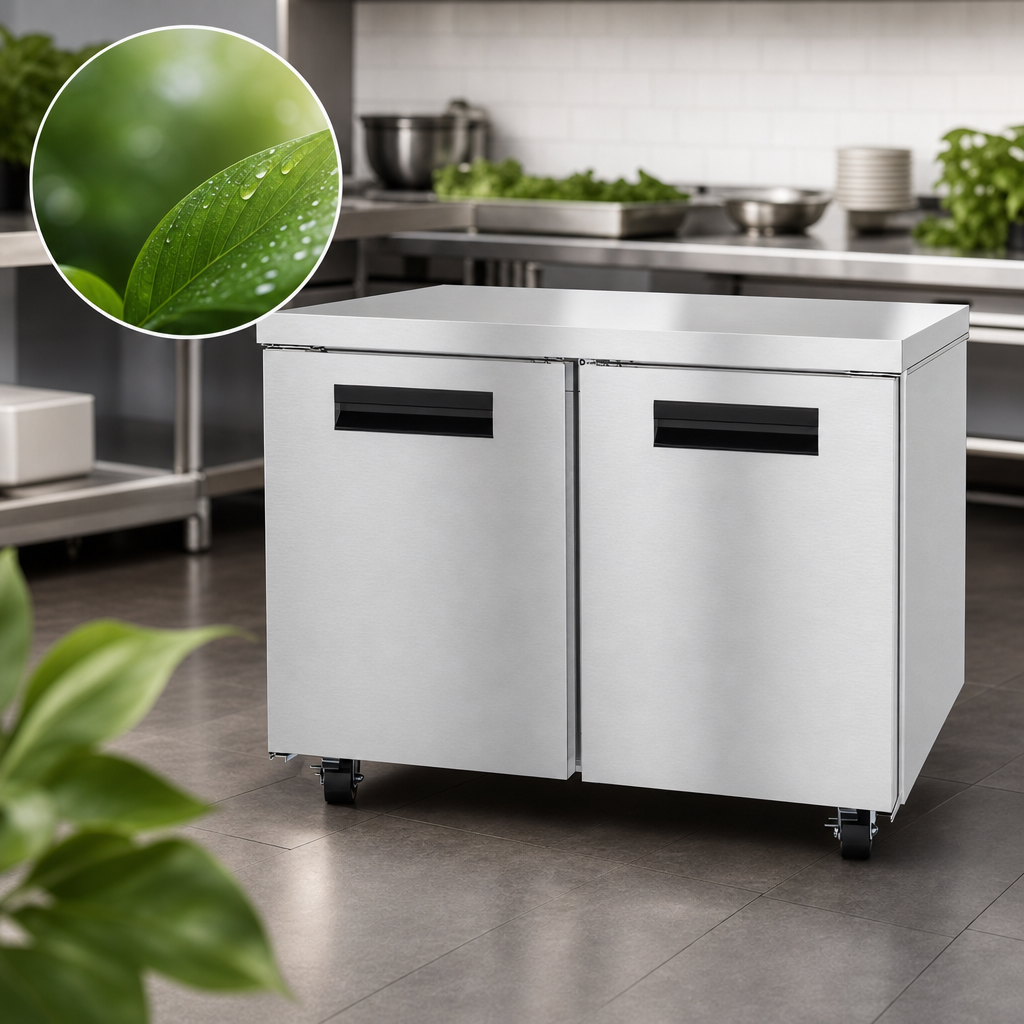

  • Eco-friendly R290 hydrocarbon refrigerant—only 3.6 kWh/day energy use.
  • (2) field-reversible solid doors with cylinder lock, spring-assist self-close & stay-open at 90°.
  • Exclusive “stepped” door design shields the magnetic gasket from damage.
  • (2) heavy-duty epoxy shelves (adjustable every ½") maximize storage flexibility.
  • 4" stem casters (2 locking) for easy cleaning and mobility.
  • 10-ft cord with NEMA 5-15P plug—roll in, plug in, freeze.
Perfect for

Chef lines • Concession stands • Food trucks • Satellite bars • Any operation needing freezer capacity without giving up prep space

Technical specifications
Model UF48B (Steelheart Series)
Storage capacity 13.66 cu. ft. (AHAM 12 cu. ft.)
Sections / doors 2 sections / 2 locking, solid, field-reversible doors
Shelves supplied (2) epoxy-coated, 21.5" W × 16" D – adjustable in ½" increments
Exterior dimensions 48" W × 30" D × 33.75" H (with 4" casters)
Depth w/ door open 90° 52.5"
Temperature range -10 °F to 10 °F (factory preset -4 °F)
Ambient rating 45 °F–100 °F
Refrigerant / charge R290 / 2.6 oz
Compressor 1/3 HP (2,431 BTU/h)
Energy consumption 3.6 kWh per day (ASHRAE)
Electrical 115 V / 60 Hz / 1Ø, 3.6 A, NEMA 5-15P
Casters (4) 4" polyolefin stem, (2) with brakes
Certifications cETLus, ETL-Sanitation (NSF-7)
Warranty 5 yr labor • 6 yr parts • 7 yr compressor
Popular accessories
  • 2.25" or 6" casters
  • Additional epoxy or stainless-steel shelves
  • Overshelf kit
  • Foot-pedal door opener (left or right mount)
  • Stacking kit (HS-5112)

Accessories ship separately unless factory-installed.

Special-order item: cylinder-locking doors are factory-installed. Please allow up to 6 weeks lead time.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation

Height

33.75in

Width

48.0in

Depth

31.0in

Shipping Weight

258.0lbs

Refrigeration

self-contained, rear mounted

Doors

solid door(s)

Exterior Finish

stainless steel front & sides

Access Type

doors

Size

2 section

Compressor HP

1/3 HP

Width

48"- 59"

Specifications

Steelheart Series Undercounter Freezer, reach-in, two-section, 48"W, 13.66 cu. ft., self-contained rear mounted refrigeration system, (2) reversible solid hinged doors, cylinder door lock, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), R290 hydrocarbon refrigerant, 1/3 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation (Special Order)
