Hoshizaki  |  Steelheart  |  SKU: UF27B-LP01

Hoshizaki UF27B-LP01 Steelheart Undercounter & Worktop Refrigeration

$3,092.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Flyer Parts manual Service manual Training booklet Hoshizaki steelheart warranty Video Refrigeration brochure Installation & operation Warranty
Related Searches
Hoshizaki Undercounter & Worktop Refrigeration

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

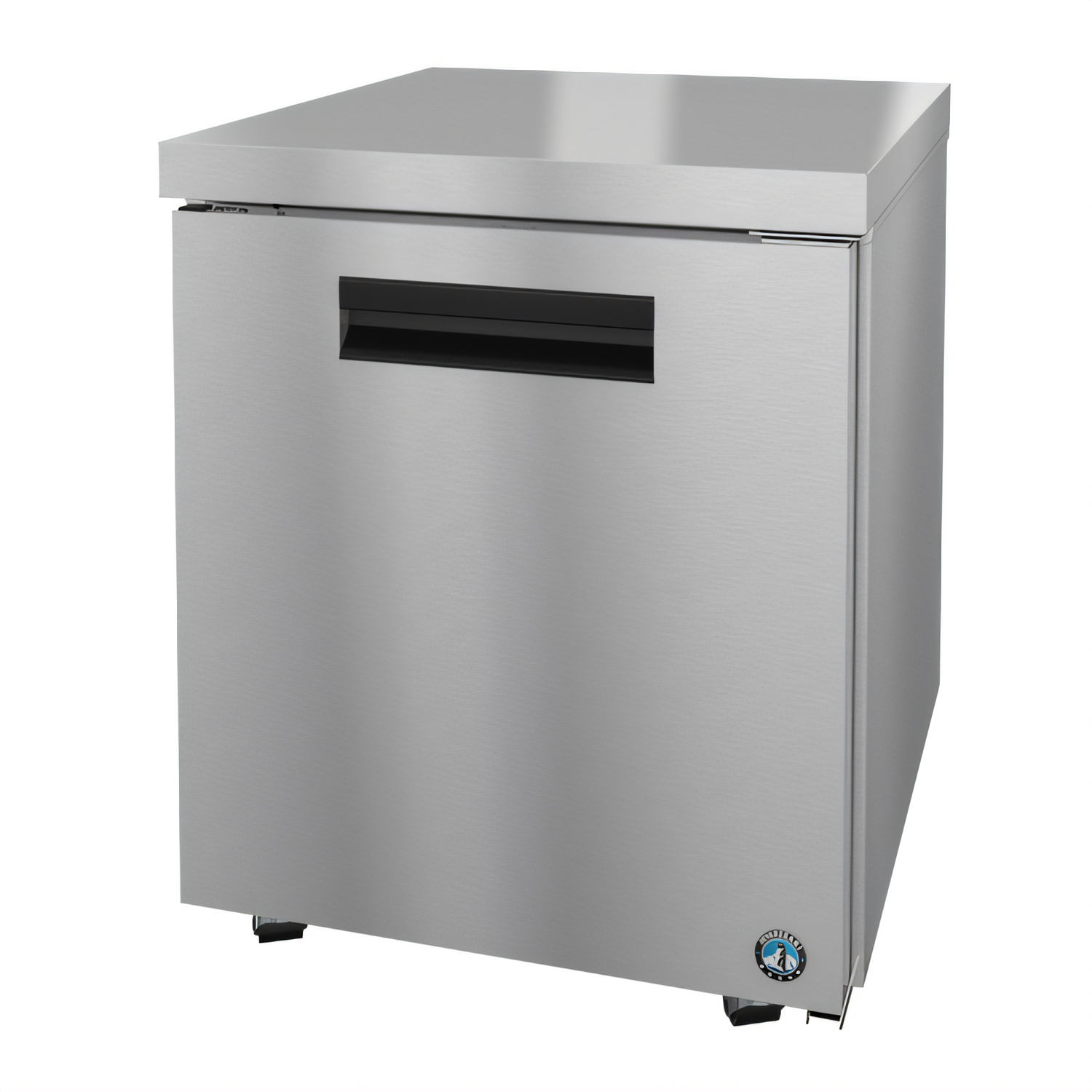

Hoshizaki Steelheart UF27B-LP Undercounter Freezer

27" W • Low-Profile 31.9" H • One Section / One Door

Engineered for the heat of a 100 °F kitchen yet slim enough to glide beneath an ADA-compliant 34" counter, the Steelheart UF27B-LP delivers rock-solid -10 °F to 10 °F holding temperatures in a rugged, all-stainless cabinet that’s built for years of service.

Why You’ll Love It

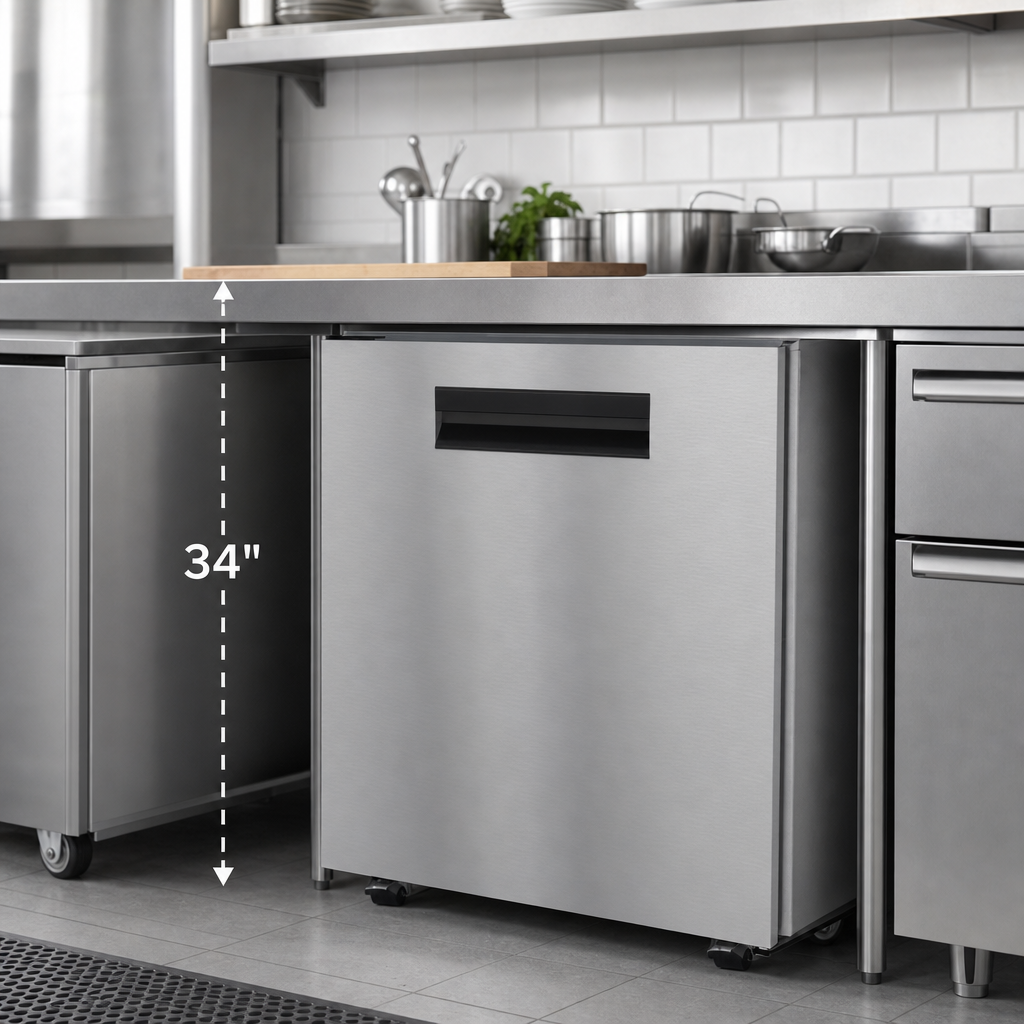

  • ADA compliant – 31.9" low-profile height fits standard 34" workstations
  • NSF-7 performance in 100 °F ambient for food-safe storage on the hottest line
  • Durable stainless-steel interior & exterior front, sides and top
  • Eco-friendly R290 hydrocarbon refrigerant  |  only 2.4 kWh/day

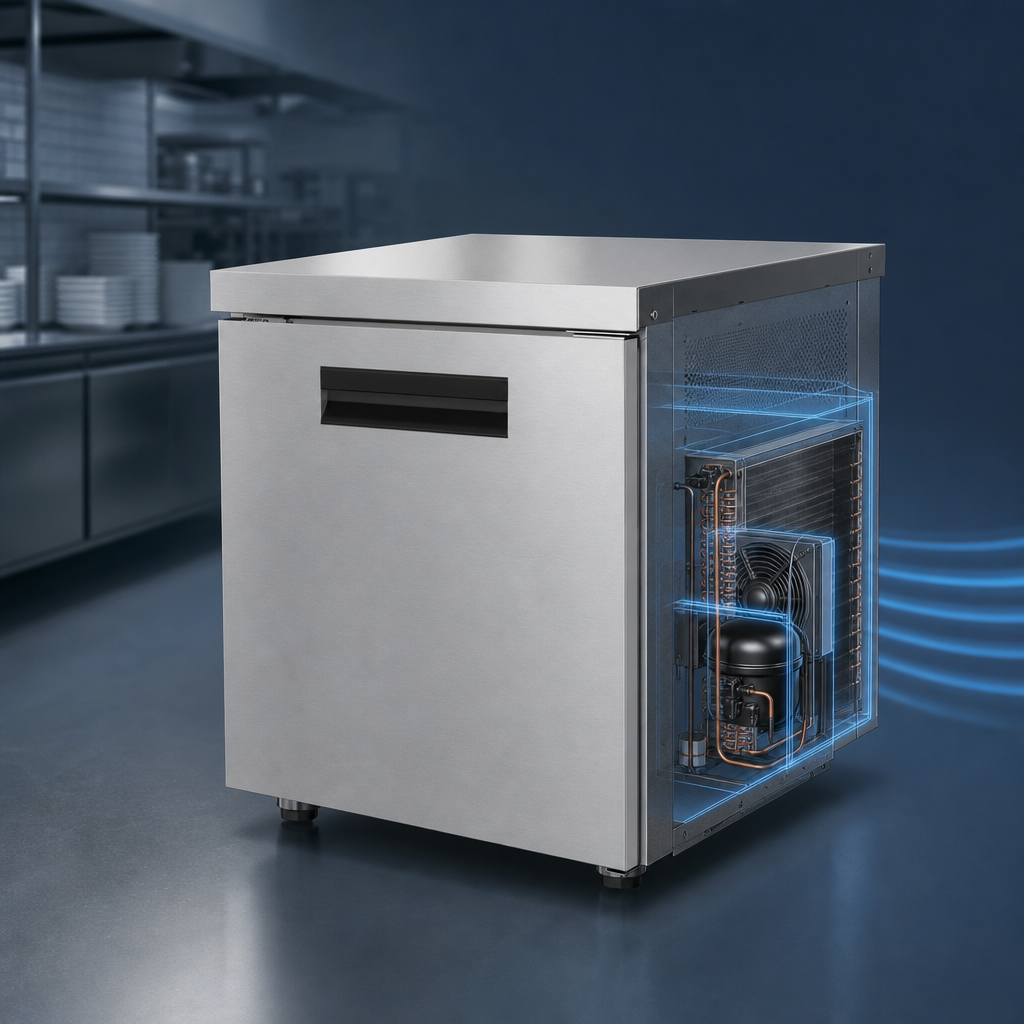

  • Rear-mounted, self-contained 1/5 HP refrigeration with E-coated evaporator
  • Hot-gas condensate removal – no external drain required
  • Self-closing solid door with stay-open at 90°, built-in lock & “stepped” gasket protection
  • 1 heavy-duty epoxy-coated shelf, height-adjustable in ½" increments
  • Four 2.25" stem casters (2 locking) plus 1" rear bumper for easy, safe mobility
  • 10 ft cord with NEMA 5-15P plug – 115 V, 2.4 A connection
  • cETLus & ETL-Sanitation listed
At-a-Glance Specs
Model UF27B-LP (Steelheart Series)
Capacity 6.21 cu ft (AHAM)
Temperature Range -10 °F – 10 °F
Exterior Dimensions (W × D × H) 27" × 31" × 31.9" (incl. 1" bumper & 2.25" casters)
Door Opening (W × H) 22.75" × 23"
Shelf (Qty / Size) 1 adjustable • 22" × 16"
Compressor 1/5 HP  |  798 BTU/h nominal
Refrigerant / Charge R290 • 1.9 oz
Electrical 115 V / 60 Hz / 1 Ø • 2.4 A • NEMA 5-15P
Energy Use 2.4 kWh per day (ASHRAE)
Heat Rejection 509 BTU/h (NSF)
Shipping Weight 175 lb
Worry-Free Warranty

7 years compressor • 6 years parts • 5 years labor when registered within 30 days.

If a GFCI is required at the installation site, use a GFCI breaker instead of a receptacle to prevent nuisance trips.

Features & Specs

Manufacturer

Hoshizaki

Brand_name

Steelheart

Certifications

cETLus, ETL-Sanitation, ADA Compliant

Height

31.9in

Width

27.0in

Depth

31.0in

Shipping Weight

175.0lbs

Width

24" - 32"

Exterior Finish

all stainless steel exterior

Size

1 section

Doors

solid door(s)

Refrigeration

self-contained, rear mounted

Compressor HP

1/5 HP

Access Type

doors

Specifications

Steelheart Series Undercounter Freezer, reach-in, one-section, 27"W, 7.2 cu. ft., self-contained rear mounted refrigeration system, (1) solid hinged door with lock, (1) adjustable shelf, hot gas condensate removal, stainless steel interior, stainless steel exterior front, sides & top, (4) 2-1/4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/5 HP, cord, NEMA 5-15P, ADA Compliant, cETLus, ETL-Sanitation
