Hoshizaki UF27B-LP Steelheart Undercounter & Worktop Refrigeration
Description

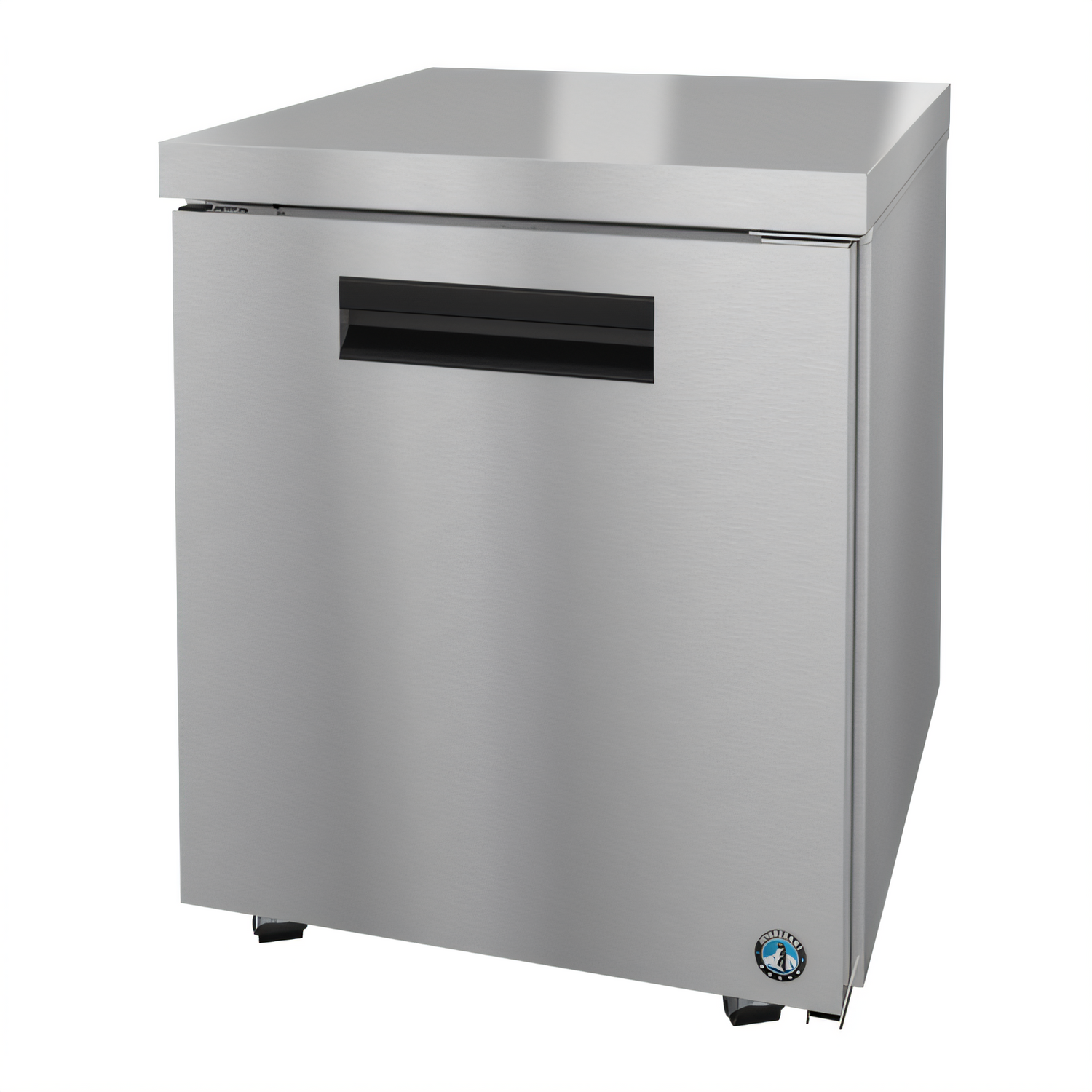

Hoshizaki Steelheart® 27" Low-Profile Undercounter Freezer (UF27B-LP)
ADA-compliant, all-stainless, reach-in freezer – built for the heat of a 100 °F kitchenSlide true, NSF-7 freezer performance under any 34" counter with the Steelheart UF27B-LP. Rugged stainless construction, eco-friendly R290 refrigeration and Hoshizaki’s 7-year compressor warranty deliver worry-free cold storage in the busiest commercial kitchens.
Why you’ll love it

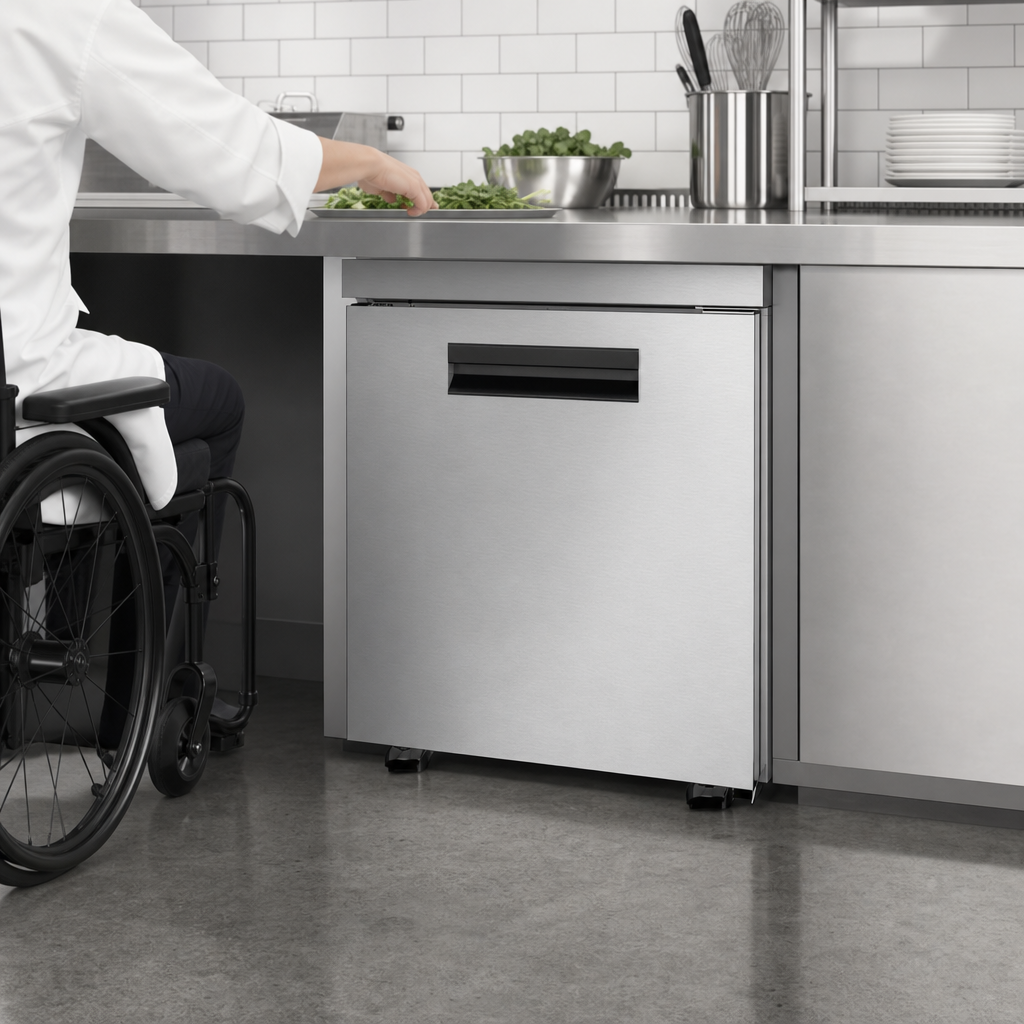

- Fits under ADA 34" work surfaces – only 31.9" high on low-profile 2.25" casters
- Holds safe, -10 °F to 10 °F product temps even in 100 °F ambient kitchens (NSF-7)

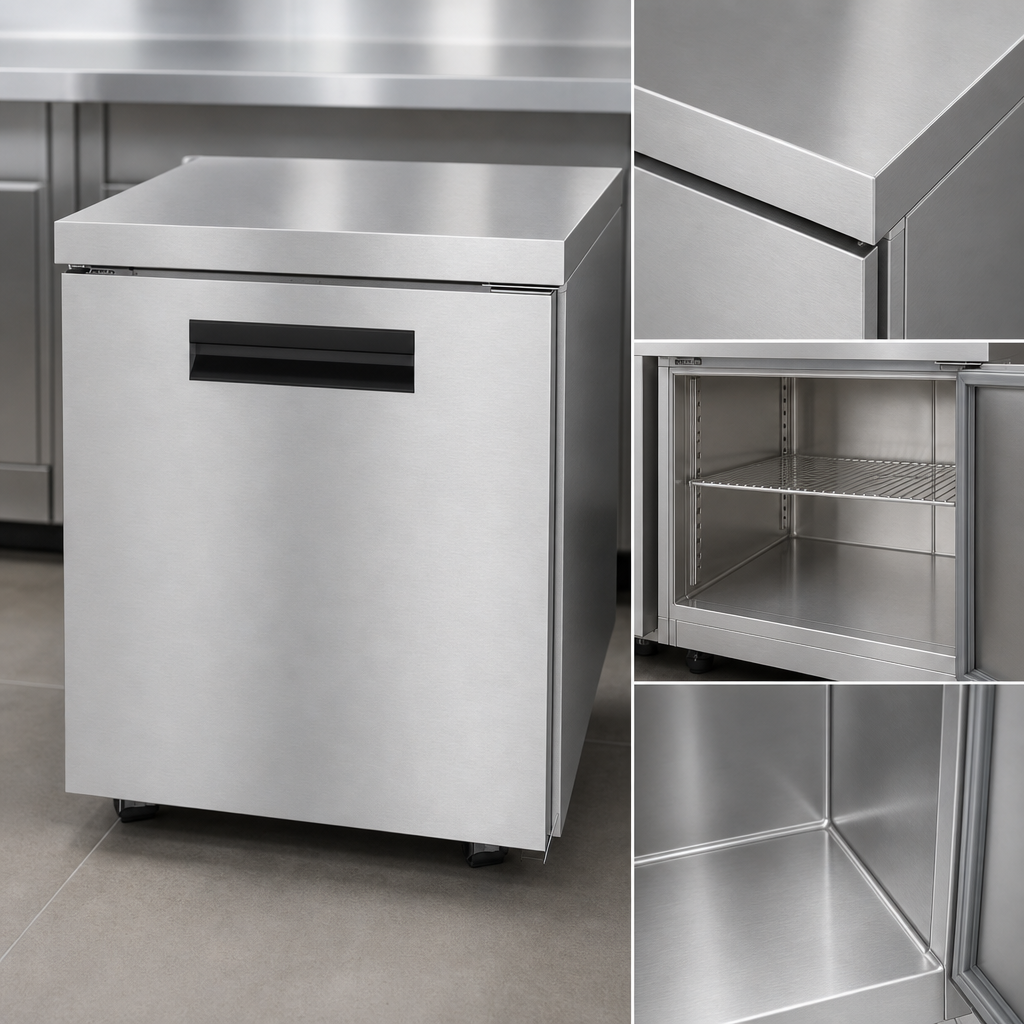

- Durable stainless steel interior & exterior resists dents, corrosion and cleans fast
- Eco-conscious R290 hydrocarbon refrigerant plus 2" foamed-in insulation for lower energy use (2.4 kWh/day)
- Self-closing door with stay-open at 90° and exclusive “stepped” gasket-protecting design
- Hot-gas condensate removal—no electric pan to fail or maintain
- Field-adjustable epoxy shelf on anodized pilasters; moves in ½" increments
- Four stem casters standard (front two locking) for easy cleaning and mobility
- Worry-Free Warranty: 5 yr labor • 6 yr parts • 7 yr compressor
Technical Specs
| Model | UF27B-LP |
|---|---|
| Capacity | 7.2 cu. ft. (6.21 cu. ft. AHAM) |
| Exterior Dimensions | 27" W × 30" D × 31.9" H * (31" D with 1" rear bumper) |
| Depth – Door @ 90° | 54.5" |
| Door | (1) solid, left-hung; spring-assisted self-close / stay-open; flush aluminum handle |
| Shelves | (1) 22" W × 16" D epoxy-coated, adjustable |
| Casters | (4) 2.25" polyolefin stem; front two w/ brakes |
| Refrigeration System | Rear-mounted, self-contained; 1/5 HP (798 BTU/h) compressor; R290 (1.9 oz) |
| Temperature Range | -10 °F to 10 °F (factory set @ 0 °F) |
| Defrost | Time-initiated, heated |
| Electrical | 115 V / 60 Hz / 1-ph, 2.4 A, 10 ft cord & NEMA 5-15P plug |
| Energy Use | 2.4 kWh / 24 hr (ASHRAE) |
| Certifications | cETLus, ETL-Sanitation, ADA Compliant, Georgia-Made |
| Shipping Weight | 175 lb crated |
| *Height Note | Height shown includes 2.25" casters |
Popular options (sold separately)
- 4" or 6" casters
- Single or double overshelves
- Foot-pedal door opener (left or right hinge)
- Locking door kit
- Lower epoxy or stainless shelves
- Stainless steel back panel
Industry-leading warranty
Steelheart refrigeration comes with 5 years labor, 6 years parts and 7 years compressor coverage when registered within 30 days of install. See Hoshizaki warranty document for full terms & conditions.
