Hoshizaki UF27B-D2 Steelheart Undercounter & Worktop Refrigeration
Description

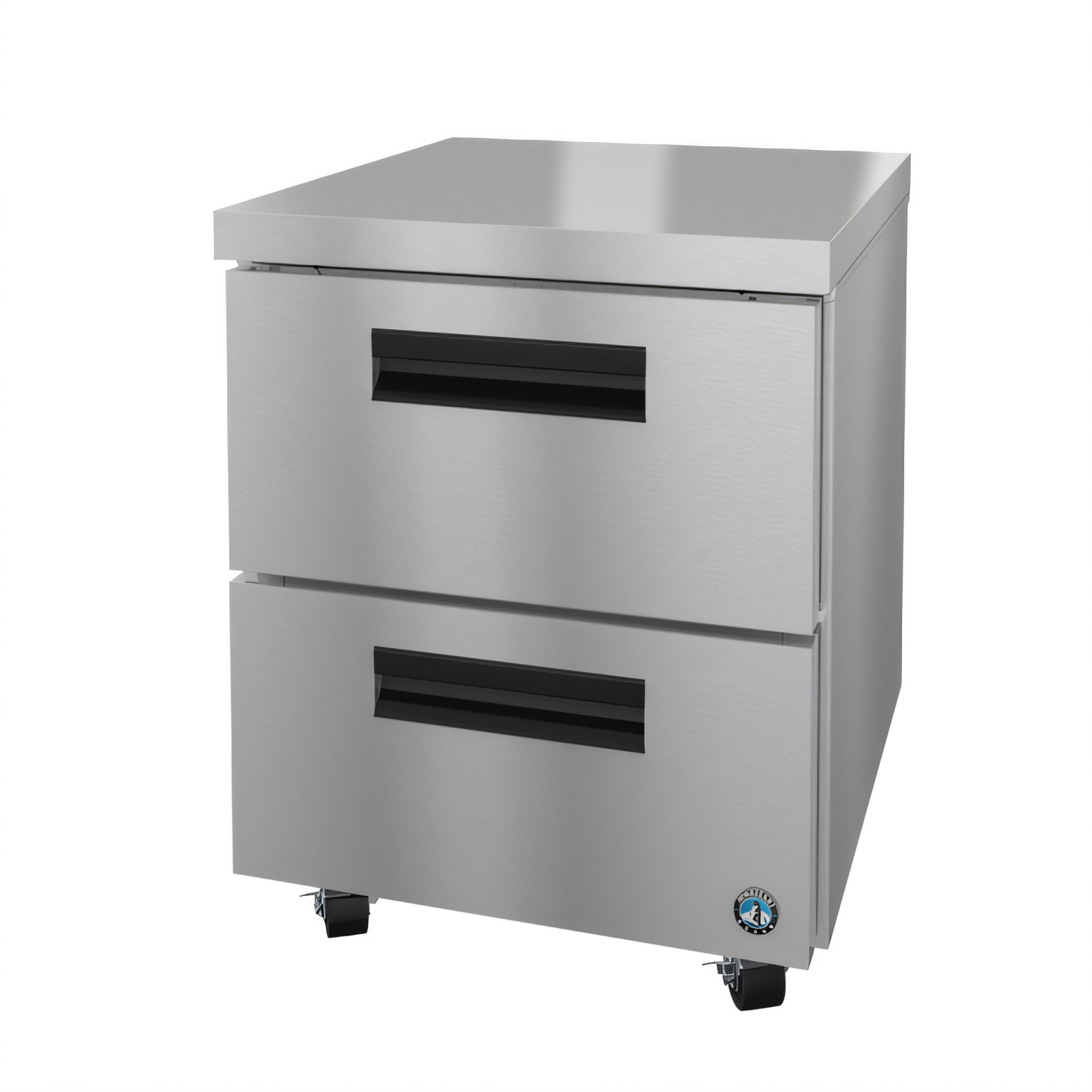

Hoshizaki Steelheart 27" Undercounter Freezer w/ Drawers
Model UF27B-D2 • 7.2 cu. ft. • Rear-Mount Self-Contained RefrigerationPut ice-cold performance exactly where you need it. The Steelheart UF27B-D2 tucks neatly beneath a prep table or chef’s line, delivering freezer-grade holding power, rugged stainless construction, and eco-friendly efficiency inside a space-saving 27-inch footprint.
Key performance highlights
- Maintains NSF-7 food-safe temps in sweltering 100 °F kitchens.
- Front-breathing, rear-mounted 1/5 HP refrigeration system with long-life E-coated evaporator.
- Low-impact R290 hydrocarbon refrigerant & just 2.4 kWh/day energy draw.
- All-stainless interior & exterior (front, sides, top, back, floor) with 2" foamed-in-place insulation.

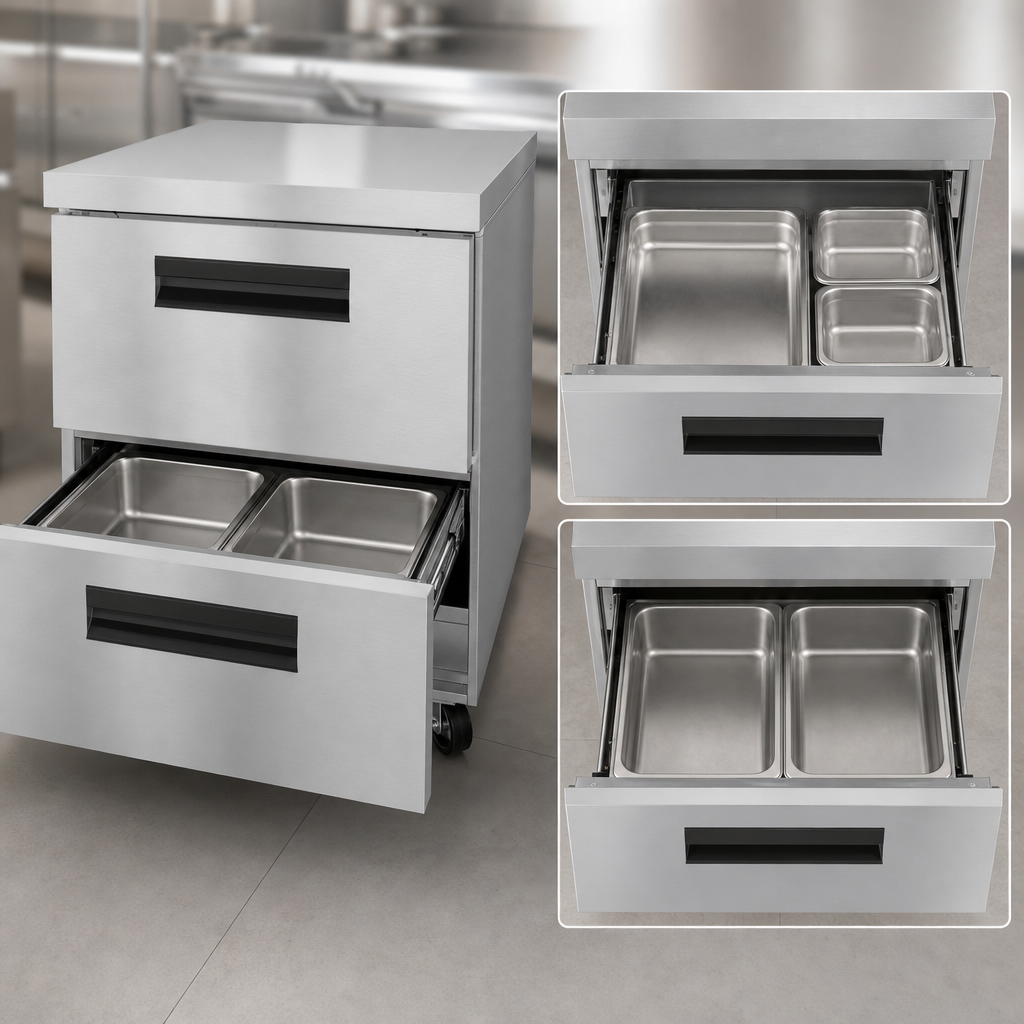

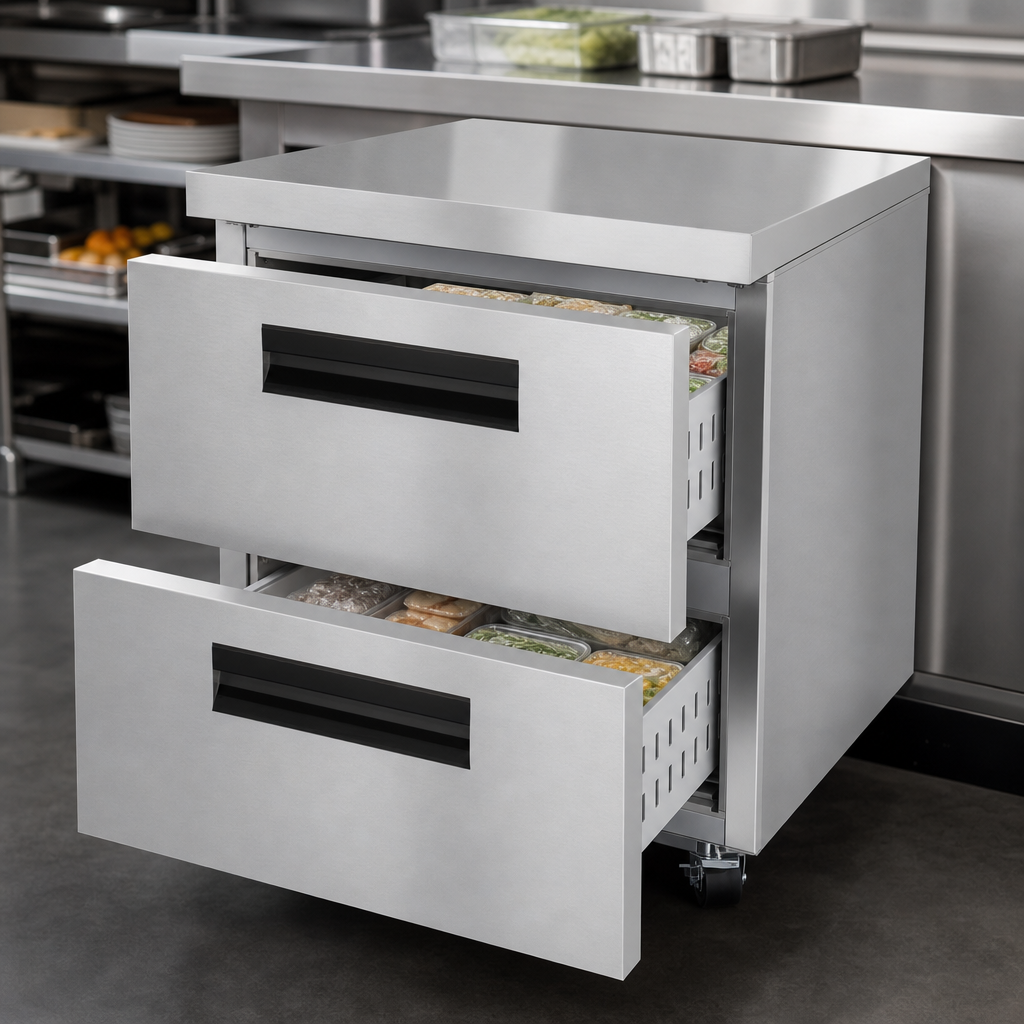

- (2) heavy-duty drawers accept 6" deep pans:
- Top – (1) 12 × 20 full-size + (2) ¼-size pans
- Bottom – (1) 12 × 20 full-size pan
- 16 ga stainless slides rated 175 lb, life-tested 300,000+ cycles.
- Flush aluminum handles & snap-in magnetic gaskets for fast cleaning.
- Hot-gas condensate removal—no external drain line required.
- 4" stem casters (2 locking) roll through standard doorways for easy install.
- Certified cETLus & ETL-Sanitation • Made in Georgia, USA.
Technical specifications
| Interior capacity | 7.21 cu. ft. (AHAM 6.21 cu. ft.) |
|---|---|
| Exterior dimensions | 27" W × 31" D × 33.75" H (incl. 4" casters, 1" bumper) |
| Depth w/ drawer open | 52" |
| Temperature range | -10 ° to 10 °F adjustable |
| Refrigerant | R290 (1.9 oz) |
| Electrical | 115 V / 60 Hz / 1 Ph • 3 A • NEMA 5-15P • 10 ft cord |
| Compressor output | 1/5 HP (1,354 BTU/hr) |
| Energy use | 2.4 kWh/day (ASHRAE) |
| Ambient rating | 45 °– 100 °F |
| Shipping weight | 207 lb |

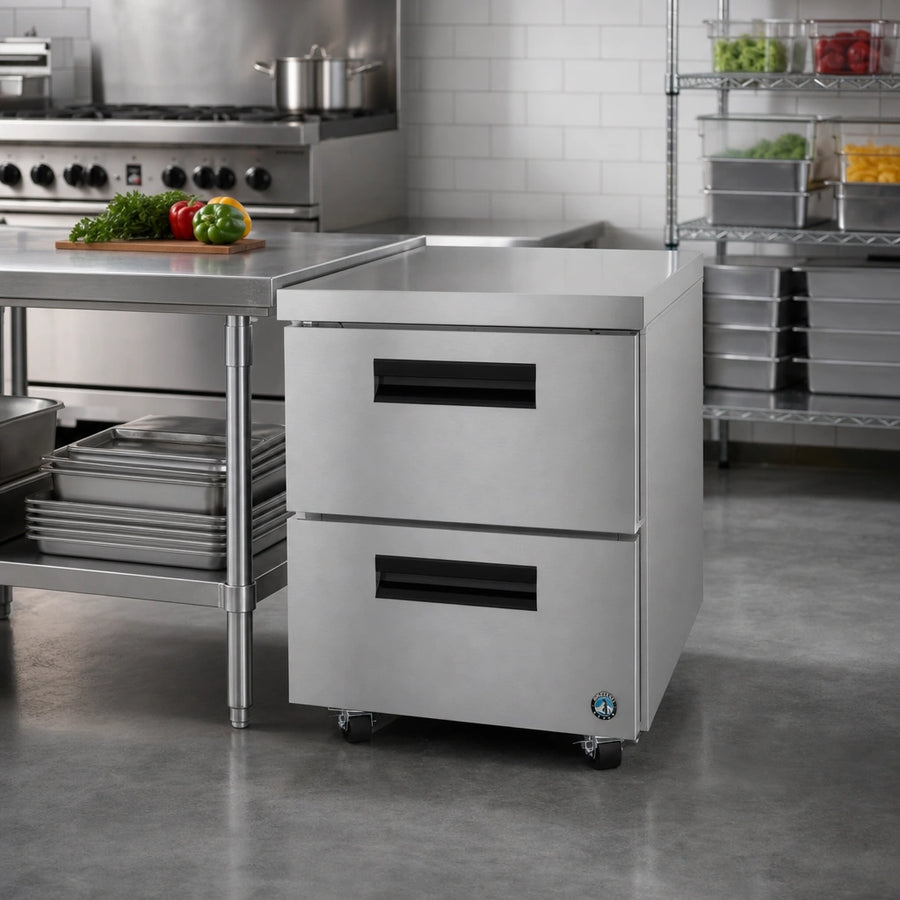

Ideal placements
- Sauté or grill lines needing frozen appetizers within arm’s reach.
- Bars storing glass-chillers, sorbet, or cocktail ingredients.
- Food trucks & ghost kitchens where every inch of floor space counts.
Best-in-class warranty
Enjoy worry-free ownership with 5 years labor, 6 years parts, and 7 years compressor coverage—standard on every Steelheart freezer.
Divider bars, overshelves, 6" casters, and stainless-steel backs are optional accessories (sold separately).
