Hoshizaki UF27B-01 Steelheart Undercounter & Worktop Refrigeration
Description

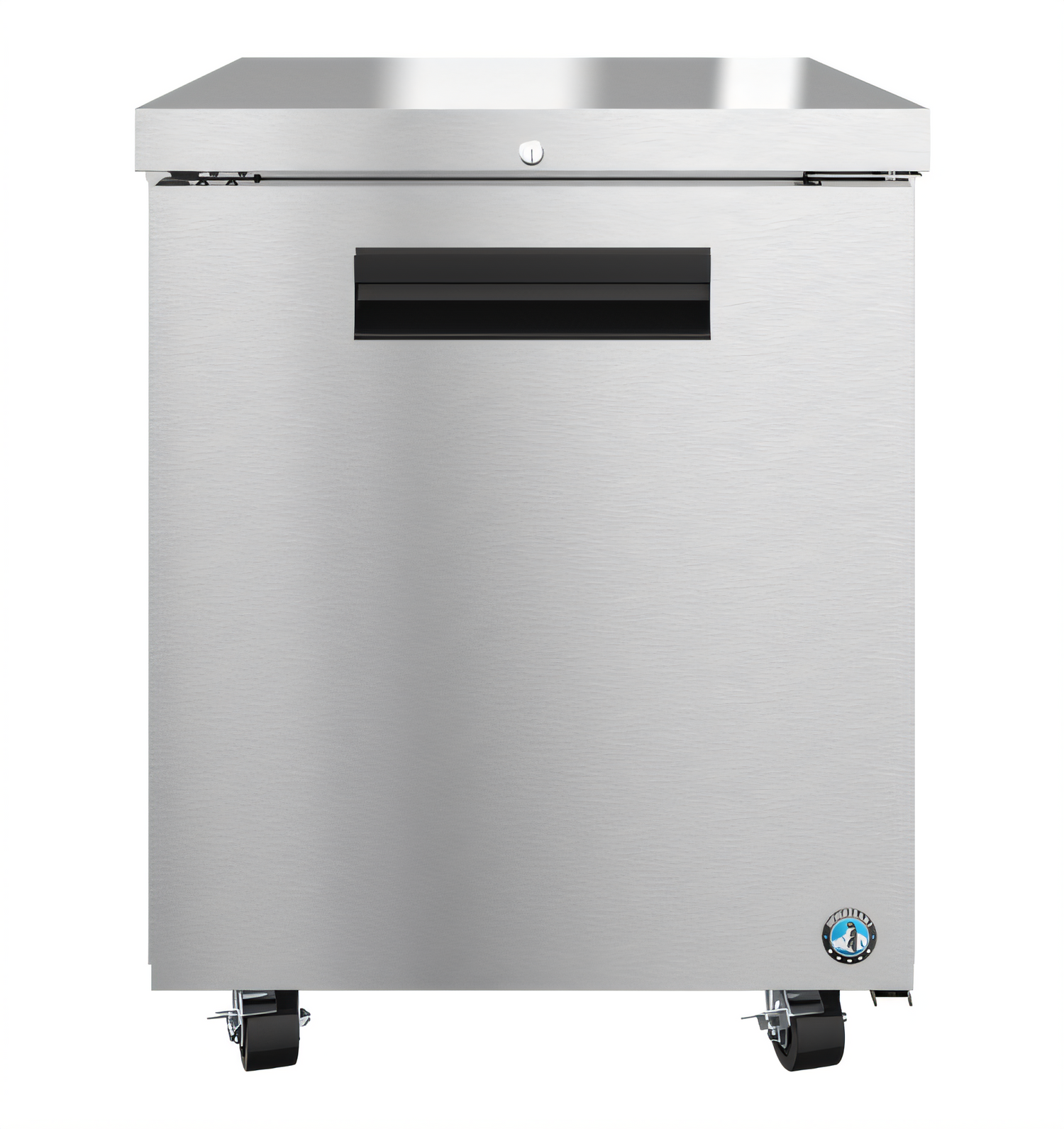

Hoshizaki Steelheart UF27B 27" Undercounter Freezer
One-Section • 7.21 cu. ft. • ENERGY STAR® CertifiedPack powerful, food-safe freezing into a slim 27-inch footprint. The Steelheart® UF27B is built inside and out with rugged stainless steel and engineered to maintain NSF-7 temperatures even in sweltering 100 °F kitchens—so your ingredients stay frozen, protected and within reach.
Key benefits
- Front-breathing, rear-mounted 1/5 HP refrigeration system—no side or rear clearance needed.
- Eco-friendly R290 hydrocarbon refrigerant & low 2.4 kWh/day energy use (ENERGY STAR®).
- All-stainless interior & exterior for unmatched durability and sanitation.

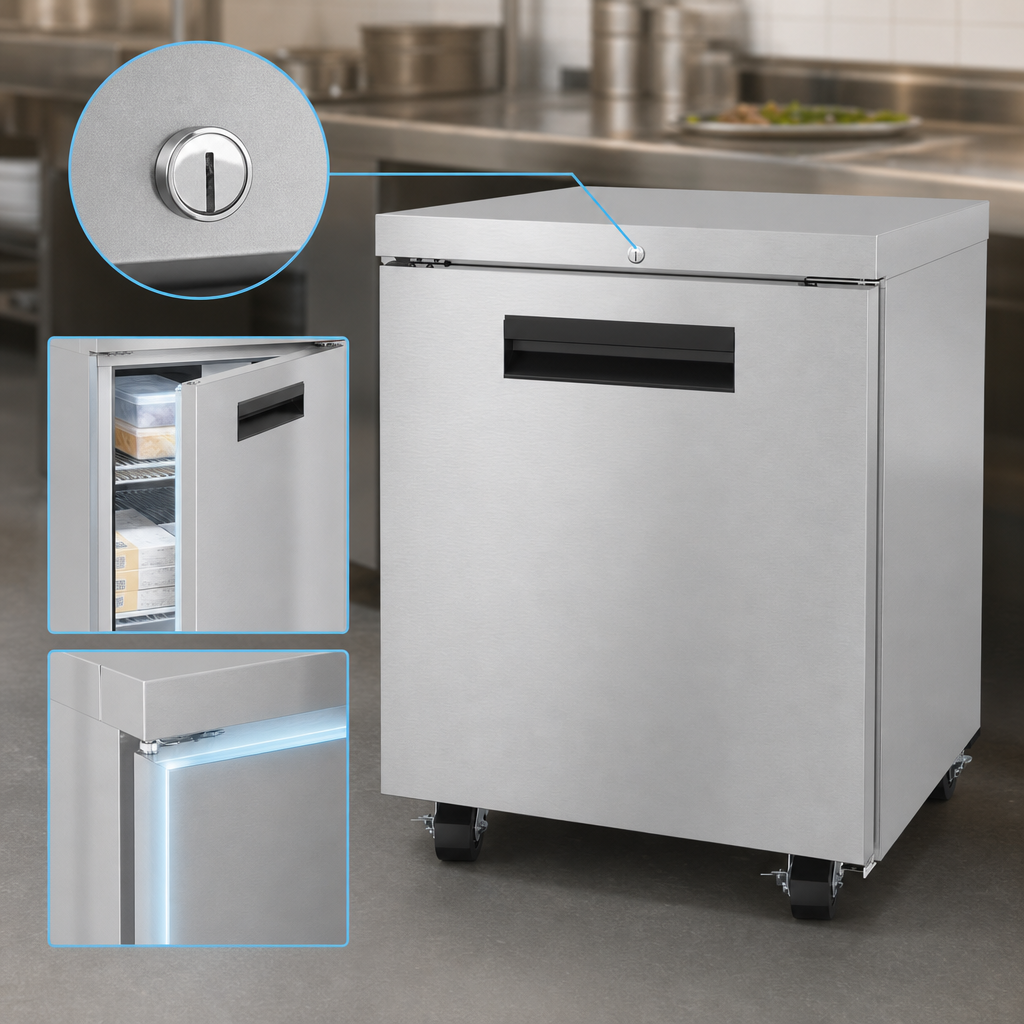

- Spring-assisted self-closing door with stay-open at 90° plus factory cylinder lock for security.
- Exclusive “stepped” door design shields gasket from damage; snap-in gasket removes in seconds.
- 1 heavy-duty, epoxy-coated shelf (22" × 16") on ½″-increment aluminum pilasters.
- Hot-gas condensate removal and E-coated evaporator coil reduce maintenance.
- Four 4" stem casters (2 braking) for easy cleaning and mobility.
- 10 ft NEMA 5-15P cord & plug—roll in, plug in, start freezing.
Specifications
| Model | UF27B (Steelheart Series) |
|---|---|
| Interior capacity | 7.21 cu. ft. (AHAM 6.21 cu. ft.) |
| Footprint (W × D × H) | 27" × 30" × 33.75" (with 4" casters) |
| Depth with door 90° | 55.5" (incl. 1" bumper) |
| Door | 1 solid, field-reversible, spring-assisted, cylinder-locked |
| Shelf count / size | 1 adjustable shelf, 22" × 16" |
| Temperature range | -10 °F – 10 °F (factory set -4 °F) |
| Compressor | 1/5 HP (798 BTU/h nominal) |
| Refrigerant | R290, 1.9 oz charge |
| Energy usage | 2.4 kWh/24 h (ASHRAE) |
| Electrical | 115 V / 60 Hz / 1 Ø, 2.4 A, NEMA 5-15P |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
| Crated weight | ≈ 175 lb |
| Casters | 4" polyolefin stem casters (2 locking) |
| Warranty | 5 yr labor • 6 yr parts • 7 yr compressor (U.S./Canada) |
Ideal for
- Station-side frozen ingredient storage
- Food trucks, kiosks & concession stands
- Bars needing compact back-of-house freezing
- Any commercial kitchen that values energy efficiency & durability
Optional accessories
- 2.25" or 6" casters
- Additional epoxy-coated or stainless-steel shelves
- Foot-pedal door opener
- Stacking kit (HS-5112)
- Factory left- or right-hinge door
If a GFCI is required, use a GFCI breaker instead of a receptacle to prevent nuisance tripping.
