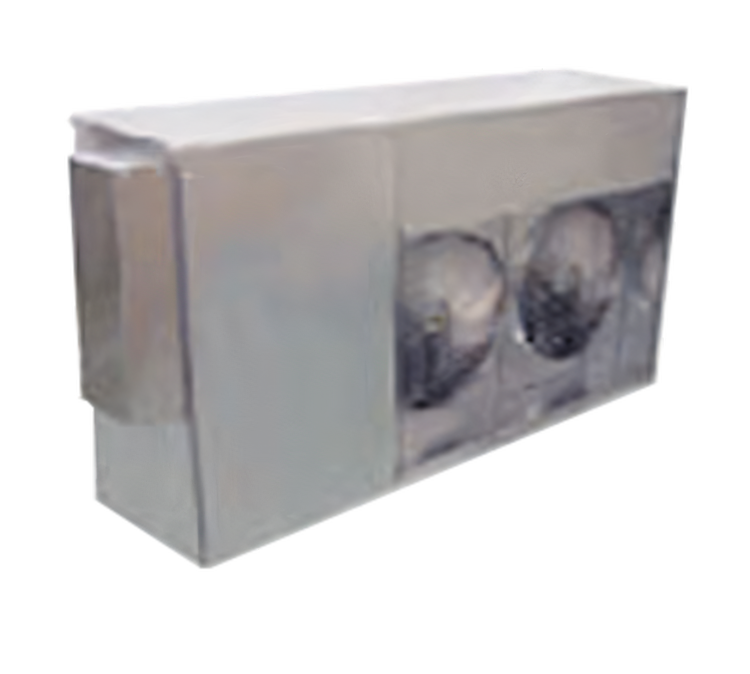

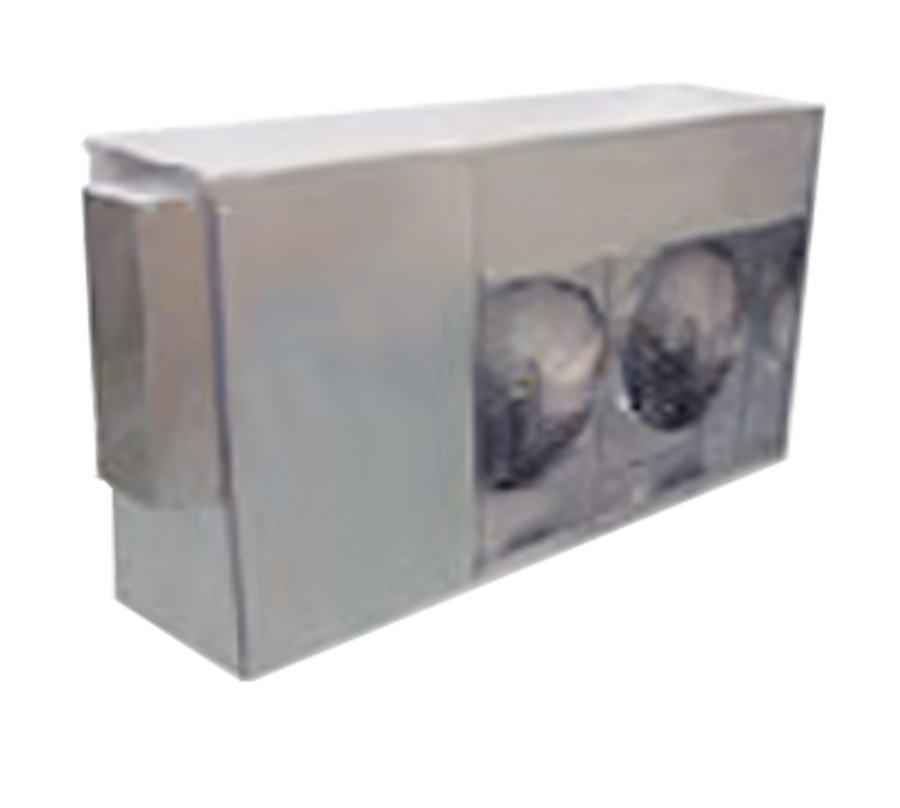

Hoshizaki SRK-20J3 Remote Condenser for KM Series Ice Machines, 208-230V, 3-Phase

Weather-Resistant Cabinet; Outdoor-Capable Installation

A quiet, energy-efficient remote condenser built for compatible KM Series and F Series ice machines, with weather-resistant construction for outdoor installations.

  • Designed for KM Series cubers and F Series flakers/cubelets.
  • Quiet operation helps reduce noise in the installation area.
  • Improved efficiency supports energy savings.
  • Weather-resistant cabinet is built for longer service life.
  • Can be installed outdoors up to 55 feet from the icemaker with a pre-charged tubing kit.
  • 208-230V, 60 Hz, 3-phase operation with 11.0 amp draw.

Overall Dimensions:

59.56"W x 19.5"D x 45.0"H

Product Weight:

345.0 lb

Compatible With KM And F Series

Designed for KM Series cubers and F Series flakers/cubelets.

Quiet Operation

Engineered for low-noise operation.

Energy Efficient

Improved efficiency helps support lower energy use.

Weather-Resistant Cabinet

Built for longer life in exposed installation environments.

Outdoor Installation

May be installed outdoors up to 55 feet from the icemaker when used with a pre-charged tubing kit.

Electrical Requirements

208-230V, 60 Hz, 3-phase connection with 11.0 amps.

GFCI Installation Note

If GFCI is required, use a GFCI breaker instead of a GFCI receptacle.

Type Remote Condenser
Refrigerant Type R-404A
Voltage 208-230 Volts
Amps 11.0 Amps
Hertz 60 Hz
Phase 3-Phase
Ambient Temperature Range -20°F to 122°F
Voltage Range 187-253 Volts
Installation Location Outdoor
Shipping Width 60 Inches
Shipping Depth 20 Inches
Shipping Height 45 Inches
Shipping Weight 345 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

3-year parts and labor; 5-year parts on condenser coil and compressor, depending on application.

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download

Frequently Asked Questions

This is a remote condenser for compatible commercial ice machine systems.
The documentation describes it as a remote condenser for KM Series cubers and F Series flakers/cubelets.
Yes. It may be installed outdoors up to 55 feet from the icemaker when used with a pre-charged tubing kit.
It uses 208-230V, 60 Hz, 3-phase power and draws 11.0 amps.
It uses R-404A refrigerant.
The warranty is 3 years parts and labor on the entire unit, with 5 years parts coverage on the air-cooled condenser coil and compressor when used with KM Series cubers; coverage details vary by application and region.
