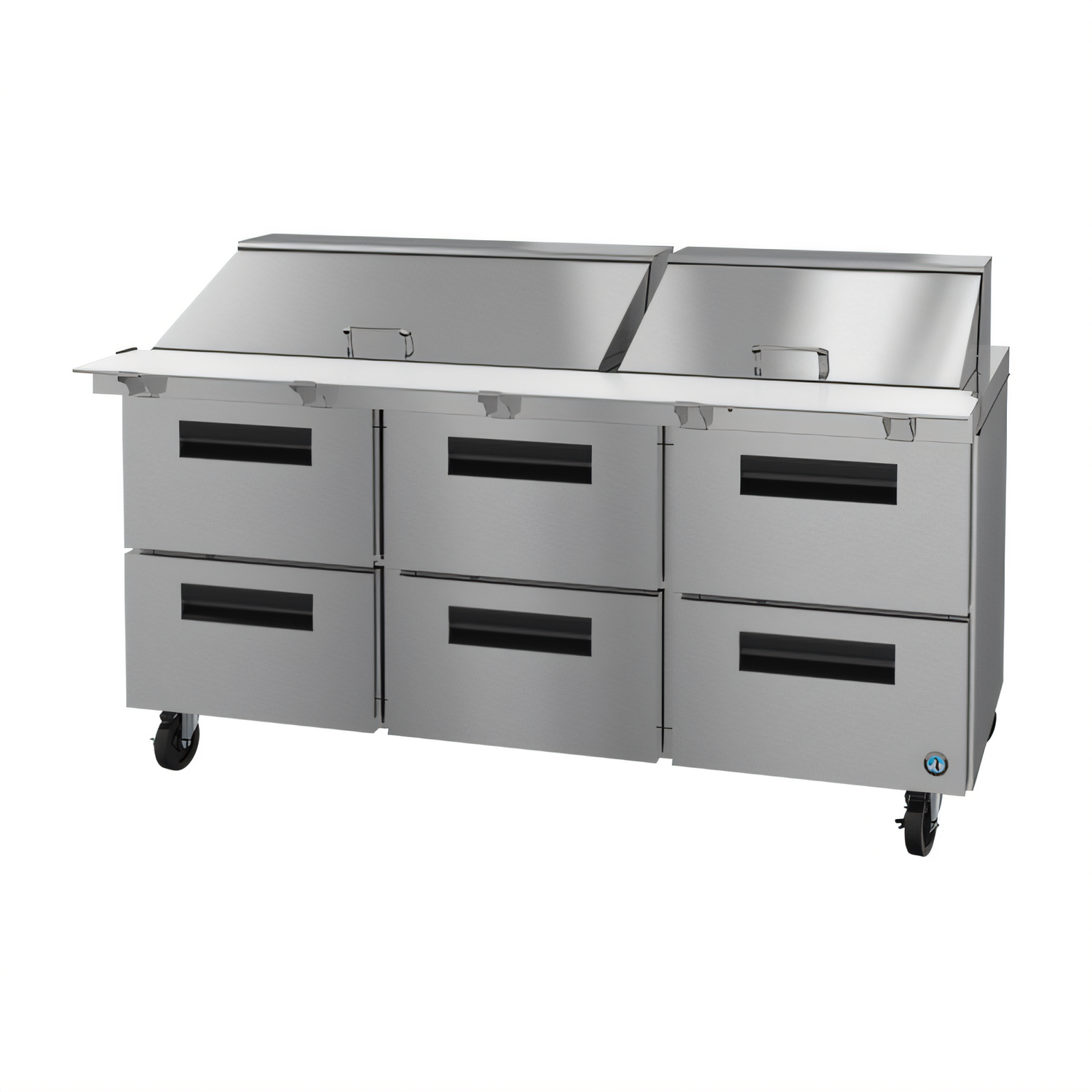

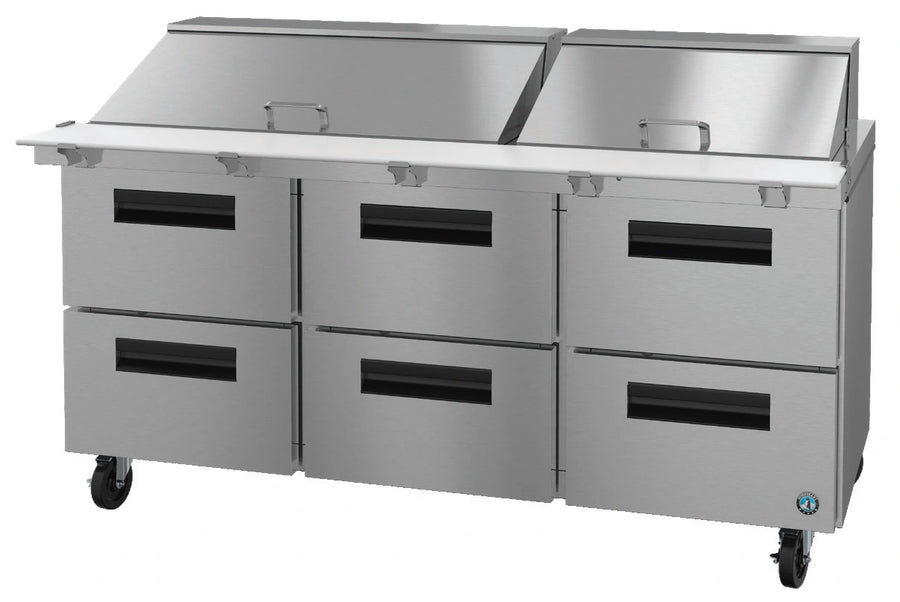

Hoshizaki Steelheart 72-Inch Three-Section Mega Top Prep Refrigerator with 6 Drawers

Stainless Steel, Self-Contained Rear-Mounted R290 Refrigeration, 18 Cu. Ft.

Built for busy prep lines, this 72-inch mega top refrigerator combines six easy-access drawers with a 30-pan ingredient rail and a full-width cutting board to keep service moving.

  • Three-section mega top prep refrigerator with six drawers for organized, high-volume ingredient storage.
  • Includes (30) 1/6-size pans, adapter bars, and a 72-inch white polyethylene cutting board.
  • Self-contained R290 refrigeration with hot gas condensate removal supports efficient operation.
  • Stainless steel exterior and stainless steel interior surfaces are built for demanding commercial kitchens.
  • Front-breathing design and standard casters simplify installation and service access.
  • 115V, 1-phase power with NEMA 5-15P plug and 10-foot cord included.

Overall Dimensions:

72.0"W x 34.0"D x 44.25"H

Product Weight:

539.0 lb

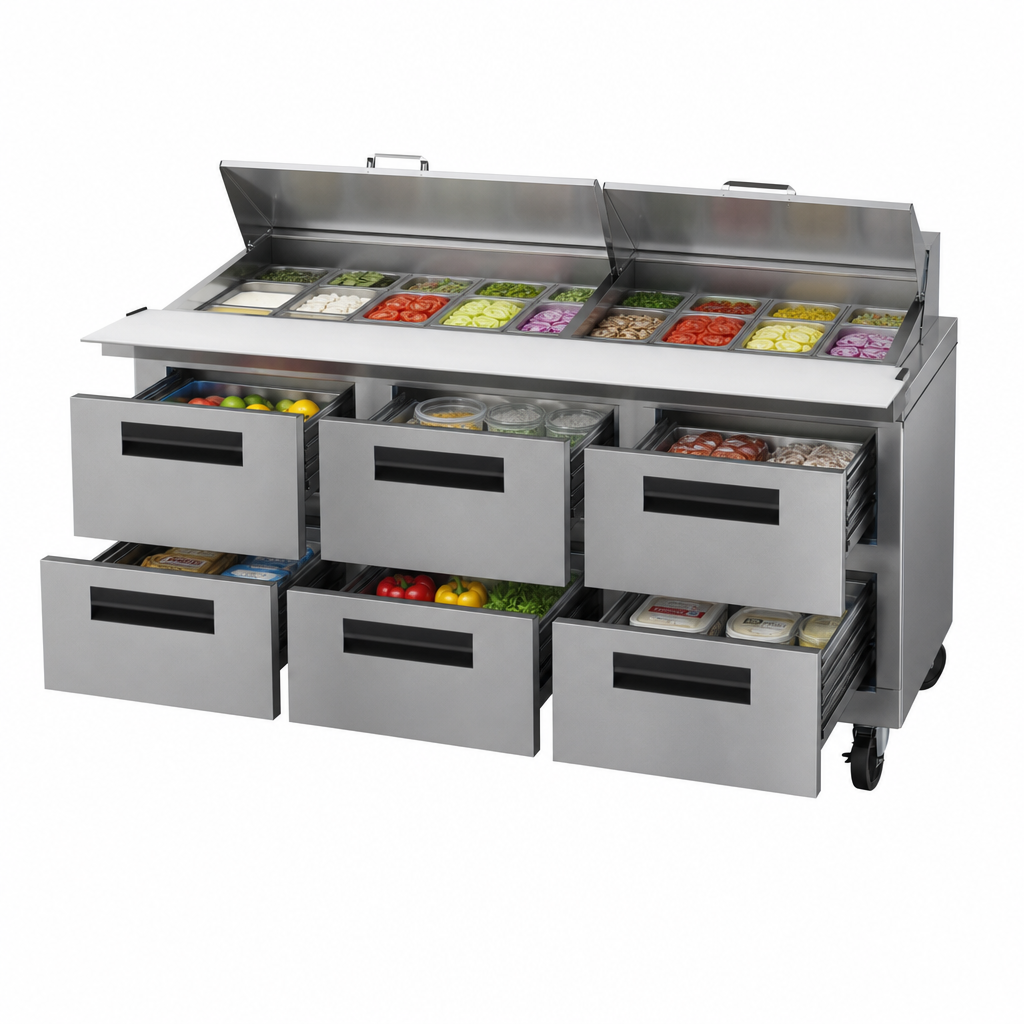

Six-Drawer Access

Six refrigerated drawers keep ingredients organized and easy to reach during busy prep service.

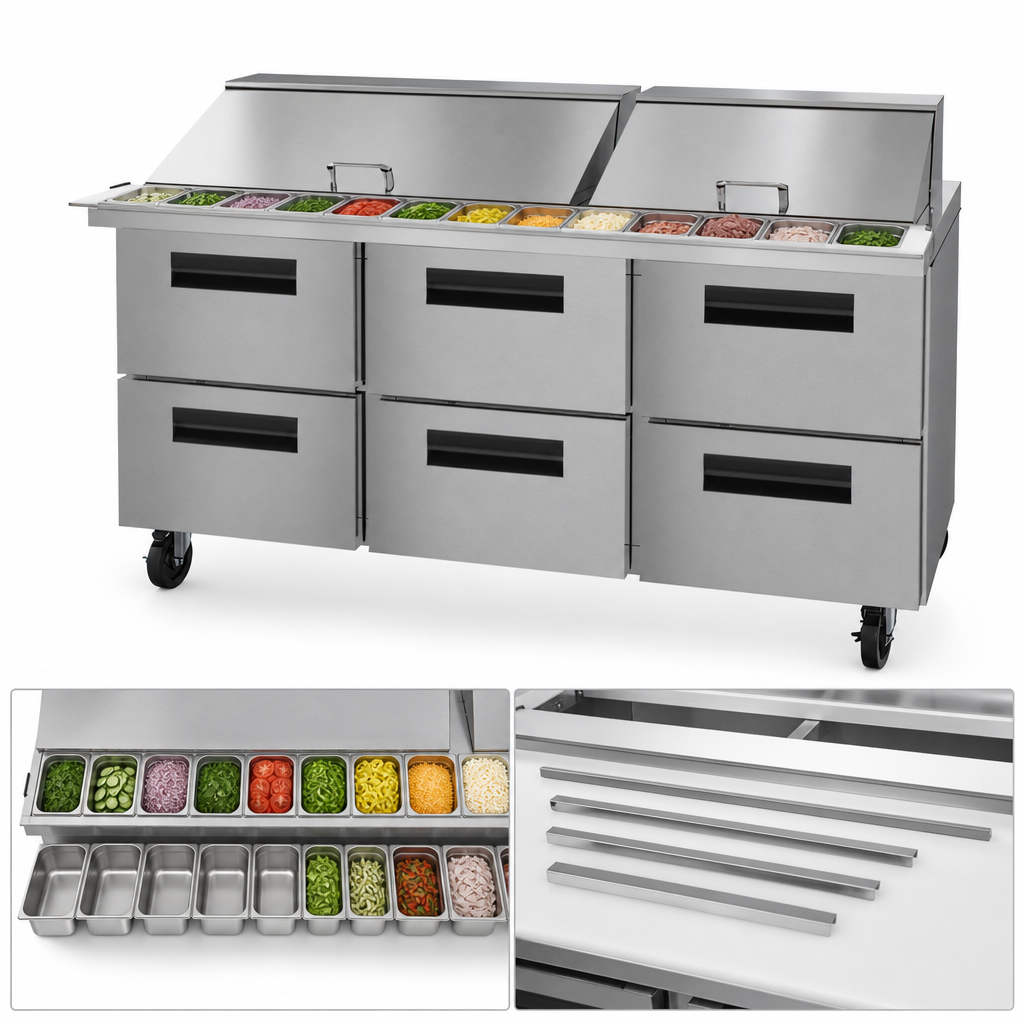

30-Pan Mega Top Rail

Supplied with (30) 1/6-size, 4-inch-deep pans and adapter bars; rails also accept 6-inch-deep pans for added volume.

White Polyethylene Cutting Board

A 72-inch x 10-inch x 1/2-inch cutting board provides a durable prep surface across the top.

Stainless Steel Construction

Stainless steel exterior front, sides, and top with stainless steel interior sides, back, and floor for durability and easy cleaning.

Self-Contained Rear-Mounted Refrigeration

Uses an environmentally friendly R290 hydrocarbon refrigeration system with hot gas condensate removal.

Front-Breathing Design

Front-breathing airflow allows installation with zero side or rear clearance.

Insulated Cabinet and Drawers

Cabinet walls and drawers are insulated with 2-inch CFC-free foamed-in-place polyurethane to help hold temperature.

Heavy-Duty Drawer Hardware

Drawer module frames, acetal rollers, and drawer stops are stainless steel welded construction for long-term durability.

Standard Mobility and Power

Standard with 6-inch stem casters, two with brakes, plus a 10-foot cord and NEMA 5-15P plug.

Temperature Performance

Engineered to maintain NSF-7 temperatures in 100°F ambient conditions.

Type Prep Refrigerator
Style Mega Top
Installation Type Floor Model
Capacity 18 Cu. Ft.
Compartments 3
Pan Capacity 30
Pan Size 1/6 Size, 4 Inches Deep
Material Stainless Steel
Interior Finish Stainless Steel
Refrigeration Type Self-Contained, Rear Mounted
Refrigerant Type R290 Hydrocarbon
Temperature Range 32°F to 52°F
Voltage 115 Volts
Amps 4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Breaker Size 15 Amps
Cord Length 10 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Seven-year labor, parts, and compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Pan configuration flyer PDF Download PDF Refrigeration brochure PDF Download PDF Other pan configuration PDF Download PDF Training booklet PDF Download PDF Warranty PDF Download PDF Hoshizaki steelheart warranty PDF Download

Frequently Asked Questions

It provides 18 cu. ft. of interior storage capacity.
The unit has six drawers and comes with (30) 1/6-size pans that are 4 inches deep, plus adapter bars.
It runs on 115V, 60 Hz, 1-phase power and includes a NEMA 5-15P plug, 10-foot cord, and 15-amp HACR breaker requirement.
The control setpoint range is 32°F to 52°F, and it is engineered to maintain NSF-7 temperatures in 100°F ambient conditions.
A 72-inch x 10-inch x 1/2-inch white polyethylene cutting board is standard.
It includes a seven-year warranty on labor, parts, and compressor, valid in the United States, Canada, Puerto Rico, and U.S. territories.
