Hoshizaki SR60B-24MD4 Steelheart Refrigerated Prep Tables
Description

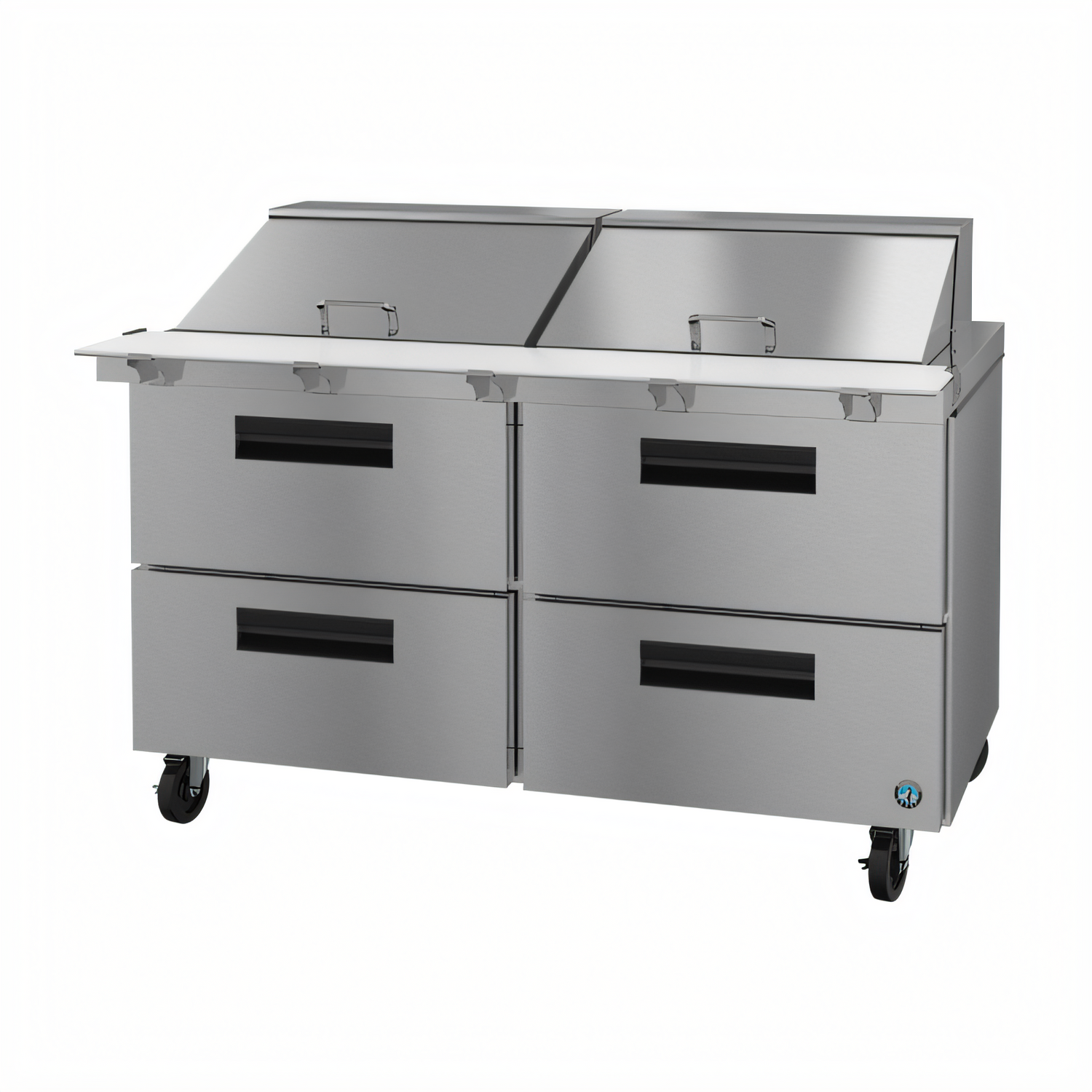

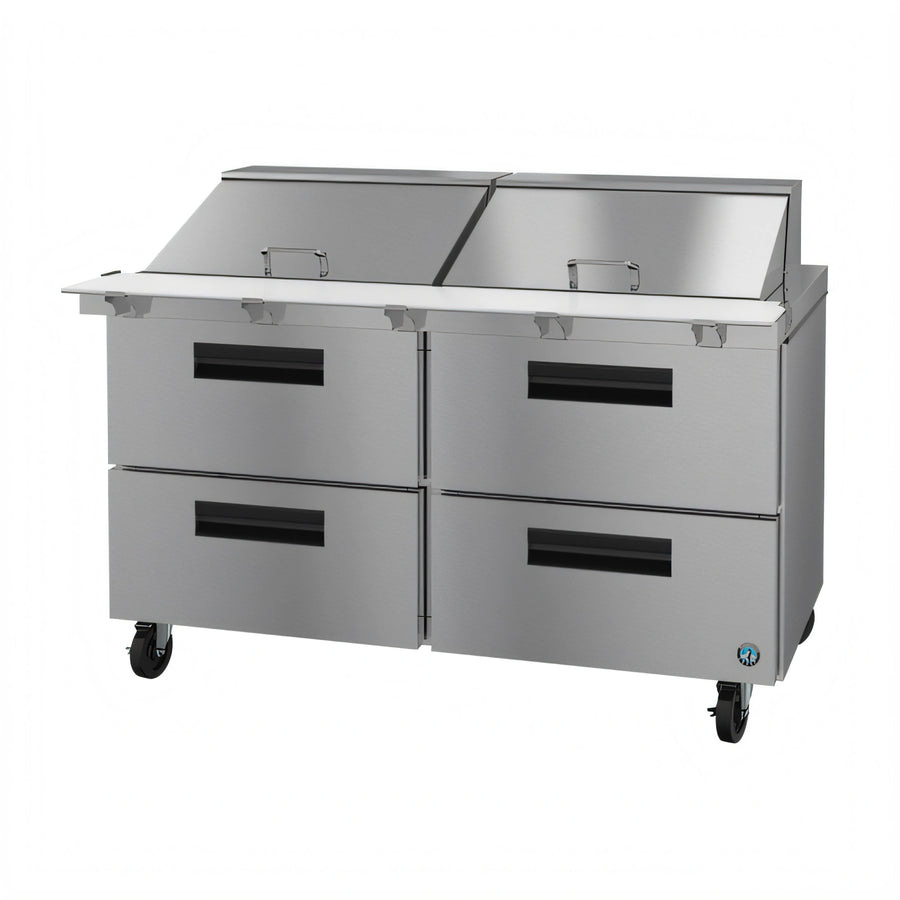

Hoshizaki Steelheart® SR60B-24MD4 Mega Top Prep Refrigerator – 60" 4-Drawer
14.8 cu. ft | NSF-7 certified to 100 °F | Eco-friendly R290Purpose-built for the busiest commercial kitchens, the Steelheart SR60B-24MD4 keeps ingredients at safe, uniform temperatures while putting everything you need right where you prep. Rugged stainless construction, a front-breathing refrigeration system and a generous 24-pan mega top make this 60 inch unit a productivity powerhouse that still fits flush against walls or into a cook-line with zero side or rear clearance.
Performance & Convenience Highlights
- Engineered to maintain NSF-7 temps in 100 °F ambient conditions.
- Self-contained 1/3 HP rear-mounted, front-breathing refrigeration (2431 BTU/h).
- Natural R290 hydrocarbon refrigerant for low global-warming impact.
- Innovative ducted air system surrounds every pan with even cooling.
- Four heavy-duty drawers tested to 175 lb / 300,000 cycles.

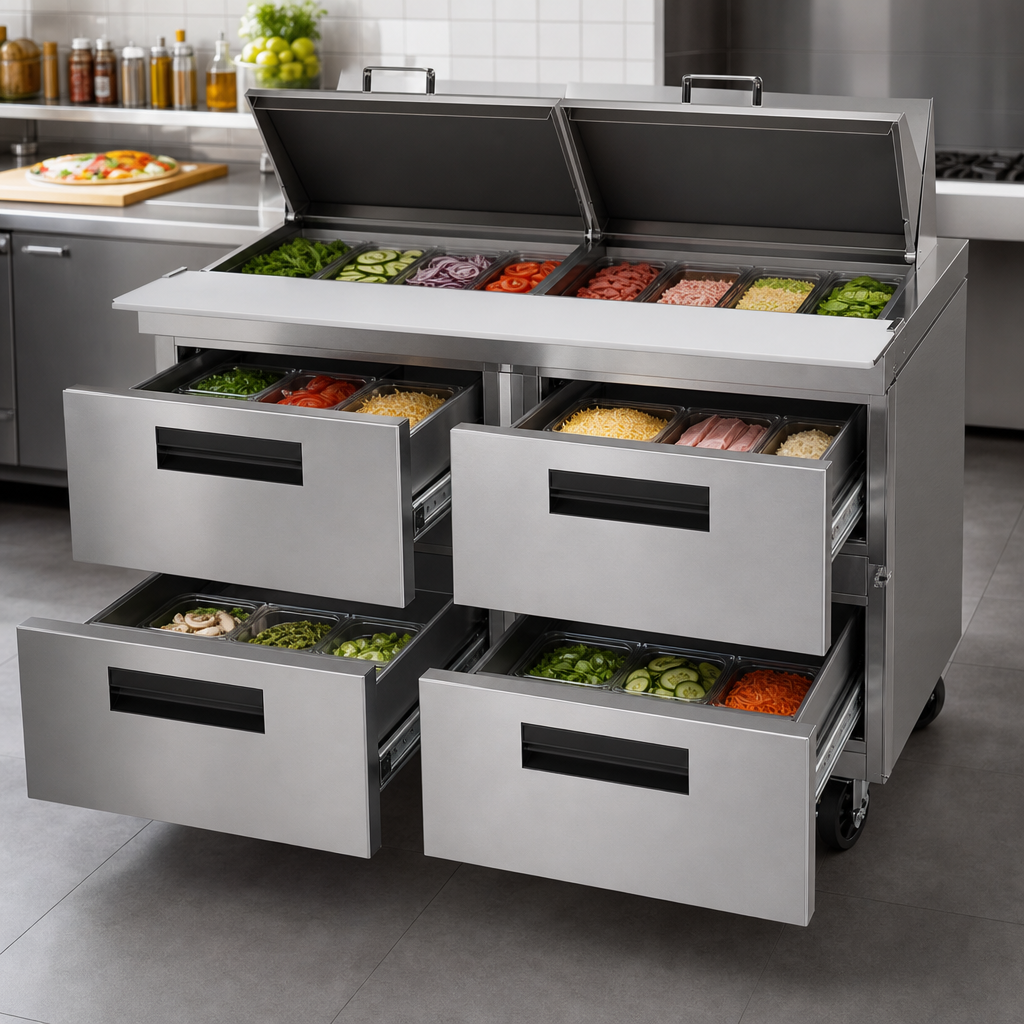

- Top drawers hold (1) full-size 12×20 pan + (2) 1/4-size pans; bottom drawers hold (1) full-size pan – all up to 6" deep.
- 24 × 1/6-size polycarbonate pans (4" deep) & stainless adapter bars included.
- 60" × 10" × ½" NSF white polyethylene cutting board ships standard.
- 2" foamed-in-place CFC-free insulation lowers energy use (only 4.05 kWh/day).
- Hot-gas condensate removal & E-coated evaporator for worry-free operation.
- (4) 6" polyolefin stem casters, two with brakes, for easy mobility and cleaning.
- cETLus & ETL-Sanitation listed; 10 ft cord with NEMA 5-15P plug.

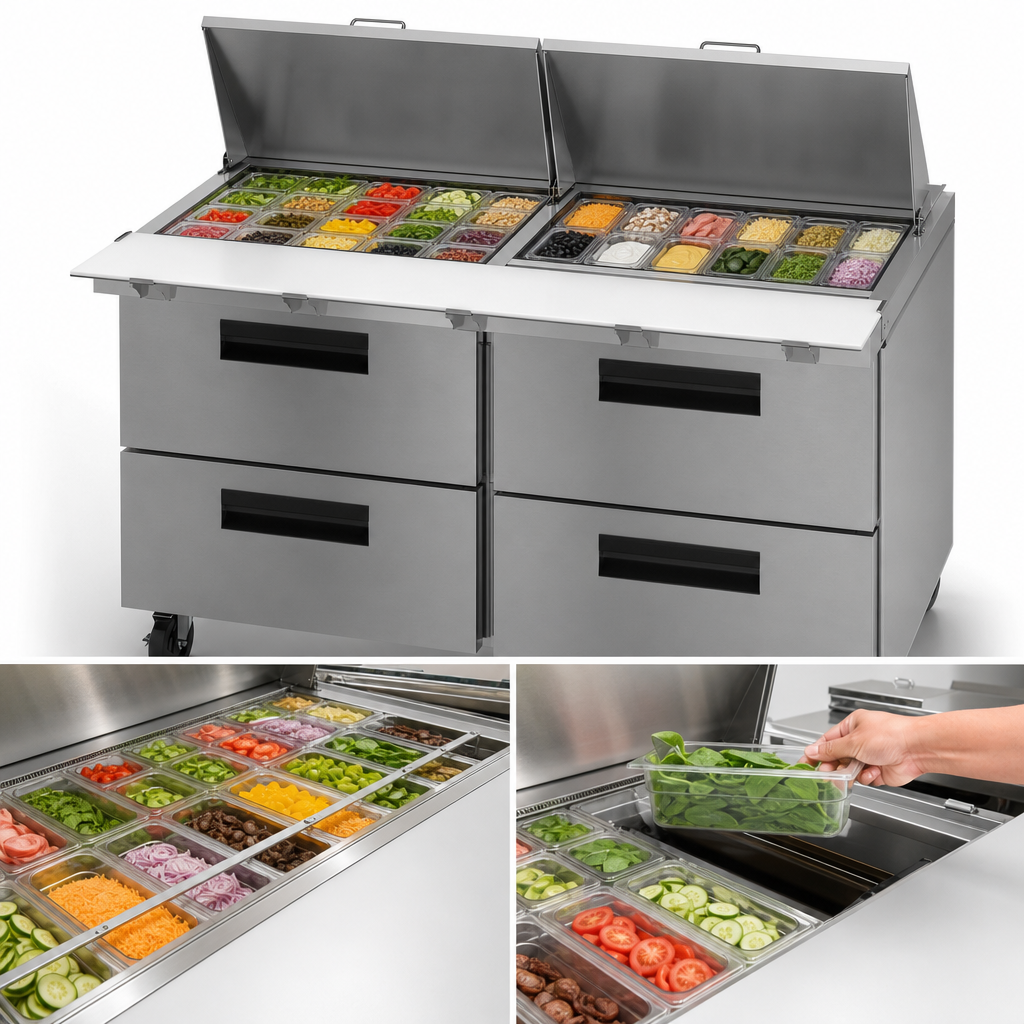

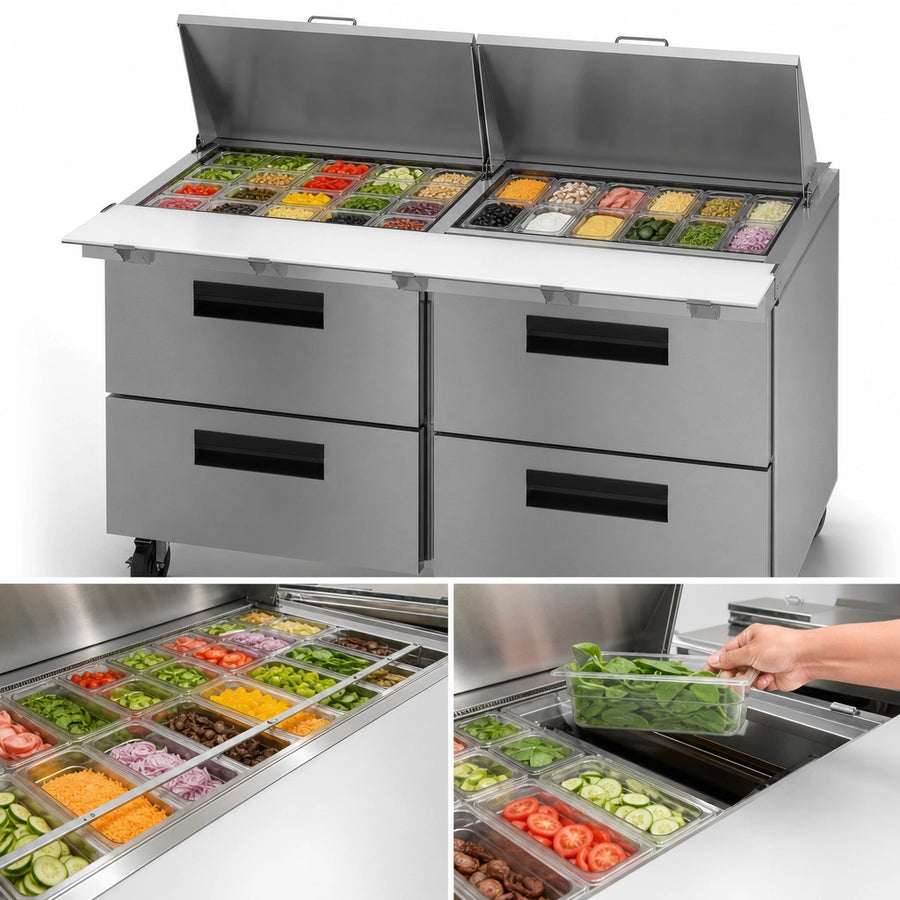

Pan Rail Capacity
All pans and adapter bars listed below are shipped with the unit.
- Top rail: (24) 1/6-size pans, 4" deep (1.5" below surface for easy reach).
- Rails also accept 6" deep pans for up to 50 % more volume.
Technical Specifications
| Model / Series | SR60B-24MD4 | Steelheart® Mega Top |
|---|---|
| Sections / Drawers | Two sections | 4 drawers |
| Interior Capacity | 14.8 cu. ft (AHAM) |
| Exterior Dimensions | 60" W × 34" D × 44.25" H (with 6" casters) |
| Depth w/ Cutting Board | 37.5" |
| Depth w/ Drawer Open | 52" (inc. 1" bumper) |
| Cutting Board | 60" × 10" × ½" white polyethylene |
| Refrigerant | R290 (2.5 oz charge) |
| Compressor / BTU | 1/3 HP | 2431 BTU/h |
| Electrical | 115 V / 60 Hz / 1 ph | 4 A | NEMA 5-15P |
| Energy Use | 4.05 kWh per day (@ NSF) |
| Ambient Rating | 45 °F – 100 °F |
| Shipping Weight | 457 lb (crated) |
| Certifications | cETLus, ETL-Sanitation |
Built to Last
- All-stainless exterior front, sides, top & drawer fronts.
- Stainless interior sides, back & floor with seamless coved corners.
- Extruded aluminum flush-mount drawer handles won’t snag aprons.
- Magnetic drawer gaskets pop out in seconds for sanitation.
Best-in-Class Warranty
7 yrs compressor • 6 yrs parts • 5 yrs labor
(U.S., Canada, Puerto Rico & U.S. Territories)
