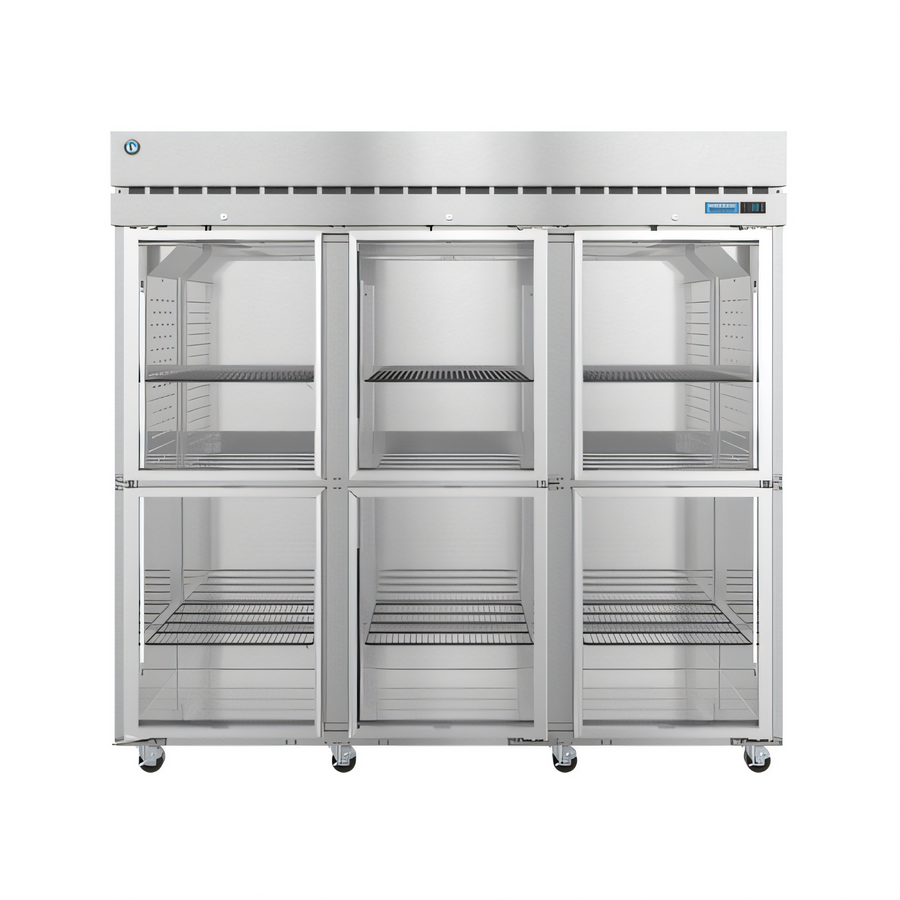

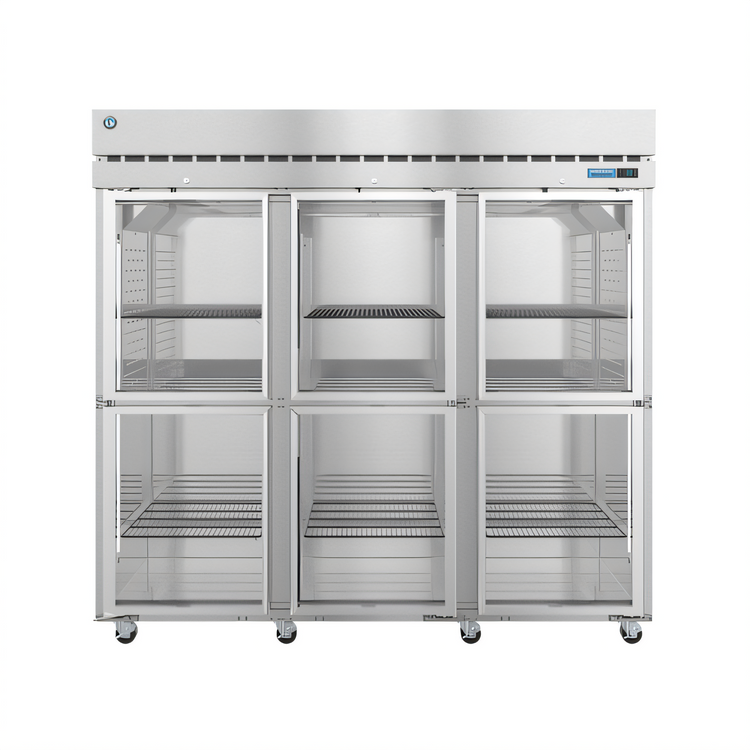

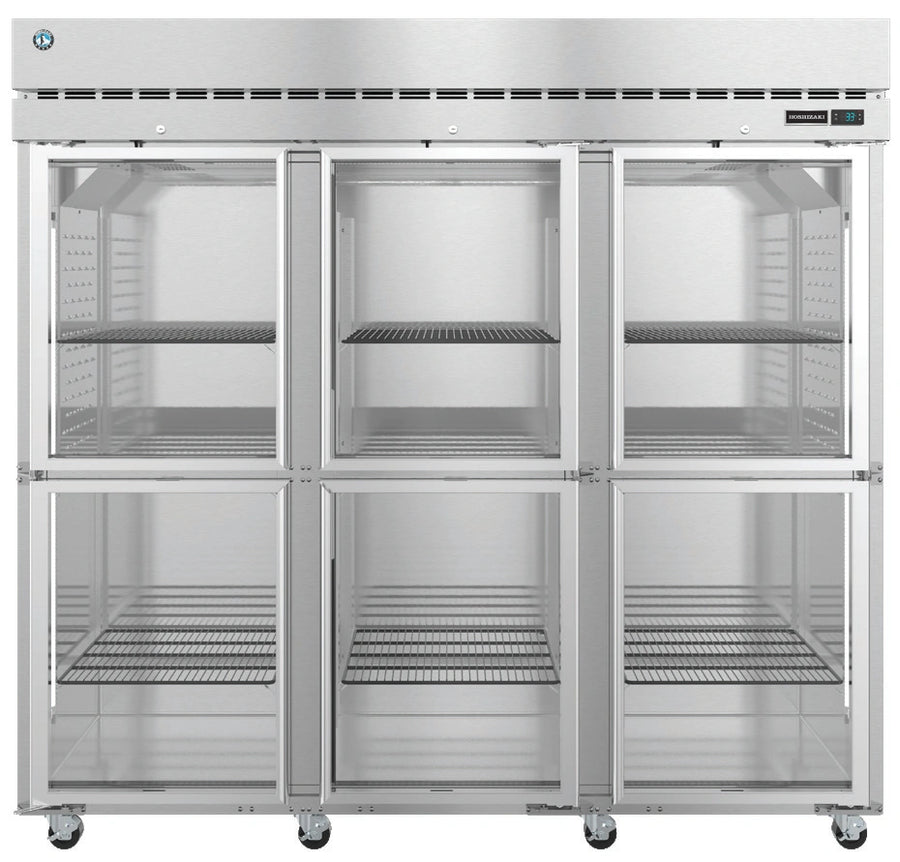

Hoshizaki Steelheart Three-Section Half Glass Door Reach-In Refrigerator, Standard Depth

79.03 Cu. Ft., Self-Contained Top-Mount Refrigeration, R290, ENERGY STAR

Get high-capacity refrigerated display storage in a durable three-section cabinet with six half-height glass doors and energy-efficient R290 refrigeration.

  • 79.03 cu. ft. of interior storage delivers large capacity in a compact standard-depth footprint.
  • Six half-height hinged glass doors improve visibility and make product access faster.
  • Self-contained, top-mounted refrigeration uses R290 refrigerant and solid-state digital controls with alarms.
  • Stainless steel interior plus stainless steel front, sides, and top support durability and easy cleaning.
  • ENERGY STAR certified with LED lighting, ducted air distribution, and automatic hot gas condensate evaporation.
  • Includes 9 adjustable shelves, field-reversible doors, and 4" casters with brakes.

Overall Dimensions:

82.5"W x 34.5"D x 79.5"H

Product Weight:

840.0 lb

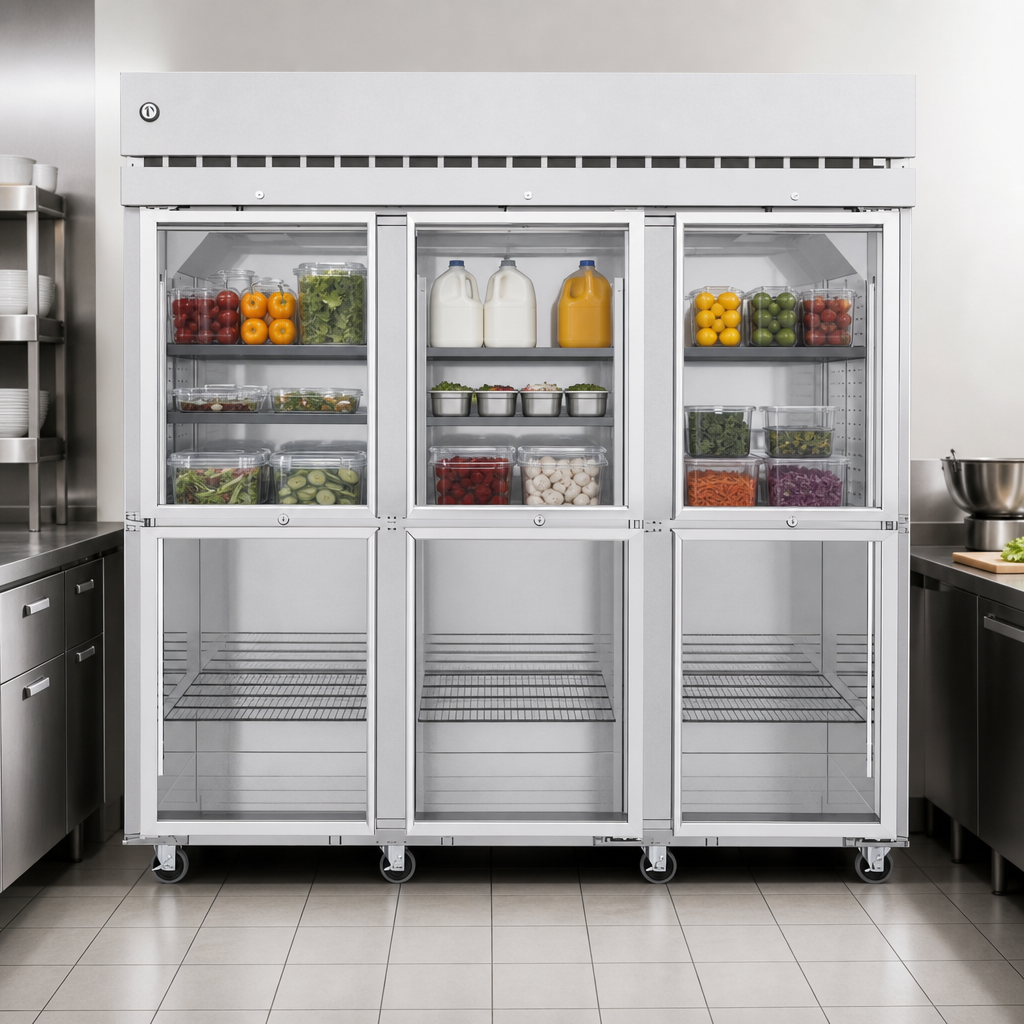

Half-Height Glass Doors

Six hinged, multi-pane glass doors with locks improve product visibility and access.

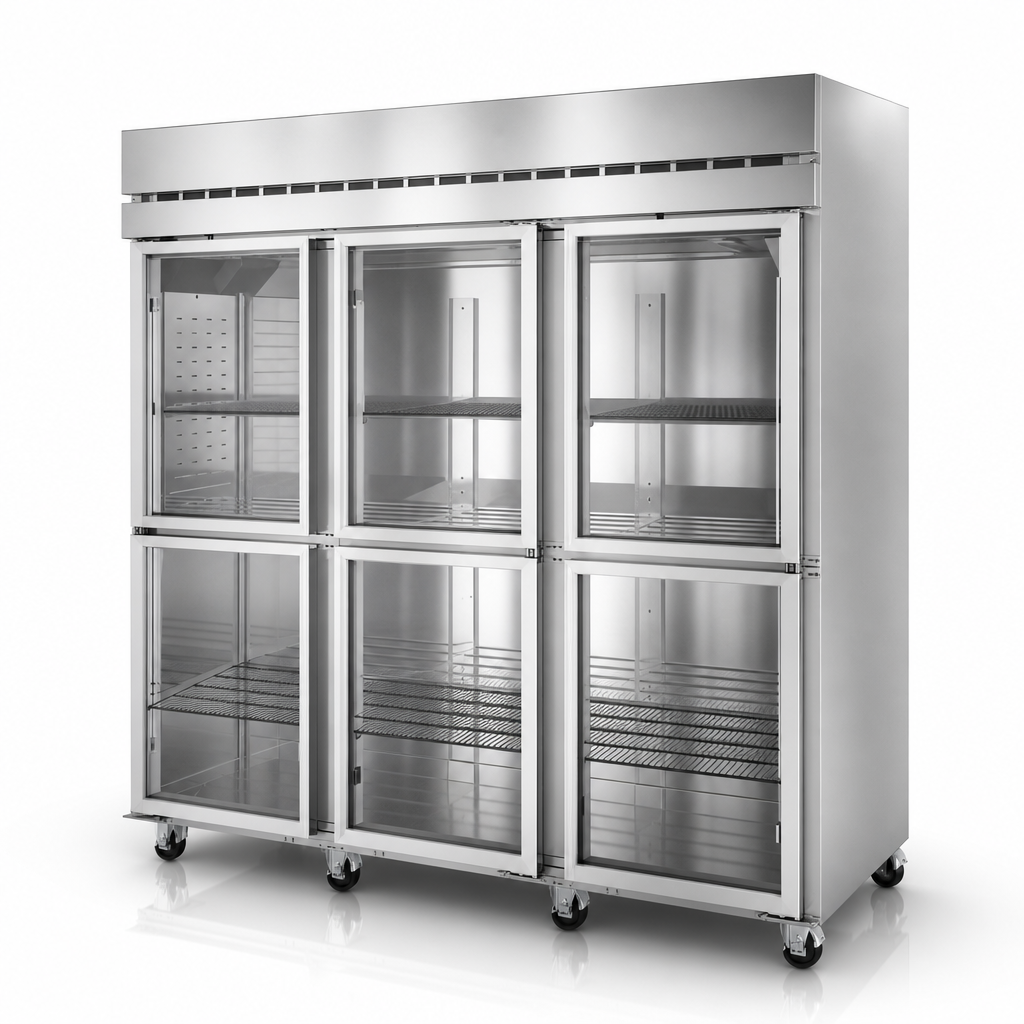

Stainless Steel Cabinet

Stainless steel interior and stainless steel front, sides, and top provide durability and easy cleaning.

Top-Mounted Self-Contained Refrigeration

Factory-installed refrigeration is accessible for service and includes a condenser filter.

Digital Temperature Controller

Solid-state controller includes temperature alarms and an LED display with Fahrenheit/Celsius selection.

R290 Hydrocarbon Refrigerant

Environmentally friendly refrigerant supports efficient cooling performance.

LED Interior Lighting

Interior LED lights activate when doors open to improve product visibility.

Adjustable Shelving

Nine epoxy-coated wire shelves are adjustable in 1-inch increments on stainless steel pilasters.

Insulated Cabinet

2-3/8" foamed-in-place polyurethane insulation helps maintain cabinet temperatures.

Self-Closing Reversible Doors

Spring-assisted doors stay open at 90° and are field reversible for flexible installation.

Ducted Air Distribution

Unique airflow design promotes even cooling and helps eliminate hot spots.

Automatic Hot Gas Evaporator

Non-electric condensate evaporation reduces maintenance.

Heavy-Duty Casters

4" polyolefin casters, four with brakes, make the cabinet easier to move and secure.

Type Reach-In Refrigerator
Style Standard Depth
Installation Type Floor Model
Capacity 79.03 Cubic Feet
Compartments 3
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Stainless Steel Front, Sides, and Top
Refrigeration Type Self-Contained
Compressor Location Top Mounted
Compressor HP (2) 1/4 HP
Refrigerant Type R290 Hydrocarbon
BTU 1,255 BTU/Hr
Controls Digital
Temperature Range 31° to 52°F
Voltage 115 Volts
Amps 9.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Shipping Width 37.875 Inches
Shipping Depth 86 Inches
Shipping Height 81 Inches
Shipping Weight 840 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

7-year limited labor, parts, and compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Training booklet PDF Download PDF Service manual PDF Download PDF Instructions PDF Download PDF Hoshizaki steelheart warranty PDF Download PDF Warranty PDF Download PDF Refrigeration brochure PDF Download PDF Upright comparison flyer PDF Download PDF Hoshizaki steelheart warranty PDF Download

Frequently Asked Questions

It provides 79.03 cu. ft. of interior storage.
It has six half-height hinged glass doors.
It uses a self-contained, top-mounted refrigeration system with R290 hydrocarbon refrigerant.
The unit requires 115V/60Hz/1-phase power and a NEMA 5-15P plug.
Yes. It comes standard with 4-inch casters, including brakes on four casters.
It includes a 7-year limited labor, parts, and compressor warranty, subject to the stated registration and coverage terms.
