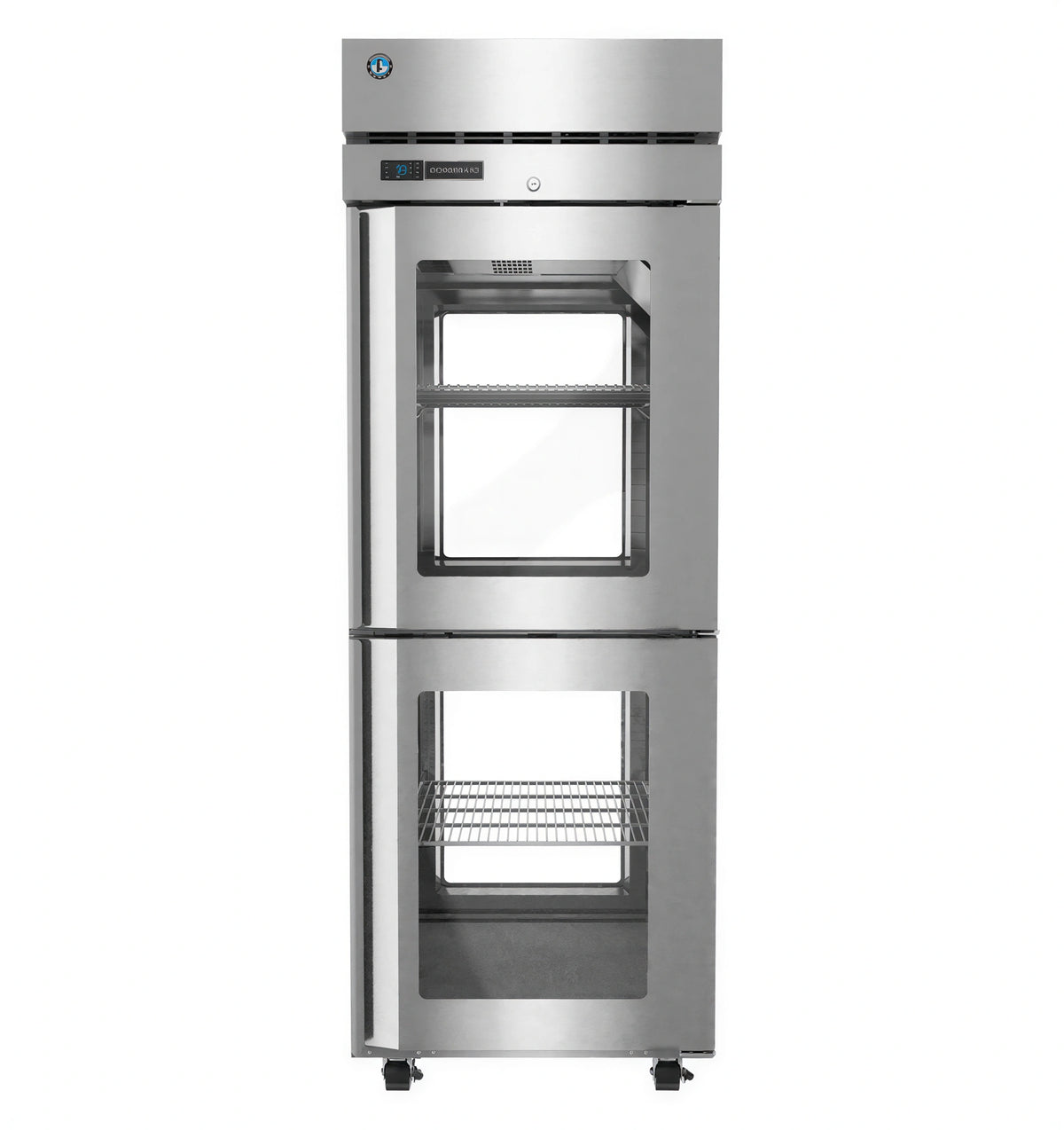

Hoshizaki Steelheart PTF1A-HGE-HGE One-Section Pass-Through Freezer, 25.8 cu. ft., Two Half-Glass Doors, Stainless Steel
- Amperage
- 15.0 A
- Phase
- 1 phase
- Dimensions
- 27.5"W × 35.75"D × 79.5"H
- Capacity
- 25.8 cu. ft. (AHAM)
- Section Count
- 1
- Compressor HP
- 3/4 HP
Specifications
Description
The Hoshizaki Steelheart PTF1A-HGE-HGE is a one-section pass-through freezer with 25.8 cu. ft. of interior storage capacity, stainless steel construction, and two half-glass doors with locks.
It features three epoxy-coated wire shelves, a self-contained top-mounted R290 refrigeration system, a solid-state digital controller with temperature alarms, and two vertical interior LED lights.
- Control setpoint range of -10°F to 10°F
- Spring-assisted self-closing doors with a stay-open feature
- Four-inch casters, including two with brakes
Overall Dimensions:
27.5"W x 35.75"D x 79.5"HProduct Weight:
367.0 lbPass-through configuration
The one-section cabinet provides access from the front and back through its pass-through doors.
Stainless steel construction
The cabinet has a stainless steel interior and stainless steel exterior front, sides, and top.
Half-glass doors
Two multi-pane, argon-filled glass doors include locks, spring-assisted self-closing operation, a stay-open feature, and field-reversible hinging.
Adjustable shelving
Three epoxy-coated wire shelves are standard, with shelf supports adjustable in one-inch increments.
Ducted air distribution
A unique ducted air distribution system provides air circulation within the cabinet.
Digital temperature control
The solid-state digital controller includes an LED display, temperature alarms, and Fahrenheit or Celsius adjustment.
R290 refrigeration
The self-contained, top-mounted refrigeration system uses R290 refrigerant and a thermostatic expansion valve.
Interior lighting
Two vertical energy-efficient LED lights illuminate the interior.
Caster mobility
Four-inch polyolefin casters are standard, with two casters equipped with brakes.
Cabinet insulation
The cabinet is insulated with 2-3/8-inch CFC-free, foamed-in-place polyurethane.
