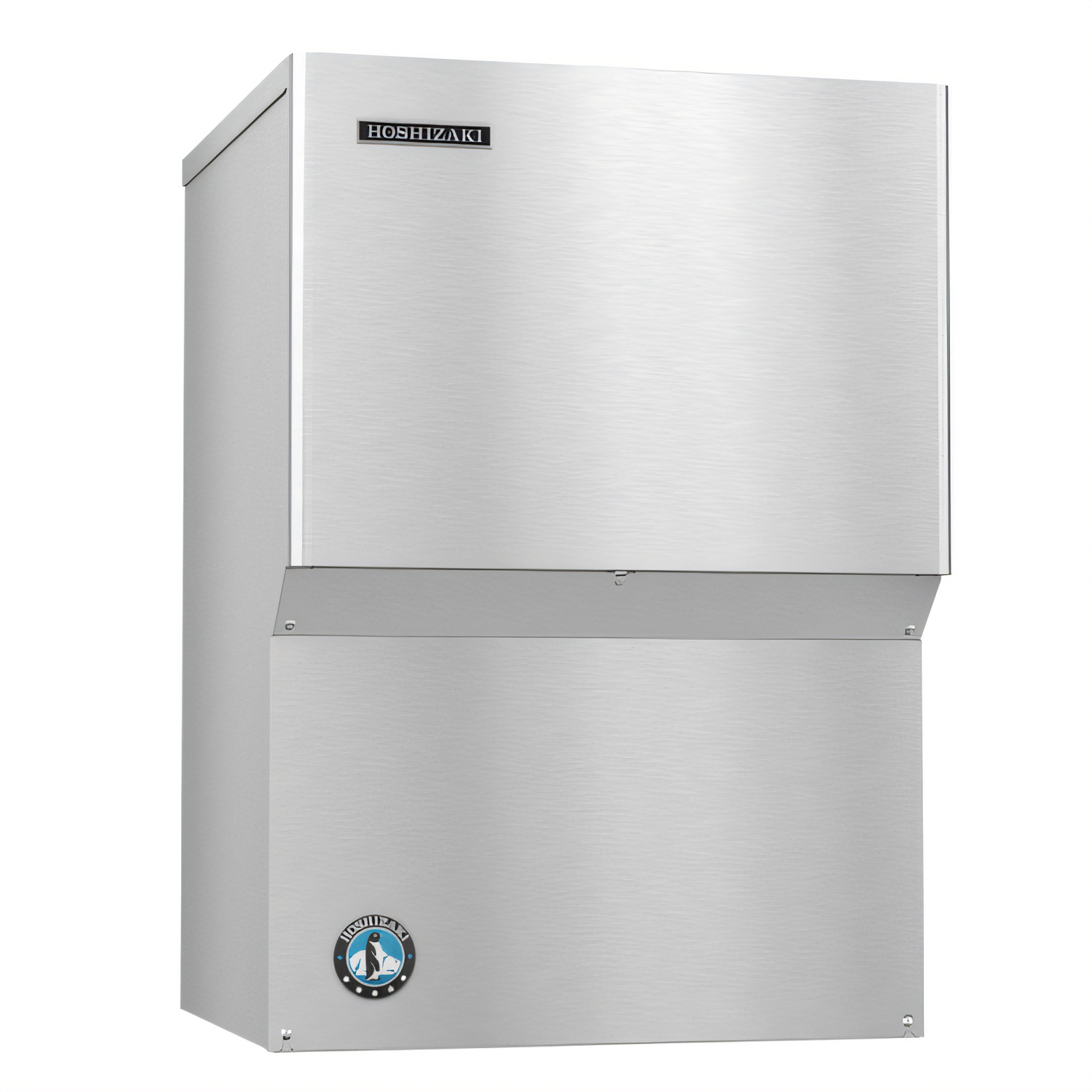

Hoshizaki Serenity KMS-1122MLJ Remote Air-Cooled Crescent Cube Ice Machine for Beverage Dispensers

22 Inches Wide, Stainless Steel, Remote Condenser Required

A compact remote air-cooled ice machine that produces up to 1,151 lb of crescent cube ice per day and is purpose-built for beverage dispenser applications.

  • Produces up to 1,151 lb of crescent cube ice per 24 hours.
  • Remote air-cooled design helps keep heat and noise away from the machine location.
  • Stainless steel exterior and stainless steel evaporator add durability.
  • Designed for use with beverage dispensers.
  • CycleSaver design and EverCheck alert system support efficient operation and easier service.
  • Remote condenser and brazed line sets are sold separately; unit must be hard-wired.
  • Not recommended for side-by-side installation.

Overall Dimensions:

22.0"W x 18.13"D x 31.25"H

Product Weight:

145.0 lb

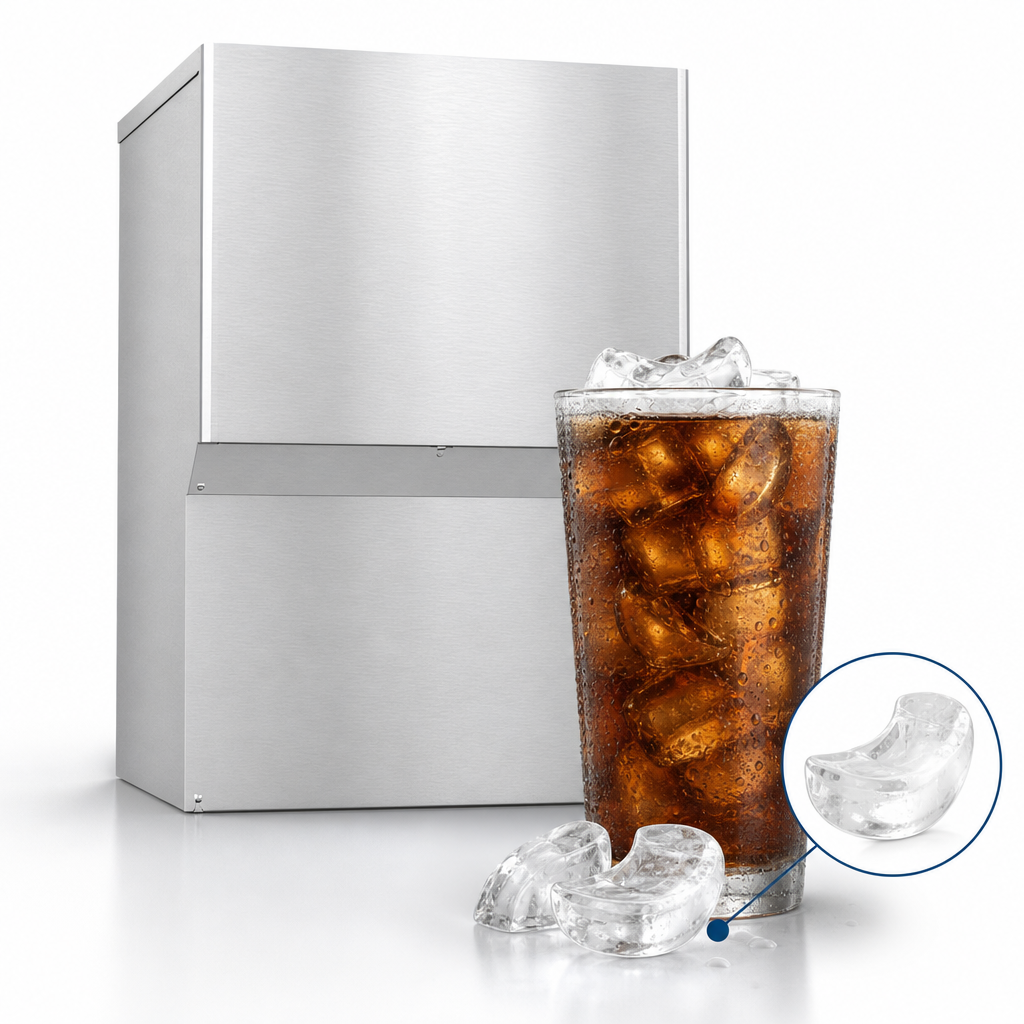

Crescent Cube Ice

Makes individual crescent-shaped cubes suited for beverage service.

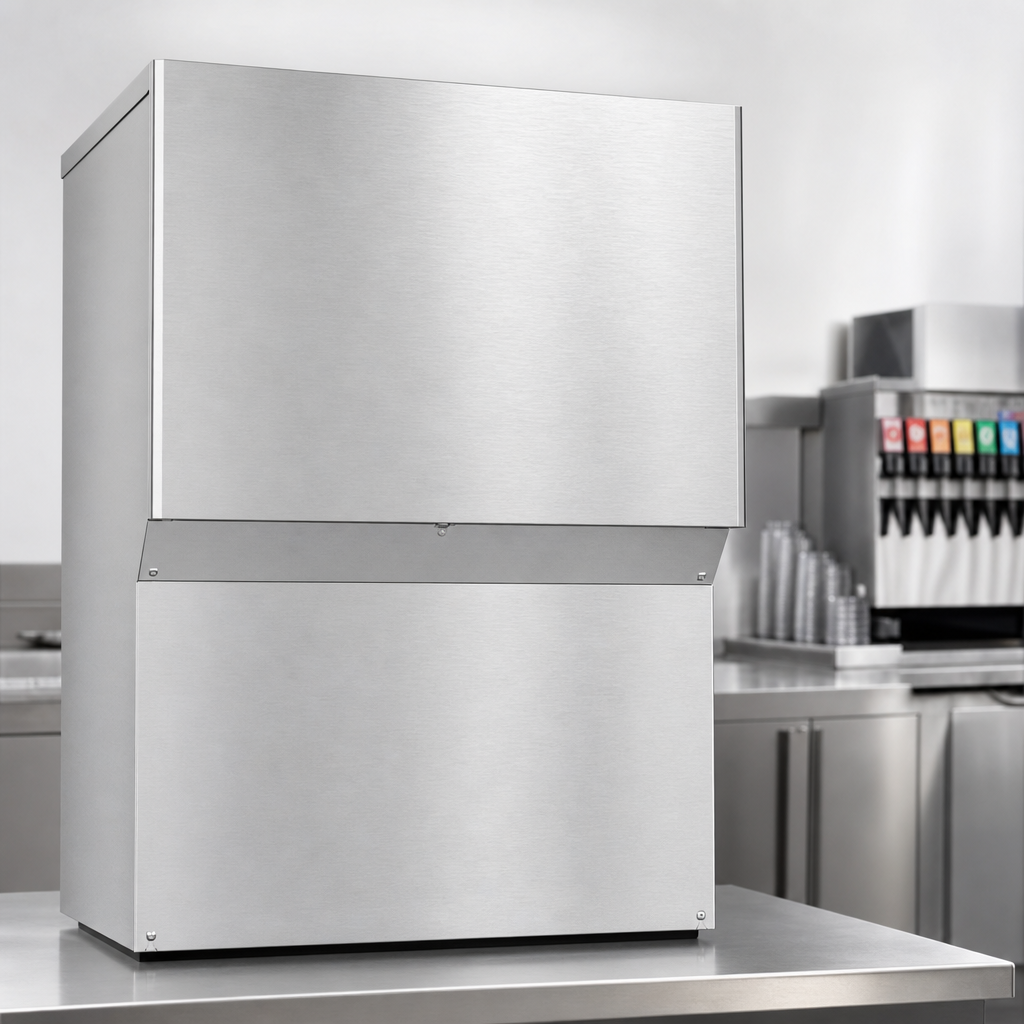

Stainless Steel Exterior

Durable stainless steel finish stands up to demanding commercial use.

Stainless Steel Evaporator

Helps provide long-lasting performance and corrosion resistance.

CycleSaver Design

Engineered to reduce unnecessary cycling and improve efficiency.

EverCheck Alert System

Built-in alert system helps simplify maintenance and troubleshooting.

Remote Air-Cooled Operation

Remote condenser design moves heat and noise away from the ice maker.

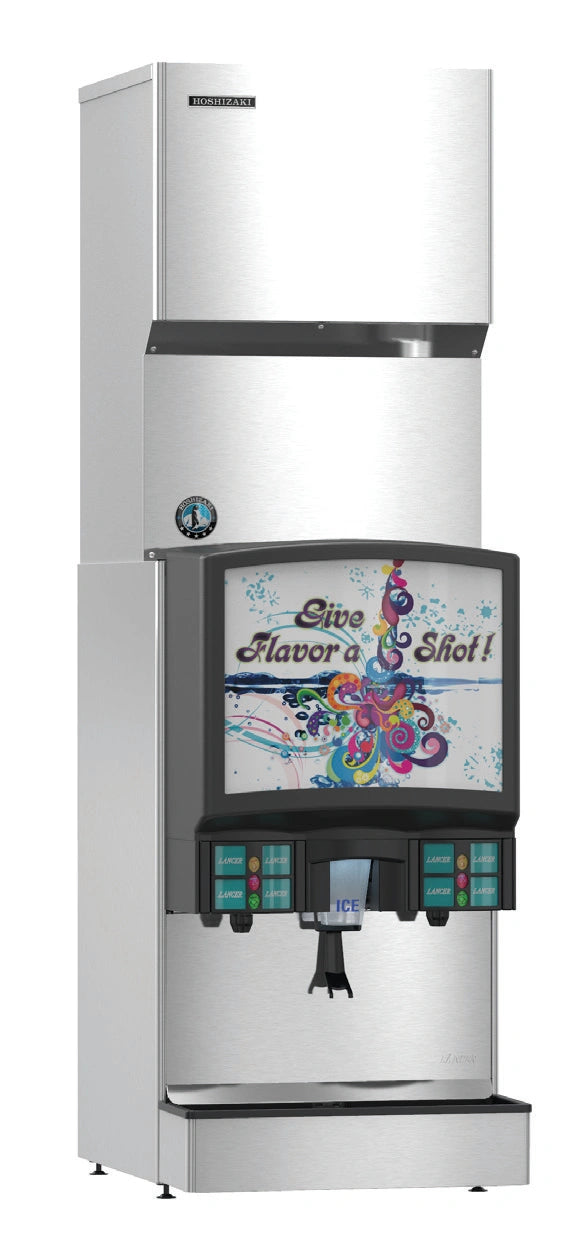

Designed for Beverage Dispensers

Sized and configured for use with beverage dispenser applications.

R-404A Refrigerant

Uses R-404A refrigerant in the remote refrigeration system.

Hard-Wired Installation

Power cord is not included; the unit must be hard-wired at the installation site.

Low Heat and Noise

Remote refrigeration helps reduce heat buildup and operating noise at the ice maker location.

Type Cuber Ice Machine
Ice Type Crescent Cubes
Condenser Type Air-Cooled
Refrigeration Type Remote
Refrigerant Type R-404A
Material Stainless Steel
Production Capacity 1151 lb per 24 Hours
Water Connection Required
Water Inlet Size 3/8 Inch Nominal ID
Drain Connection Required
Drain Connection Size 3/4 Inch Nominal ID
Ambient Temperature Range 45 to 100 Degrees F
Water Temperature Range 45 to 90 Degrees F
Water Pressure Range 10 to 113 PSIG
Shipping Width 22 Inches
Shipping Depth 19 Inches
Shipping Height 32 Inches
Shipping Weight 145 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3-year parts & labor on the entire machine; 5-year parts & labor on the evaporator; 5-year parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Service manual PDF Download PDF Warranty PDF Download PDF Cleaning sheets PDF Download PDF Kmedge cuber flyer PDF Download PDF Ice maker calculator PDF Download PDF Video PDF Download PDF Ice machine brochure PDF Download PDF Installation & operation PDF Download PDF Flyer PDF Download

Frequently Asked Questions

No. The remote condenser is sold separately; compatible options shown in the documentation include SRK-12J and SRK-12J3.
It produces individual crescent cube ice.
It can produce up to 1,151 lb of ice per 24 hours at 70°F air / 50°F water conditions.
Yes. The unit is specifically designed for use with beverage dispensers.
Yes. The power cord is not included, and the unit must be hard-wired at the installation site.
The documentation references remote condensers SRK-12J and SRK-12J3, brazed line sets HS-0250, HS-0251, HS-0252, and transformer kit HS-5030.
