Hoshizaki KMD-705MRJZ Ice Machines
Description
Hoshizaki KMD-705MRJZ Modular Crescent Cuber
Remote air-cooled | 727 lb/24 hr | 30" wide | Stainless steelEngineered for high-volume beverage programs, the Hoshizaki KMD-705MRJZ delivers up to 727 lb of crystal-clear crescent ice every 24 hours—while moving its heat and noise outside the kitchen with a remote condenser (sold separately). From quick-serve fountains to busy bars, this ENERGY-efficient cuber provides the reliability, easy maintenance, and legendary Hoshizaki ice quality that operators count on.
Key performance features

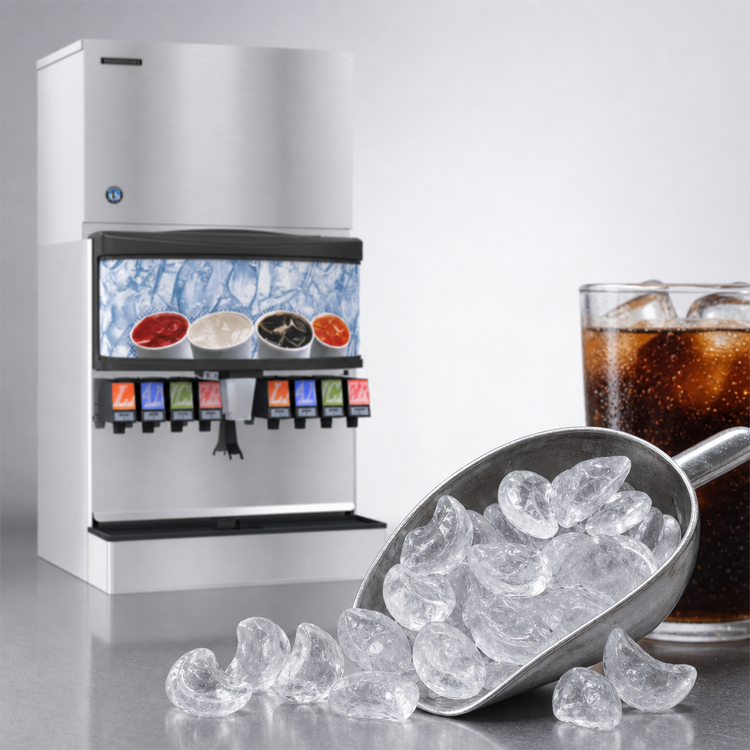

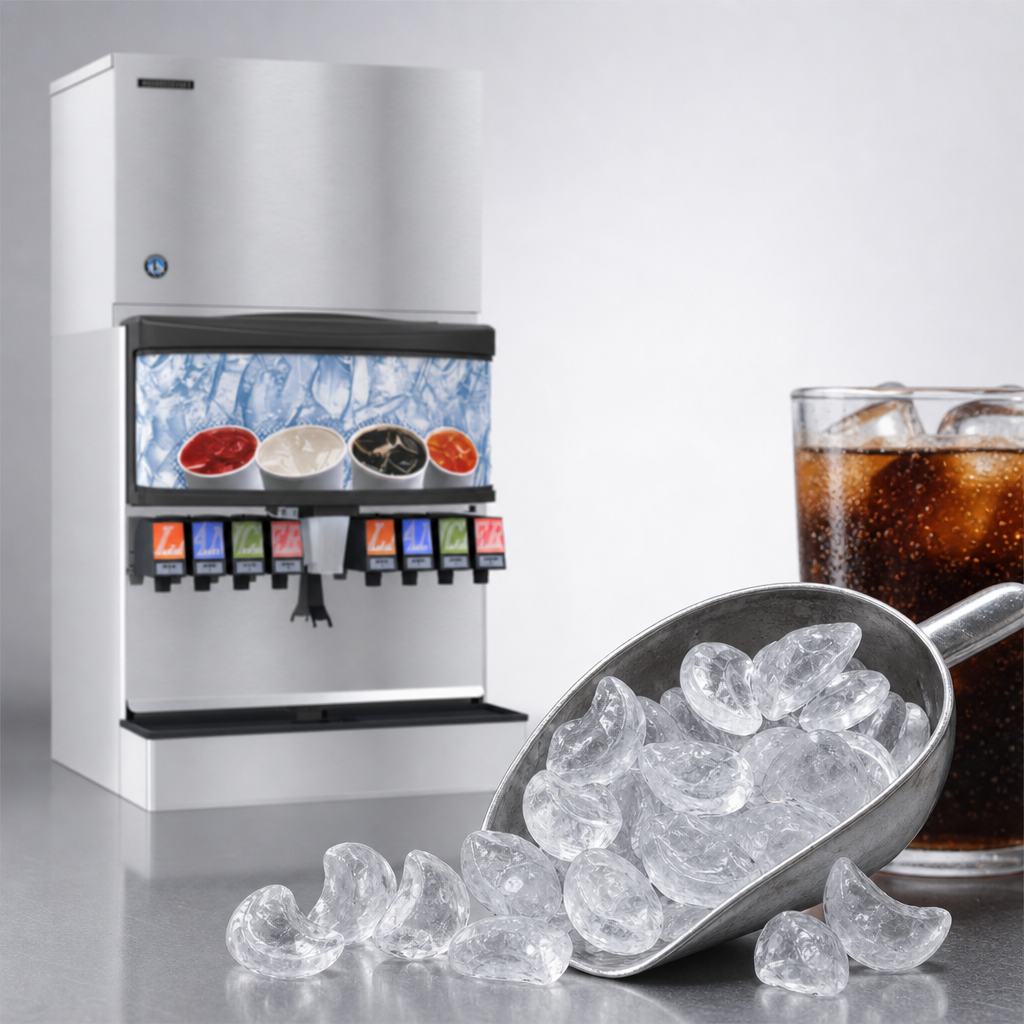

- Individual crescent cubes slide easily into glasses and maximize liquid displacement, boosting drink yields.

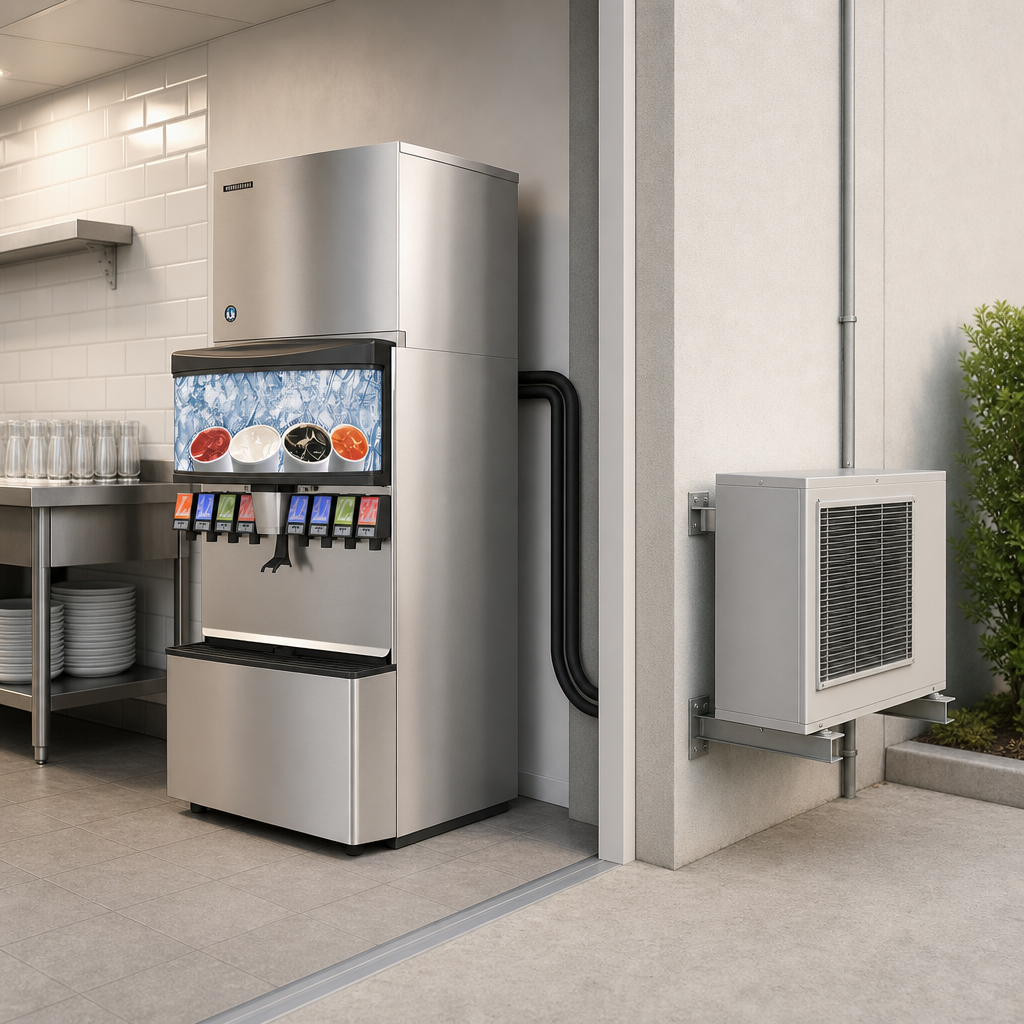

- Remote air-cooled design removes heat and fan noise from the service area, improving guest comfort and lowering HVAC load.
- CycleSaver™ technology completes the freeze/harvest cycle in fewer steps for greater daily production and energy savings.
- CLEANASSIST one-hour cleaning routine—with snap-fit components—keeps scheduled maintenance fast and simple.
- EverCheck™ self-diagnostic system provides audible & visual alerts, minimizing unexpected downtime.
- Factory-installed ultrasonic bin control can be field-adjusted to match your dispenser or ice bin height.
- Rugged stainless-steel exterior and double-sided stainless evaporator resist corrosion for long service life.
- NSF & UL sanitation / safety listings for worry-free code compliance.
Ice production & utilities
| Ice production (70 °F air / 50 °F water) | 727 lb per 24 hr |
|---|---|
| AHRI certified production (90 °F air / 70 °F water) | 670 lb per 24 hr |
| Potable water usage | 21 gal per 100 lb of ice |
| Energy usage | 4.40 kWh per 100 lb of ice |
| Heat rejection | 9,500 BTU/hr (to remote condenser) |
| Electrical | 115 V / 60 Hz / 1-phase, 13.7 A, 20 A minimum circuit |
| Cube size / style | Crescent cube – approx. 1 ½" L × 1 ⅛" W × ½" H |
| Refrigerant | R-404A – 10 lb 11 oz (with URC-9FZ condenser) |
Dimensions & compatibility
| Machine dimensions (W × D × H) | 30" × 24" × 26" |
|---|---|
| Shipping weight | 200 lb |
| Compatible remote condenser | Hoshizaki URC-9FZ (35 11⁄16" × 14 1⁄16" × 36 1⁄2") – sold separately |
| Line-set options | 25' (HS-5604) • 35' (HS-5605) • 55' (HS-5606) |

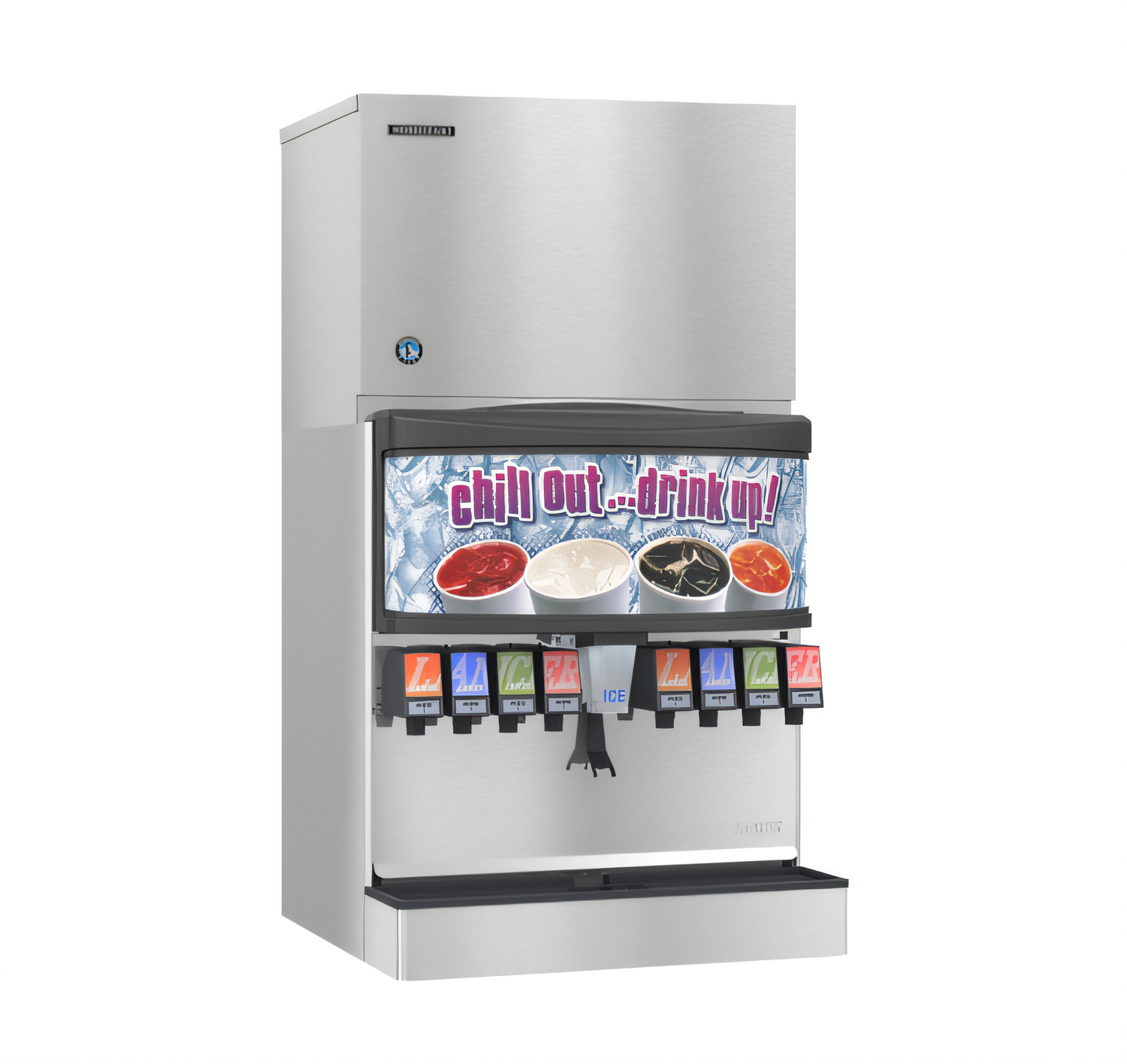

| Suggested ice bins / dispensers | B-250SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS* | DB-200H, DM-200B beverage dispensers *Two-unit application for B-1650SS |
Installation parameters
- Ambient temperature: 45 – 100 °F
- Incoming water temperature: 45 – 90 °F
- Water pressure: 10 – 113 PSI
- Voltage should remain within 104 – 127 V
- Allow 6" clearance at rear, sides, and top for service access.
Best-in-class warranty
- 3-year parts & labor on the entire ice machine
- 5-year parts & labor on the stainless-steel evaporator
- 5-year parts on compressor and condenser coil
Replaces Hoshizaki model KML-700MRJZ. Specifications subject to change without notice.
