Hoshizaki KMD-505MAJ Modular Crescent Cube Ice Maker, Air-Cooled, Self-Contained, 500 lb./Day, 30-Inch Wide, Stainless Steel Finish

SKU: KMD-505MAJ
$4,520.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Hoshizaki Ice Machines Ice Makers & Bins New Arrivals Restaurant Equipment

Hoshizaki KMD-505MAJ Modular Crescent Cube Ice Maker, Air-Cooled, Self-Contained, 500 lb./Day, 30-Inch Wide, Stainless Steel Finish

115V, 1-Phase, Crescent Cubes

Built for high-volume beverage service, this compact 30-inch modular cuber delivers crescent ice with an air-cooled, self-contained design.

  • Produces up to 500 lb. of crescent cube ice per 24 hours at 70°/50°F.
  • Compact 30-inch modular design with an air-cooled, self-contained condenser.
  • Individual crescent cubes are ideal for beverage dispensers and mixed drinks.
  • CLEANASSIST one-hour cleaning, self-diagnostics, and removable air filters help simplify service.
  • Factory-installed ultrasonic bin control and stainless steel construction support dependable operation.
  • 115V single-phase power and R-404A refrigerant make it easy to spec for commercial installs.

Overall Dimensions:

30.0"W x 24.0"D x 22.0"H

Product Weight:

176.0 lb

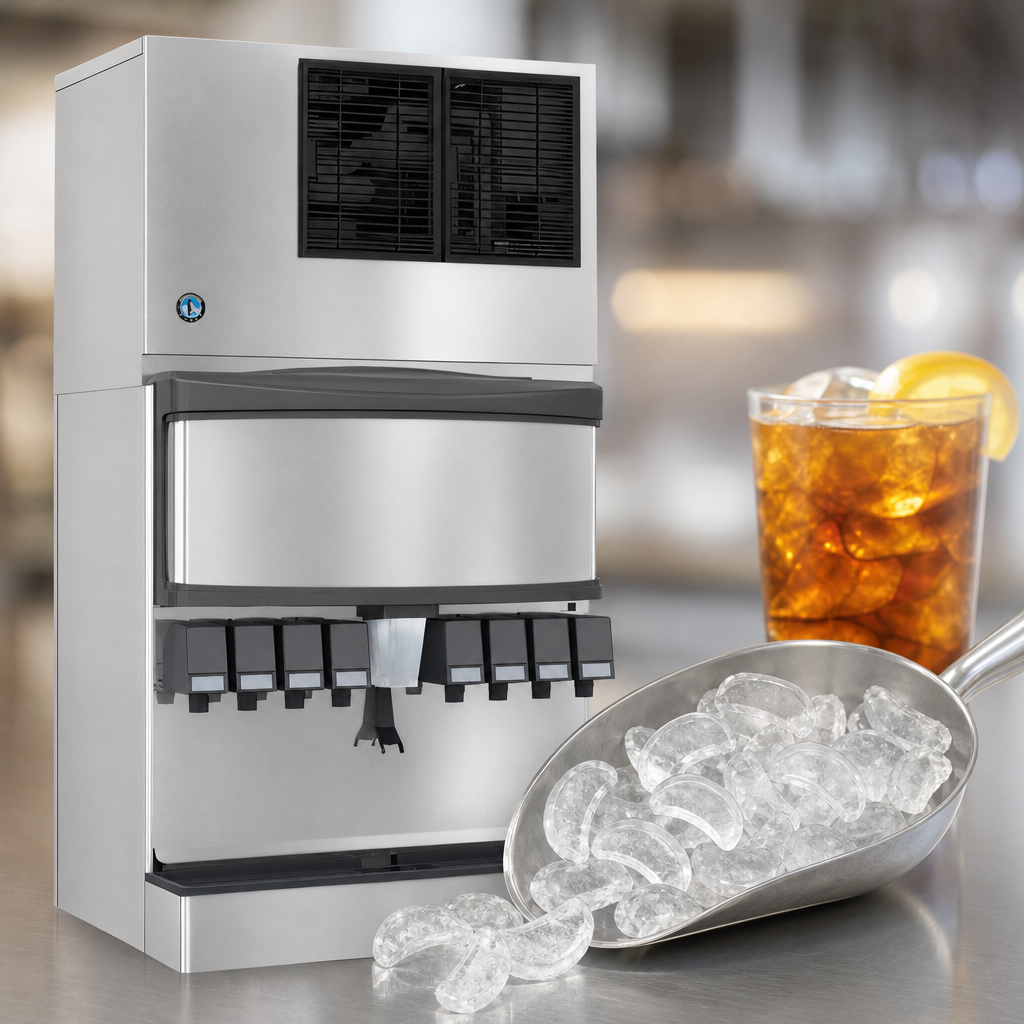

Individual Crescent Cubes

Produces consistent crescent-shaped cubes that dispense easily and work well in beverage service.

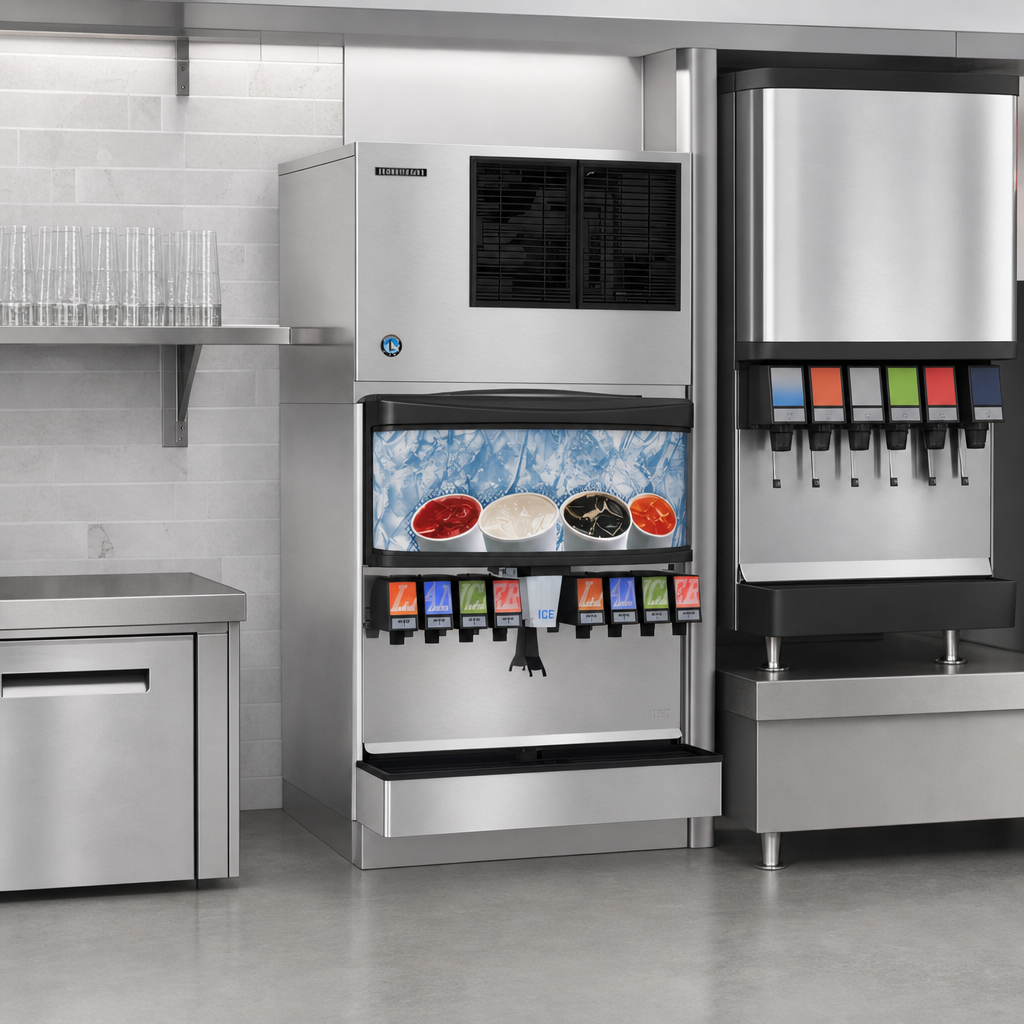

Optimized For Dispensers

Designed for use with ice and beverage dispensers.

Air-Cooled, Self-Contained Condenser

Built-in refrigeration simplifies installation and keeps the system self-contained.

CLEANASSIST Cleaning

One-hour cleaning process helps reduce downtime and simplifies routine maintenance.

Ultrasonic Bin Control

Factory-installed sensor can be adjusted on site for dependable ice level control.

Self-Diagnostic Programming

Automatically adjusts to changing conditions to help maintain performance.

CycleSaver Design

Helps improve efficiency during production cycles.

EverCheck Alert System

Built-in alerts help support monitoring and service.

Removable Air Filters

Cleanable air filters make upkeep easier on the air-cooled model.

Stainless Steel Double-Sided Evaporator

Durable evaporator construction supports long-term performance.

R-404A Refrigerant

Uses R-404A refrigerant.

Type Ice Maker
Style Modular Crescent Cuber
Capacity 500 lb. per 24 Hours
Material Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained Refrigeration
Refrigerant Type R-404A
Voltage 115 Volts
Amps 10.7 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 20 Amps
BTU 6,000 BTU/hr.
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 33.75 Inches
Shipping Depth 33.25 Inches
Shipping Height 28 Inches
Shipping Weight 176 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on the entire machine; 5-year parts and labor on the evaporator; 5-year parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces up to 500 lb. per 24 hours at 70°/50°F. The AHRI certified production rating is 351 lb. at 90°/70°F.
It makes individual crescent cubes.
Yes. This model uses an air-cooled, self-contained condenser.
It requires 115V, 60 Hz, single-phase power and draws 10.7 amps.
It includes CLEANASSIST one-hour cleaning, self-diagnostic programming, snap-fit parts, removable panels, and removable air filters.
Documented accessories include the HS-2148 DB Top Kit, HS-5562 Remote Monitoring System, HS-5283 EcO Ice Filter, HS-5734 Side-Breathing Kit, and H9320-51 Single Water Filter Kit.
