Hoshizaki KMD-355MWJ Ice Machines
Description

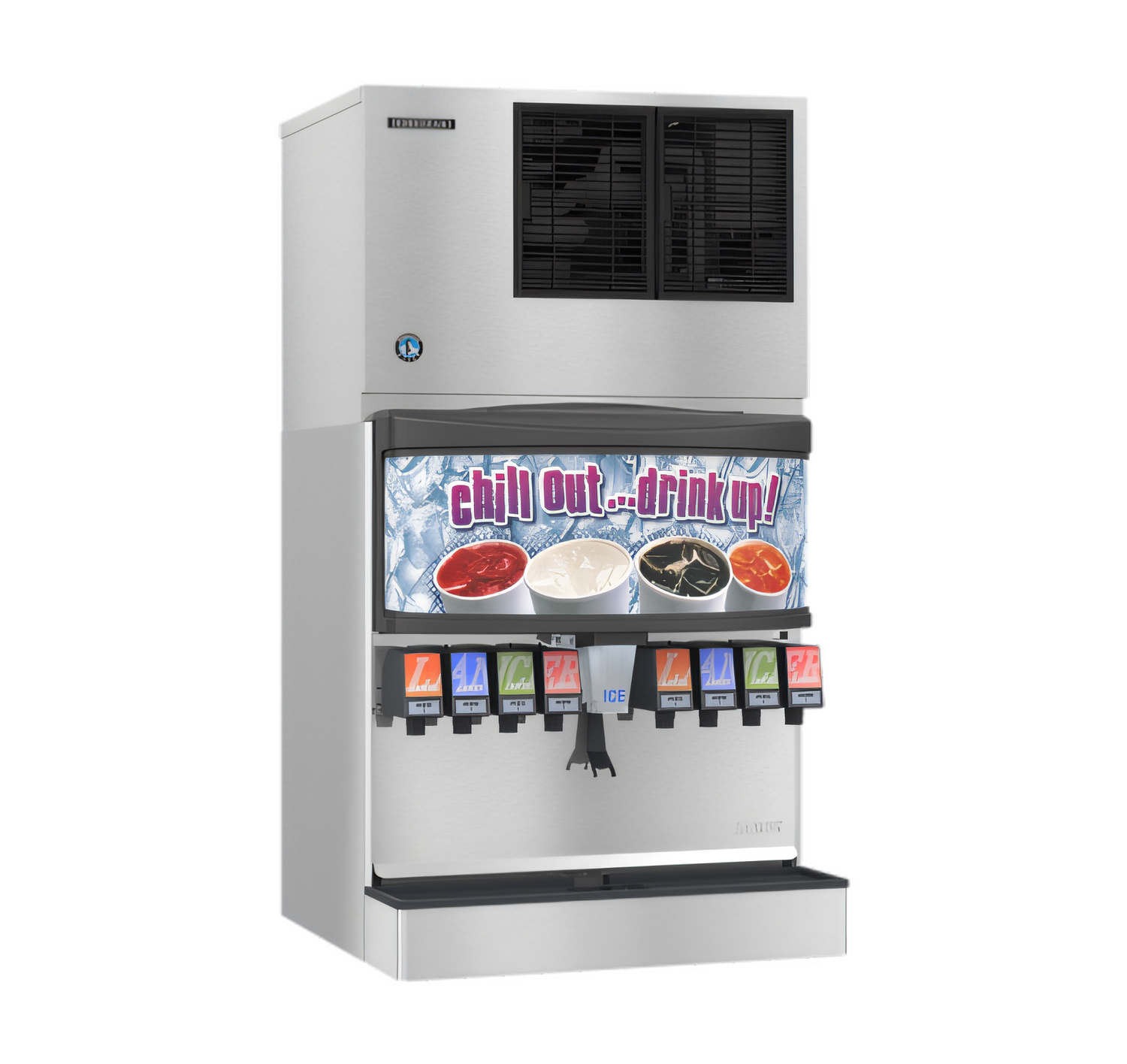

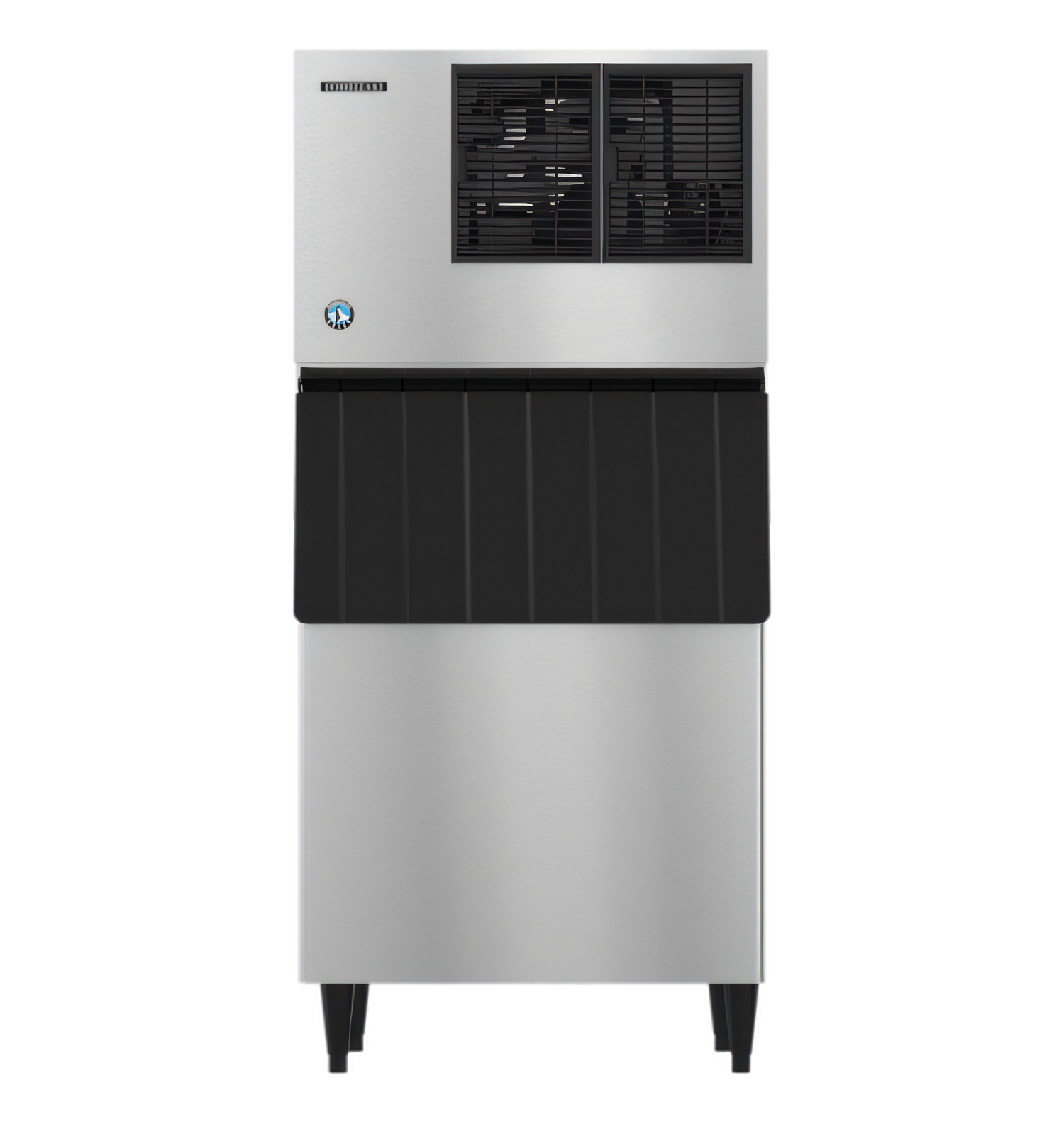

Hoshizaki KMD-355MWJ Crescent Cube Ice Machine
Water-Cooled, Self-Contained | 395 lb Ice / 24 hrEngineered for high-volume beverage programs, the Hoshizaki KMD-355MWJ delivers up to 395 lb of hard, slow-melting crescent ice every day—without adding heat to your kitchen. Its water-cooled, self-contained condenser keeps performance consistent in hot or confined spaces, while a stainless steel exterior and one-hour CLEANASSIST cycle simplify upkeep. Pair it with a compatible Hoshizaki ice bin or beverage dispenser (sold separately) and enjoy dependable, space-saving ice production shift after shift.
Key advantages

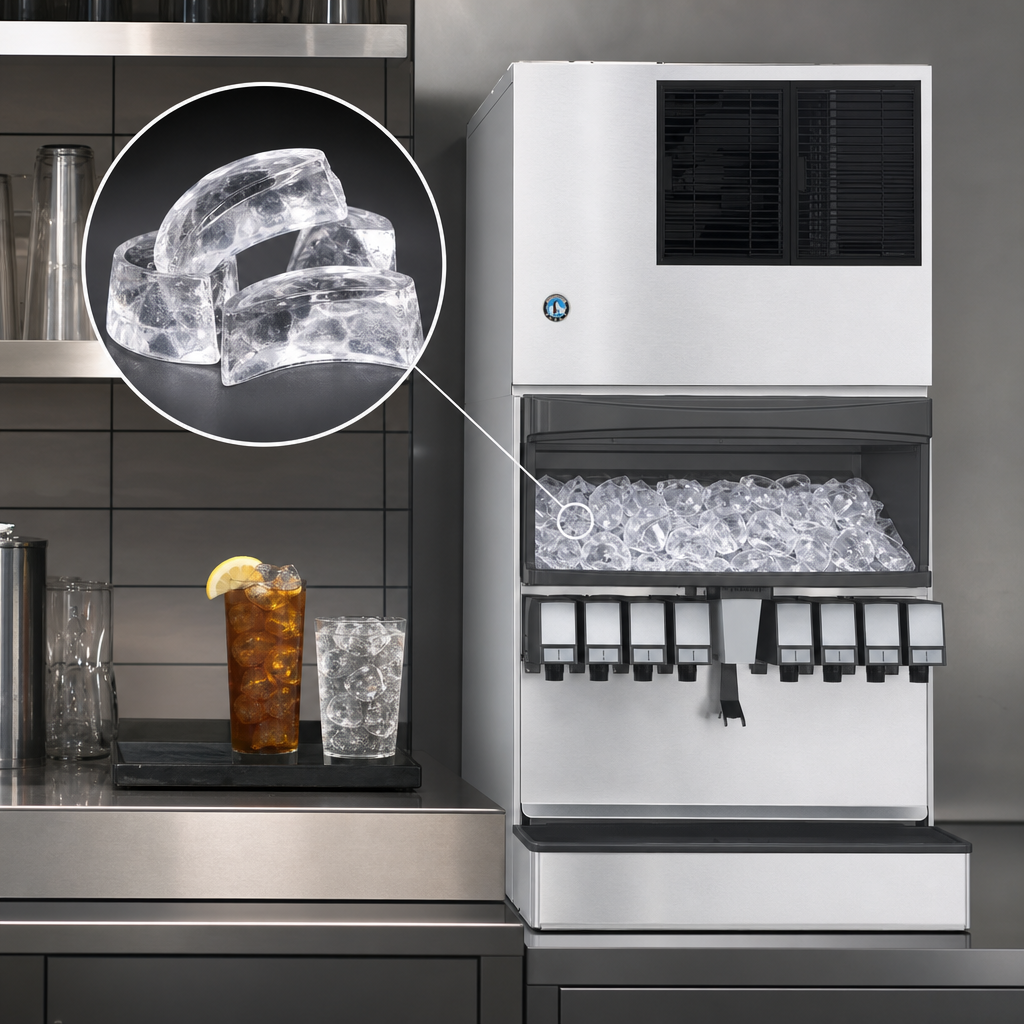

- Individual crescent cubes resist clumping & maximize drink displacement
- Self-contained, water-cooled condenser—ideal when air flow is restricted
- Factory-installed ultrasonic bin control; field-adjustable for perfect ice levels
- Stainless steel double-sided evaporator for long-term durability
- CycleSaver™ design produces the same quantity of ice in fewer cycles
- EverCheck™ alert system provides audible diagnostics to reduce downtime
- Snap-fit components and front access for fast service

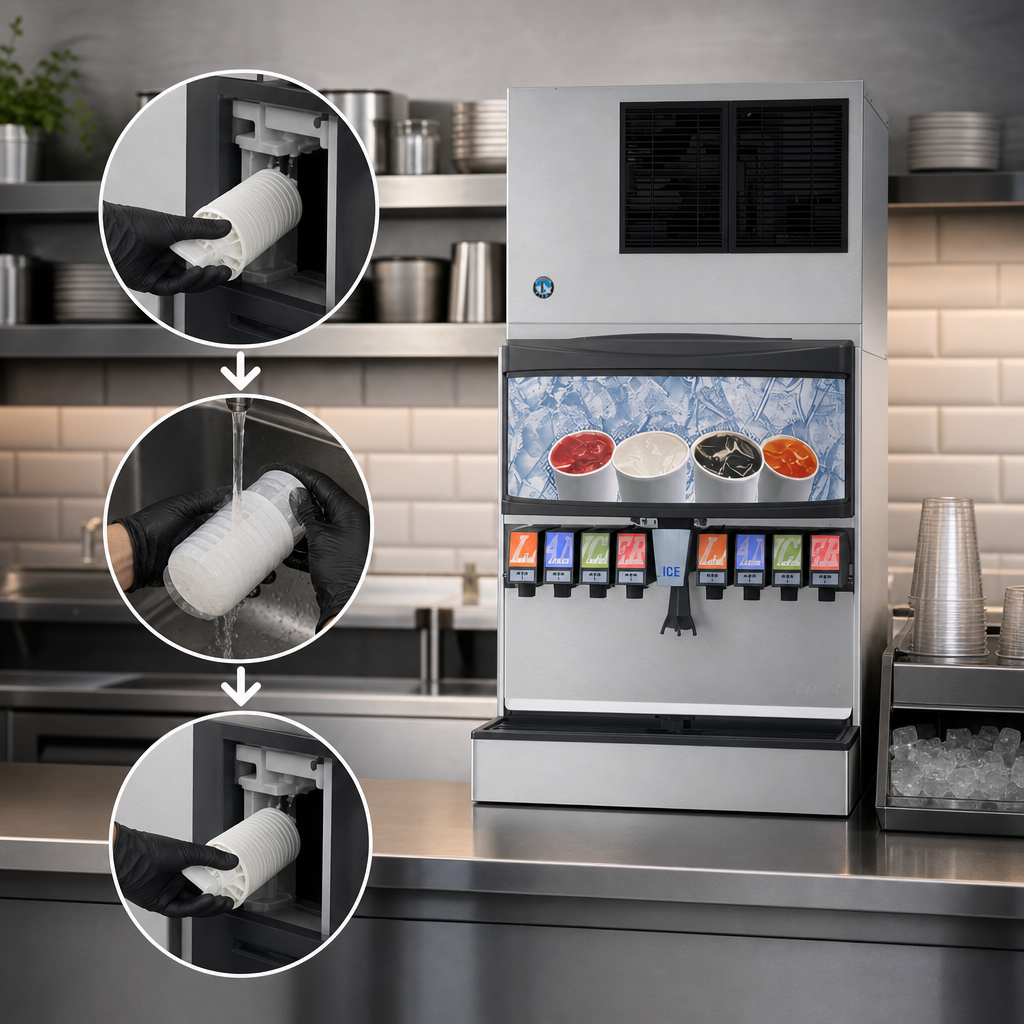

- Simple, one-hour automated cleaning process (CLEANASSIST)
- NSF & UL certified; AHRI performance verified
Performance & utilities
| Ice Production (70 °F air / 50 °F water) | 395 lb / 24 hr |
|---|---|
| Ice Production – AHRI (90 °F air / 70 °F water) | 385 lb / 24 hr |
| Ice Type | Crescent cube (~1 1/8" × 1 1/2" × 1/2") |
| Condenser | Self-contained, water-cooled |
| Refrigerant | R-404A |
| Energy Use | 4.40 kWh / 100 lb ice |
| Potable Water Use | 34.5 gal / 100 lb ice |
| Condenser Water Use | 155 gal / 100 lb ice |
| Heat Rejection | 6,000 BTU/hr |
| Electrical | 115 V / 60 Hz / 1-phase, 7.4 A (15 A circuit) |
| Dimensions (W × D × H) | 30" × 24" × 22" |
| Net / Shipping Weight | 159 lb / 179 lb |
Operating limits
- Ambient temperature: 45 – 100 °F
- Water temperature: 45 – 90 °F
- Water pressure: 10 – 113 psig
- Voltage range: 104 – 127 V
Compatible ice bins & dispensers (sold separately, top kit may be required)
- B-250SF, B-500SF, BD-500SF (recommended)
- B-700SF, B-800SF, B-900SF
- B-1150SS, B-1300SS
- DB-130H, DB-200H beverage dispensers
Factory warranty
- 3-year parts & labor on the entire machine
- 5-year parts & labor on the evaporator
- 5-year parts on the compressor
Specifications are subject to change without notice. Please refer to the manufacturer’s installation manual for full details.
