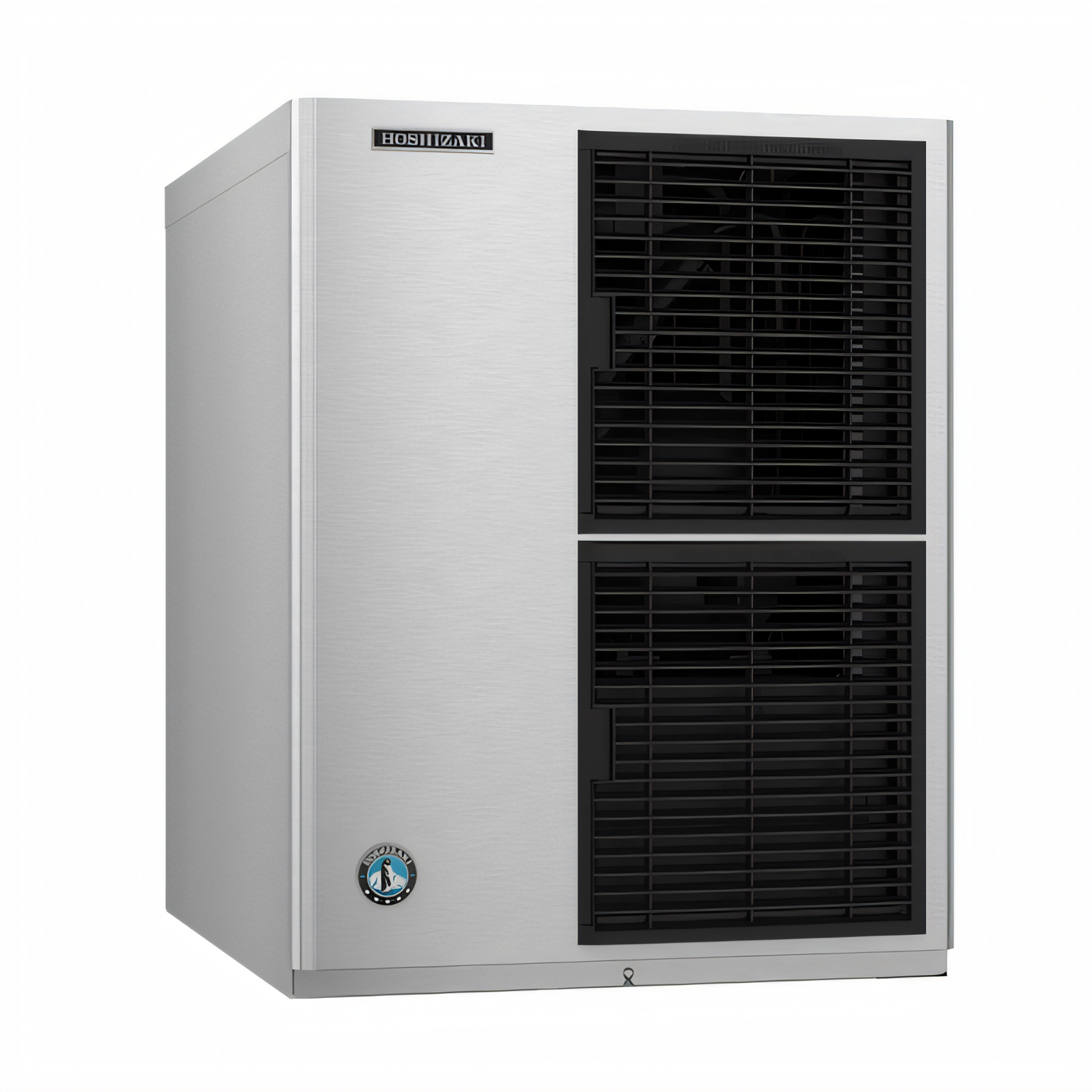

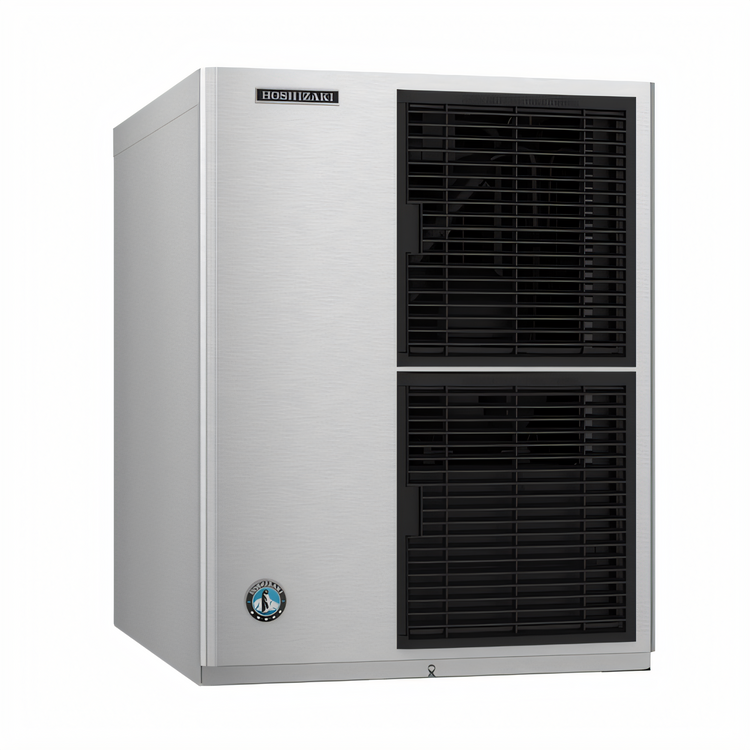

Hoshizaki KM-660MAJ-E 22-Inch Wide Air-Cooled Self-Contained Modular Crescent Cube Ice Maker

50 Hz Model, 220-240V/1-Phase

This slim 22-inch modular cuber delivers high-volume crescent ice production with easy-clean service features and a built-in air-cooled, self-contained condenser.

  • 22-inch-wide slim-line modular design fits space-conscious bar and kitchen installations.
  • Produces up to 280 kg of crescent ice per 24 hours; certified output is 262 kg at 32°/21°C.
  • Air-cooled, self-contained refrigeration with R-404A simplifies installation and operation.
  • CLEANASSIST one-hour cleaning process and snap-fit parts help reduce maintenance time.
  • Factory-installed ultrasonic bin control, self-diagnostic programming, and EverCheck alerts support reliable operation.
  • Removable air filters and an included Type G power cord make service and setup easier.

Overall Dimensions:

22.0"W x 27.38"D x 28.0"H

Product Weight:

150.0 lb

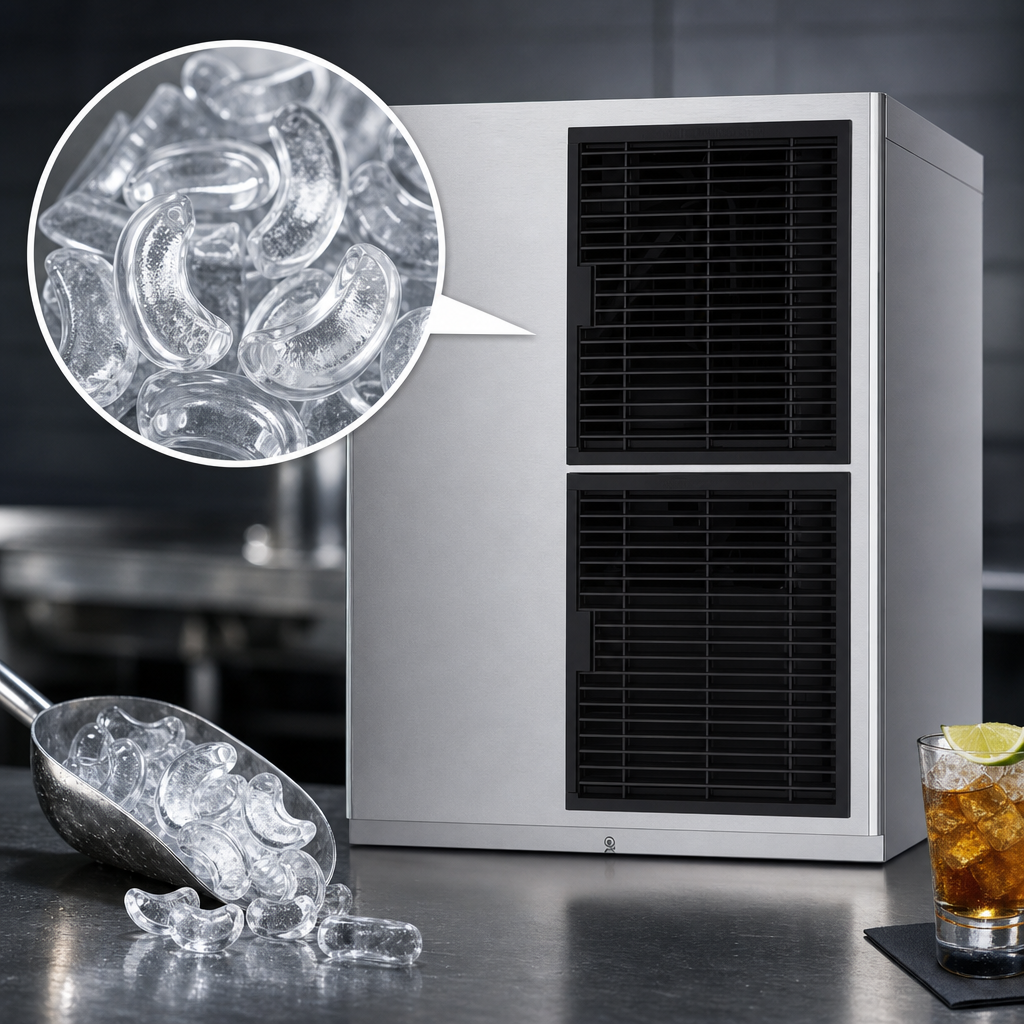

Individual Crescent Cube Output

Produces individual crescent cubes for consistent beverage service.

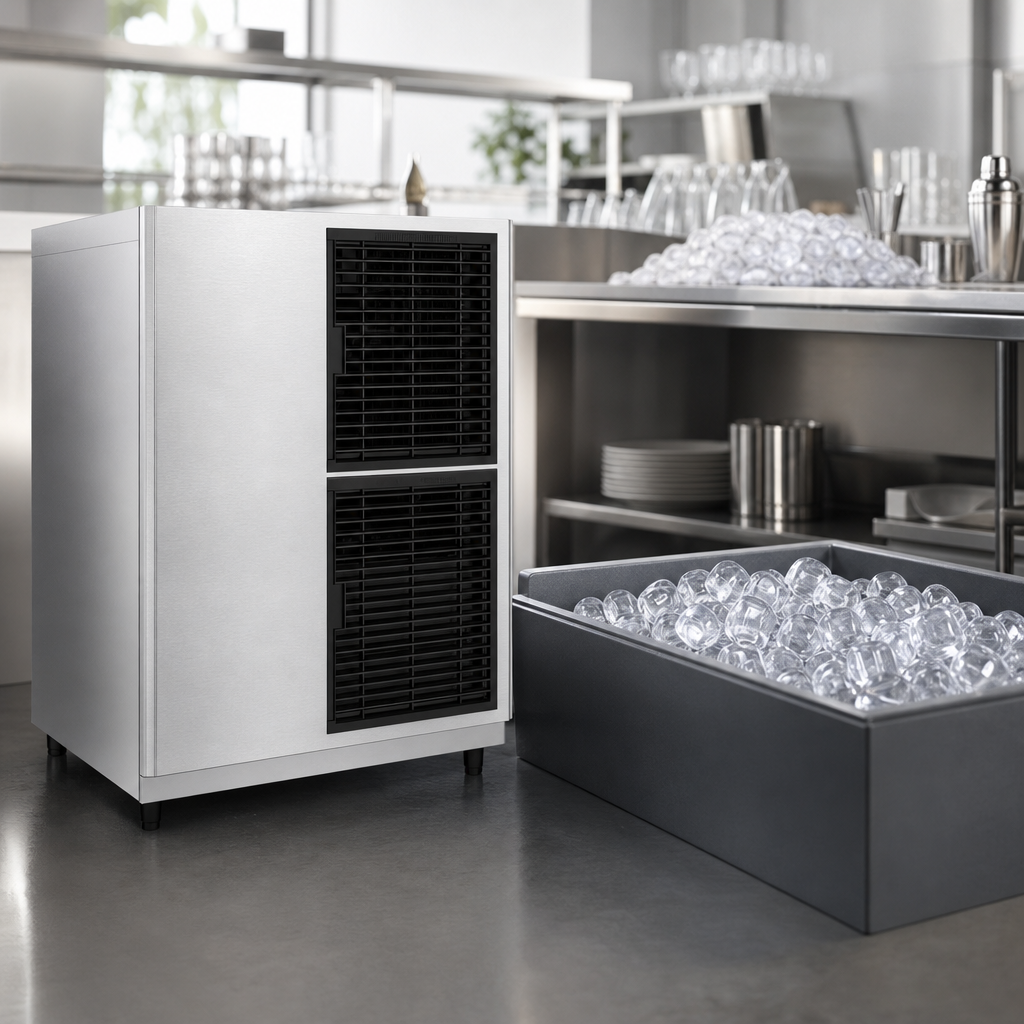

High Daily Production

Delivers up to 280 kg of ice per 24 hours at 21°/10°C, with 262 kg certified at 32°/21°C.

Air-Cooled Self-Contained Design

Built-in self-contained refrigeration system simplifies installation and uses air-cooled operation.

CLEANASSIST Cleaning System

One-hour cleaning process helps reduce downtime and makes routine maintenance easier.

Ultrasonic Bin Control

Factory-installed ultrasonic bin control can be adjusted on site to help manage ice storage.

Smart Service Features

Self-diagnostic programming, EverCheck alerts, snap-fit parts, and removable air filters support easier servicing.

Stainless Steel Construction

Stainless steel finish and double-sided evaporator are built for durability.

Included Power Cord

Power cord is included and measures 3000 mm with a Type G plug.

Type Ice Maker
Style Slim-Line Modular Crescent Cuber
Ice Type Crescent Cubes
Ice Production 280 kg per 24 Hours
Condenser Type Air-Cooled
Refrigeration Type Self-Contained
Material Stainless Steel
Finish Stainless Steel
Voltage 220-240 Volts
Amps 8.4 Amps
Hertz 50 Hz
Phase 1-Phase
Plug Type Type G
Cord Length 3000 mm
Refrigerant Type R-404A
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 FPT
Drain Connection Size 3/8 in. OD Hard Tube
Shipping Width 22 Inches
Shipping Depth 28 Inches
Shipping Height 28 Inches
Shipping Weight 150 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Call factory for information.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Video PDF Download PDF Warranty PDF Download PDF Parts manual PDF Download PDF Flyer PDF Download

Frequently Asked Questions

It produces individual crescent cubes.
Up to 280 kg per 24 hours at 21°/10°C, with 262 kg certified at 32°/21°C.
It operates on 220-240V, 50 Hz, single-phase power and draws 8.4 amps. A Type G plug and 3000 mm cord are included.
Yes. This model uses an air-cooled, self-contained refrigeration system and includes removable air filters.
The document lists B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, DB-130H, DB-200H, and DM-200B as available bins/dispensers; a top kit may be required.
The water inlet is 1/2 FPT and the condensation drain outlet is 3/8 in. OD hard tube. The document also notes minimum 6 mm nominal OD copper water tubing and minimum 18 mm nominal OD hard pipe for the drain line.
