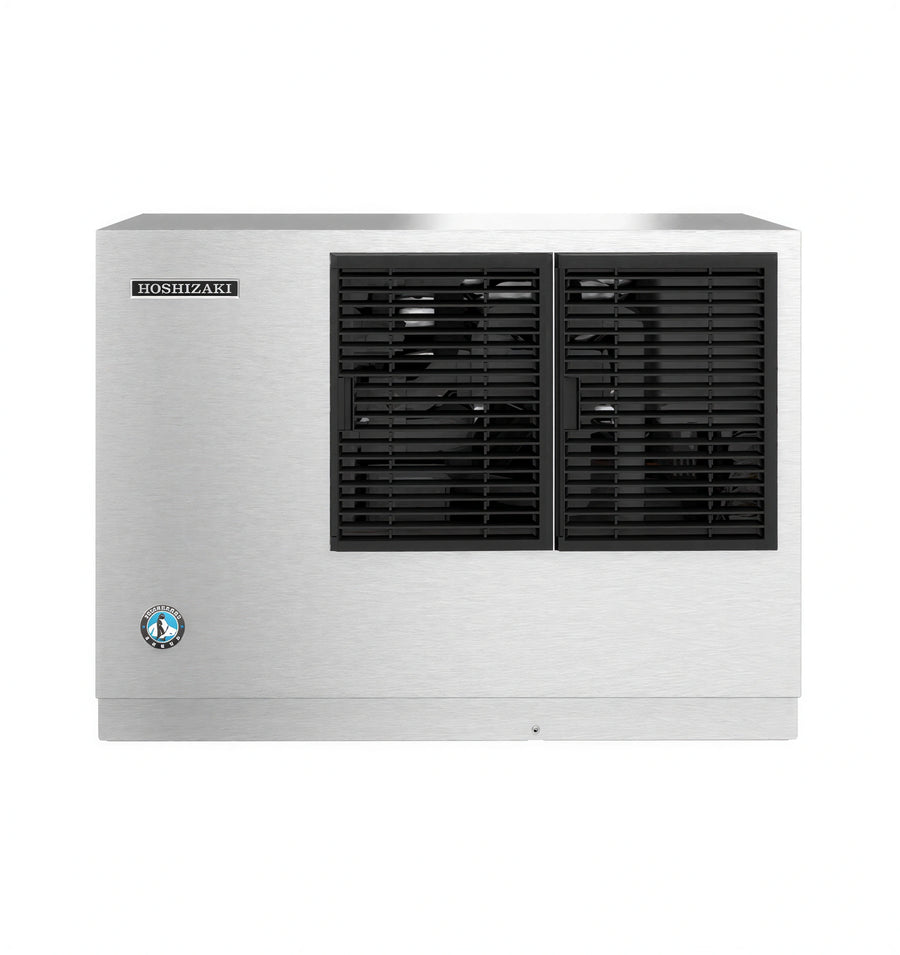

Hoshizaki Steelheart KM-530MAK Commercial Crescent Cube Ice Maker, Air-Cooled, Self-Contained, 30"W

SKU: KM-530MAK
$4,790.00
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Hoshizaki KM-530MAK is an air-cooled, self-contained modular crescent cuber with a stainless steel finish and R290 hydrocarbon refrigerant.

It produces up to 545 lb of ice per 24 hours at 70°/50°F, with 424 lb per 24 hours AHRI certified at 90°/70°F. The unit makes individual crescent cubes and includes a factory-installed ultrasonic bin control that can be adjusted on site.

  • Simple, one-hour cleaning process with snap-fit parts
  • Self-diagnostic programming and EverCheck alert system
  • Removable air filters for the air-cooled model
  • Stainless steel double-sided evaporator
  • Optimized for use with ice and beverage dispensers

Overall Dimensions:

30.0"W x 24.0"D x 22.0"H

Product Weight:

156.0 lb

Crescent cube production

Produces individual crescent cubes with a capacity of up to 545 lb per 24 hours at 70°/50°F.

Air-cooled, self-contained refrigeration

Uses an air-cooled condenser and self-contained refrigeration system.

R290 refrigerant

Uses environmentally friendly R290 hydrocarbon refrigerant.

Ultrasonic bin control

Factory-installed bin control can be adjusted on site.

Cleaning and service access

Snap-fit parts support cleaning, and panels are easily removed for service. The unit has a simple, one-hour cleaning process.

Diagnostic and alert systems

Self-diagnostic programming automatically adjusts to changing conditions, and the EverCheck alert system provides alerts.

Removable air filters

Removable and cleanable air filters are provided for the air-cooled model.

Dispenser compatibility

Optimized for use with ice and beverage dispensers.

Related Searches

Best Sellers Commercial Ice Makers Commercial Ice Makers Hoshizaki Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment New Arrivals Refrigeration & Ice Restaurant Equipment
Product type Modular crescent cuber
Ice type Crescent cubes
Condenser type Air-cooled
Refrigeration Self-contained
Production capacity Up to 545 lb per 24 hours at 70°/50°F
AHRI-certified production 424 lb per 24 hours at 90°/70°F
Finish Stainless steel
Refrigerant R290
Electrical 115 V / 60 Hz / 1 phase
Amperage 10.7 A
Minimum circuit / maximum fuse 20 A
Potable water usage 25.0 gal. per 100 lb at 90°/70°F
Energy use 5.3 kWh per 100 lb at 90°/70°F
Heat rejection 8,600 BTU/hr at 90°/70°F
Refrigerant charge 5.3 oz.
Ambient temperature range 45–100°F
Water temperature range 45–90°F
Water pressure 10–113 PSIG

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor warranty on the entire machine; 5-year parts and labor warranty on the evaporator; 5-year parts warranty on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces individual crescent cubes.
It produces up to 545 lb per 24 hours at 70°/50°F. Its AHRI-certified production is 424 lb per 24 hours at 90°/70°F.
Yes. It has an air-cooled condenser and self-contained refrigeration.
It uses R290 hydrocarbon refrigerant.
The unit measures 30 in wide, 24 in deep, and 22 in high.
It operates at 115 V / 60 Hz / 1 phase and draws 10.7 A. The minimum circuit and maximum fuse size is 20 A.
The warranty provides 3 years of parts and labor coverage on the entire machine, 5 years of parts and labor coverage on the evaporator, and 5 years of parts coverage on the compressor and air-cooled condenser coil.
