Description

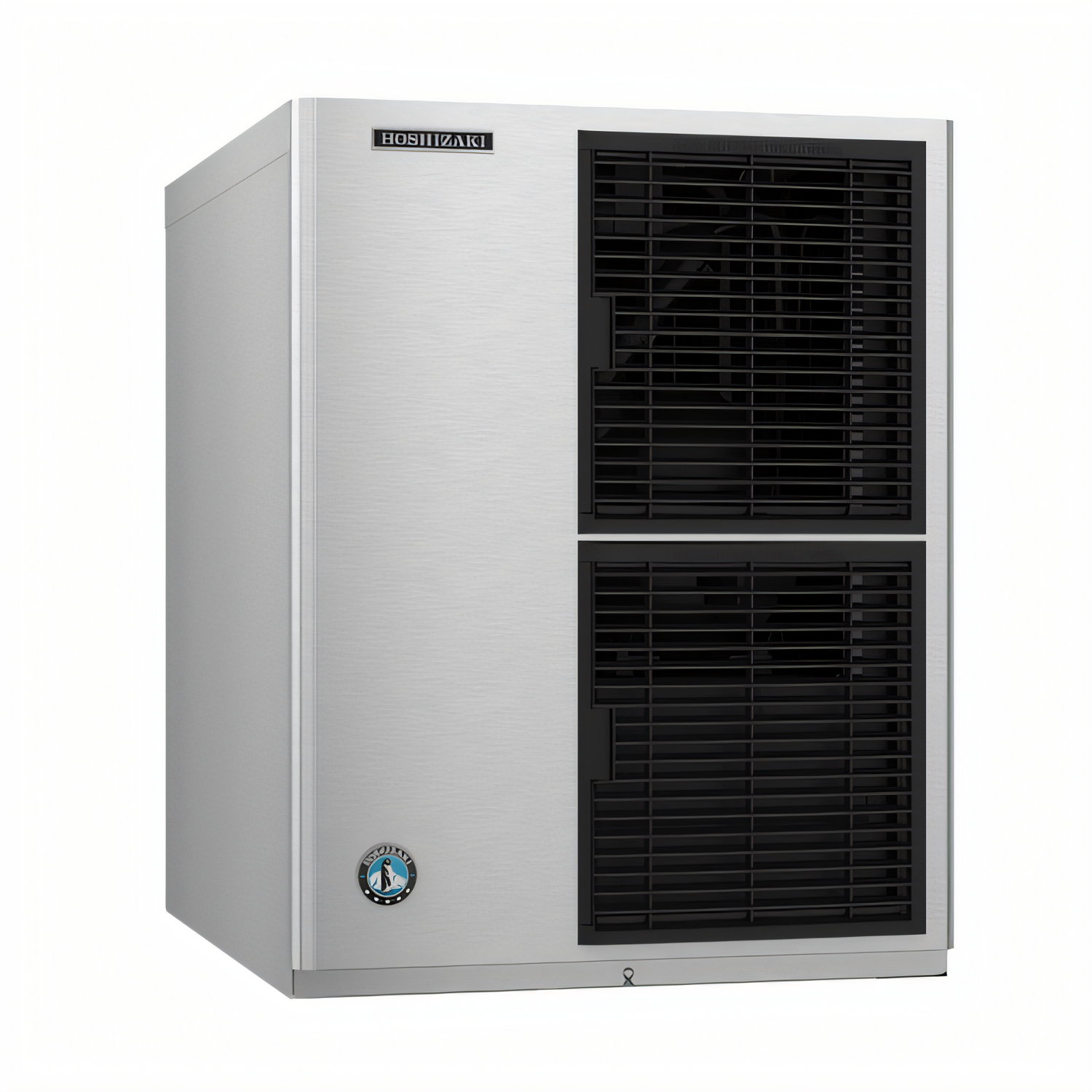

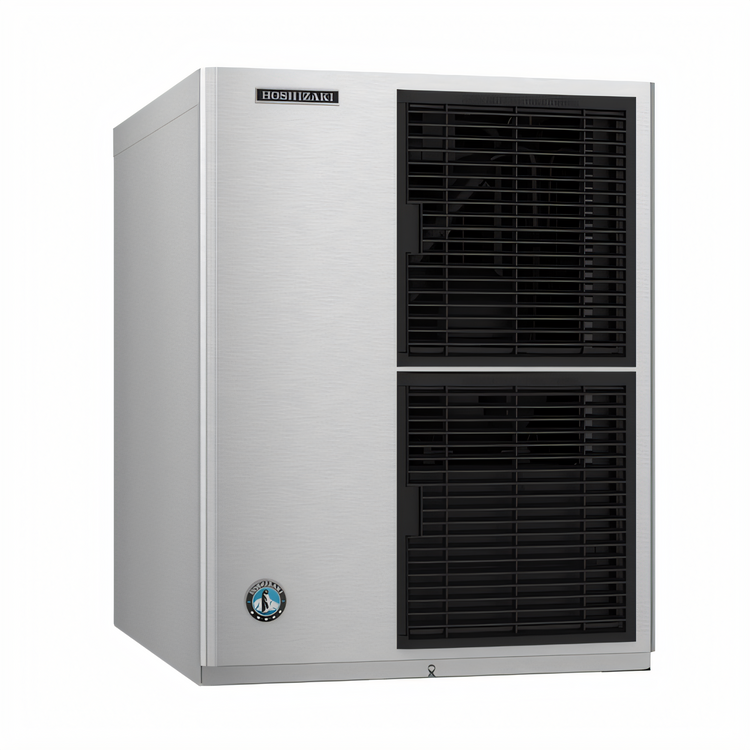

Hoshizaki KM-520MAJ-E (50 Hz) Crescent Cuber Ice Machine
Air-cooled · Self-contained · 238 kg / 24 hBig-league ice output in a slim 559 mm footprint. The KM-520MAJ-E delivers up to 238 kg of Hoshizaki’s signature crescent ice every day while cutting energy, water and labour costs for busy restaurants, bars, hotels and cafeterias.
Top features at a glance
- Crescent cube ice – individual, crystal-clear pieces that improve drink presentation and save up to 15 % beverage per pour.
- Dual-sided stainless-steel evaporator with CycleSaver™ technology produces the same ice in half the cycles for lower utility bills.
- Factory-installed ultrasonic bin control – no moving parts, no probes to adjust.
- CleanAssist™ one-hour automatic cleaning routine keeps hygiene simple and fast.
- EverCheck™ self-diagnostic board provides audible alerts and 20-minute cycle-check diagnostics.
- Removable, washable air filter reduces maintenance and extends component life.
- R-404A refrigerant, air-cooled, self-contained condenser – just connect water and power.
- 3 m power cord with Type G plug included for quick installation.
- CE, NSF & WaterMark certified for worldwide food-service compliance.
Why operators love crescent ice
- Harder, slower-melting cube minimises dilution in cocktails and soft drinks.
- Unique curved sides promote better liquid displacement, enhancing perceived drink value.
- Individual harvest – cubes do not bridge or clump, keeping bins free-flowing.
Technical specifications
| Model | KM-520MAJ-E (50 Hz) |
|---|---|
| Ice style | Crescent cube, approx. 28 mm × 37 mm × 13 mm |
| Daily production |
238 kg @ 21 °C air / 10 °C water 197 kg @ 32 °C air / 21 °C water |
| Condenser | Air-cooled, self-contained |
| Refrigerant / charge | R-404A · 500 g |
| Electrical | 220–240 V / 50 Hz / 1-phase, 8.4 A (15 A min. circuit) |
| Dimensions (W × D × H) | 559 × 695 × 711 mm (22″ × 27.4″ × 28″) |
| Net / ship weight | 59 kg / 68 kg |
| Heat rejection | 7,300 BTU / hr |
| Water usage | ≈ 6.52 L per 45 kg of ice |
| Operating limits |
Ambient: 7 – 38 °C · Water: 7 – 32 °C Water pressure: 69 – 779 kPa · Voltage: 198 – 254 V |
| Clearance required | 150 mm (6″) rear, sides & top |
| Certifications | CE · NSF · WMTS-105 (WaterMark) |
Compatible ice storage bins: B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS & DB-200H (top kit may be required).
Important: Stated capacities are based on ideal conditions. Higher ambient or water temperatures will reduce daily ice production.
Features & Specs
Features & Specs
Manufacturer
Hoshizaki
Certifications
NSF, CE
Height
28.0in
Width
22.0in
Depth
27.38in
Shipping Weight
150.0lbs
Condenser Type
air-cooled
Refrigeration
self-contained refrigeration
Ice Type
crescent cubes
Production per 24 hr
501 - 600 lb = 228 - 272 kg
Width (side - side)
20 - 29" wide
Specifications
(50hz Model) Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 238 kg/24 hours at 21°/10° (197 kg certified at 32°/21°), stainless steel finish, crescent cube Style, R-404A refrigerant, 220-240v/50/1-ph, 8.4 amps, CE, NSF
