Hoshizaki

Hoshizaki KM-301BAK Self-Contained Crescent Cube Ice Maker With 100 lb Built-In Storage Bin, Air-Cooled

SKU: KM-301BAK
$4,500.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Hoshizaki Ice Machines Ice Machines & Ice Equipment Ice Machines with Bins Ice Makers & Bins New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

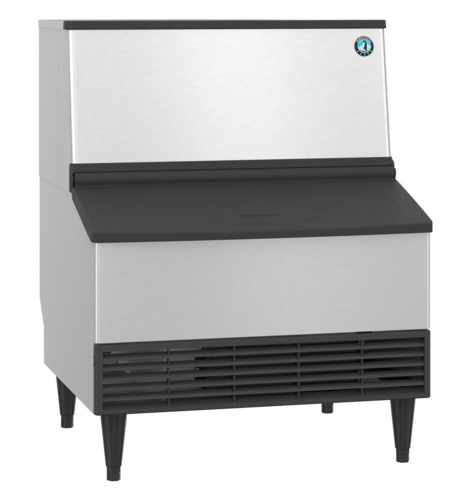

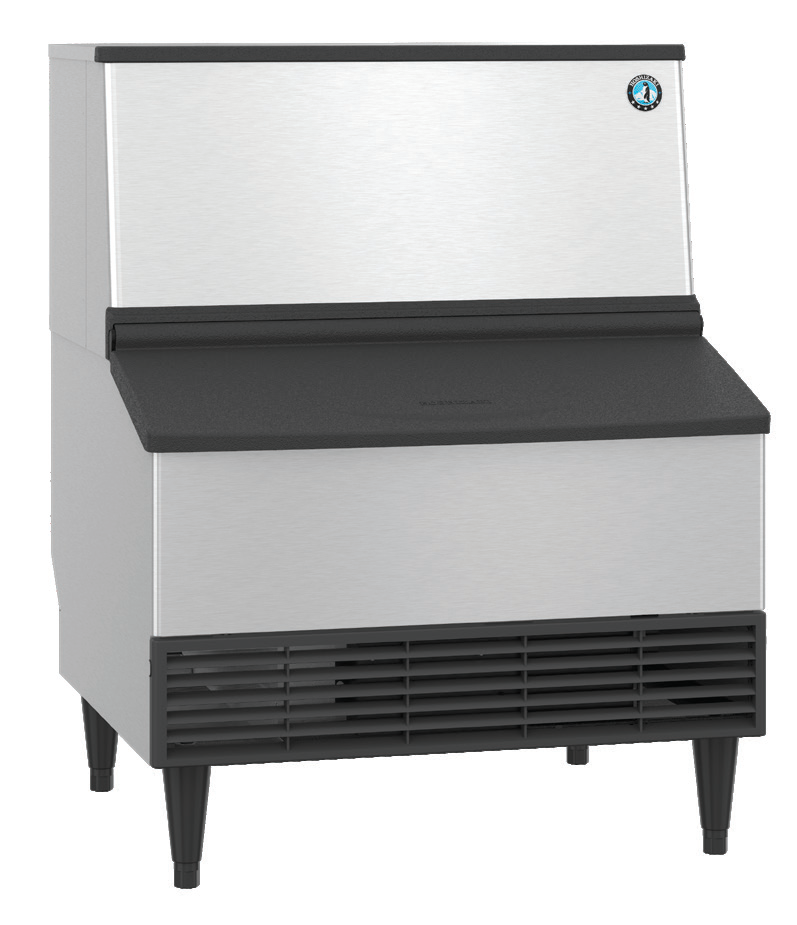

Hoshizaki KM-301BAK Self-Contained Crescent Cube Ice Maker With 100 lb Built-In Storage Bin, Air-Cooled

30 Inches Wide, Stainless Steel, ADA-Compliant Bin Opening

A compact, self-contained crescent cube ice maker that delivers high daily production, built-in storage, and durable stainless steel construction in a 30-inch footprint.

  • Produces up to 285 lb. of ice per 24 hours at 70°/50°F; AHRI certified at 210 lb. at 90°/70°F.
  • Built-in storage bin holds up to 100 lb. of ice and opens from the front for convenient access.
  • Air-cooled, self-contained design simplifies installation and service with front-in, front-out airflow.
  • Stainless steel exterior, stainless steel evaporator, and H-GUARD Plus antimicrobial protection support durability.
  • EverCheck alert system helps monitor operation and maintenance needs.
  • Uses environmentally friendly R290 hydrocarbon refrigerant and includes a 6.5 ft. power cord with NEMA 5-15P plug.

Overall Dimensions:

30.0"W x 28.0"D x 39.0"H

Product Weight:

206.0 lb

Crescent Ice Production

Produces individual crescent-style cubes for beverage service and efficient dispensing.

High Daily Output

Delivers up to 285 lb. of ice per 24 hours at 70°/50°F; AHRI certified at 210 lb. at 90°/70°F.

Built-In Storage Bin

Integrated front-opening bin stores up to 100 lb. of ice.

Air-Cooled Self-Contained Condenser

Integrated air-cooled system with front-in, front-out airflow and a removable air filter.

CycleSaver Design

Designed to help improve efficiency during ice production cycles.

Stainless Steel Construction

Durable stainless steel exterior and stainless steel evaporator are built for commercial use.

EverCheck Alert System

Built-in alert system helps monitor machine status and service needs.

ADA-Compliant Access

The ice bin opening is ADA compliant for more accessible operation.

R290 Refrigerant and H-GUARD Plus

Uses R290 hydrocarbon refrigerant and H-GUARD Plus antimicrobial protection.

Type Self-Contained Cuber With Built-In Storage Bin
Style Crescent Cube
Installation Type Floor Model
Condenser Type Air-Cooled
Production Per 24 Hr 285 lb. at 70°/50°F; 210 lb. AHRI Certified at 90°/70°F
Capacity 100 lb.
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R290 Hydrocarbon
BTU 5,200 BTU/hr
Voltage 115 Volts
Amps 5.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6.5 Feet
Water Inlet Size 1/2 FPT
Drain Connection Size 3/4 FPT
Shipping Width 30 Inches
Shipping Depth 28 Inches
Shipping Height 39 Inches
Shipping Weight 206 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3 years parts & labor on the entire machine; 5 years coverage on the evaporator; 5 years parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Up to 285 lb. per 24 hours at 70°/50°F, with an AHRI certified rating of 210 lb. per 24 hours at 90°/70°F.
The built-in storage bin holds up to 100 lb. of ice, or about 3.3 cu. ft.
It produces individual crescent-style cubes.
Yes. It is a self-contained, air-cooled model with front-in, front-out airflow and a removable air filter.
It operates on 115V/60/1 power, draws 5.7 amps, and includes a 6.5 ft. cord with a NEMA 5-15P plug.
Factory warranty coverage is 3 years parts & labor on the entire machine, 5 years parts & labor on the evaporator, and 5 years parts on the compressor and air-cooled condenser coil.
