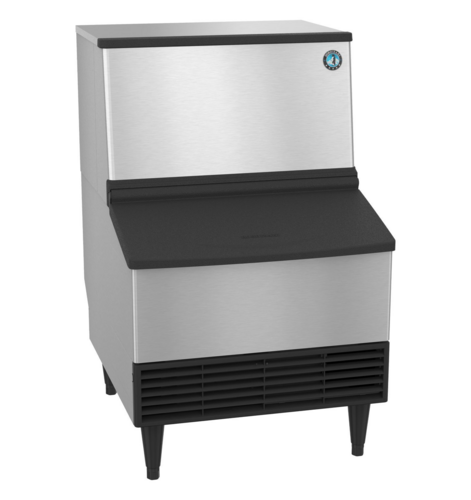

Hoshizaki KM-231BAK Self-Contained Air-Cooled Crescent Cube Ice Maker with Built-In 80 lb Storage Bin, 24 Inch Wide

SKU: KM-231BAK
$3,850.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Hoshizaki Ice Machines Ice Machines with Bins Ice Makers & Bins New Arrivals Restaurant Equipment

Hoshizaki KM-231BAK Self-Contained Air-Cooled Crescent Cube Ice Maker with Built-In 80 lb Storage Bin, 24 Inch Wide

Stainless Steel Exterior, 115V, ADA-Compliant Bin Opening

A compact all-in-one ice maker and storage bin that delivers crescent cubes, strong daily output, and ADA-compliant access in a 24-inch footprint.

  • All-in-one self-contained ice maker with a built-in 80 lb storage bin.
  • Produces up to 223 lb of crescent-style ice per 24 hours; AHRI certified at 163 lb per 24 hours.
  • Air-cooled design with front-in, front-out airflow and a removable air filter.
  • Durable stainless steel exterior and stainless steel evaporator.
  • ADA-compliant ice bin opening for accessible front loading.
  • Runs on standard 115V power with a NEMA 5-15P plug and 6.5 ft cord.

Overall Dimensions:

24.0"W x 28.0"D x 39.0"H

Product Weight:

165.0 lb

Self-Contained Ice Maker With Built-In Bin

Combines the ice machine and storage bin in one compact unit for straightforward installation.

KMEdge Crescent Ice

Produces individual crescent-style cubes.

High Daily Ice Production

Produces up to 223 lb of ice per 24 hours at 70°/50°F; AHRI certified at 163 lb per 24 hours at 90°/70°F.

80 lb Built-In Storage

Integrated bin holds up to 80 lb of ice.

Air-Cooled With Front-In, Front-Out Airflow

Air-cooled condenser design includes a removable air filter for easier service and maintenance.

Stainless Steel Construction

Features a durable stainless steel exterior and stainless steel evaporator.

EverCheck Alert System

Built-in alert system helps monitor machine status.

ADA-Compliant Bin Opening

Front opening bin design is ADA compliant.

R290 Hydrocarbon Refrigerant

Uses environmentally friendly R290 refrigerant.

Standard 115V Power Connection

Includes a 6.5 ft power cord with a NEMA 5-15P plug.

Type Ice Maker with Bin
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Cube Type Crescent
Installation Type Floor Model
Production Capacity 223 lb per 24 Hours
Capacity 80 lb
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R290 Hydrocarbon
Voltage 115 Volts
Amps 5.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6.5 Feet
Breaker Size 15 Amps
Water Inlet Size 1/2 FPT
Drain Connection Size 3/4 FPT
BTU 3,400 BTU/hr
Country of Origin USA
Shipping Width 33 Inches
Shipping Depth 34 Inches
Shipping Height 39 Inches
Shipping Weight 165 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on the entire machine; 5-year coverage on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces up to 223 lb per 24 hours at 70°/50°F, and it is AHRI certified at 163 lb per 24 hours at 90°/70°F.
The built-in storage bin holds up to 80 lb of ice.
It produces individual crescent-style cubes using KMEdge ice-making technology.
It operates on 115V/60/1 power, draws 5.2 amps, and includes a NEMA 5-15P plug with a 6.5 ft cord.
Yes. The ice bin opening is ADA compliant.
Allow space at the rear for water supply and drain connections, at least 2 inches on the right side for airflow, and at least 0.6 inches at the top for service.
