Hoshizaki KM-231BAJ 24" Air-Cooled Self-Contained Crescent Cube Ice Machine With Built-In 80 lb Storage Bin

24" Wide, 115V, Stainless Steel, ADA-Compliant Bin Opening

A compact, self-contained crescent cube ice machine that delivers up to 213 lb of ice per day with integrated 80 lb storage and ADA-compliant access.

  • Produces up to 213 lb of ice per 24 hours, with a 147 lb AHRI certified rating at 90°/70°F.
  • Built-in storage bin holds 80 lb of ice and features an ADA-compliant opening.
  • Air-cooled, self-contained design with front-in/front-out airflow for easier installation.
  • Stainless steel exterior and stainless steel evaporator support durability in busy operations.
  • Includes a 6.5 ft power cord with NEMA 5-15P plug for standard 115V service.
  • CycleSaver design and EverCheck alerts help support efficient operation and maintenance.

Overall Dimensions:

24.0"W x 28.0"D x 39.0"H

Product Weight:

180.0 lb

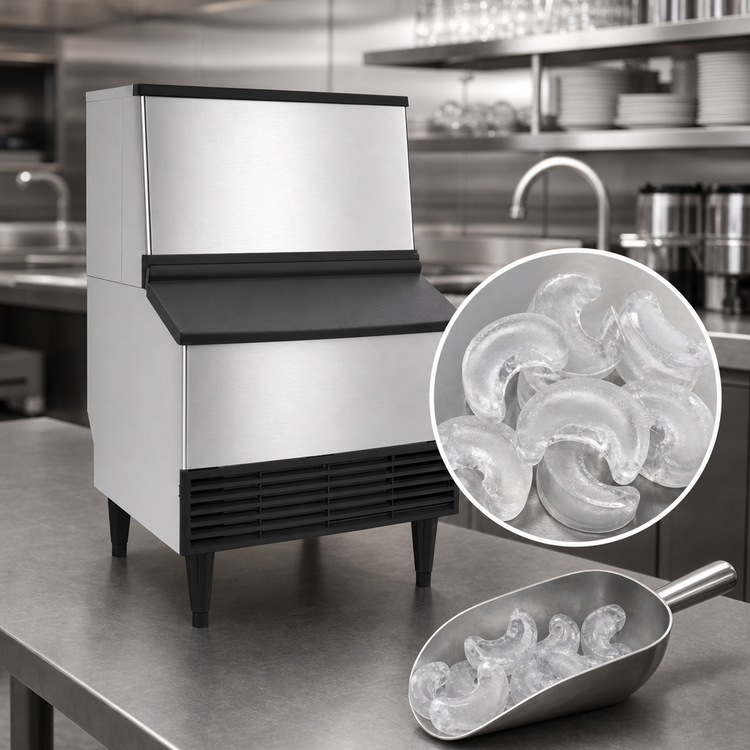

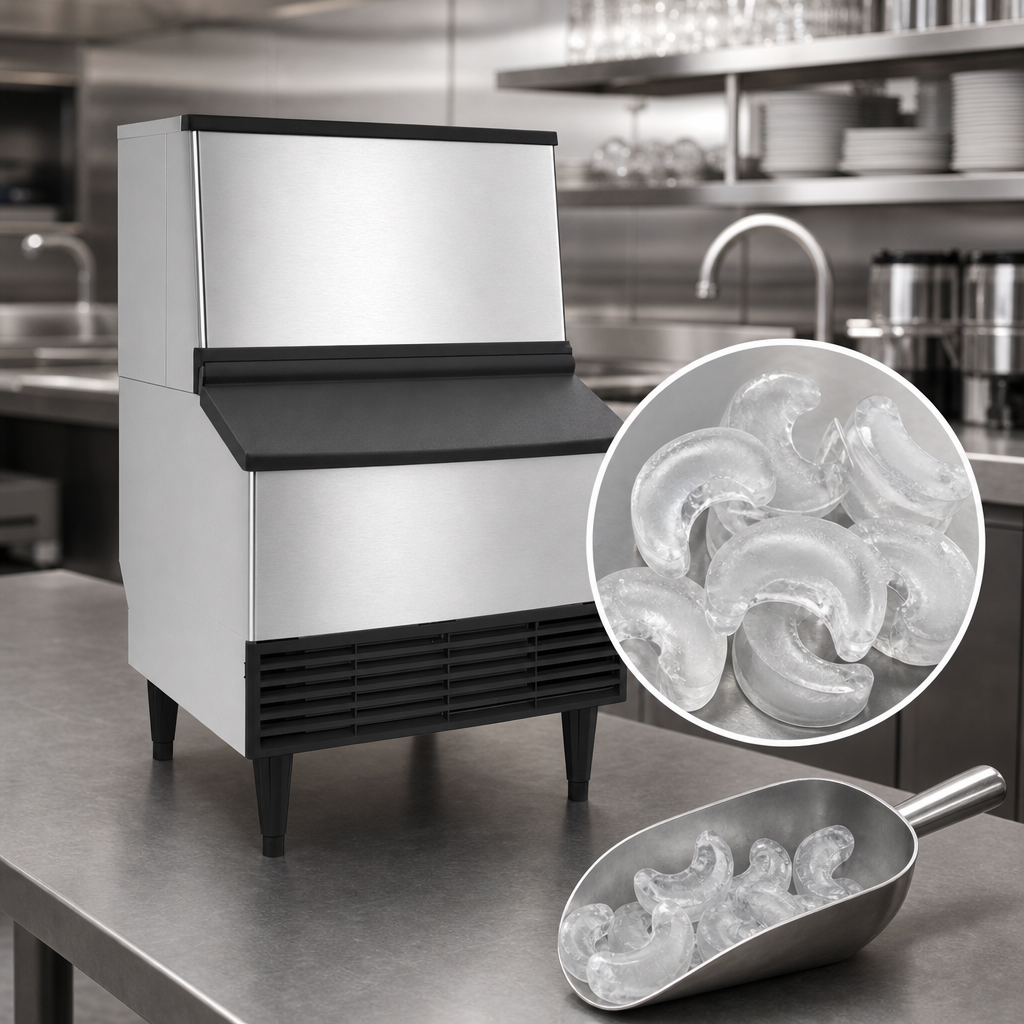

Crescent Cube Ice Production

Produces individual crescent-style cubes for consistent ice service.

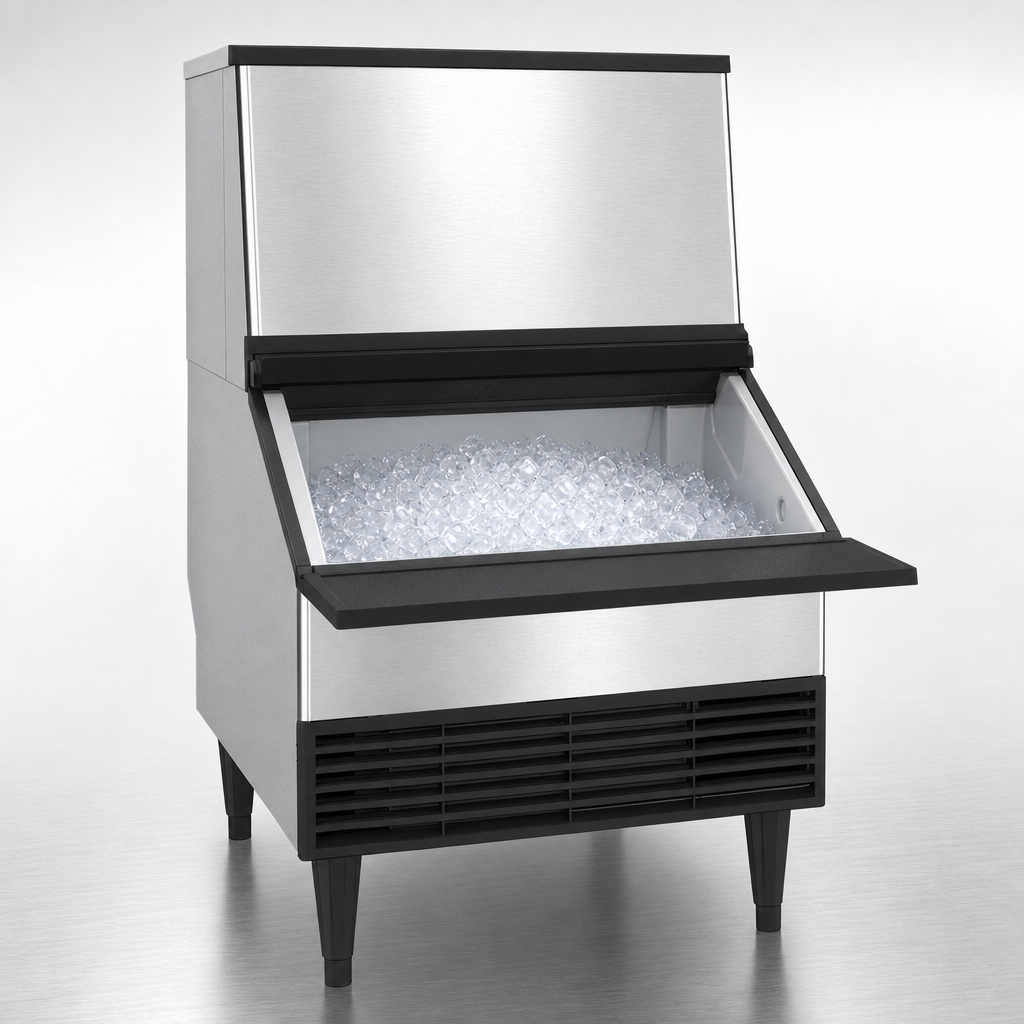

Built-In 80 lb Storage Bin

Integrated storage keeps ice close at hand in a compact footprint.

Air-Cooled, Self-Contained Design

Built-in condenser simplifies installation and uses front-in/front-out airflow.

Stainless Steel Construction

Stainless steel exterior and evaporator are designed for commercial durability.

CycleSaver Design

Helps improve operational efficiency by optimizing harvest cycles.

EverCheck Alert System

Built-in alerting helps simplify monitoring and maintenance.

ADA-Compliant Bin Opening

Front opening is designed to meet ADA compliance requirements.

Removable Air Filter

Easy-to-remove filter helps simplify cleaning on the air-cooled model.

Type Ice Machine With Bin
Style Crescent Cube
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Installation Type Floor Model
Capacity 80 lb.
Production Capacity 213 lb per 24 Hours at 70°/50°F; 147 lb AHRI Certified at 90°/70°F
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R-404A
Voltage 115 Volts
Amps 6.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6.5 Feet
Breaker Size 15 Amps
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 FPT
Drain Connection Size 3/4 FPT
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Depth 33 Inches
Shipping Height 39 Inches
Shipping Weight 165 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor on the entire machine; 5-year parts and labor on the evaporator; 5-year parts on the compressor and air-cooled condenser coil.

Documents

PDF Cutsheet PDF Download PDF Ice machine brochure PDF Download PDF Kmedge cuber flyer PDF Download PDF Service manual PDF Download PDF Ice maker calculator PDF Download PDF Parts manual PDF Download PDF Flyer PDF Download PDF Warranty PDF Download PDF Cleaning sheets PDF Download PDF Installation & operation PDF Download PDF Video PDF Download

Frequently Asked Questions

It produces up to 213 lb of ice per 24 hours at 70°/50°F, with a 147 lb AHRI certified rating at 90°/70°F.
The built-in storage bin holds 80 lb of ice, or about 2.7 cubic feet.
Yes, the ice bin opening is ADA compliant.
It runs on 115V/60/1 power, draws 6.5 amps, and includes a NEMA 5-15P plug with a 6.5 ft cord.
The unit requires water and drain connections, with a 1/2 FPT water inlet and a 3/4 FPT drain connection.
The cutsheet notes that this model is replaced by KM-231BAK.
