Hoshizaki KM-2200SWJ3 Ice Machines
Description

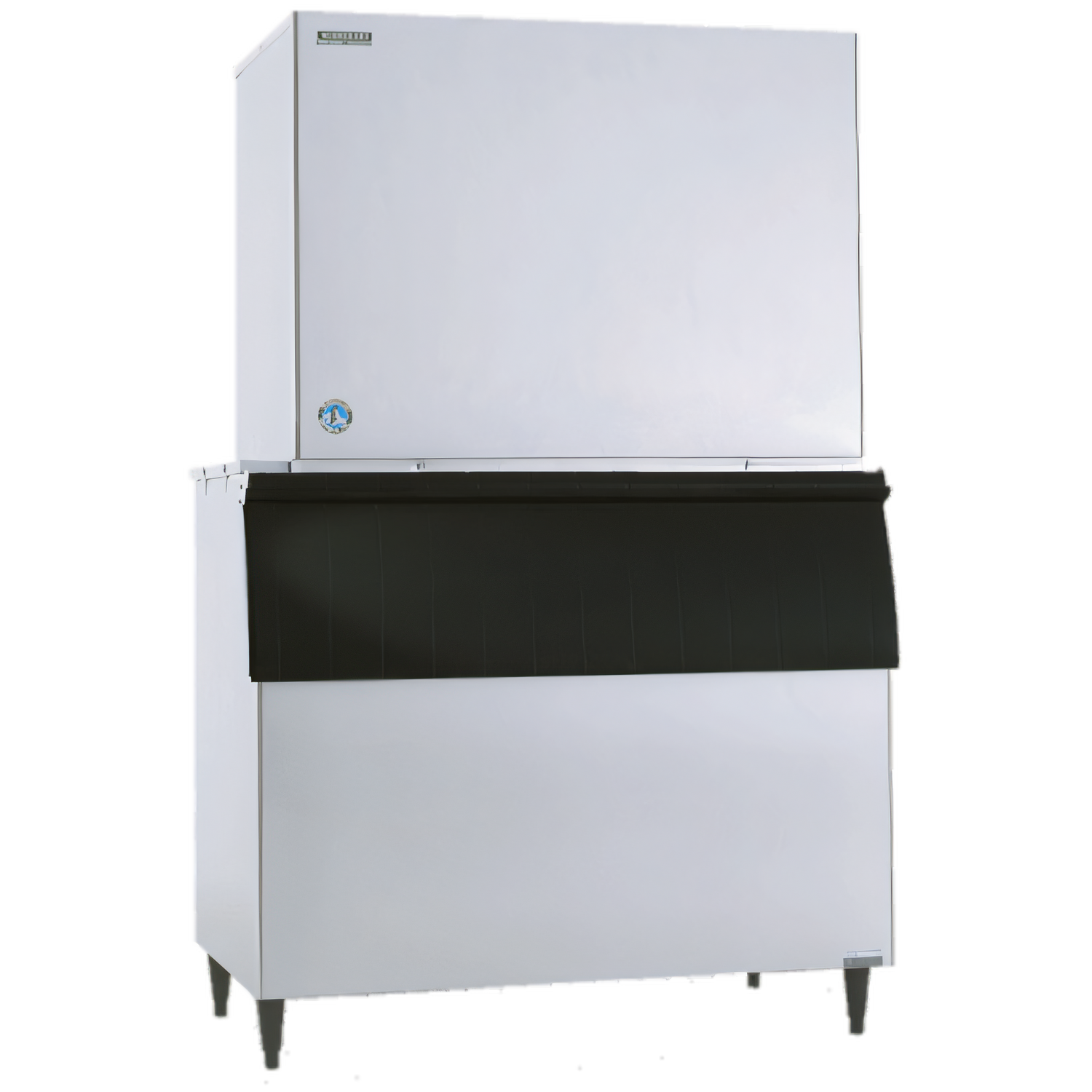

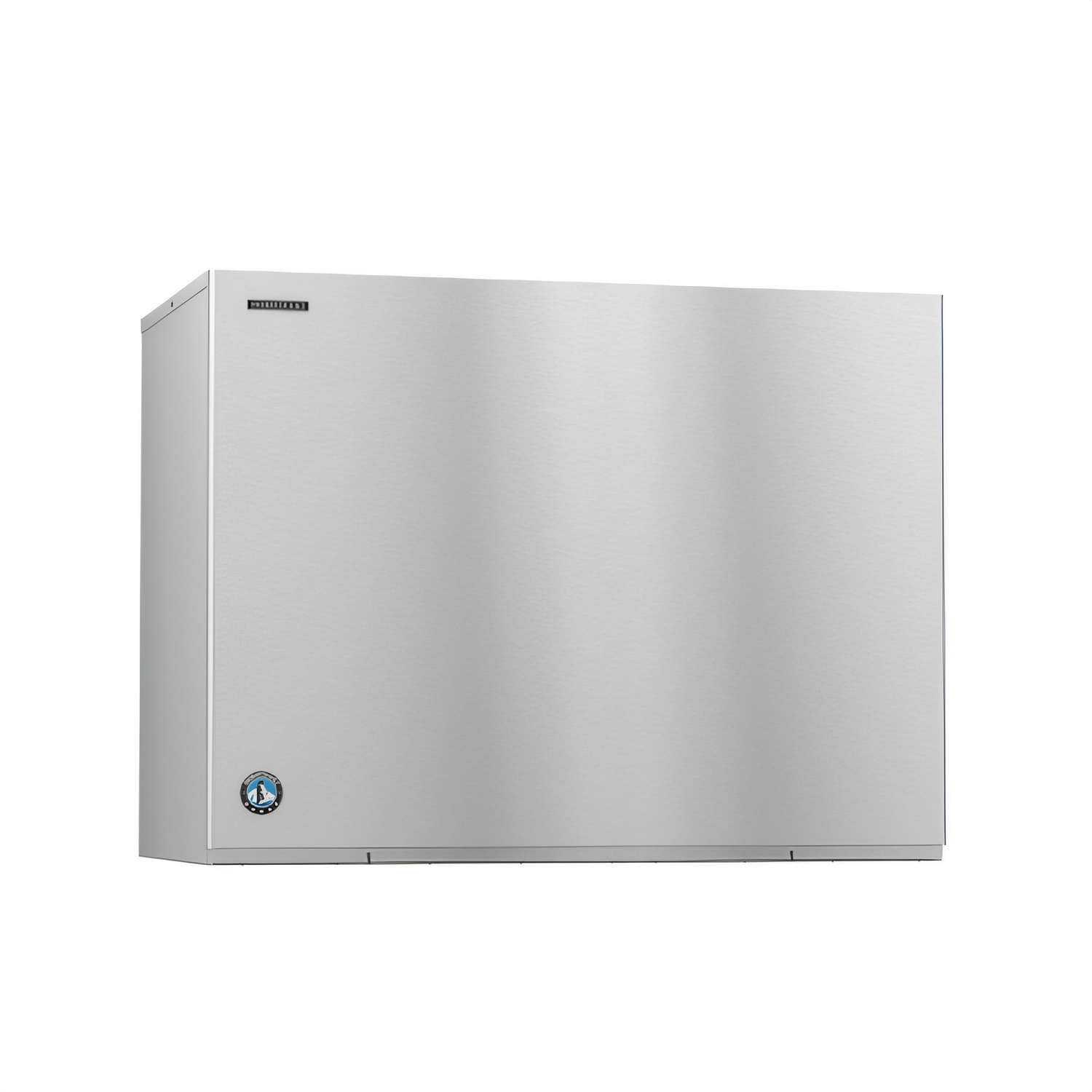

Hoshizaki KM-2200SWJ3 Stackable Crescent Cube Ice Machine
Water-Cooled • Self-Contained • 3-Phase • 2221 lb/dayBuilt for the busiest kitchens, hotels, hospitals, and institutions, the KM-2200SWJ3 cranks out a colossal 2,221 lb of crystal-clear crescent ice every 24 hours while occupying only 48 inches of bin space. Its self-contained, water-cooled condenser keeps heat and noise away from guests and staff, and when demand explodes a second head can be stacked to double production to 4,442 lb/day.
Why It Beats Conventional Cubers
- Massive production – 2,221 lb/24 hr at 70 °F air / 50 °F water (2,200 lb AHRI at 90 °F/70 °F).

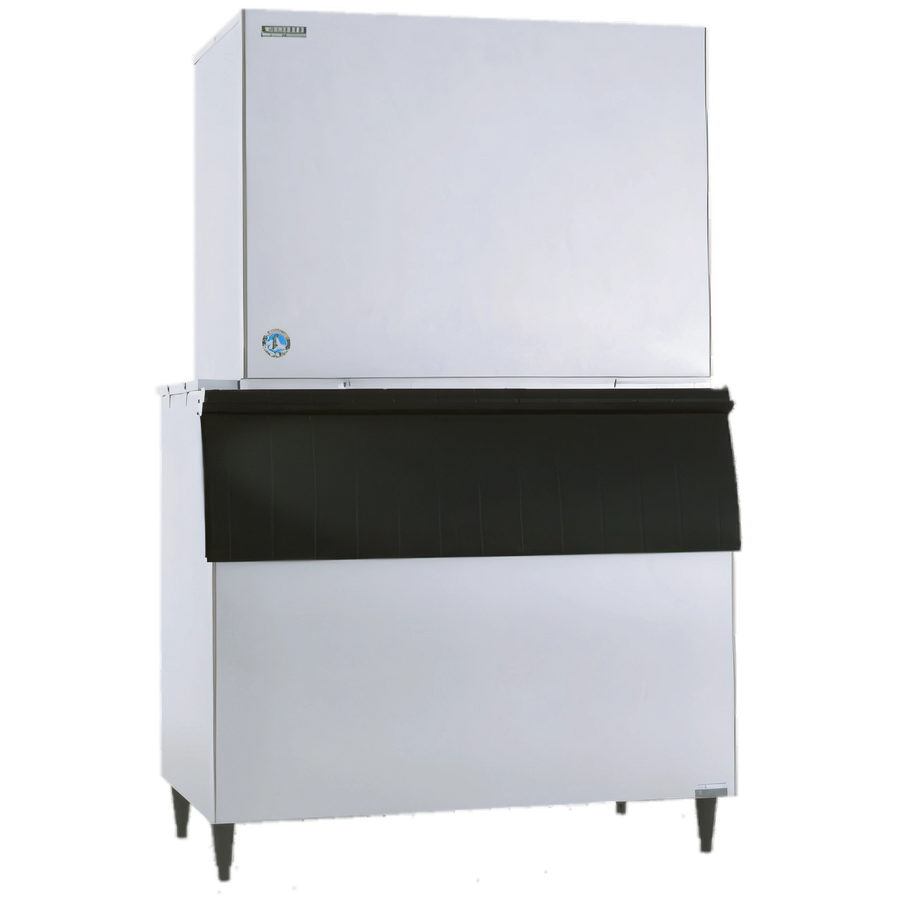

- Stackable design lets you double output without increasing your footprint.
- KMEdge™ dual-sided stainless steel evaporator for faster cycles and higher efficiency.
- Individual crescent cubes (1 1/8" W × 1 1/2" H × 1 1/2" D) resist clumping, displace more beverage, and melt slowly for superior drink quality.
- CycleSaver™ technology makes the same ice in roughly half the cycles of traditional machines, lowering wear and energy use.
- EverCheck™ system sounds an audible alert and displays diagnostic codes for quick service calls.
- Rugged stainless steel exterior with front-removable panels for easy, single-tech servicing.
- Uses environmentally responsible R-404A refrigerant.
- NSF & UL listed for food-safe, code-compliant operation.
Performance & Utilities
| Ice type | Crescent cube, individual & crystal-clear |
|---|---|
| Daily production | 2,221 lb @ 70 °F/50 °F 2,200 lb @ 90 °F/70 °F (AHRI) |
| Potable water usage | 15 gal per 100 lb of ice |
| Condenser water usage | 95 gal per 100 lb of ice |
| Energy consumption | 3.11 kWh per 100 lb of ice |
| Heat rejection | 27,200 BTU/hr |
| Refrigerant | R-404A (2 lb 16 oz charge) |
| Electrical | 208-230 V / 60 Hz / 3-ph, 12.8 A |
| Minimum circuit | 30 A, 4-wire (incl. ground) |
Dimensions & Shipping
| Unit size (W × D × H) | 48" × 27 3/8" × 36 7/16" |
|---|---|
| Shipping dimensions | 51 3/4" × 33" × 42.5" |
| Net / ship weight | ≈ 390 lb / 400 lb |
Installation Parameters
- Ambient temperature: 45 – 100 °F
- Water temperature: 45 – 90 °F
- Water pressure: 10 – 113 PSIG
- Voltage range: 187 – 253 V
- Provide 6" clearance at rear, sides & top for service.
Need tamper-proof security? Order stainless panel kit HS-5255 for correctional or institutional installations.
