Hoshizaki KM-2200SRJZ3 Ice Machines
Description

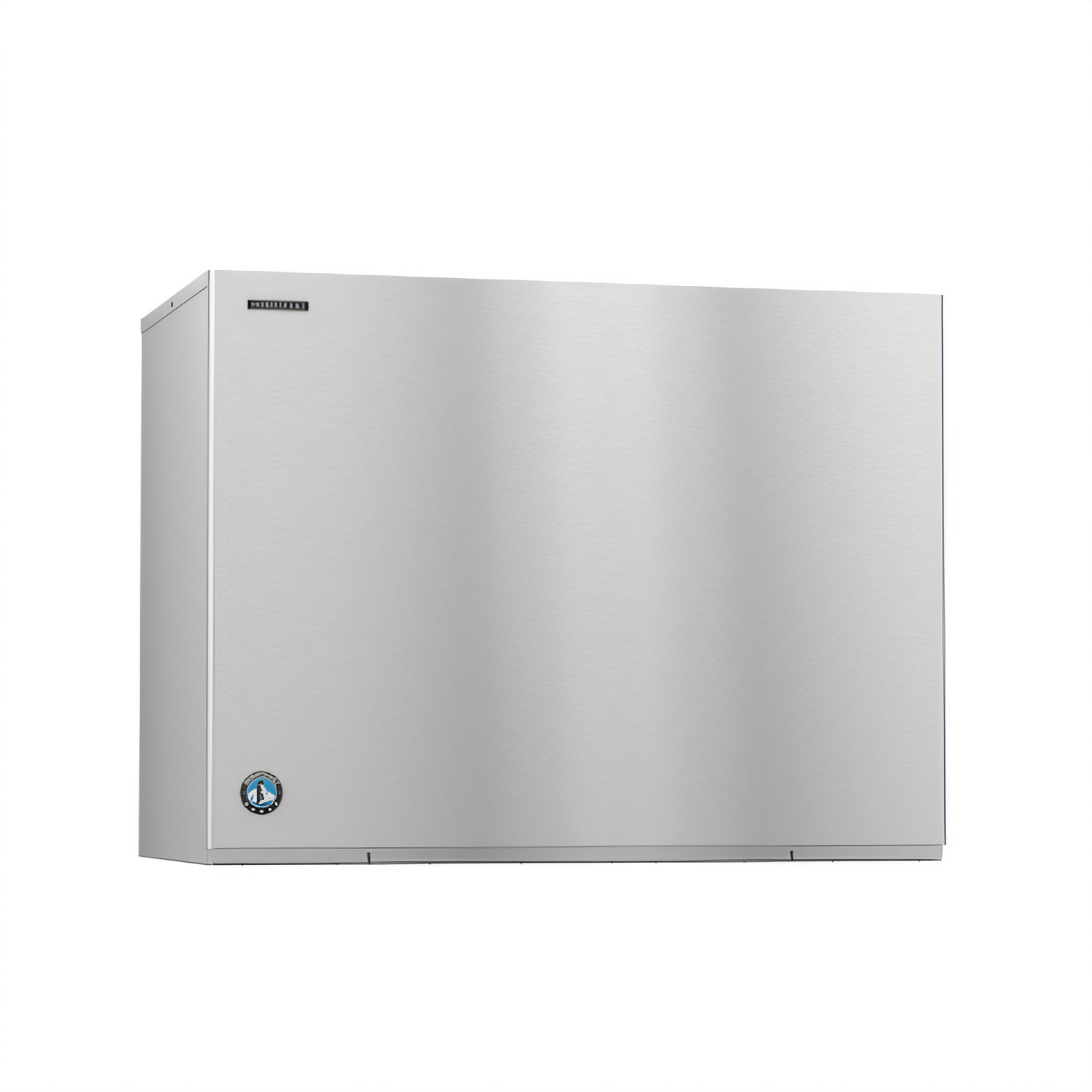

Hoshizaki KM-2200SRJZ3 Remote Air-Cooled Stackable Ice Cuber
48"-wide crescent cube maker – up to 2206 lb / 24 hr • ENERGY STAR®Power through the busiest service with Hoshizaki’s high-capacity KM-2200SRJZ3. Engineered for demanding food-service and hospitality operations, this 3-phase, remote air-cooled ice machine delivers more than a ton of pristine crescent cubes every day while cutting energy, water and maintenance costs.
Why Choose the KM-2200SRJZ3?
- Massive Output: Up to 2206 lb per 24 hrs at 70 °F air / 50 °F water (AHRI-rated 2075 lb at 90 °F / 70 °F).
- Stackable Design: Double your production (4,442 lb) in the same footprint by stacking two units.
- Crescent Cube Excellence: Individual cubes resist clumping, maximize bin storage, and cool drinks faster.
- Stainless Steel Inside & Out: Durable exterior panels and a stainless steel evaporator for corrosion-free operation.
- H-GUARD Plus Antimicrobial: Mold- and slime-fighting protection on food zone components.
- CycleSaver™ & EverCheck™: Fewer cycles save energy; audible & visual alerts simplify service.
- ENERGY STAR® Certified: Low 3.75 kWh per 100 lb helps control utility costs.
- R-404A Refrigerant: Proven performance in high-volume commercial environments.
Perfect For
- Large restaurants & banqueting venues
- Hotels & convention centers
- Healthcare & institutional cafeterias
- Convenience stores & supermarkets
- Stadium, arena & entertainment concessions
Technical Specifications
| Model | KM-2200SRJZ3 (Remote, Air-Cooled, 3-Ph) |
|---|---|
| Ice Type / Size | Crescent cube – approx. 1 1/8" W × 1 1/2" L × 1/2" H |
| Production @ 70 °F / 50 °F | 2206 lb / 24 hr |
| AHRI Certified @ 90 °F / 70 °F | 2075 lb / 24 hr |
| Energy Use | 3.75 kWh per 100 lb |
| Water Use | 15 gal potable per 100 lb (90 °F / 70 °F) |
| Electrical | 208-230 V / 60 Hz / 3-phase, 15.9 A (20 A min. circuit) |
| Heat Rejection | 26,700 BTU/hr |
| Refrigerant | R-404A |
| Dimensions (WxDxH) | 48" × 27 3/8" × 36 7/16" |
| Net / Ship Weight | 390 lb / 400 lb |
| Certifications | NSF, UL, cULus, ENERGY STAR® |
Installation Notes

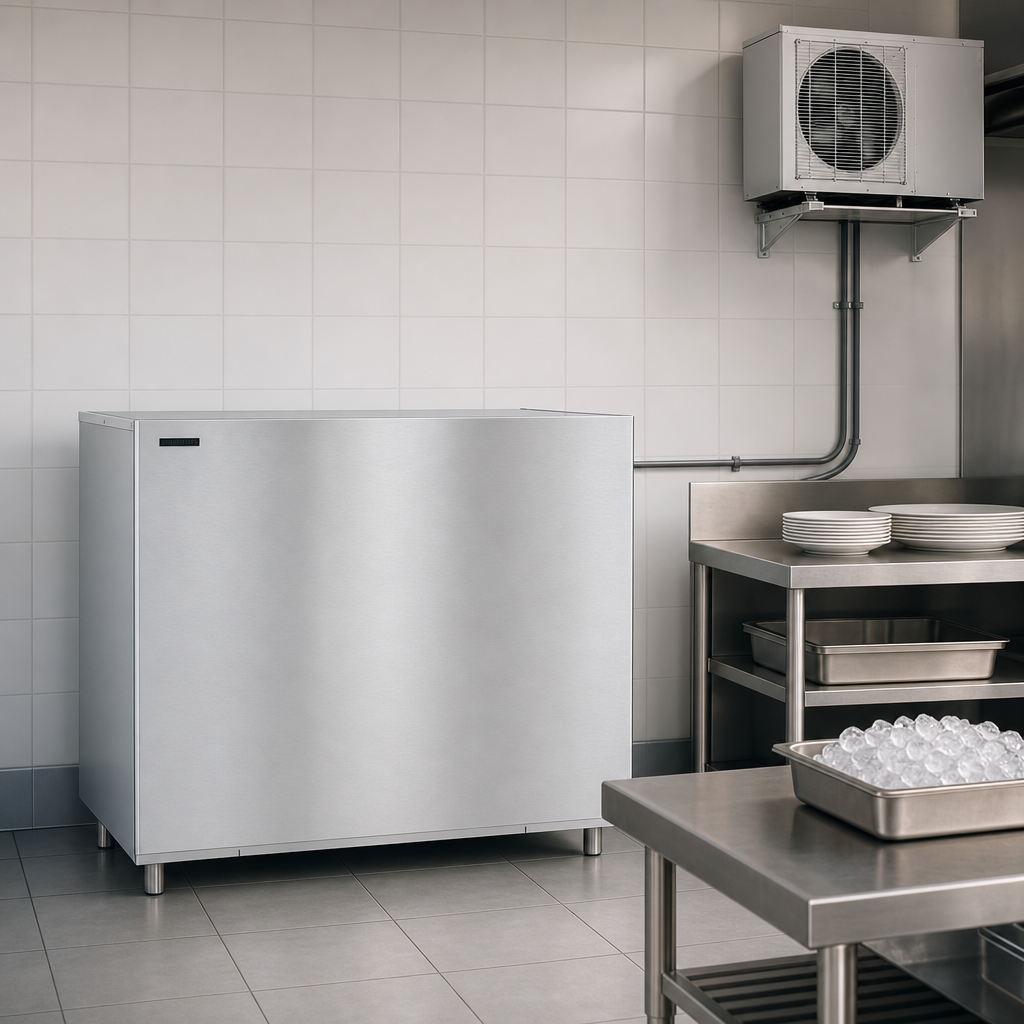

- Remote Condenser: Requires Hoshizaki URC-22FZ “Z” model condenser (sold separately). Always pair “Z” model ice machines with matching “Z” condensers.
- Ice Storage Bins: Fits B-800, B-900, B-1150SS, B-1300SS, B-1500SS & B-1650SS bins (top kit may be required).
- Allow 6" clearance at rear, sides & top for service and airflow.
- Ambient operating range 45 °F – 100 °F; water 45 °F – 90 °F; water pressure 10 – 113 PSI.
Warranty Coverage
3-year parts & labor warranty on the entire ice machine, plus 5-year parts warranty on compressor & evaporator (USA, Canada & U.S. territories).
Hoshizaki reserves the right to change specifications without notice.
