Hoshizaki

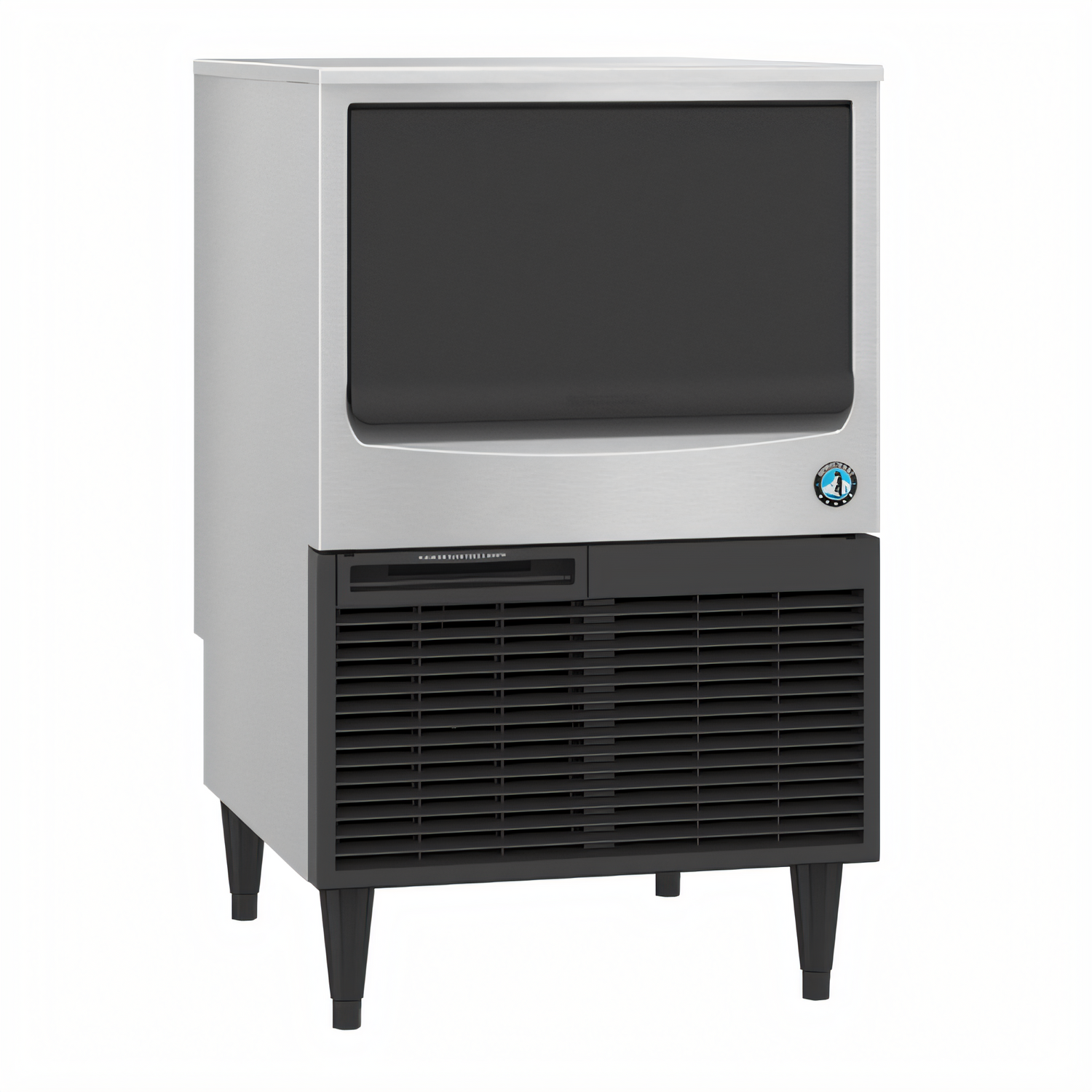

Hoshizaki Cube-Style Ice Maker With 78 lb Built-In Bin, Water-Cooled, Crescent Ice

SKU: KM-161BWJ
$3,710.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Hoshizaki Ice Machines Ice Machines with Bins Ice Makers & Bins New Arrivals Restaurant Equipment

Hoshizaki Cube-Style Ice Maker With 78 lb Built-In Bin, Water-Cooled, Crescent Ice

23-3/4 Inch Wide, Self-Contained Condenser, 115V

This compact, water-cooled ice maker and bin combo delivers crescent-style ice with dependable 78 lb storage in a stainless steel cabinet.

  • Produces up to 153 lb of crescent ice per 24 hours at 70°F/50°F conditions.
  • AHRI certified output is 135 lb per 24 hours at 90°F/70°F.
  • Built-in bin stores up to 78 lb of ice and opens from the front for easy access.
  • Water-cooled, self-contained condenser supports dependable operation.
  • Stainless steel exterior with 6" painted legs for a durable, elevated design.
  • NSF, UL, and cETLus listed, and ADA compliant.

Overall Dimensions:

23.75"W x 28.25"D x 39.0"H

Product Weight:

160.0 lb

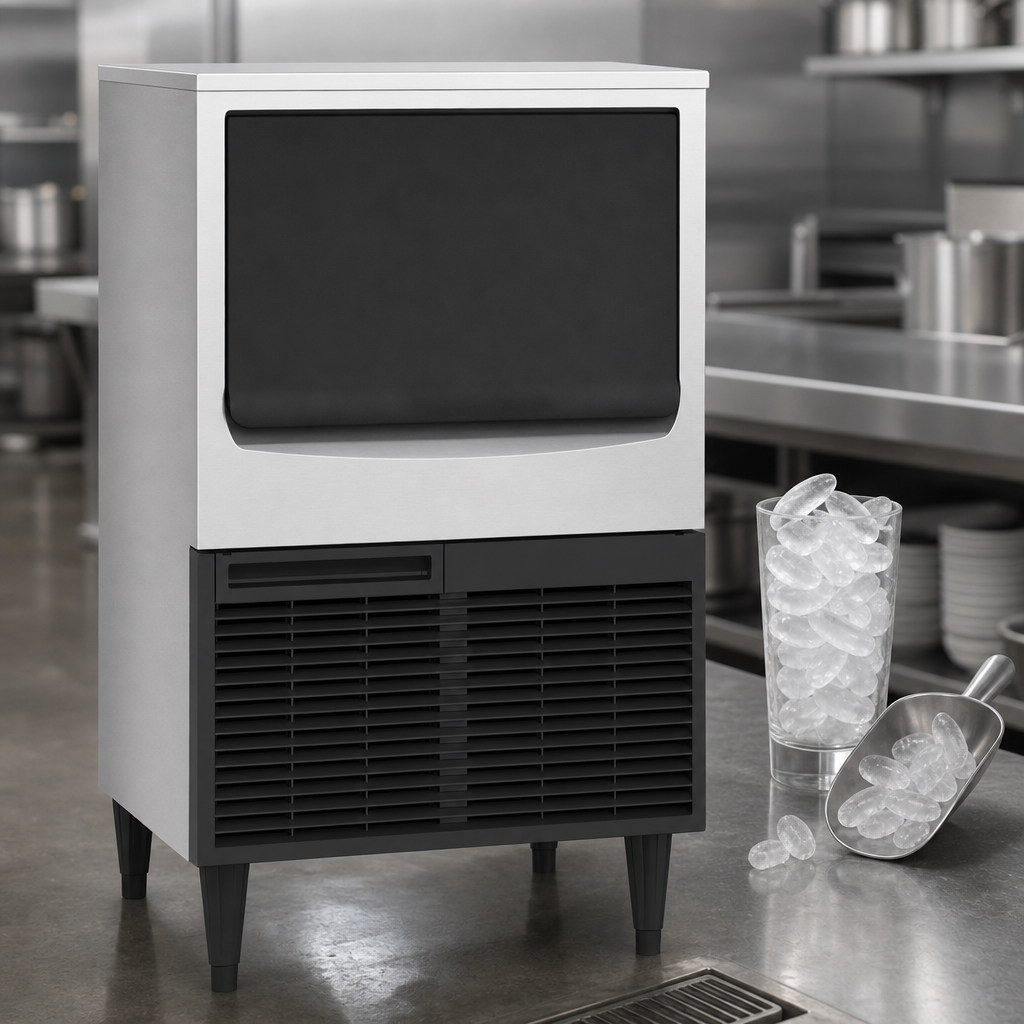

Crescent Ice Production

Makes crescent-style ice cubes.

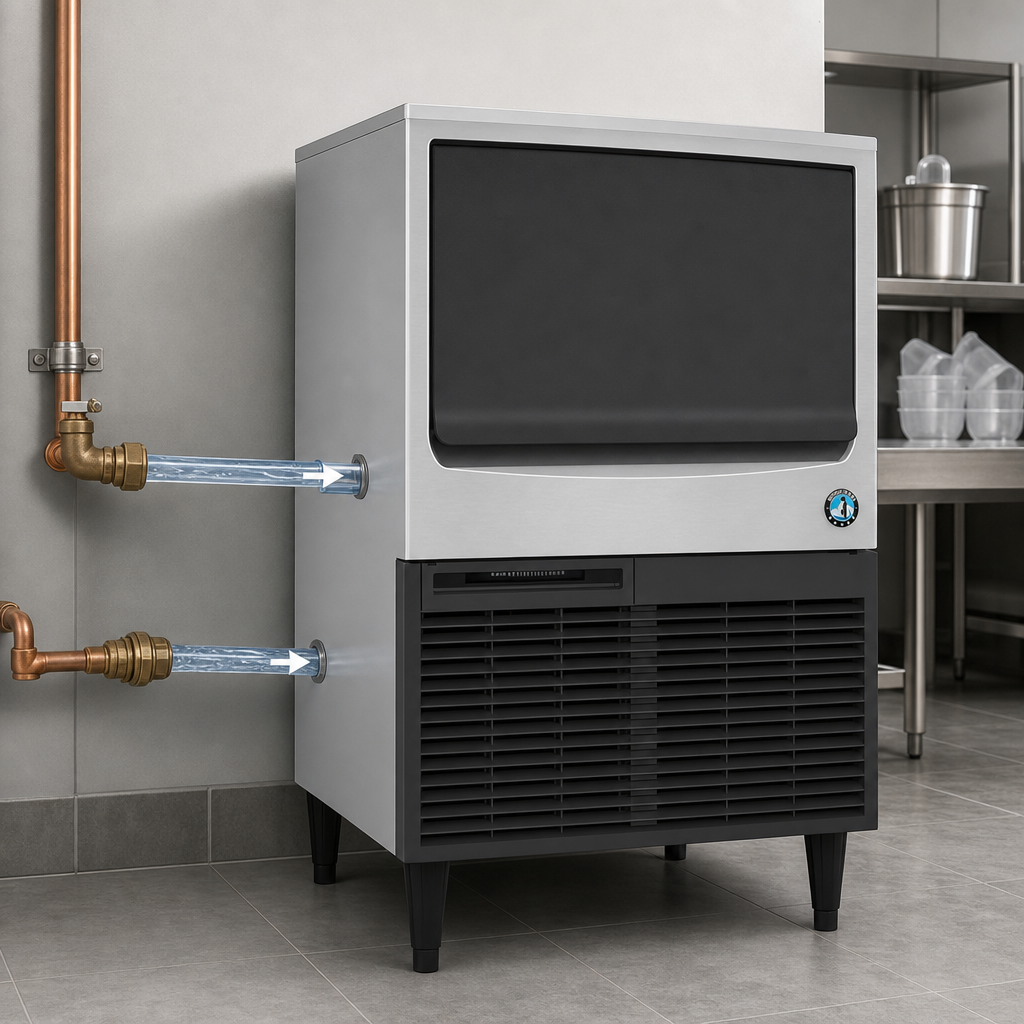

Water-Cooled Condenser

Uses a water-cooled, self-contained condenser.

Built-In Ice Storage Bin

Includes a 78 lb built-in ice storage capacity.

Front-Opening Bin

Front access makes ice retrieval more convenient.

High Daily Output

Produces up to 153 lb per 24 hours at 70°F/50°F; AHRI certified at 135 lb per 24 hours at 90°F/70°F.

Stainless Steel Exterior

Durable stainless steel finish for a professional look.

Compact Floor-Standing Design

23-3/4" wide unit with 6" painted legs.

Electrical Requirements

Operates on 115V/60Hz, single-phase power at 6.4 amps.

Type Ice Maker With Bin
Style Cube-Style
Installation Type Floor Model
Capacity 78 lb
Production Capacity 153 lb per 24 Hours at 70°F/50°F
Condenser Type Water-Cooled
Cube Type Crescent
Material Stainless Steel
Finish Stainless Steel
Voltage 115 Volts
Amps 6.4 Amps
Phase 1-Phase
Hertz 60 Hz
Shipping Width 24 Inches
Shipping Depth 29 Inches
Shipping Height 39 Inches
Shipping Weight 160 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Cleaning sheets PDF Download PDF Kmedge cuber flyer PDF Download PDF Ice machine brochure PDF Download PDF Installation & operation PDF Download PDF Flyer PDF Download PDF Video PDF Download PDF Service manual PDF Download PDF Parts manual PDF Download PDF Ice maker calculator PDF Download

Frequently Asked Questions

It produces crescent-style ice cubes.
It produces up to 153 lb per 24 hours at 70°F/50°F conditions.
The built-in bin holds up to 78 lb of ice.
Yes, it uses a water-cooled, self-contained condenser.
It requires 115V, 60 Hz, single-phase power and draws 6.4 amps.
Yes, it is ADA compliant.
