Hoshizaki KM-1301SWJ3 Ice Machines
Description

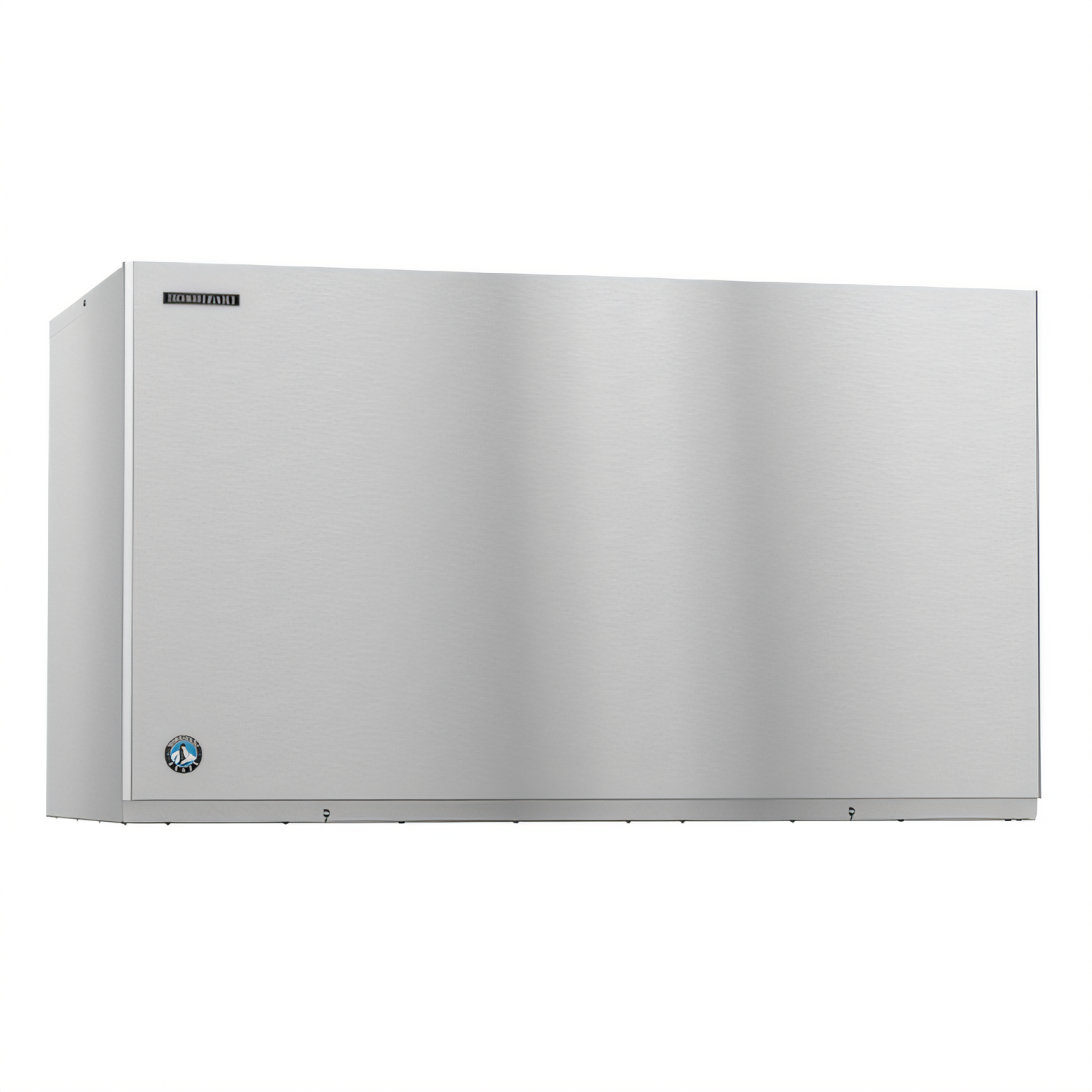

Hoshizaki KM-1301SWJ3 Stackable Crescent Ice Machine
48" water-cooled • up to 1,360 lb / 24 hr • 208-230 V | 3-phaseBuilt for high-volume beverage programs, the KM-1301SWJ3 produces up to 1,360 pounds of Hoshizaki’s signature crescent ice every 24 hours while keeping heat and noise out of the kitchen with its water-cooled, self-contained condenser. Durable stainless-steel construction, smart diagnostics and energy-saving CycleSaver™ technology make this stackable ice head the reliable choice for restaurants, bars, convenience stores and healthcare facilities that simply can’t run out of ice.
Why you’ll love it

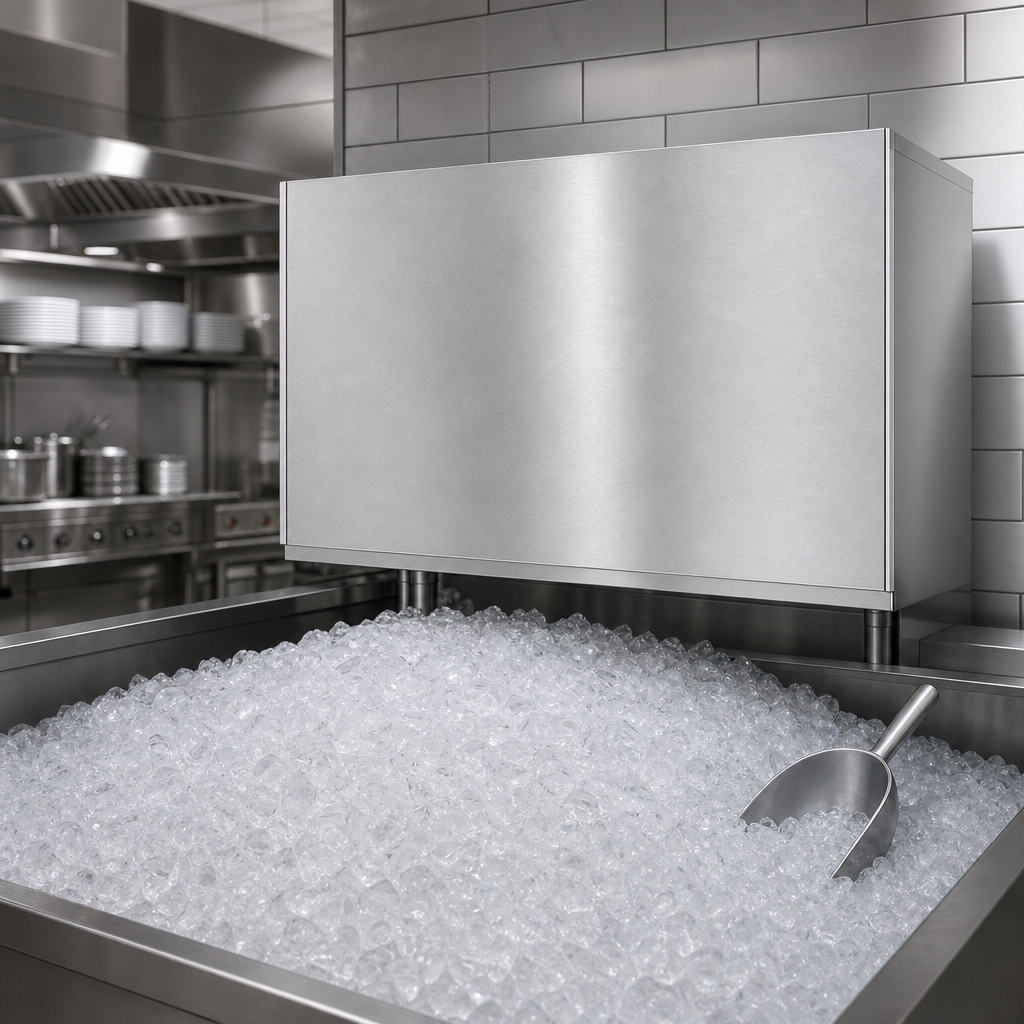

- Massive production: 1,360 lb at 70 °F air / 50 °F water (1,355 lb AHRI at 90 °F/70 °F).

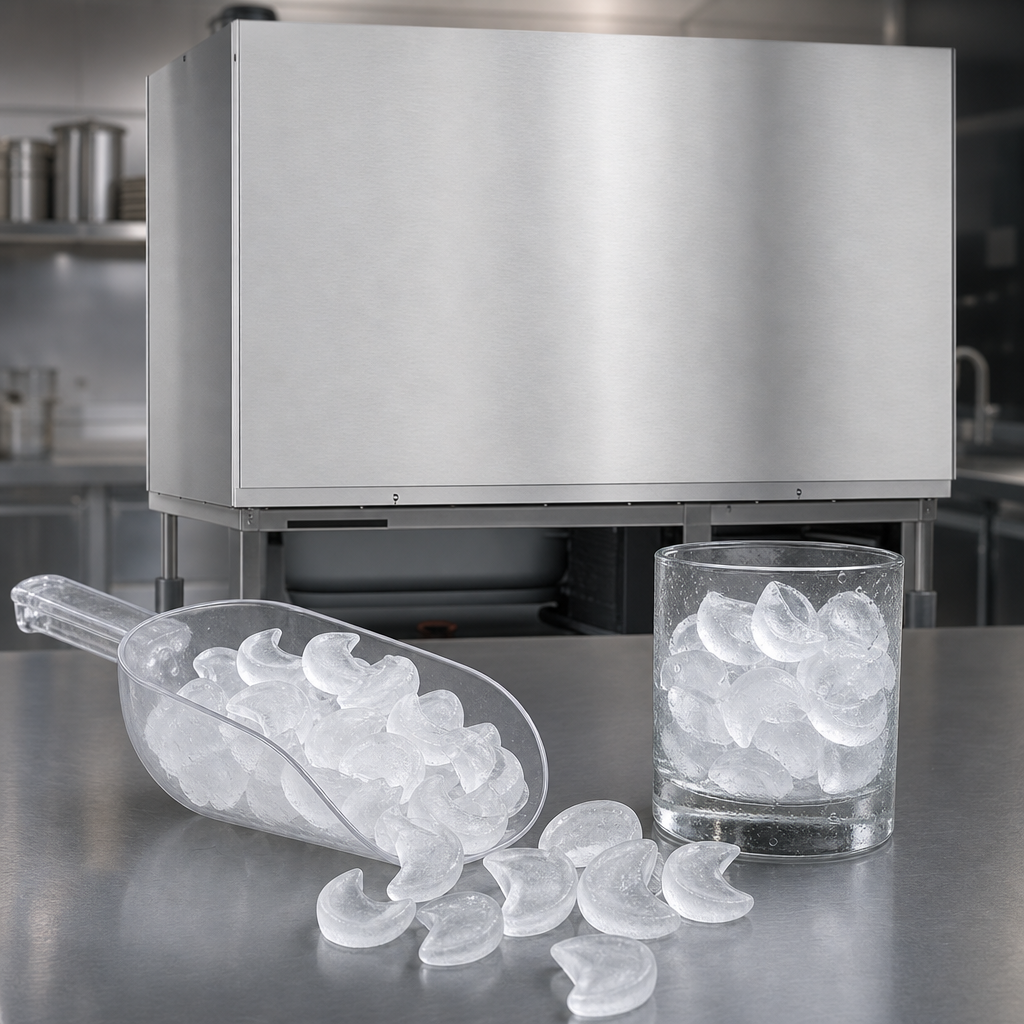

- Crescent cubes: Hard, crystal-clear ice (approx. 1 ⅛" × ½"); pack tightly to chill drinks faster and reduce waste.
- Water-cooled, self-contained condenser keeps ambient noise & heat to a minimum—ideal for hot kitchens.
- CycleSaver™ design delivers the same ice in roughly half the cycles of traditional cubers, lowering wear and utility costs.
- EverCheck™ control board provides audible & visible alerts to speed troubleshooting and reduce downtime.
- Stackable platform: add a second KM-1301S head to double capacity in the same 48" x 27⅜" footprint.
- Stainless-steel exterior & dual-sided evaporator for maximum durability and long service life.
- NSF, UL and AHRI certified; uses R-404A refrigerant.
Ice production & consumption
| Rated capacity (70 °F / 50 °F) | 1,360 lb / 24 hr |
|---|---|
| AHRI capacity (90 °F / 70 °F) | 1,355 lb / 24 hr |
| Potable water use | 16.0 gal per 100 lb of ice |
| Condenser water use | 95 gal per 100 lb of ice |
| Energy consumption | 3.25 kWh per 100 lb (90 °F / 70 °F) |
Electrical & utilities
| Voltage / phase | 208-230 V / 60 Hz / 3-phase |
|---|---|
| Running amps | 6.1 A |
| Minimum circuit | 20 A, 4-wire (including ground) |
| Heat rejection | 20,100 BTU/hr |
| Water supply pressure | 10 – 113 PSI |
| Ambient temp range | 45 – 100 °F |
| Water temp range | 45 – 90 °F |
Dimensions & weight
| Equipment footprint (W × D × H) | 48" × 27 ⅜" × 27 ⅜" |
|---|---|
| Net / ship weight | 295 lb / 335 lb |
| Shipping carton (L × W × H) | 51.75" × 33" × 33" | 32.6 ft³ |
| Clearance for service | 6" at sides, rear and top |

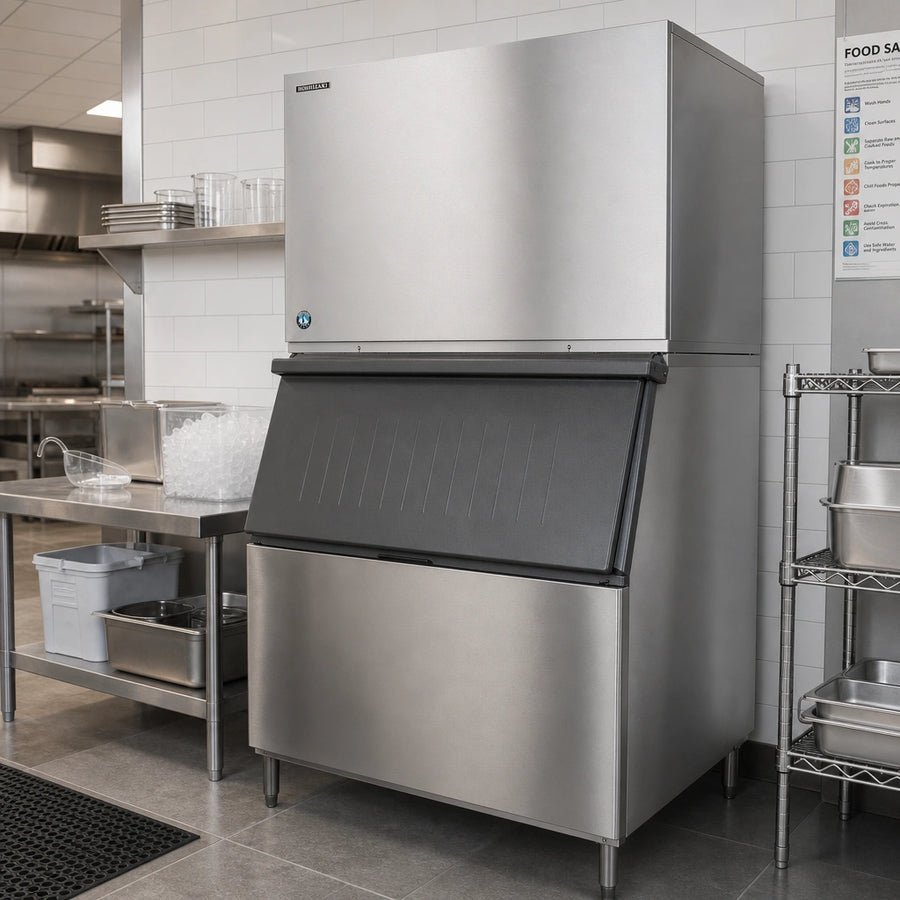

Popular ice storage bin pairings
- B-800 (700 lb), B-900 (770 lb)
- B-1150SS (1,050 lb) | B-1300SS (1,250 lb)
- B-1500SS (1,480 lb) | B-1650SS (1,605 lb)
Top-mounting kit may be required—see individual bin spec sheets.
Best-in-class warranty
- 3-year parts & labor on the entire ice machine
- 5-year parts & labor on the stainless-steel evaporator
- 5-year parts on compressor
- Valid in U.S., Canada, Puerto Rico & U.S. territories
To keep ice clean and extend equipment life, Hoshizaki recommends filter replacement every six months and a full clean & sanitize at least once per year.
